ACT Subaru 04-20 WRX STI Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

Description

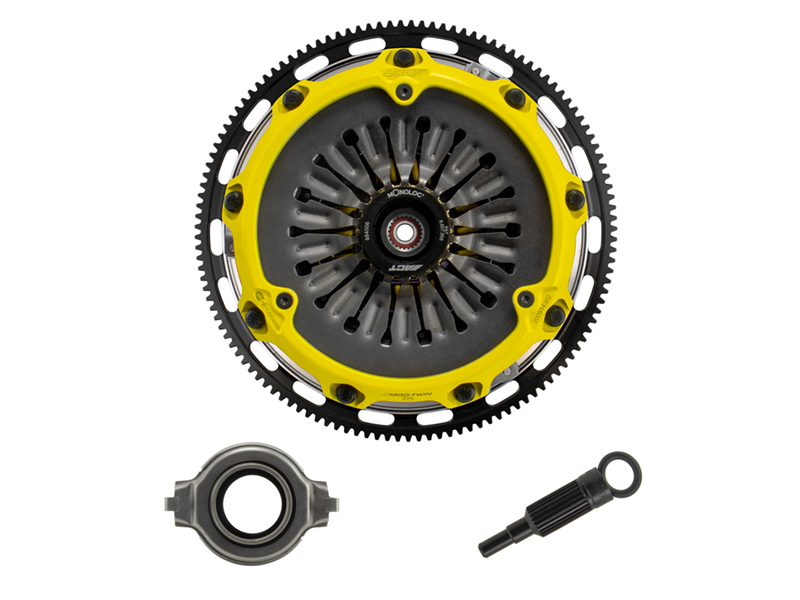

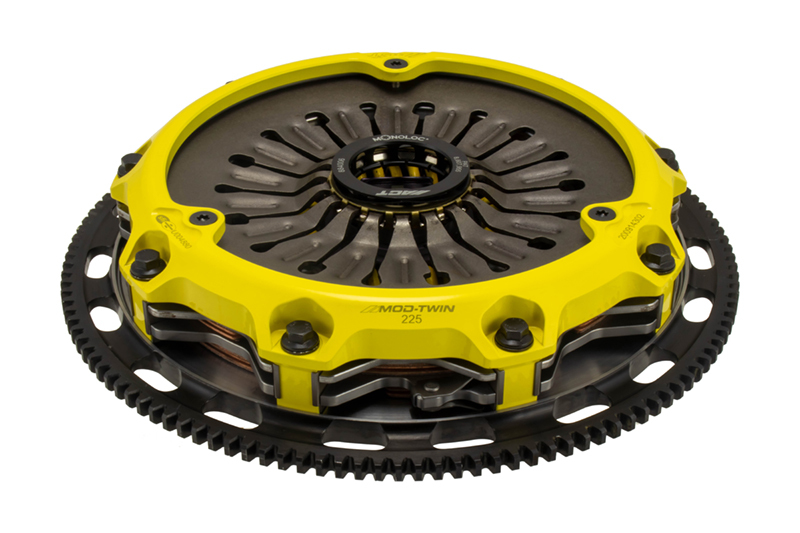

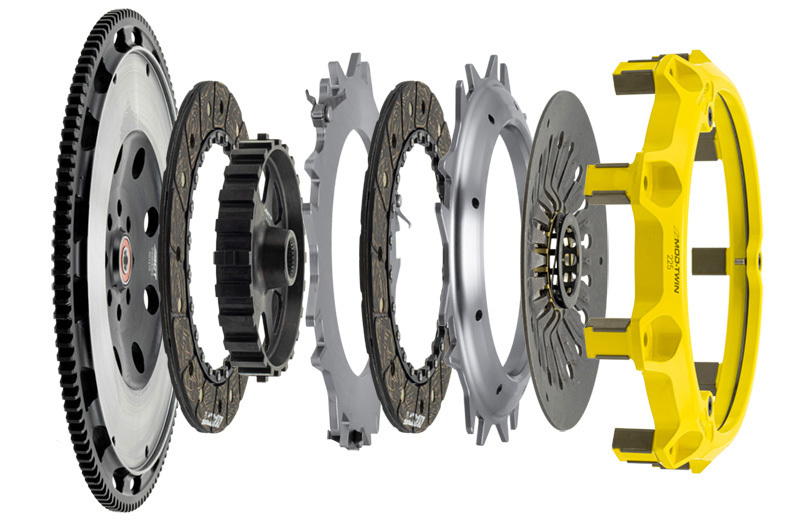

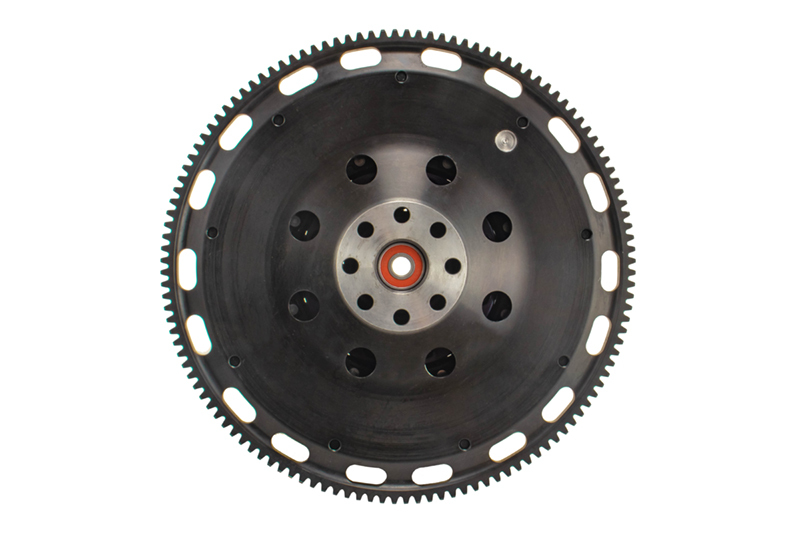

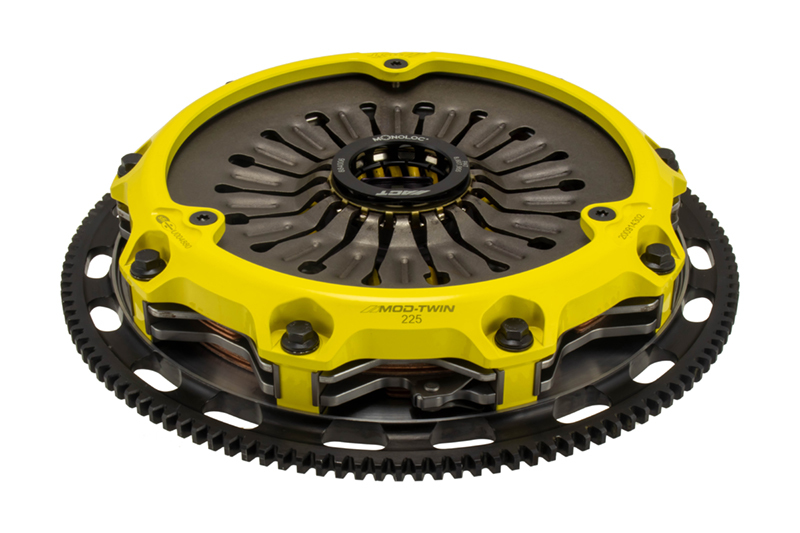

T1S-S07 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Mod-Twin 225 HD Rigid Street
Soft progressive engagement, light pedal effort, smooth shifting, with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Fitment:
Subaru Impreza WRX STI 2004
Subaru Impreza WRX STI 2005
Subaru Impreza WRX STI 2006
Subaru Impreza WRX STI 2007
Subaru Impreza WRX STI 2008
Subaru Impreza WRX STI 2009
Subaru Impreza WRX STI 2010
Subaru Impreza WRX STI 2011
Subaru Impreza WRX STI 2012
Subaru Impreza WRX STI 2013
Subaru Impreza WRX STI 2014
Subaru Impreza WRX STI Limited 2007
Subaru Impreza WRX STI Limited 2011
Subaru Impreza WRX STI Limited 2012
Subaru Impreza WRX STI Limited 2013
Subaru Impreza WRX STI Limited 2014
Subaru Impreza WRX STI Special Edition 2010
Subaru WRX STI Base 2015
Subaru WRX STI Base 2016
Subaru WRX STI Base 2017
Subaru WRX STI Base 2018
Subaru WRX STI Base 2019
Subaru WRX STI Base 2020
Subaru WRX STI Base 2021
Subaru WRX STI Launch Edition 2015
Subaru WRX STI Limited 2015
Subaru WRX STI Limited 2016
Subaru WRX STI Limited 2017
Subaru WRX STI Limited 2018
Subaru WRX STI Limited 2019
Subaru WRX STI Limited 2020
Subaru WRX STI Limited 2021
Subaru WRX STI S209 2019
Subaru WRX STI Series.HyperBlue 2016
Subaru WRX STI Type RA 2018
