Camburg KINETIK Series Billet Upper Control Arms for Ford Raptors 2017-2024

Description

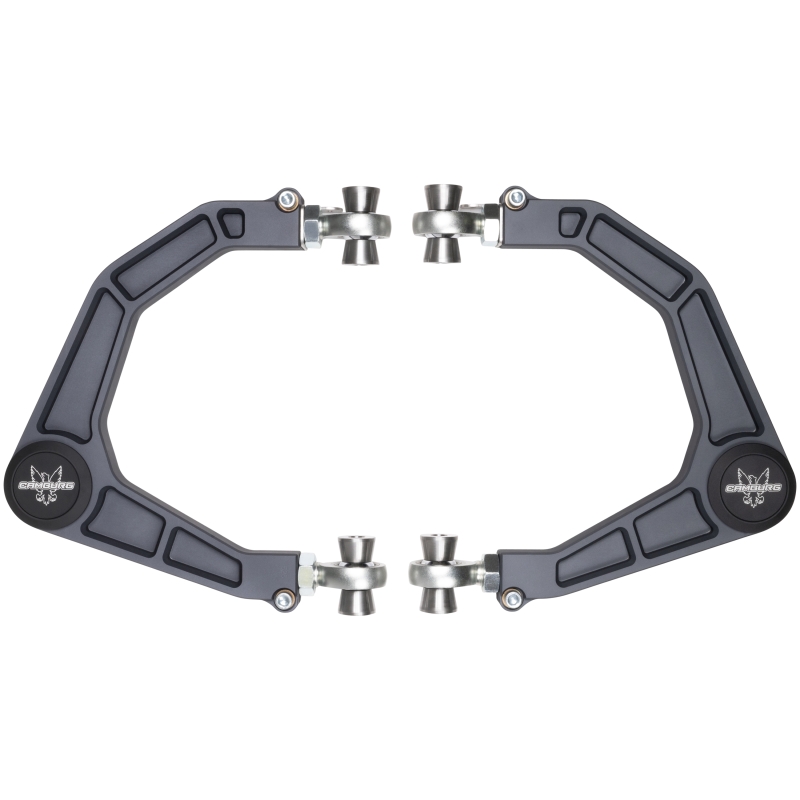

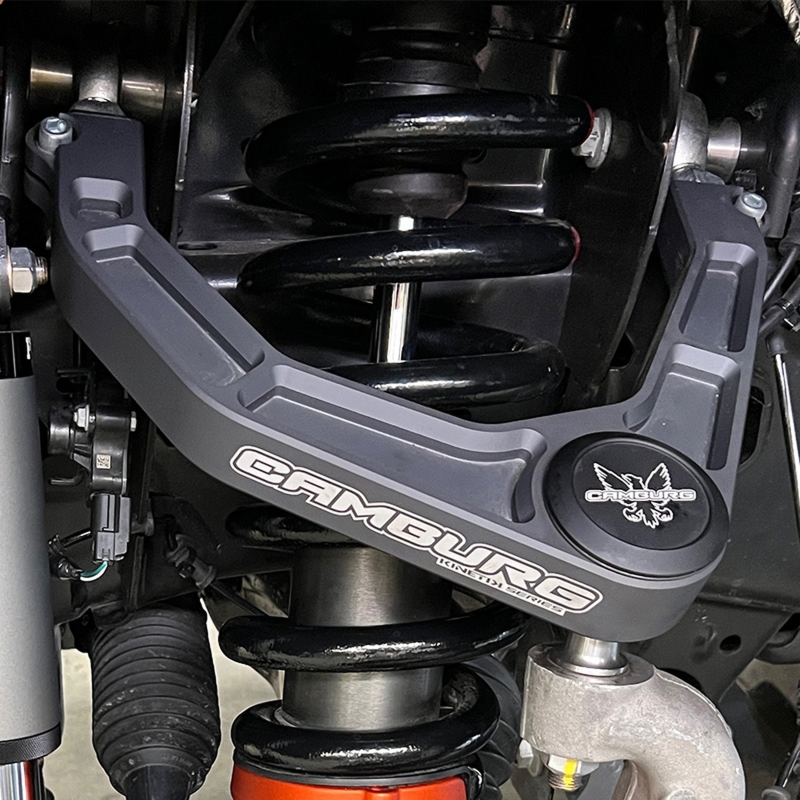

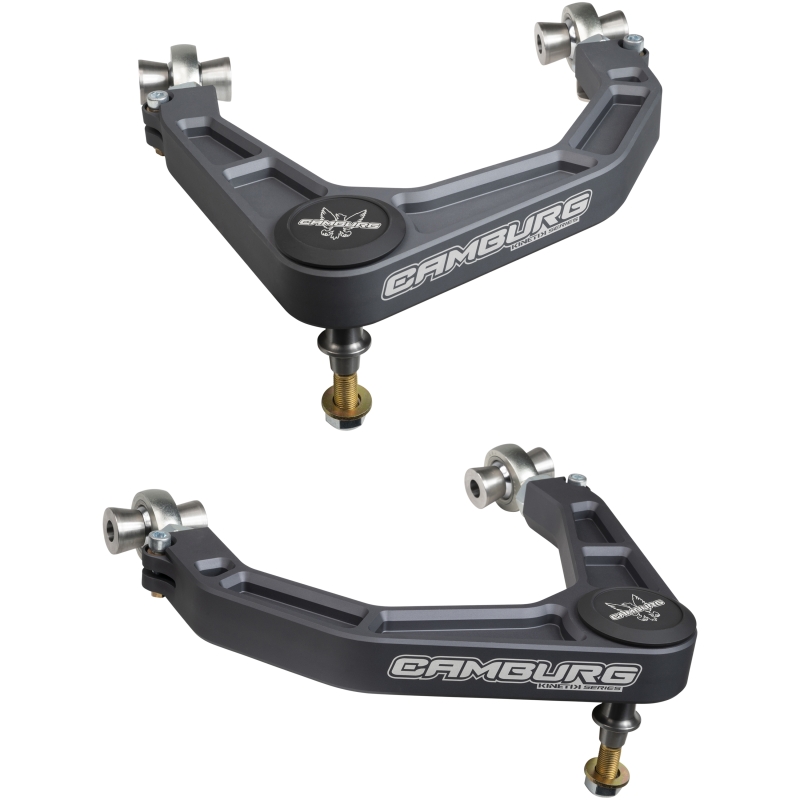

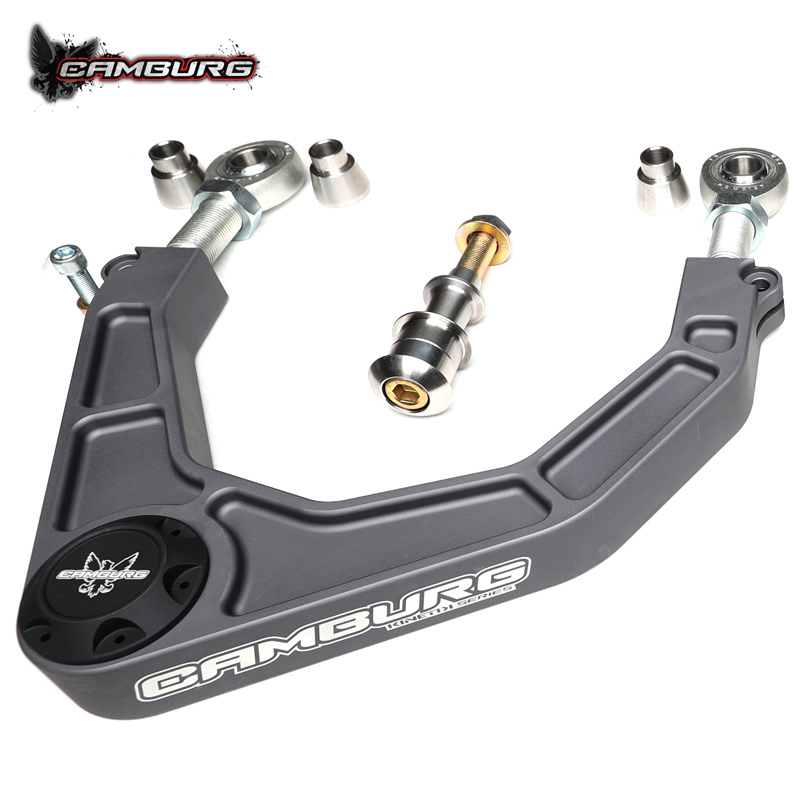

Upgrade your Ford Raptor with Camburg’s KINETIK Series billet upper control arms, designed specifically for models from 2017 to 2024, including the 2019+ with FOX Live Valve electronic suspension. These arms are CNC machined from aerospace-grade 6061 billet aluminum, ensuring high strength and durability. The bead-blasted, Type II anodized gunmetal gray finish provides corrosion resistance and a sleek appearance, with laser-etched Camburg logos that demonstrate quality craftsmanship.
These control arms feature a larger FK 1.25-inch uniball with a PTFE liner, offering increased strength, improved mis-alignment, and maximum wheel travel. Adapted with model-specific spacers made from heat-treated stainless steel, the design guarantees a precise fit without the need for drilling or modifications. The 1.25-inch uniball is paired with a robust 9/16-inch 12-point bolt and a low-profile press-on uniball cap, ensuring resistance against the elements and extended durability.

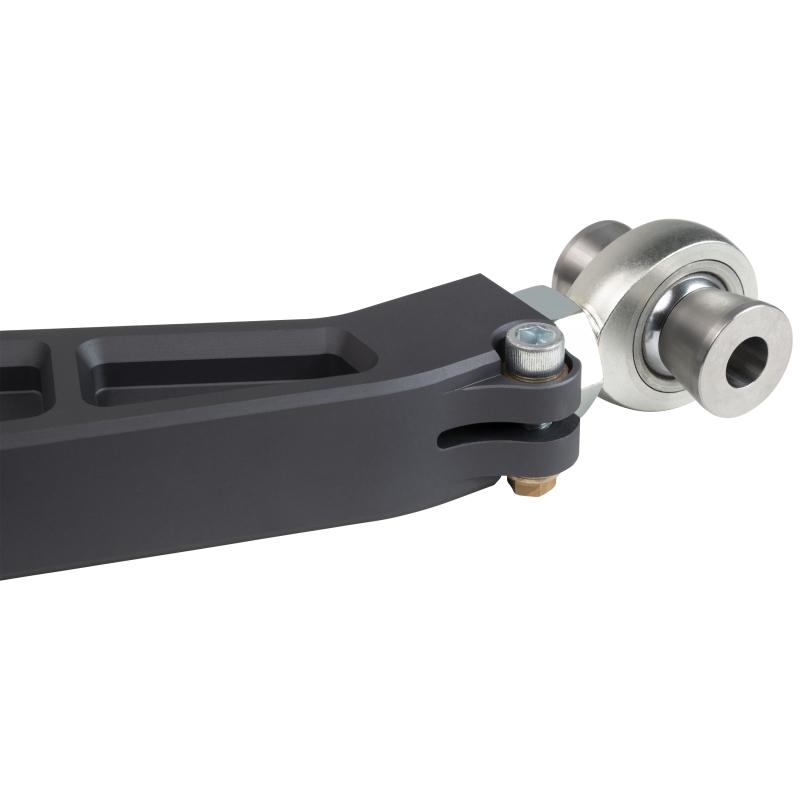

For enhanced handling and alignment, the arms support optional camber and caster adjustments through larger FK 7/8-inch chromoly heim joints, which resist flex and deflection under aggressive driving conditions. The included AN/Mil-spec hardware, such as a pinch bolt and secondary jam nut, secures the heim joints firmly in place. For 2019+ models equipped with integrated sensors, stainless brackets and a drill template are provided for proper sensor linkage attachment.

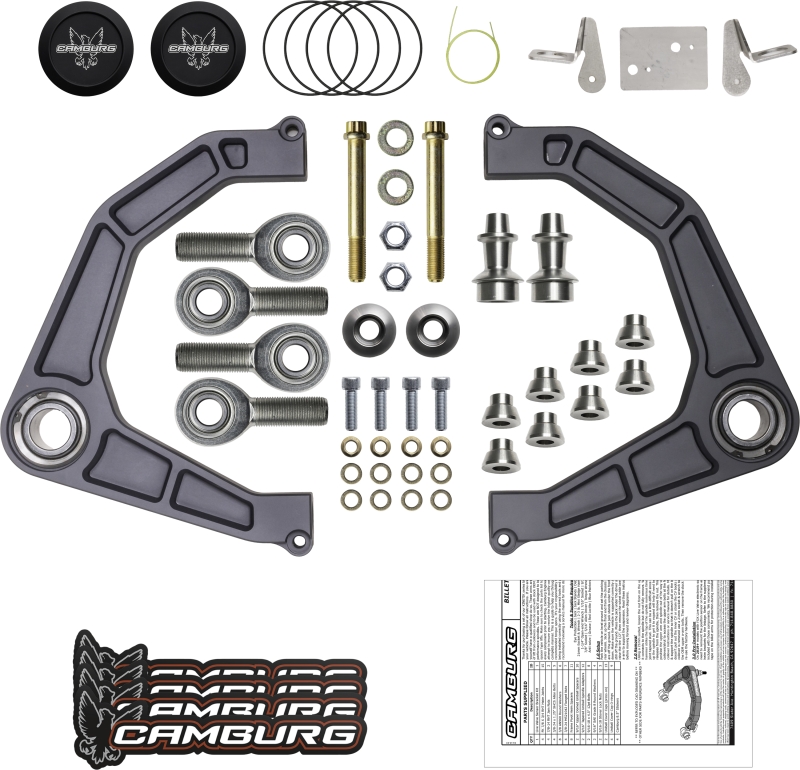

The V2 design of these control arms increases wheel travel, corrects camber and caster angles, and replaces weak factory ball-joints, offering a significant upgrade in performance and durability. Installation hardware is included, and the arms are compatible with 1-3 inches of lift. When using factory 17-inch wheels, a spacer may be needed for larger tires, with recommendations for zero offset wheels with 5 inches of backspacing to optimize clearance.
Adjustments such as trimming inner fenders or modifying body mounts may be necessary to prevent tire rubbing, depending on wheel and tire choices. Whether for off-road adventures or enhanced on-road performance, Camburg’s upper control arms provide a reliable, high-performance upgrade for your Ford Raptor.

Features:

• Eliminates weak factory ball-joints

• Increases usable wheel travel

• Corrects camber and caster angles

Fitment:
Ford F-150 Raptor 2017
Ford F-150 Raptor 2018
Ford F-150 Raptor 2019
Ford F-150 Raptor 2020
Ford F-150 Raptor 2021
Ford F-150 Raptor 2022
Ford F-150 Raptor 2023
Ford F-150 Raptor 2024
Ford F-150 Raptor R 2023
Ford F-150 Raptor R 2024
