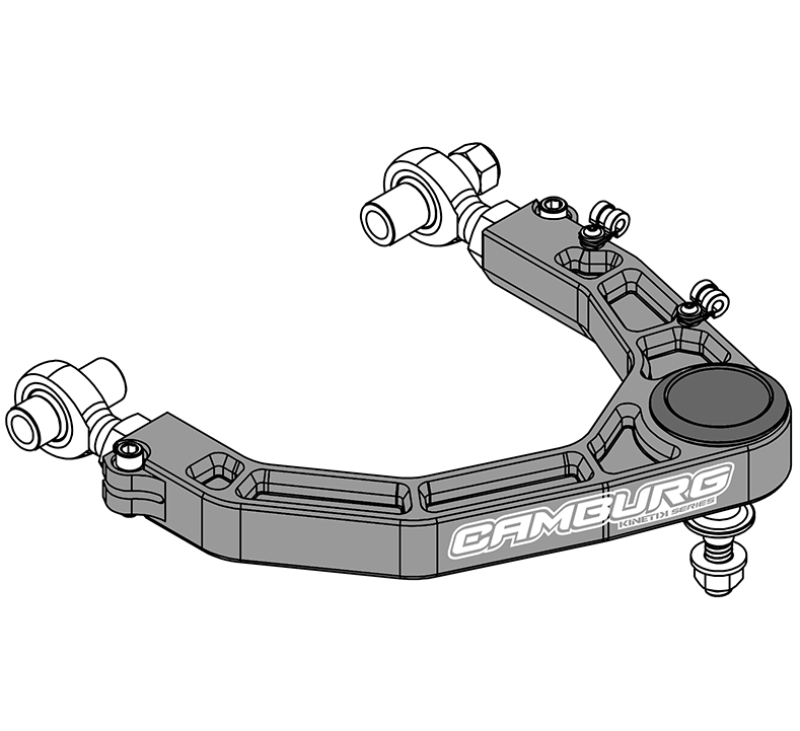

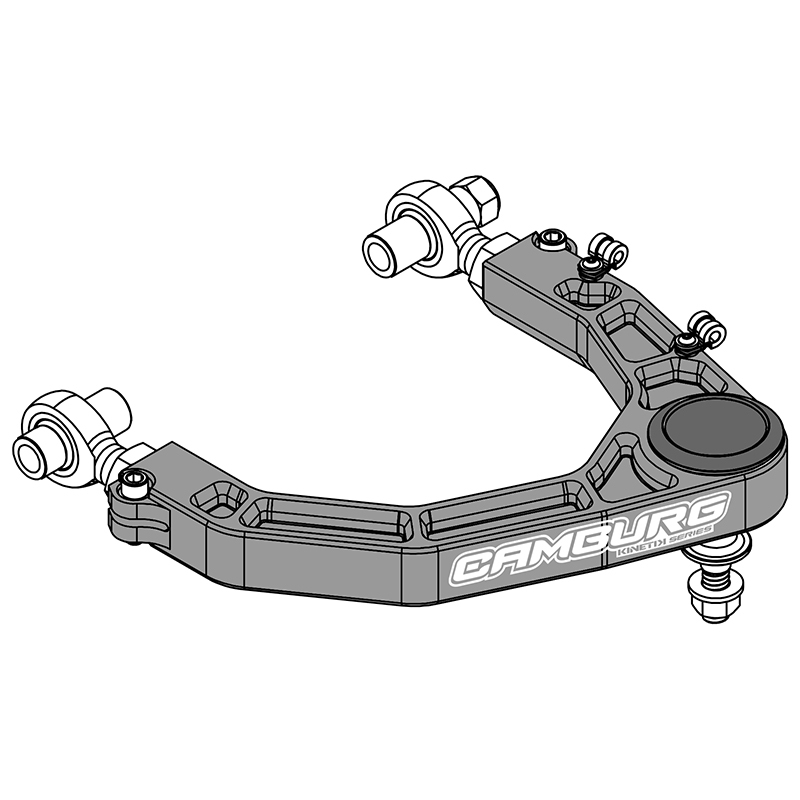

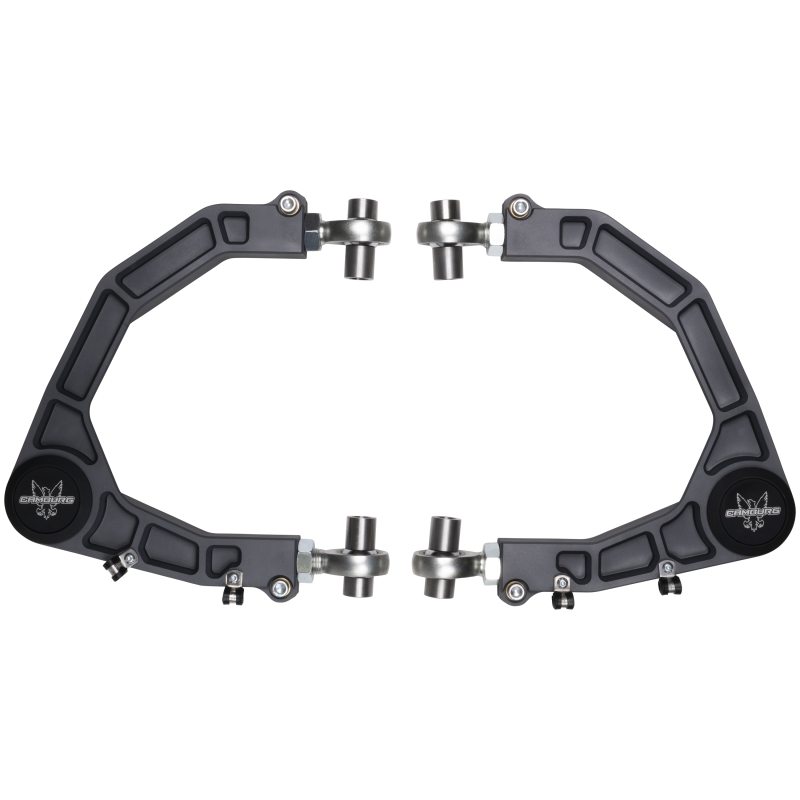

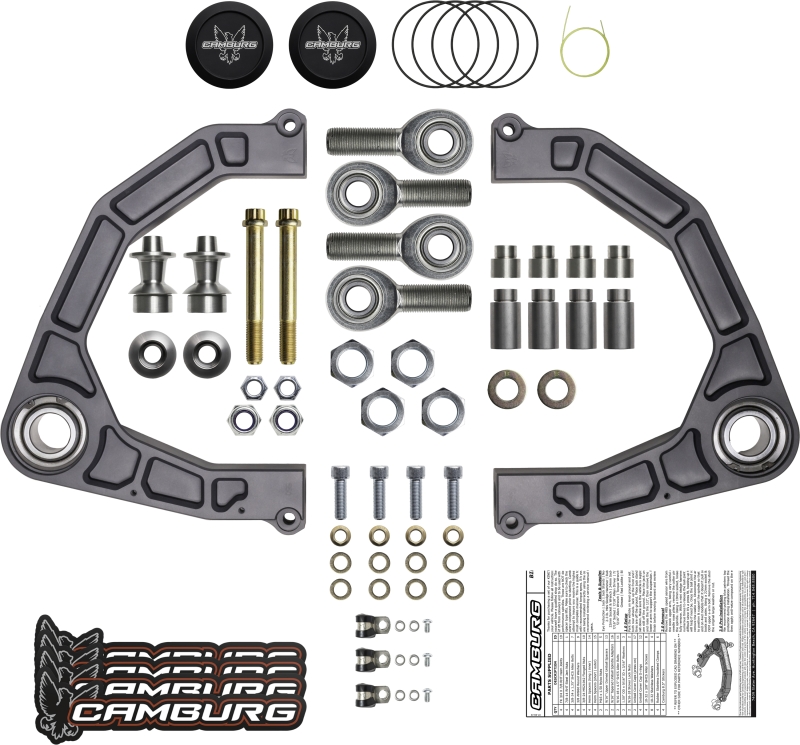

Camburg KINETIK V2 Performance Billet Uniball Upper Arms for Toyota Tundra 2022-2023

Description

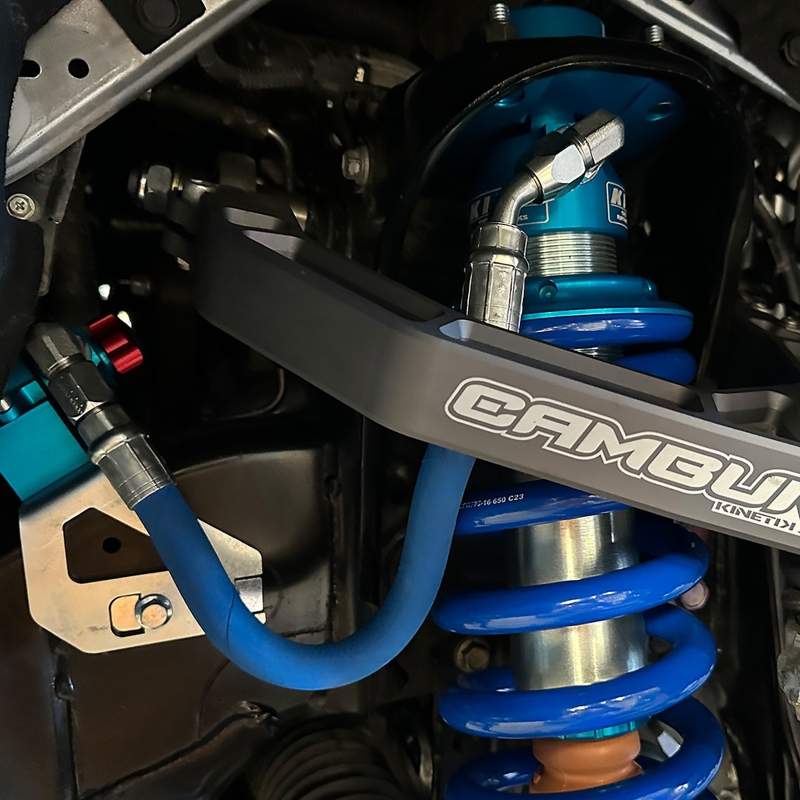

Upgrade your Toyota Tundra’s suspension with the Camburg KINETIK V2 Performance Billet Uniball Upper Arms. Crafted from aerospace-quality 6061 billet aluminum, these arms are meticulously engineered using CAD and CNC machining to ensure precision fit and durability. The sleek gun metal gray finish, achieved through bead blasting, Type II anodizing, and laser etching with the Camburg logo, provides both corrosion resistance and a refined appearance. Designed specifically for 1-3 inches of lift, these upper arms are a superior alternative to factory components, eliminating weak ball-joints and enhancing overall suspension performance. The larger FK 1.25-inch uniball with a PTFE liner offers increased strength, improved misalignment, and maximum wheel travel. The design includes model-specific spacers machined from heat-treated stainless steel that adapt the uniball to the spindle or knuckle without modification, simplifying installation. The 1.25-inch uniball features a low-profile press-on cap and larger bolt for improved element resistance, ensuring long-lasting performance in off-road conditions. The use of FK 7/8-inch chromoly heim joints allows for precise camber and caster adjustments, while preventing flexing, deflection, and binding. AN/Mil-spec hardware, including a pinch bolt and secondary jam nut, guarantees secure mounting even in demanding off-road environments. All necessary hardware for installation is included, making the upgrade straightforward. These arms are designed to improve wheel travel, correct camber and caster angles, and replace weak factory ball-joints, providing a significant upgrade for off-road enthusiasts and Toyota Tundra owners seeking reliable, high-performance suspension components. Note that wheel size, offset, backspacing, and tire dimensions may require trimming or modifications to prevent tire rubbing and ensure optimal fitment.

Features:

• Eliminates weak factory ball-joints for increased reliability

• Increases usable wheel travel for off-road performance

• Corrects camber and caster angles for better alignment

• Made from aerospace-grade 6061 billet aluminum for strength and durability

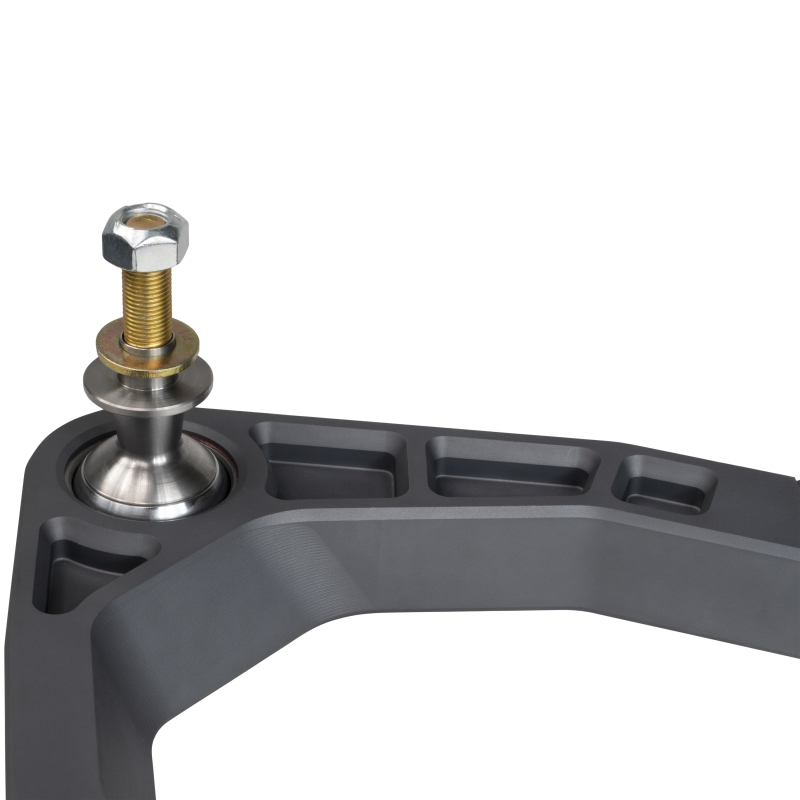

• Includes larger FK 1.25-inch uniball with PTFE liner for enhanced misalignment and travel

• Model-specific spacers machined from heat-treated stainless steel for easy installation

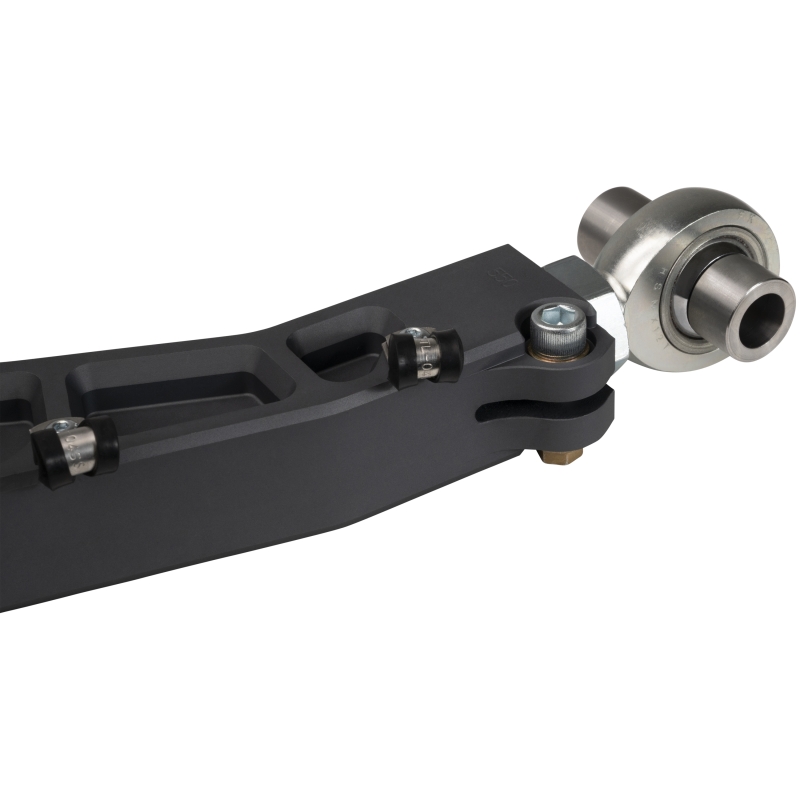

• Uses FK 7/8-inch chromoly heim joints for precise camber and caster adjustments

• Built with AN/Mil-spec hardware for secure fitment in demanding conditions

• Designed for 1-3 inches of suspension lift for a versatile upgrade

Fitment:
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Capstone 2025
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Limited 2025
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia Platinum 2025
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia SR5 2025
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Sequoia TRD Pro 2025
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024
