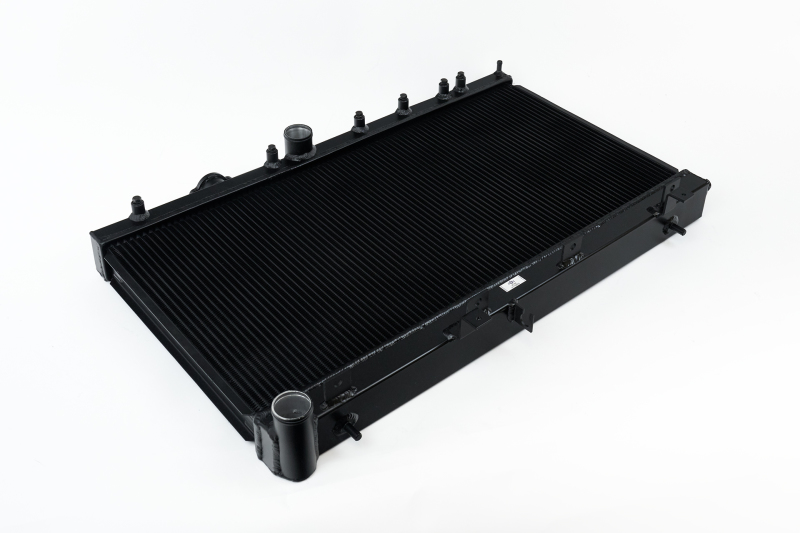

CSF 02-07 Subaru WRX/STI All-Aluminum High-Performance Radiator with B-Tube Technology

Description

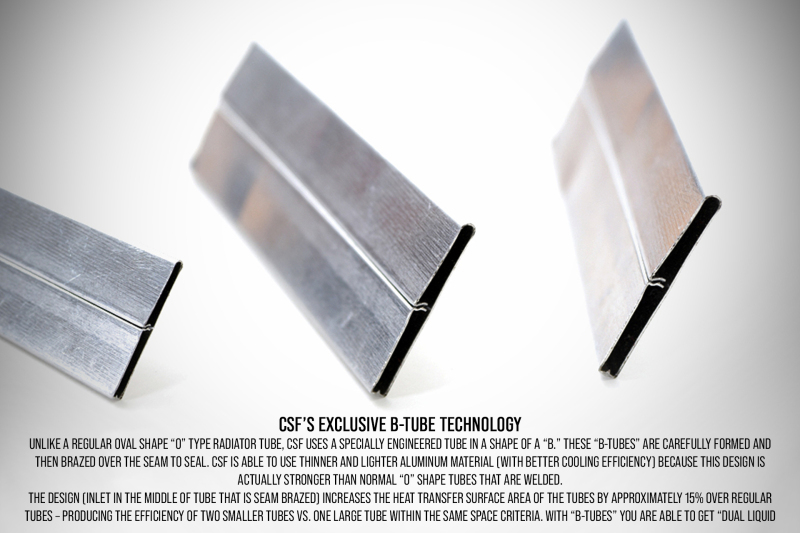

The CSF 02-07 Subaru WRX/STI Radiator is engineered for optimal cooling performance in both street and track environments. Constructed with a durable all-aluminum, dual-row 42mm core, this radiator features CSF’s exclusive B-Tube technology, which enhances heat transfer efficiency by approximately 15% over traditional tubes. The B-Tubes are carefully formed into a “B” shape and brazed over the seam, providing a stronger and lighter alternative to conventional oval-shaped tubes. This design allows for thinner aluminum usage while maintaining structural integrity, resulting in improved airflow and heat dissipation. The increased surface area from the middle-inlet seam brazing and the dual liquid laminar flow facilitate maximum cooling efficiency, making it suitable for high horsepower builds and motorsport applications. The radiator’s ultra-efficient multi-louvered fins, with a fin height of 6.5mm, are precisely aligned to maximize airflow and facilitate rapid heat rejection. Testing in CSF’s wind-tunnel lab ensures that each unit meets industry-leading standards for heat dissipation. Designed as a direct drop-in replacement, this radiator installs in the OEM location without modifications, accepting all factory components including quick-connect hoses, condenser, mounting brackets, and fan shroud. CNC-machined brackets and fittings guarantee a perfect fit and durability, complemented by a sleek black finish that provides a high-end stealth appearance. An all-aluminum race-style drain plug completes the design, ensuring reliable operation under demanding conditions. Whether upgrading for increased performance or replacing an aging radiator, the CSF WRX/STI radiator offers an efficient, reliable solution that enhances engine cooling and overall vehicle performance.

Features:

• Drop-in fit design requiring no modifications for easy installation

• Accepts OEM components including quick-connect hoses, condenser, and mounting brackets

• 2-Row 42mm core with CSF’s exclusive B-Tube technology for enhanced heat transfer

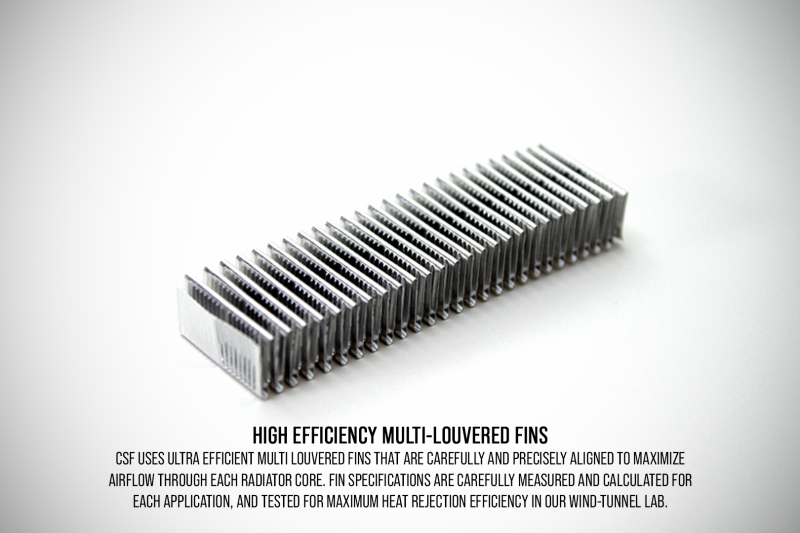

• Ultra-efficient multi-louvered fins with a 6.5mm fin height for maximum surface contact

• CNC-machined brackets and fittings for precise fit and durability

• Black finish for a sleek, high-end appearance

• All-aluminum construction with race-style drain plug for reliable performance

Fitment:
Subaru Baja Sport 2004
Subaru Baja Sport 2005
Subaru Baja Sport 2006
Subaru Baja Turbo 2004
Subaru Baja Turbo 2005
Subaru Baja Turbo 2006
Subaru Impreza WRX 2002
Subaru Impreza WRX 2003
Subaru Impreza WRX 2004
Subaru Impreza WRX 2005
Subaru Impreza WRX 2006
Subaru Impreza WRX 2007
Subaru Impreza WRX STI 2004
Subaru Impreza WRX STI 2005
Subaru Impreza WRX STI 2006
Subaru Impreza WRX STI 2007
