HomeShopRadiatorsCSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86
Sale

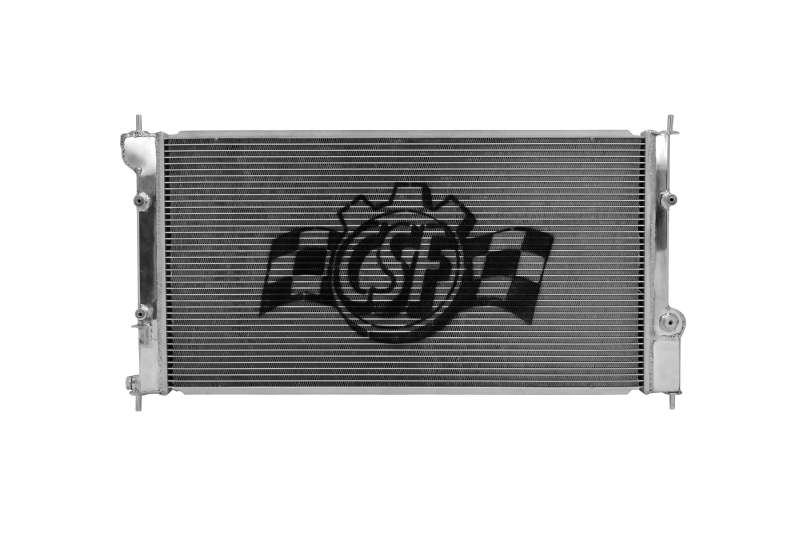

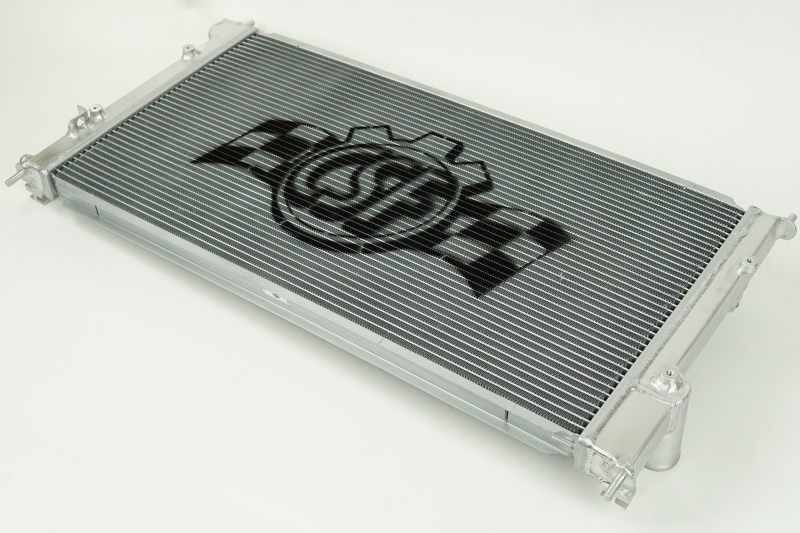

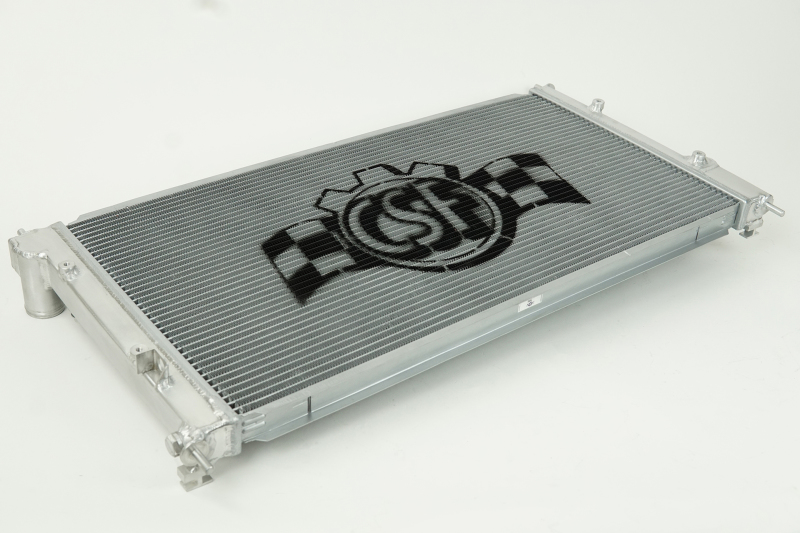

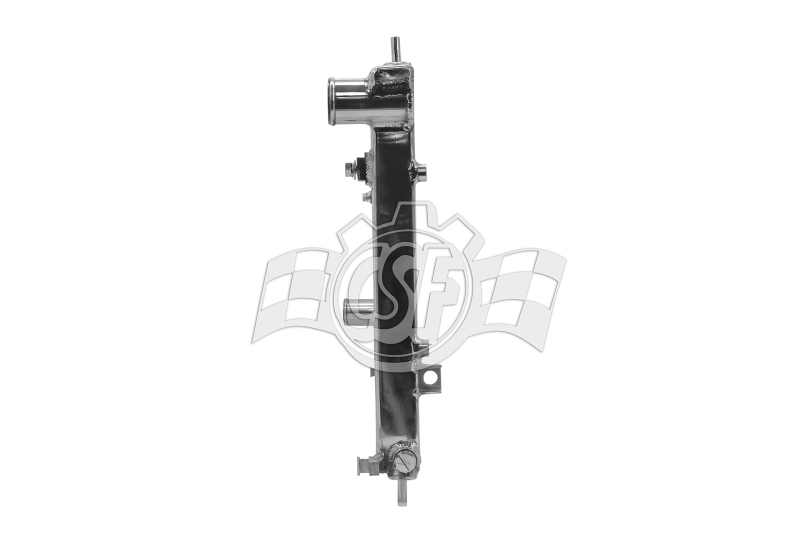

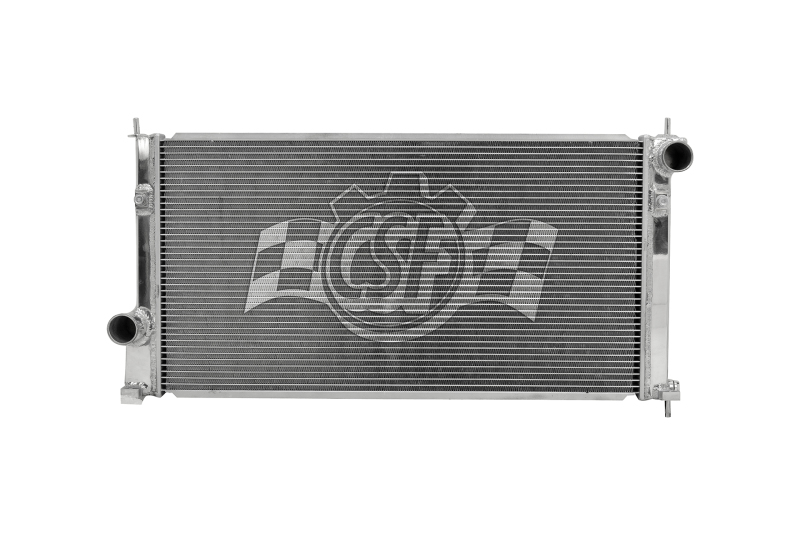

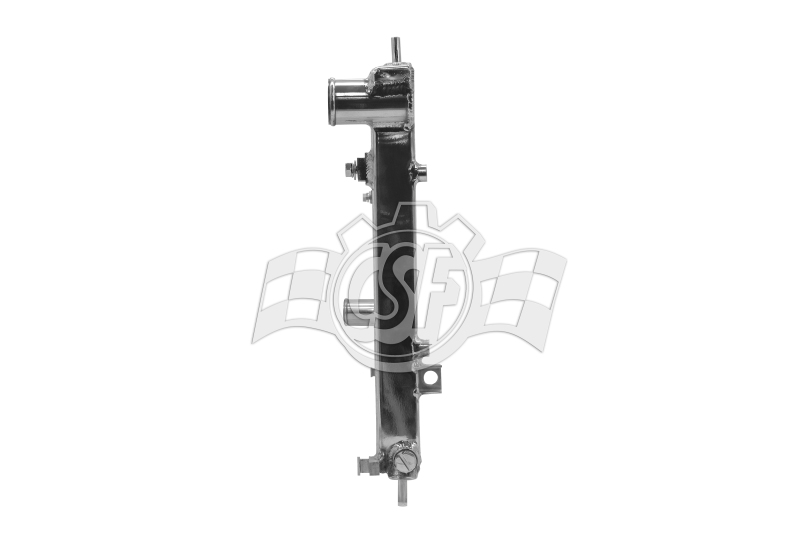

CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 2
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 3
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 4
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 5
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 6
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 7
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 8
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 9
CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86 - Image 10

CSF All-Aluminum High-Performance Radiator for Scion FR-S, Subaru BRZ, Toyota 86 & GR86

SKU: 7050

Original price was: $349.00.Current price is: $325.00.

In stock

17 in stock

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your FRS/BRZ/86/GR86 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your FRS/BRZ/86/GR86. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7050 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • All-Aluminum Race Style Drain Plug
  • Smooth Satin Finish
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF Part Number 7050 high-performance radiator is engineered for optimal cooling efficiency in your Scion FR-S, Subaru BRZ, Toyota 86, and GR86. Crafted with over five decades of expertise, CSF’s all-aluminum design ensures durability and superior heat dissipation, making it an ideal upgrade for street driving or motorsports applications. Its 2-Row core features CSF’s exclusive B-Tube Technology, which enhances heat transfer surface area by approximately 15% compared to traditional oval tubes, resulting in improved cooling performance and increased airflow.
The B-tube design involves carefully formed tubes brazed over the seam to create a stronger, lighter, and more efficient structure than conventional welded tubes. This configuration promotes dual liquid laminar flow, boosting heat rejection and maintaining engine temperatures under high load conditions. The radiator incorporates ultra-efficient multi-louvered fins, precisely aligned to maximize airflow and heat dissipation. Fin height and fin design are meticulously tested in CSF’s wind tunnel lab to ensure maximum surface contact and cooling efficiency.
This radiator is designed as a ‘drop-in fit,’ requiring no modifications for installation. It accepts all OEM components, including quick-connect hoses, mounting brackets, the AC condenser, and fan shroud, providing a straightforward upgrade. Constructed with CNC-machined brackets and fittings, it offers a robust fit and enhanced durability. Additional features include an all-aluminum race-style drain plug and a smooth satin finish for corrosion resistance and aesthetic appeal. Whether for daily performance or competitive racing, this radiator ensures your vehicle maintains optimal operating temperatures for peak performance. Proper installation is recommended to ensure the best results, and professional installation is advised if needed.

Features:

  • Drop-in fit design requiring no modifications for installation
  • Accepts all OEM components including quick-connect hoses, mounting brackets, and fan shroud
  • 2-Row 42mm core with CSF’s exclusive B-Tube Technology for enhanced heat transfer
  • Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum airflow
  • CNC machined brackets and fittings for precise fit and durability
  • All-aluminum race style drain plug for easy maintenance
  • Smooth satin finish for corrosion resistance and aesthetic appeal

Fitment:
Scion FR-S Base 2013
Scion FR-S Base 2014
Scion FR-S Base 2015
Scion FR-S Base 2016
Subaru BRZ Limited 2013
Subaru BRZ Limited 2014
Subaru BRZ Limited 2015
Subaru BRZ Limited 2016
Subaru BRZ Limited 2017
Subaru BRZ Limited 2018
Subaru BRZ Limited 2019
Subaru BRZ Limited 2020
Subaru BRZ Limited 2022
Subaru BRZ Limited 2023
Subaru BRZ Limited 2024
Subaru BRZ Premium 2013
Subaru BRZ Premium 2014
Subaru BRZ Premium 2015
Subaru BRZ Premium 2016
Subaru BRZ Premium 2017
Subaru BRZ Premium 2018
Subaru BRZ Premium 2019
Subaru BRZ Premium 2022
Subaru BRZ Premium 2023
Subaru BRZ Premium 2024
Subaru BRZ Series.Blue 2015
Subaru BRZ Series.Gray 2019
Subaru BRZ Series.HyperBlue 2016
Subaru BRZ Series.Yellow 2017
Subaru BRZ TS 2018
Subaru BRZ TS 2020
Toyota 86 Base 2017
Toyota 86 Base 2018
Toyota 86 Base 2019
Toyota 86 Base 2020
Toyota 86 GT 2018
Toyota 86 GT 2019
Toyota 86 GT 2020
Toyota 86 Hakone Edition 2020
Toyota 86 Special Edition 2017
Toyota 86 TRD Special Edition 2019
Toyota GR86 10th Anniversary Special Edition 2023
Toyota GR86 Base 2022
Toyota GR86 Base 2023
Toyota GR86 Premium 2022
Toyota GR86 Premium 2023

Additional information

Weight 12 lbs
Dimensions 31.6 × 18.1 × 6.6 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353070505
brand

CSF
part_number

7050
