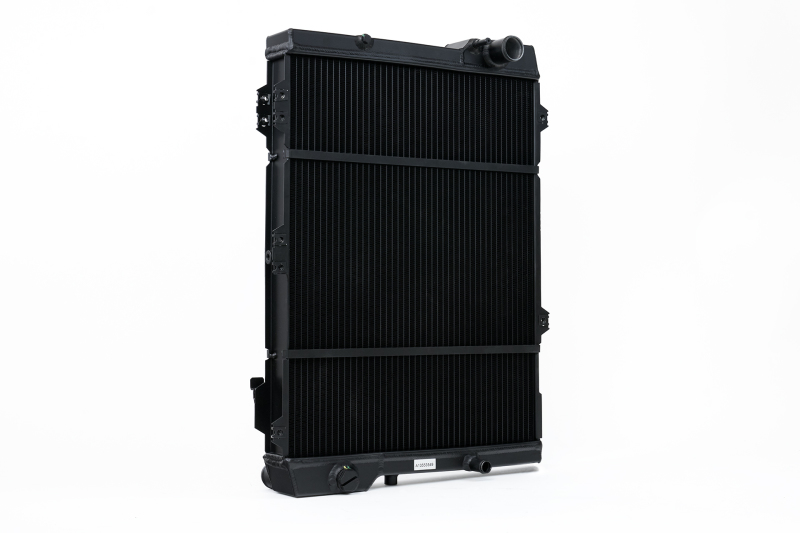

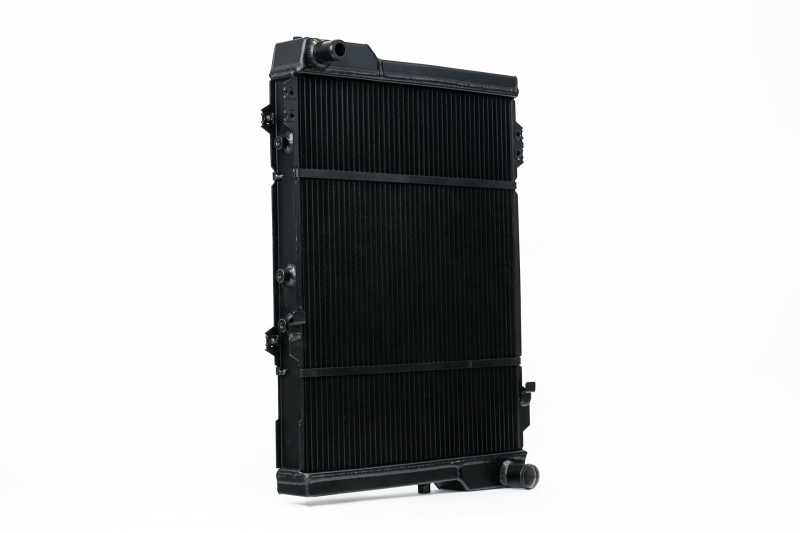

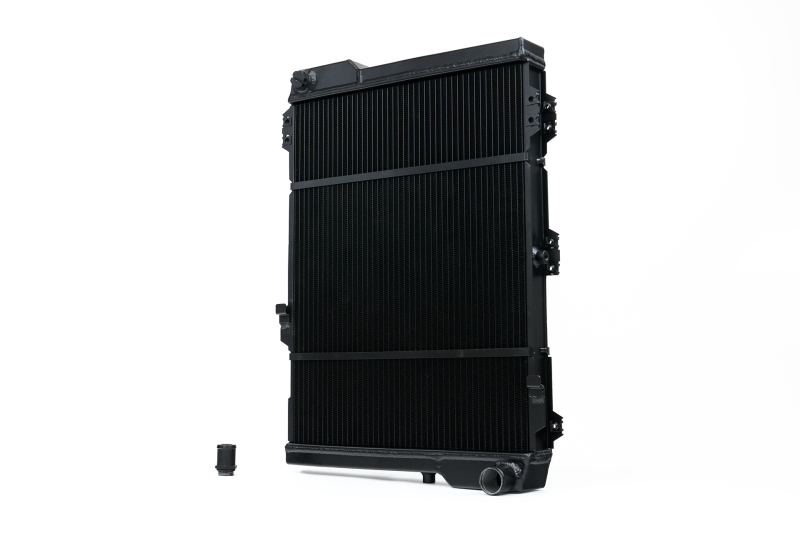

CSF Audi Quattro High-Performance All-Aluminum Radiator Part #7208

Description

The CSF #7208 High-Performance All-Aluminum Radiator is engineered to optimize cooling efficiency for your Audi Quattro and small chassis models. With over five decades of expertise, CSF has developed this radiator to meet the demands of street driving and motorsport applications, ensuring your engine stays at optimal operating temperatures. Featuring a 2-Row core with exclusive B-Tube Technology, this radiator provides a significant increase in heat transfer surface area, approximately 15% more than traditional designs, thanks to its carefully formed “B”-shaped tubes. These tubes are brazed over the seam, creating a stronger and lighter structure that improves cooling performance while maintaining durability. The design allows for dual liquid laminar flow and enhances heat dissipation through ultra-efficient multi-louvered fins, precisely aligned and tested in wind-tunnel conditions for maximum airflow and heat rejection. This radiator’s innovative construction not only boosts cooling capacity but also reduces weight, making it ideal for high horsepower builds and racing environments. The CSF #7208 is a true drop-in fit, designed to install directly into the OEM location without modifications, simplifying the upgrade process. It features CNC-machined mounting brackets, OEM-style inlet and outlet ports, and multiple overflow pipe options to accommodate various model configurations. The radiator is constructed entirely from high-quality TIG-welded aluminum and is individually pressure tested for leaks, ensuring long-lasting performance. Its satin black finish provides an OEM+ aesthetic that complements your vehicle’s appearance. The radiator also supports multiple fan mounting points, including compatibility with high-performance fans like the RS2, to further enhance cooling efficiency. With a comprehensive 2-year limited warranty, the CSF #7208 radiator delivers reliable performance for enthusiasts seeking improved heat management for street or track use. Proper installation is straightforward, with all necessary mounting points and connections included, but professional installation is recommended if you’re unsure about the process. Whether upgrading for increased horsepower or racing demands, this radiator offers the advanced technology and durability needed to keep your Audi Quattro running at its best.

Features:

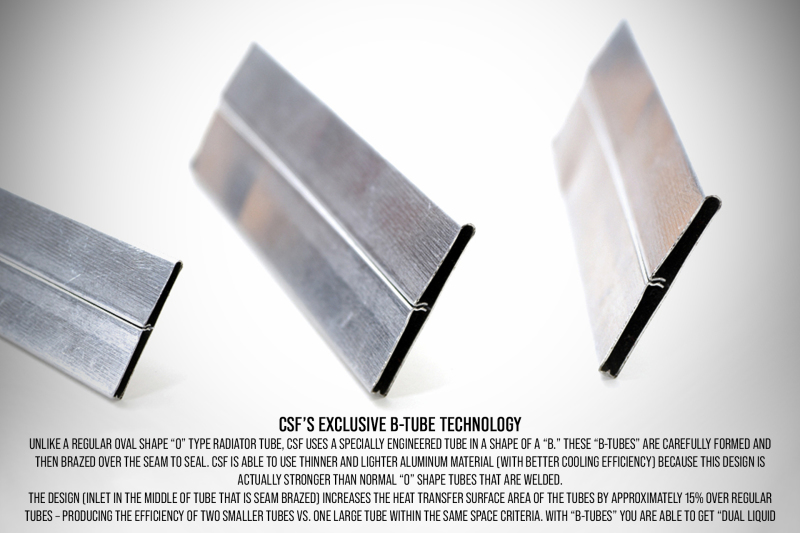

• Exclusive B-Tube Technology with brazed seam for enhanced strength and cooling efficiency

• 2-Row, 42mm ultra-high-performance dual pass core for maximum heat dissipation

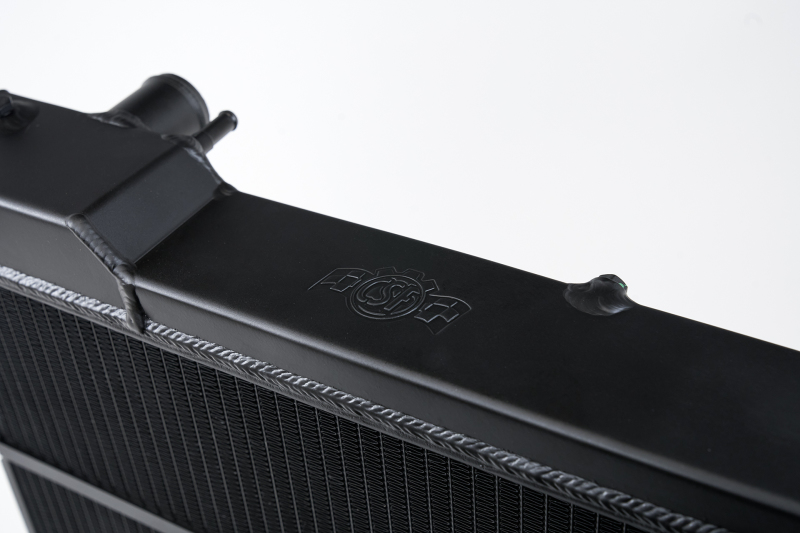

• Lightweight and durable all-aluminum TIG-welded construction

• Multiple fan shroud mounting points compatible with high-performance fans

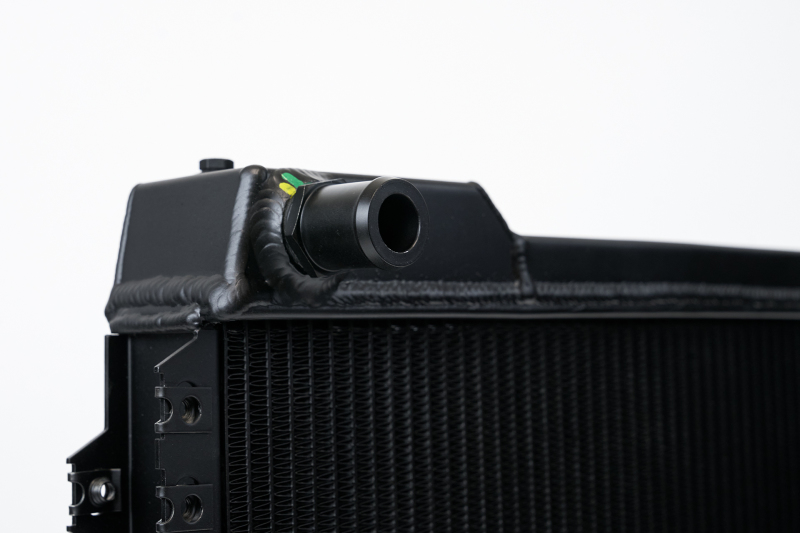

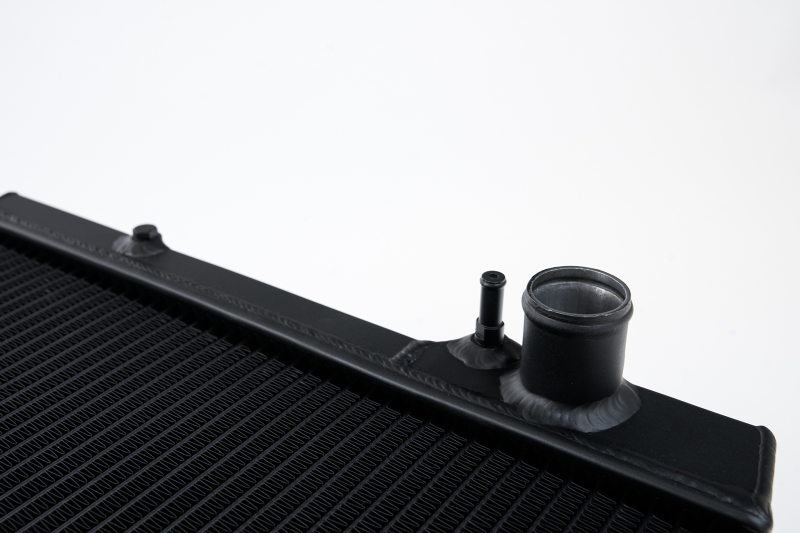

• OEM-style inlet and outlet ports with CNC-machined mounting brackets

• Multiple overflow pipe locations for versatile installation

• Designed for direct drop-in fit with no modifications required

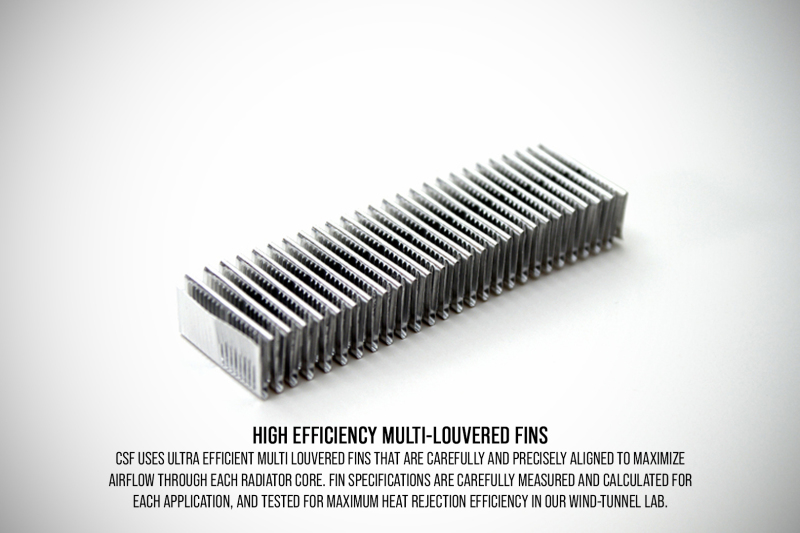

• Ultra-efficient multi-louvered fins precisely aligned for maximum airflow

• Individually pressure tested for leaks and durability

• Satin black finish for a sleek OEM+ appearance

Fitment:
Audi 4000 Base 1980
Audi 4000 Base 1981
Audi 4000 Base 1982
Audi 4000 Base 1983
Audi 4000 GT 1982
Audi 4000 GT 1983
Audi 4000 S 1982
Audi 4000 S 1983
Audi 80 Base 1991
Audi 80 Base 1992
Audi 80 Quattro Base 1988
Audi 80 Quattro Base 1989
Audi 80 Quattro Base 1990
Audi 80 Quattro Base 1991
Audi 80 Quattro Base 1992
Audi 90 Base 1988
Audi 90 Base 1989
Audi 90 Base 1990
Audi 90 Base 1991
Audi 90 Quattro 20v 1990
Audi 90 Quattro 20v 1991
Audi 90 Quattro Base 1988
Audi 90 Quattro Base 1989
Audi Coupe GT 1986
Audi Coupe GT 1987
Audi Coupe Quattro 20v 1990
Audi Coupe Quattro 20v 1991
Audi Quattro Base 1983
Audi Quattro Base 1984
Audi Quattro Base 1985
