HomeShopIntercoolersCSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota

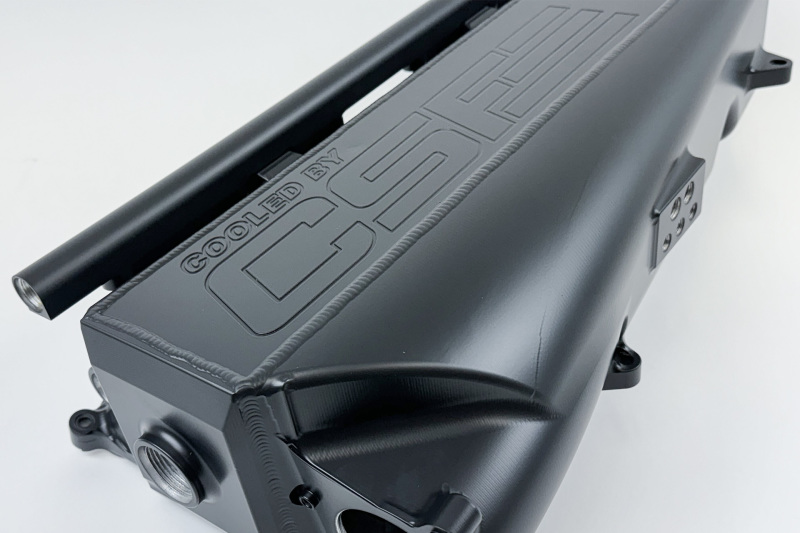

CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 2
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 3
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 4
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 5
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 6
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 7
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 8
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 9
CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota - Image 10

CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold with Thermal Black Finish for BMW and Toyota

SKU: 8400B

$5,995.00

In stock

4 in stock

The supplied hardware kit includes all of the brackets, bolts, washers, and CNC machined fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind. This is a Racing Product and intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform With the largest and most efficient intercooler performance, lower pressure drop, port injection, and other industry-leading features, the CSF Race X Manifold allows Gen 2 B58 owners to maximize performance. The CSF #8400B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

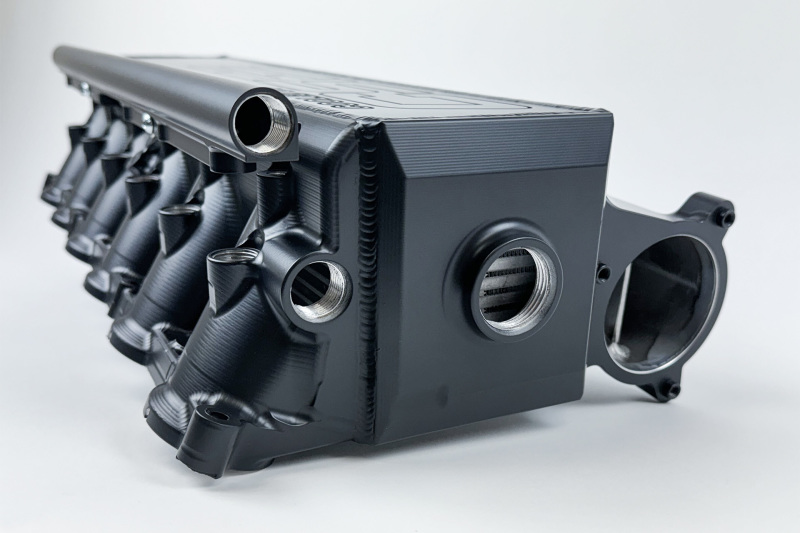

  • Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
  • Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

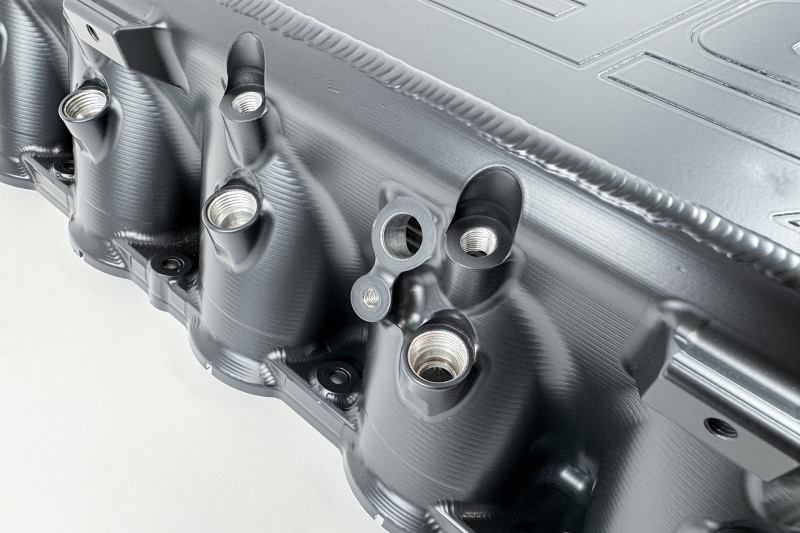

  • Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance
  • Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
  • Comes Finished in Thermal Black Heat Dispersion Cerakote (Available in Raw Billet - CSF #8400 or Custom Finishes - CSF #8400C)
  • Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum

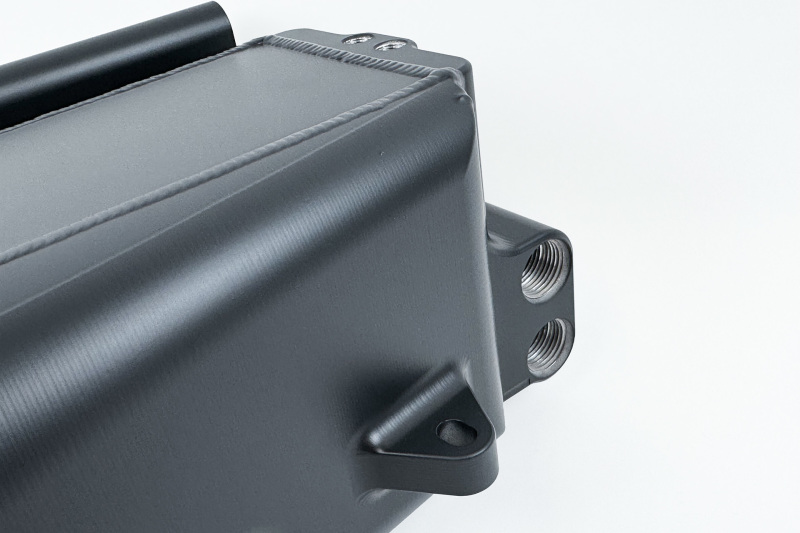

  • Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
  • Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
  • Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
  • Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
  • Includes Hardware and Installation Kit with Picture Diagrams and Instructions
  • Improved slotted mounting holes on throttle body side for easier installation
  • Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
  • Easy Access to Spin-Off Oil Filter for Quick Oil Changes
  • Included Fuel Rail for Top Feed Port Injection
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF Gen 2 B58 Race X Charge-Air-Cooler Manifold is engineered for high-performance applications on select BMW and Toyota vehicles, including the 2020 BMW M340i, 2020 Toyota GR Supra, and other models equipped with the B58 engine platform. Crafted with precision, this manifold features a high-performance, motorsports-grade bar/plate air-to-water intercooler core that is 25% larger than standard models, offering improved cooling efficiency and reduced pressure drop. The design includes an integrated air divider in the inlet tank for even airflow distribution across the core, maximizing cooling and performance under demanding conditions. The manifold’s thermal black Cerakote finish provides heat dispersion capabilities, helping to lower intake temperatures and enhance engine efficiency, while also offering a sleek, durable appearance suitable for racing and enthusiast builds. The CSF Race X Manifold is designed for easy installation in OEM locations with no modifications necessary, provided the installer is a skilled technician familiar with the B58 engine platform. It features a versatile core setup that can be configured for dual or single-pass flow using the included CNC machined plug, and multiple 1/8″ NPT ports on each cylinder runner enable precise nitrous or meth injection for maximum tuning flexibility. Additionally, the manifold includes an integrated sensor pad with multiple ports for extra vacuum or parameter monitoring, as well as breather ports for simplified bleeding and maintenance. An included KIYLEX thermal rejection manifold spacer offers proven temperature reduction of up to 15%, further optimizing performance. Manufactured by world-renowned automotive machinists in Australia, this manifold includes all necessary hardware, an installation kit with detailed diagrams, and an easy-to-follow Bill of Materials list. The design incorporates improved slotted mounting holes on the throttle body side for straightforward installation, and the manifold is CAD-engineered using Computational Fluid Dynamics (CFD) for optimal airflow and cooling efficiency. The package also provides easy access to the spin-off oil filter for quick oil changes and comes with a top feed fuel rail for port injection. Note that this product is not CARB-approved and is intended for racing use only, requiring professional installation for best results.

Features:

  • High-performance, motorsports-grade bar/plate intercooler core with 25% larger surface area than standard models
  • Configurable for dual or single-pass flow with CNC machined plug included
  • Multiple 1/8″ NPT ports on each cylinder runner for nitrous or meth injection
  • Includes integrated sensor pad with additional ports for vacuum and parameter monitoring
  • Thermal black Cerakote finish for heat dispersion and durability
  • KIYLEX thermal rejection manifold spacer reduces intake temperatures by up to 15%
  • Designed with improved slotted mounting holes for easier installation
  • CAD-engineered with Computational Fluid Dynamics (CFD) for optimal airflow
  • Includes hardware, installation kit, and detailed diagrams for straightforward setup
  • Easy access to spin-off oil filter for quick oil changes

Fitment:
BMW 540i Base 2020
BMW 540i Base 2021
BMW 540i Base 2022
BMW 540i Base 2023
BMW 540i xDrive Base 2020
BMW 540i xDrive Base 2021
BMW 540i xDrive Base 2022
BMW 540i xDrive Base 2023
BMW 740i Base 2020
BMW 740i Base 2021
BMW 740i Base 2022
BMW 740i Base 2023
BMW 740i Base 2024
BMW 740i xDrive Base 2020
BMW 740i xDrive Base 2021
BMW 740i xDrive Base 2022
BMW 745e xDrive Base 2020
BMW 745e xDrive Base 2021
BMW 745e xDrive Base 2022
BMW 840i Base 2020
BMW 840i Base 2021
BMW 840i Base 2022
BMW 840i Base 2023
BMW 840i Base 2024
BMW 840i Gran Coupe Base 2020
BMW 840i Gran Coupe Base 2021
BMW 840i Gran Coupe Base 2022
BMW 840i Gran Coupe Base 2023
BMW 840i Gran Coupe Base 2024
BMW 840i xDrive Base 2020
BMW 840i xDrive Base 2021
BMW 840i xDrive Base 2022
BMW 840i xDrive Base 2023
BMW 840i xDrive Base 2024
BMW 840i xDrive Gran Coupe Base 2020
BMW 840i xDrive Gran Coupe Base 2021
BMW 840i xDrive Gran Coupe Base 2022
BMW 840i xDrive Gran Coupe Base 2023
BMW 840i xDrive Gran Coupe Base 2024
BMW M240i Base 2023
BMW M240i xDrive Base 2023
BMW M340i Base 2020
BMW M340i Base 2021
BMW M340i Base 2022
BMW M340i Base 2023
BMW M340i Base 2024
BMW M340i xDrive Base 2020
BMW M340i xDrive Base 2021
BMW M340i xDrive Base 2022
BMW M340i xDrive Base 2023
BMW M340i xDrive Base 2024
BMW M440i Base 2021
BMW M440i Base 2022
BMW M440i Base 2023
BMW M440i Base 2024
BMW M440i Gran Coupe Base 2022
BMW M440i Gran Coupe Base 2023
BMW M440i Gran Coupe Base 2024
BMW M440i xDrive Base 2021
BMW M440i xDrive Base 2022
BMW M440i xDrive Base 2023
BMW M440i xDrive Base 2024
BMW M440i xDrive Gran Coupe Base 2022
BMW M440i xDrive Gran Coupe Base 2023
BMW M440i xDrive Gran Coupe Base 2024
BMW X3 M40i 2020
BMW X3 M40i 2021
BMW X3 M40i 2022
BMW X3 M40i 2023
BMW X3 M40i 2024
BMW X4 M40i 2020
BMW X4 M40i 2021
BMW X4 M40i 2022
BMW X4 M40i 2023
BMW X4 M40i 2024
BMW X5 sDrive40i 2020
BMW X5 sDrive40i 2021
BMW X5 sDrive40i 2022
BMW X5 sDrive40i 2023
BMW X5 sDrive40i 2024
BMW X5 xDrive40i 2019
BMW X5 xDrive40i 2020
BMW X5 xDrive40i 2021
BMW X5 xDrive40i 2022
BMW X5 xDrive40i 2023
BMW X5 xDrive45e 2021
BMW X5 xDrive45e 2022
BMW X5 xDrive45e 2023
BMW X6 sDrive40i 2020
BMW X6 sDrive40i 2021
BMW X6 xDrive40i 2020
BMW X6 xDrive40i 2021
BMW X6 xDrive40i 2022
BMW X6 xDrive40i 2023
BMW X6 xDrive40i 2024
BMW X7 xDrive40i 2019
BMW X7 xDrive40i 2020
BMW X7 xDrive40i 2021
BMW X7 xDrive40i 2022
BMW X7 xDrive40i 2023
BMW X7 xDrive40i 2024
Toyota GR Supra 45th Anniversary Edition 2024
Toyota GR Supra A91 Edition 2021
Toyota GR Supra A91 Edition 2022
Toyota GR Supra A91 Edition 2023
Toyota GR Supra Base 2020
Toyota GR Supra Base 2021
Toyota GR Supra Base 2022
Toyota GR Supra Base 2023
Toyota GR Supra Base 2024
Toyota GR Supra Launch Edition 2020
Toyota GR Supra Premium 2020
Toyota GR Supra Premium 2021
Toyota GR Supra Premium 2022
Toyota GR Supra Premium 2023
Toyota GR Supra Premium 2024

Additional information

Weight 27.9 lbs
Dimensions 27.7 × 12.9 × 12.4 in
air_freight_prohibited

false
not_carb_approved

true
carb_acknowledgement_required

true
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
regular_stock

t
upc

71035308400B
brand

CSF
part_number

8400B
