HomeShopRadiatorsCSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036
Sale

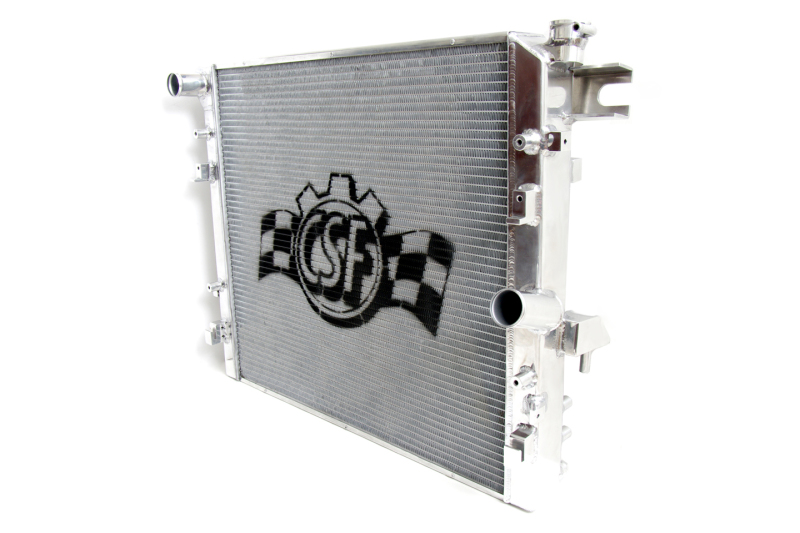

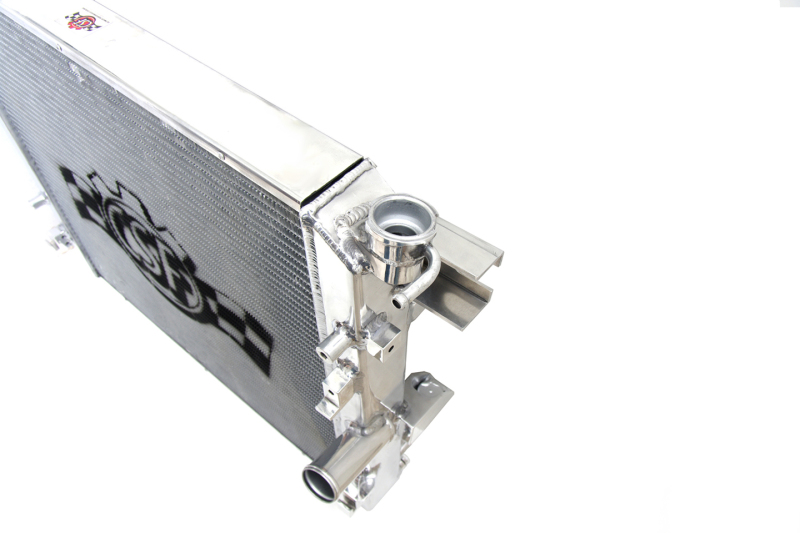

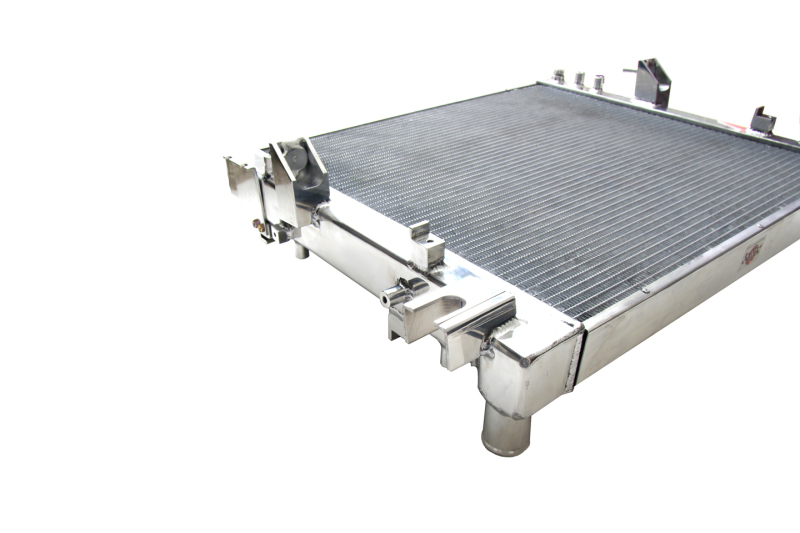

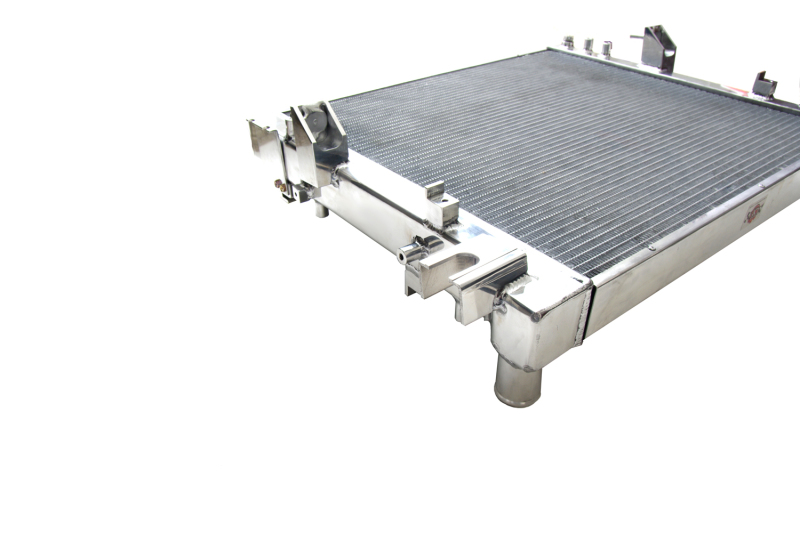

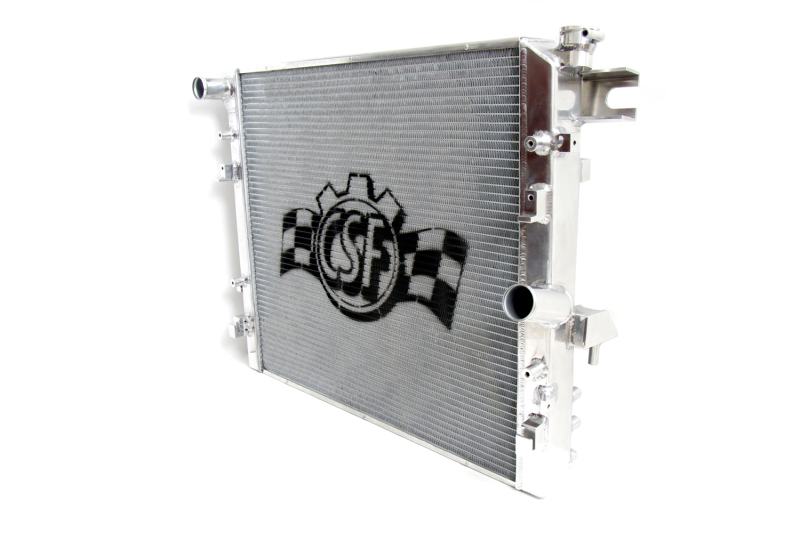

CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 2
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 3
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 4
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 5
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 6
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 7
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 8
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 9
CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036 - Image 10

CSF Heavy-Duty All-Aluminum Radiator for 2011-2012 Jeep Wrangler (JK) – Part #7036

SKU: 7036

Original price was: $579.00.Current price is: $525.00.

In stock

5 in stock

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Wrangler running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your Wrangler. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7036 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • All-Aluminum Race Style Drain Plug
  • Smooth Satin Finish
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Designed for optimal performance and durability, the CSF #7036 radiator is a high-quality replacement engineered specifically for 2011-2012 Jeep Wrangler models. Featuring a robust 2-Row core with CSF’s exclusive B-Tube Technology, this radiator delivers superior cooling efficiency for both on and off-road driving conditions. The innovative B-tube design enhances heat transfer surface area by approximately 15%, providing dual liquid laminar flow that improves overall thermal management. This results in better engine temperature regulation, especially during demanding off-road adventures or extended overlanding trips. Constructed from lightweight yet stronger-than-standard aluminum, the radiator’s design ensures durability and efficient heat dissipation, making it a reliable upgrade for your Jeep Wrangler. The radiator incorporates ultra-efficient multi-louvered fins, precisely aligned to maximize airflow and heat rejection, tested rigorously in CSF’s wind-tunnel lab for optimal performance. Its compact, drop-in fit design allows for straightforward installation in the OEM location without modifications, accepting all factory components including quick-connect hoses, condenser, mounting brackets, and fan shroud. Crafted with CNC-machined brackets and fittings, the radiator offers a sleek satin finish and robust construction to withstand harsh conditions. Whether you’re tackling rugged trails or seeking a dependable cooling solution for everyday driving, the CSF #7036 radiator ensures your Jeep Wrangler remains cool and efficient, enhancing engine longevity and overall vehicle performance.

Features:

  • Drop-in fit design requiring no modifications for easy installation
  • Accepts all OEM components including quick-connect hoses, condenser, and fan shroud
  • 2-Row 42mm core with CSF’s exclusive B-Tube technology for superior heat transfer
  • Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum surface area contact
  • CNC-machined brackets and fittings for durability and precise fit
  • All-aluminum construction with smooth satin finish for corrosion resistance and aesthetics
  • Includes a race-style all-aluminum drain plug for easy maintenance

Fitment:
Jeep Wrangler 70th Anniversary 2011
Jeep Wrangler Rubicon 2007
Jeep Wrangler Rubicon 2008
Jeep Wrangler Rubicon 2009
Jeep Wrangler Rubicon 2010
Jeep Wrangler Rubicon 2011
Jeep Wrangler Rubicon 2012
Jeep Wrangler Sahara 2007
Jeep Wrangler Sahara 2008
Jeep Wrangler Sahara 2009
Jeep Wrangler Sahara 2010
Jeep Wrangler Sahara 2011
Jeep Wrangler Sahara 2012
Jeep Wrangler Sport 2010
Jeep Wrangler Sport 2011
Jeep Wrangler Sport 2012
Jeep Wrangler Unlimited 70th Anniversary 2011
Jeep Wrangler Unlimited Rubicon 2007
Jeep Wrangler Unlimited Rubicon 2008
Jeep Wrangler Unlimited Rubicon 2009
Jeep Wrangler Unlimited Rubicon 2010
Jeep Wrangler Unlimited Rubicon 2011
Jeep Wrangler Unlimited Rubicon 2012
Jeep Wrangler Unlimited Sahara 2007
Jeep Wrangler Unlimited Sahara 2008
Jeep Wrangler Unlimited Sahara 2009
Jeep Wrangler Unlimited Sahara 2010
Jeep Wrangler Unlimited Sahara 2011
Jeep Wrangler Unlimited Sahara 2012
Jeep Wrangler Unlimited Sport 2010
Jeep Wrangler Unlimited Sport 2011
Jeep Wrangler Unlimited Sport 2012
Jeep Wrangler Unlimited X 2007
Jeep Wrangler Unlimited X 2008
Jeep Wrangler Unlimited X 2009
Jeep Wrangler Unlimited X 2010
Jeep Wrangler X 2007
Jeep Wrangler X 2008
Jeep Wrangler X 2009
Jeep Wrangler X 2010

Additional information

Weight 22.6 lbs
Dimensions 32 × 24.7 × 10.2 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353070369
brand

CSF
part_number

7036
