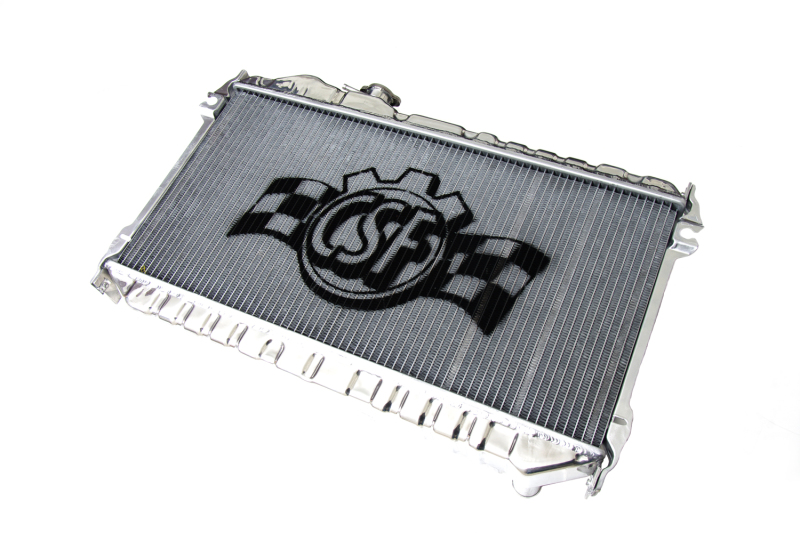

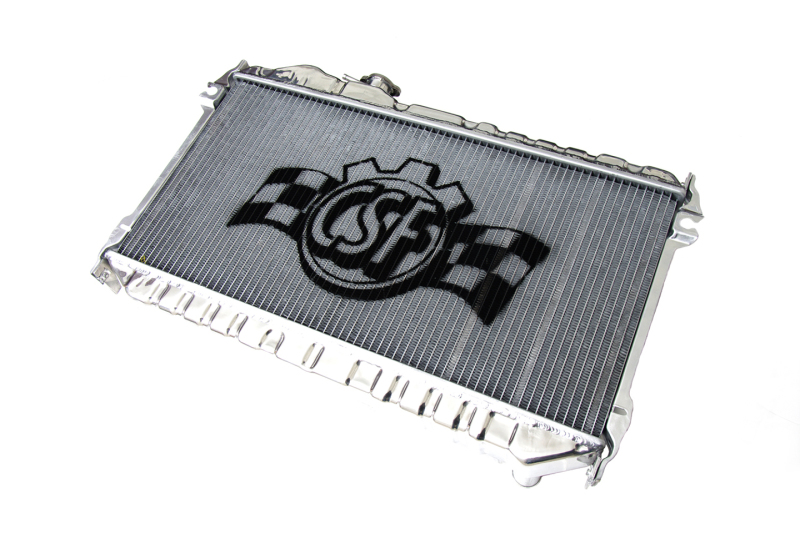

CSF High-Performance All-Aluminum Radiator for 1993-1997 Mazda Miata (Part #2862)

Description

The CSF #2862 High-Performance All-Aluminum Radiator is engineered specifically for the 1993 to 1997 Mazda Miata, offering superior cooling efficiency and a seamless installation process. With over five decades of experience in radiator manufacturing, CSF has developed this model to meet the demands of street driving, high-performance builds, and motorsport environments. Its 2-Row core design combines advanced B-Tube technology and multi-louvered fins to maximize heat dissipation and airflow, ensuring your engine maintains optimal operating temperatures under various conditions. The innovative B-shaped tubes are brazed over the seam, allowing for thinner, lighter aluminum construction with enhanced strength and increased heat transfer surface area by approximately 15%, which improves cooling performance over traditional oval tubes. These features enable dual liquid laminar flow, further boosting heat rejection efficiency for high horsepower or track use. The radiator’s core features ultra-efficient fins with a 6.5mm fin height and multi-louvered design, meticulously measured and tested in CSF’s wind tunnel lab to ensure maximum airflow and cooling capacity. Designed as a ‘drop-in fit,’ it installs directly into the OEM location without modifications, accepting all factory components including quick connect hoses, the AC condenser, mounting brackets, and fan shroud. CNC-machined brackets and fittings guarantee a precise fit and durability, while the all-aluminum race-style drain plug and a one-hour mirror finish hand polish add to its premium build quality. Whether you’re enhancing your NA Miata for daily driving or track performance, this radiator offers reliable, high-efficiency cooling to keep your engine running at its best. CSF’s industry-leading testing and innovative design make this radiator a top choice for enthusiasts seeking durability, performance, and ease of installation in a high-quality, aluminum radiator.

Features:

• Drop-in fit design requiring no modifications for easy installation

• Accepts OEM components including quick connect hoses, AC condenser, mounting brackets, and fan shroud

• Core features ultra-efficient 6.5mm fin height with multi-louvered fins for maximum surface contact

• 2-Row 42mm dual core with exclusive B-Tube technology for enhanced heat transfer

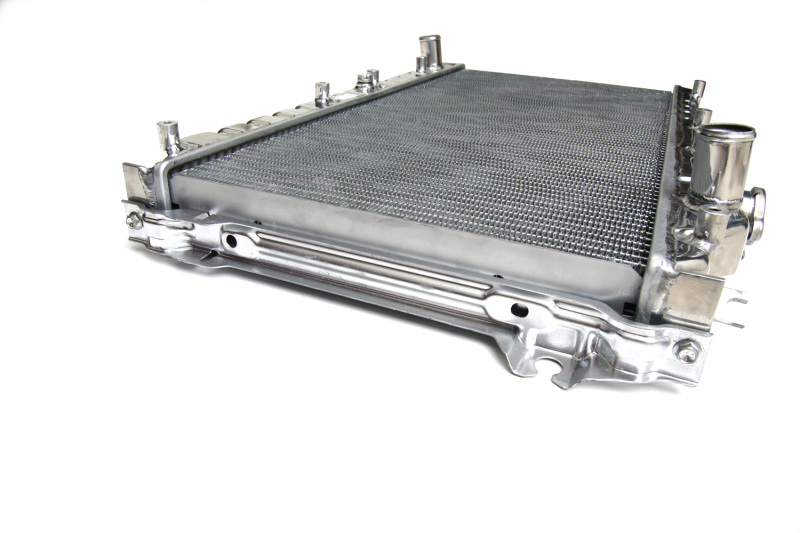

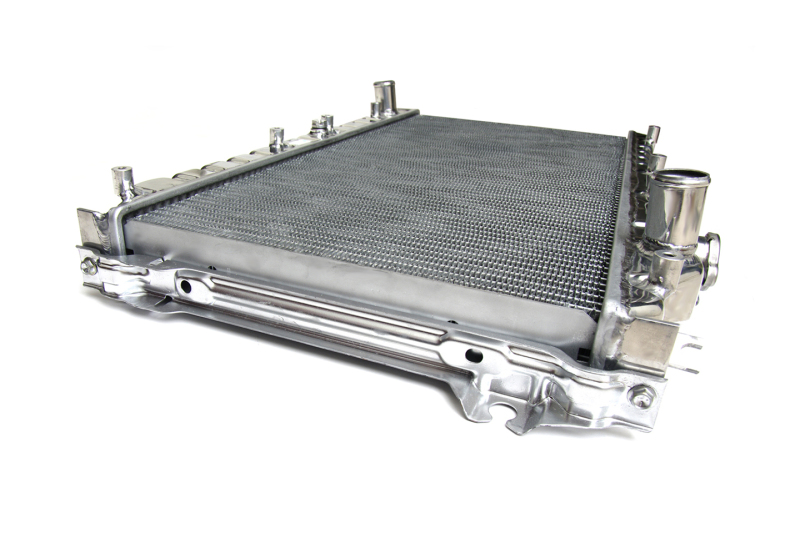

• CNC machined brackets and fittings for precise fit and durability

• CNC machined quick-connect inlet and outlet connections for reliable sealing

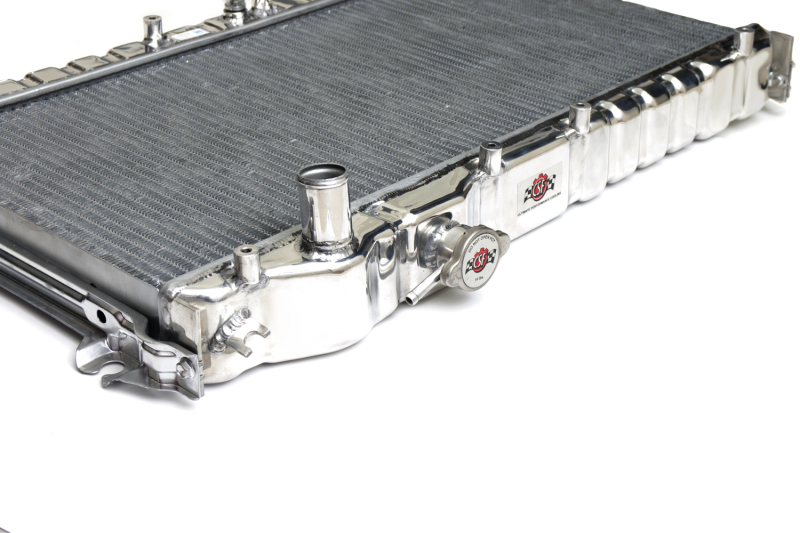

• All-aluminum race-style drain plug for quick and secure draining

• One-hour mirror finish hand polish for a premium aesthetic

Fitment:
Mazda Miata Base 1990
Mazda Miata Base 1991
Mazda Miata Base 1992
Mazda Miata Base 1993
Mazda Miata Base 1994
Mazda Miata Base 1995
Mazda Miata Base 1996
Mazda Miata Base 1997
Mazda Miata LE 1993
Mazda Miata M Edition 1994
Mazda Miata M Edition 1995
Mazda Miata M Edition 1996
Mazda Miata M Edition 1997
Mazda Miata SE 1991
Mazda Miata STO 1997
