HomeShopRadiatorsCSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R – Part #8132
Sale

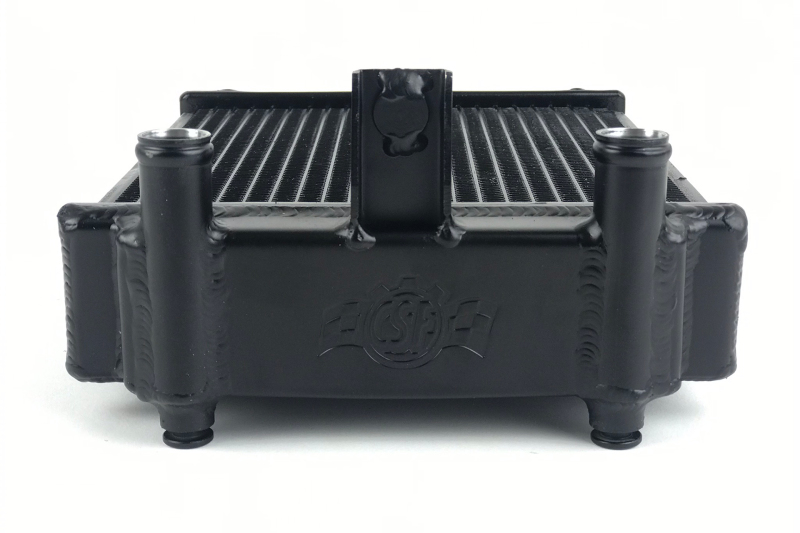

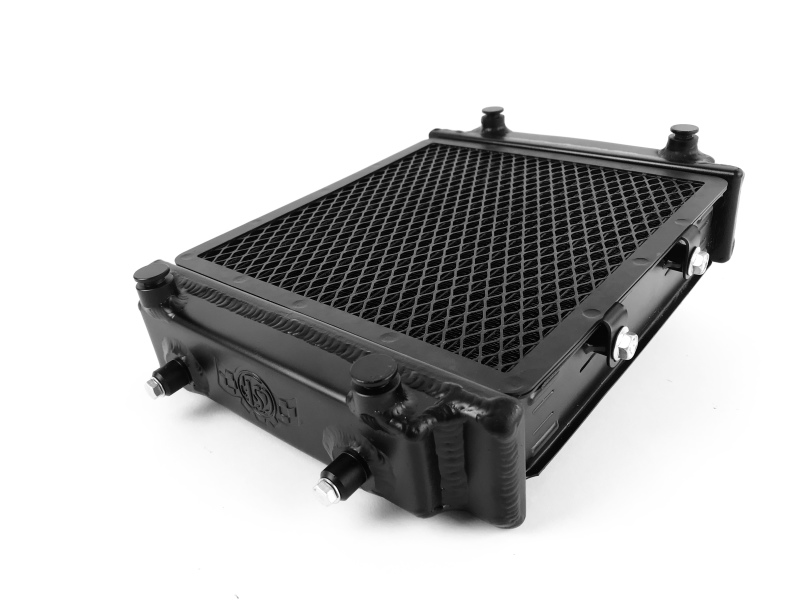

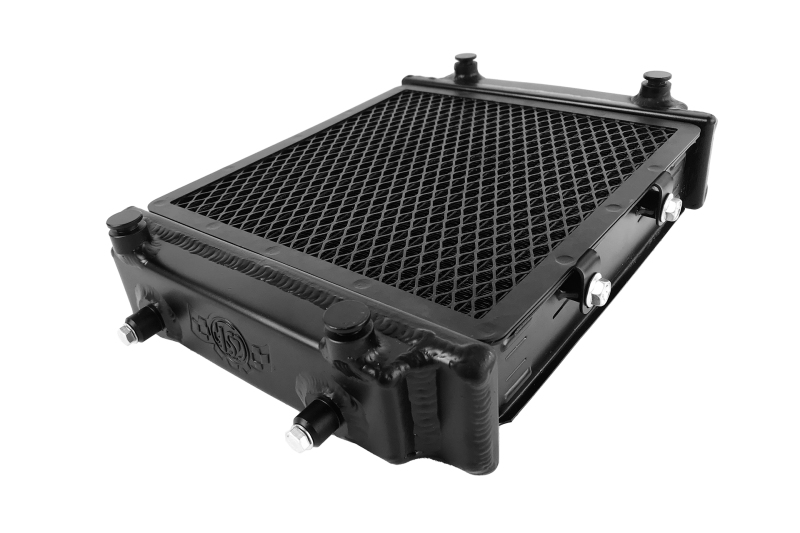

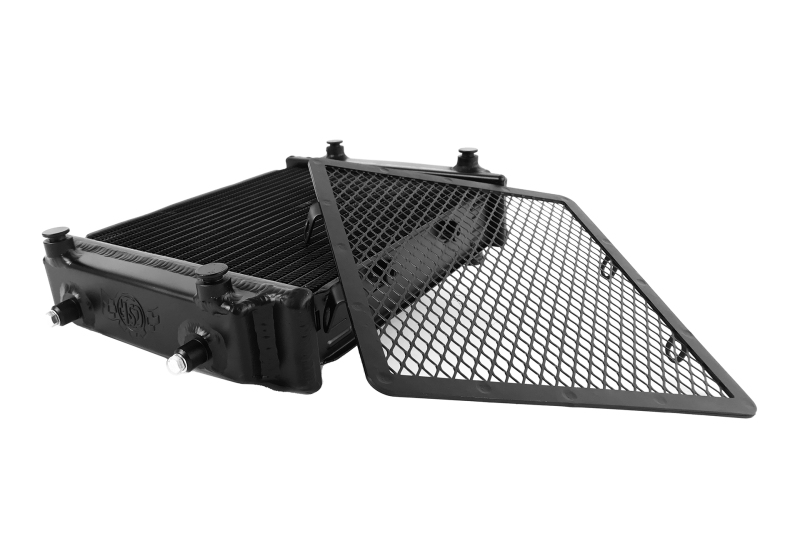

CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 2
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 3
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 4
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 5
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 6
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 7
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 8
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 9
CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R - Part #8132 - Image 10

CSF High-Performance All-Aluminum Radiator for Audi TT and Volkswagen Golf R – Part #8132

SKU: 8132

Original price was: $329.00.Current price is: $315.00.

In stock

19 in stock

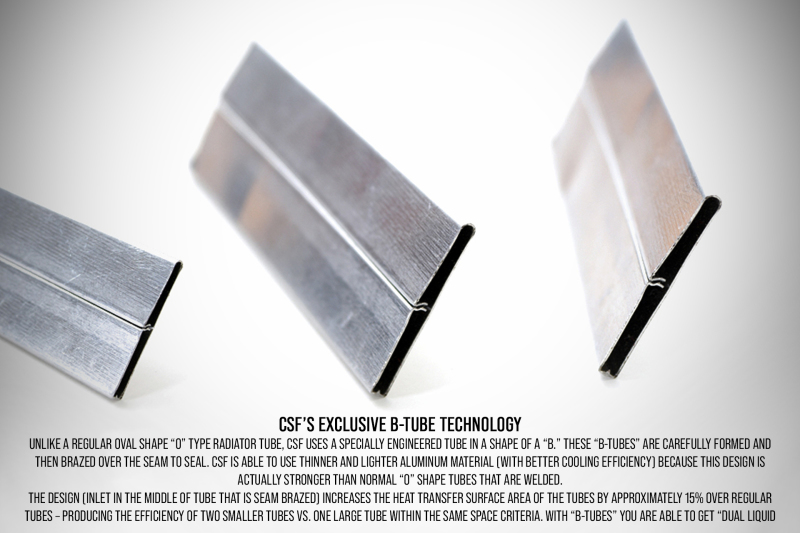

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your A3/S3 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your A3/S3. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #8132 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • Black Finish for High-End Stealth Look
  • All-Aluminum Race Style Drain Plug
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF #8132 High-Performance All-Aluminum Radiator is engineered to deliver superior cooling efficiency for your Audi TT and Volkswagen Golf R models. With over 50 years of radiator manufacturing expertise, CSF combines innovative design with high-quality materials to ensure your engine stays cool under demanding conditions. This radiator features a 2-Row core with CSF’s exclusive B-Tube Technology, which enhances heat transfer surface area by approximately 15%, providing increased cooling capacity compared to traditional designs. The specially shaped “B”-tubes are carefully formed and brazed over the seam, offering a stronger and lighter alternative to standard “O”-shaped tubes, resulting in improved durability and performance for both street and track applications. The internal design promotes dual liquid laminar flow, optimizing heat dissipation and maintaining optimal engine temperatures during high-performance driving or motorsports environments. The radiator incorporates ultra-efficient multi-louvered fins, precisely aligned to maximize airflow and heat rejection, with specifications tested in CSF’s wind-tunnel laboratory for maximum efficiency. This model is designed as a “Drop-In Fit,” requiring no modifications for installation and compatible with all OEM components including quick-connect hoses, the AC condenser, mounting brackets, and fan shroud. The radiator’s black finish provides a sleek, high-end appearance, complementing your vehicle’s aesthetic. CNC machined brackets and fittings ensure a precise fit and long-lasting durability, while the all-aluminum race-style drain plug adds convenience and reliability. Whether upgrading for improved cooling or preparing for high-performance use, the CSF #8132 radiator offers industry-leading technology and craftsmanship, making it the ideal choice for your Audi TT or Volkswagen Golf R. Please refer to your vehicle’s repair manual for detailed installation instructions, or consult a qualified technician for assistance.

Features:

  • Drop-in fit requiring no modifications for easy installation, compatible with all OEM components including quick-connect hoses and mounting brackets
  • Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface contact and heat dissipation
  • 2-Row 42mm core utilizing CSF’s exclusive B-Tube technology for enhanced heat transfer and strength
  • CNC machined brackets and fittings for precise fit and durability
  • CNC machined quick-connect inlet and outlet connections for secure and reliable attachment
  • Black finish offers a sleek, high-end stealth appearance
  • All-aluminum construction with race-style drain plug for durability and ease of maintenance

Fitment:
Audi A3 Quattro Premium 2015
Audi A3 Quattro Premium 2016
Audi A3 Quattro Premium 2017
Audi A3 Quattro Premium 2018
Audi A3 Quattro Premium 2019
Audi A3 Quattro Premium 2020
Audi A3 Quattro Premium Plus 2015
Audi A3 Quattro Premium Plus 2016
Audi A3 Quattro Premium Plus 2017
Audi A3 Quattro Premium Plus 2018
Audi A3 Quattro Premium Plus 2019
Audi A3 Quattro Premium Plus 2020
Audi A3 Quattro Prestige 2015
Audi A3 Quattro Prestige 2016
Audi A3 Quattro Prestige 2017
Audi A3 Quattro Prestige 2018
Audi A3 Quattro Prestige 2019
Audi S3 Premium 2020
Audi S3 Premium Plus 2015
Audi S3 Premium Plus 2016
Audi S3 Premium Plus 2017
Audi S3 Premium Plus 2018
Audi S3 Premium Plus 2019
Audi S3 Premium Plus 2020
Audi S3 Prestige 2015
Audi S3 Prestige 2016
Audi S3 Prestige 2017
Audi S3 Prestige 2018
Audi S3 Prestige 2019
Audi S3 Progressiv 2020
Audi TT Base 2008
Audi TT Base 2009
Audi TT Quattro Base 2014
Audi TT Quattro Base 2015
Audi TT Quattro Base 2016
Audi TT Quattro Base 2017
Audi TT Quattro Base 2018
Audi TT Quattro Base 2019
Audi TT Quattro Base 2020
Audi TT Quattro Base 2021
Audi TT Quattro Base 2022
Audi TTS Quattro Base 2014
Audi TTS Quattro Base 2015
Audi TTS Quattro Base 2016
Audi TTS Quattro Base 2017
Audi TTS Quattro Base 2018
Audi TTS Quattro Base 2019
Audi TTS Quattro Base 2020
Audi TTS Quattro Base 2021
Audi TTS Quattro Base 2022
Volkswagen Beetle R-Line 2013
Volkswagen Beetle R-Line 2014
Volkswagen Beetle R-Line 2015
Volkswagen Beetle R-Line S 2016
Volkswagen Beetle R-Line SEL 2017
Volkswagen Golf R Base 2015
Volkswagen Golf R Base 2016
Volkswagen Golf R Base 2017
Volkswagen Golf R Base 2018
Volkswagen Golf R Base 2019
Volkswagen Jetta GLI 2013
Volkswagen Jetta GLI 2014
Volkswagen Jetta GLI 2017
Volkswagen Jetta GLI 2018
Volkswagen Jetta GLI SE 2015
Volkswagen Jetta GLI SE 2016
Volkswagen Jetta GLI SEL 2015
Volkswagen Jetta GLI SEL 2016

Additional information

Weight 4.9 lbs
Dimensions 13.7 × 11.5 × 6.5 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353081327
brand

CSF
part_number

8132
