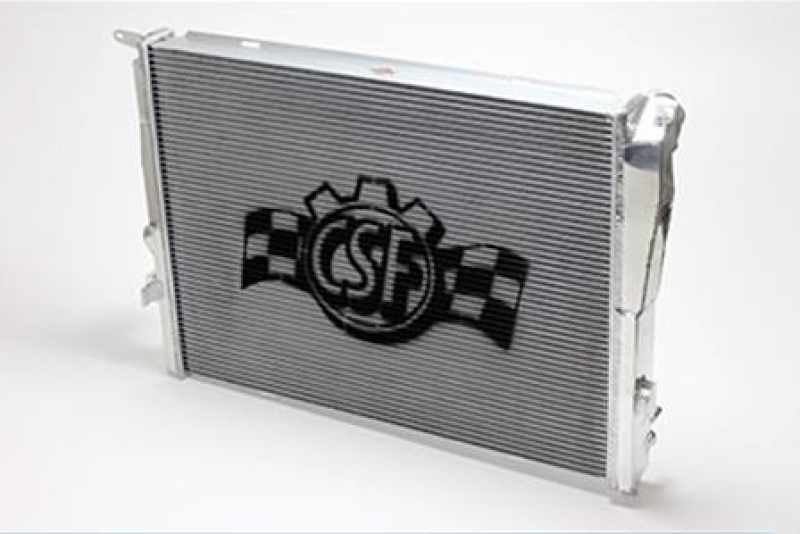

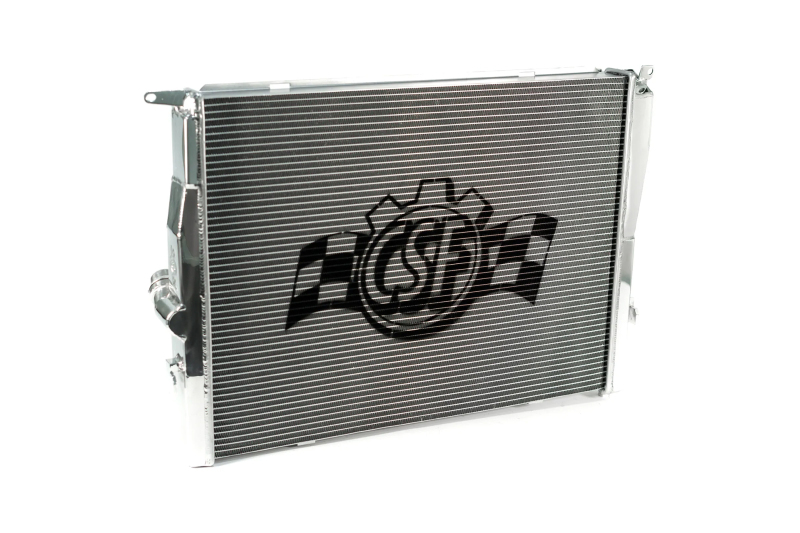

CSF High-Performance All-Aluminum Radiator for BMW E9X M3 Part #7059

Description

The CSF #7059 High-Performance All-Aluminum Radiator is engineered specifically for BMW E9X M3 models from 2008 to 2013, offering superior cooling efficiency and reliable performance in both street and track conditions. With over five decades of experience, CSF has developed this radiator to meet the demands of high horsepower builds and motorsports environments. Its innovative triple-pass flow structure ensures coolant traverses the core three times before exiting, significantly reducing outlet temperatures and maintaining optimal engine temperature during intense driving situations.
The radiator features a dual-row, 42mm core constructed with CSF’s exclusive B-Tube Technology. Unlike traditional oval tubes, these ‘B-tubes’ are meticulously formed and brazed over the seam to enhance strength and thermal performance. The B-tube design increases the heat transfer surface area by approximately 15%, enabling better heat dissipation and allowing for thinner, lighter aluminum material without sacrificing durability. This results in a more efficient cooling system capable of handling high heat loads while reducing overall weight.

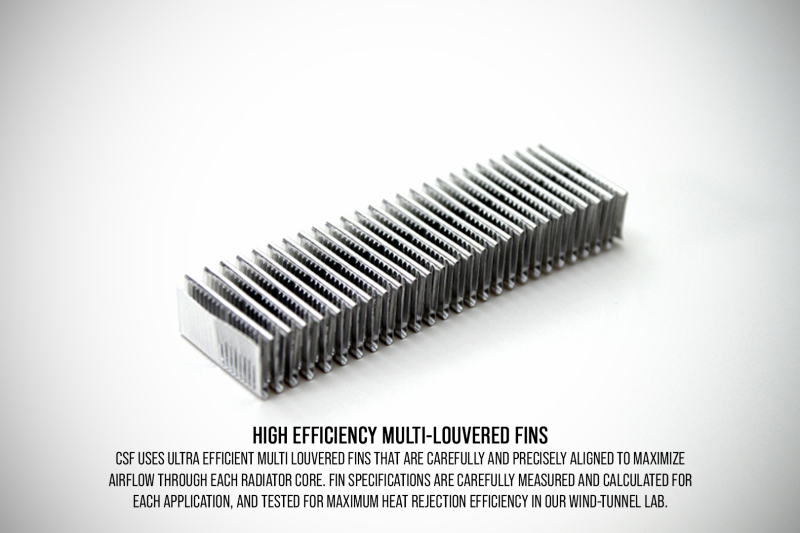

Equipped with ultra-efficient multi-louvered fins measuring 6.5mm in height, the radiator maximizes airflow contact with the core, further improving heat rejection. The fins are precisely aligned and measured for maximum surface contact, tested rigorously in wind-tunnel environments to ensure maximum efficiency. The radiator is a direct ‘Drop-In Fit’ for OEM mounting points, requiring no modifications for installation, and accepts all OEM components including quick-connect hoses, the AC condenser, mounting brackets, and the fan shroud. CNC-machined brackets and fittings provide a durable, precise fit, ensuring long-lasting performance. Additionally, the radiator includes an all-aluminum race-style drain plug and features a smooth satin finish for a clean appearance.
Designed to meet the demands of high-performance applications, this radiator offers reliable cooling with easy installation, making it an ideal choice for enthusiasts and racers alike. The CSF #7059 radiator is a proven solution for maintaining optimal engine temperature, enhancing overall performance, and ensuring your BMW M3 runs efficiently whether on the street or the track.

Features:

• Drop-in fit design requiring no modifications for installation, compatible with OEM components including hoses, condenser, brackets, and fan shroud

• Triple-pass flow structure allows coolant to flow across the core three times for the lowest outlet temperatures

• Core features ultra-efficient multi-louvered fins with 6.5mm fin height for maximum surface area contact

• Dual-row 42mm core with CSF’s exclusive B-Tube technology improves heat transfer and strength

• CNC-machined brackets and fittings ensure a precise fit and durability

• Includes a high-quality all-aluminum race-style drain plug

• Finished with a durable, smooth satin coating for a professional appearance

• Replaces OEM part number 17112283468

Fitment:
BMW M3 Base 2008
BMW M3 Base 2009
BMW M3 Base 2010
BMW M3 Base 2011
BMW M3 Base 2012
BMW M3 Base 2013
