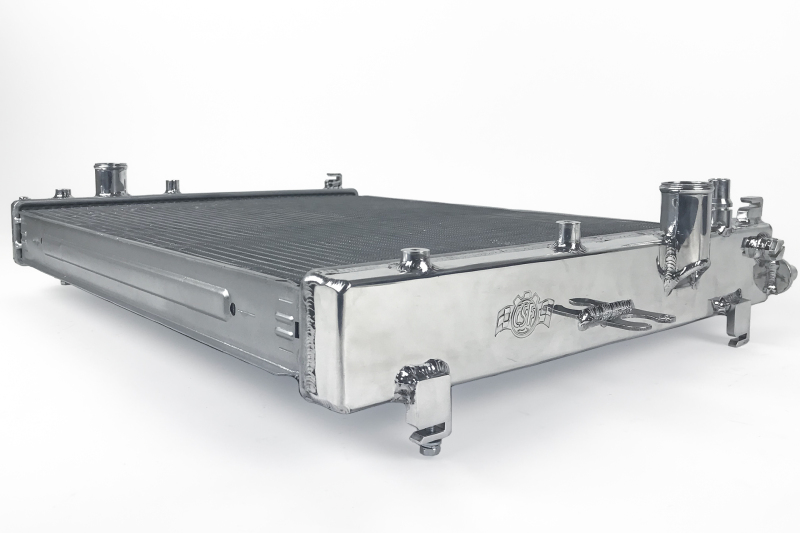

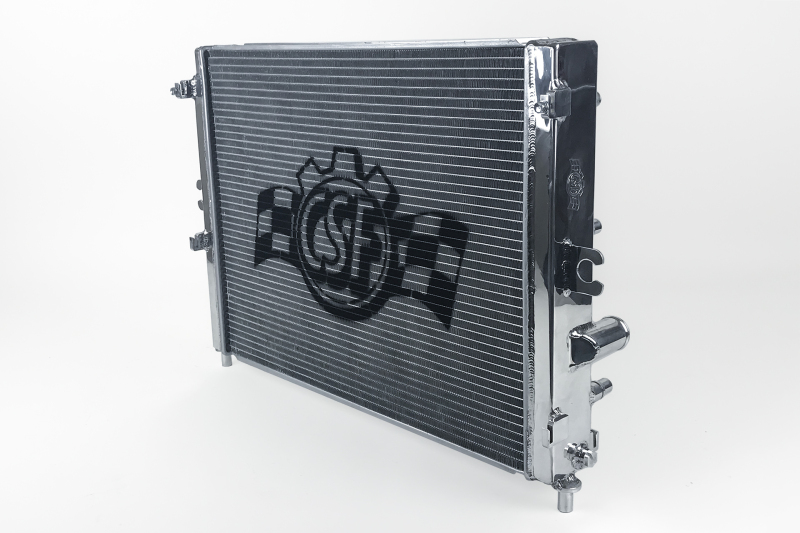

CSF High-Performance All-Aluminum Radiator for C7 Corvette (Part #7077)

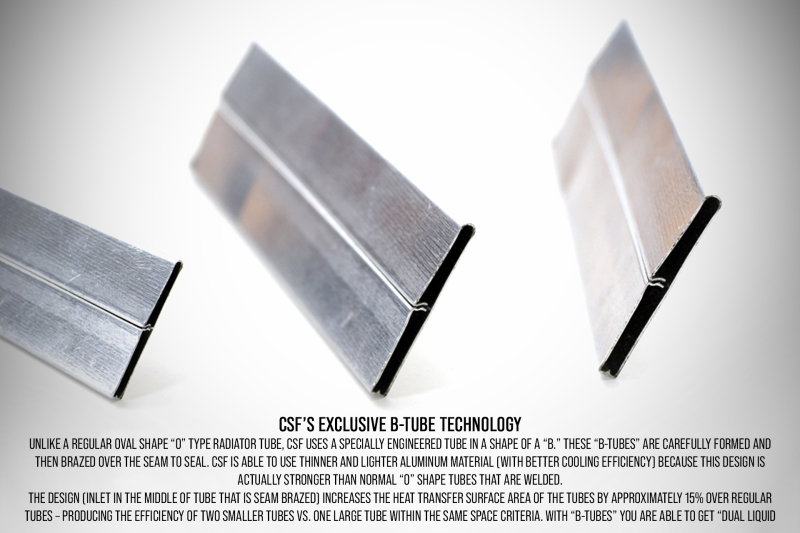

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your C7 Corvette running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your C7 Corvette. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7077 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Triple-Pass Flow Structure for Lowest Possible Coolant Output Temperatures
• 8mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact?
• CNC Machined Brackets and Fittings for Superb Fit and Durability?
• 2 Row, 52mm Core Featuring CSF's Exclusive B-Tube Technology?
• Significantly Reduced Engine Temps for Maximum Performance?
• Integrated All-Aluminum Race-Style Bleeder Screws?
• Individually Leak and Pressure Tested?
• "Drop-in Fit" for Easy Installation
• Smooth Satin Finish
