CSF High-Performance All-Aluminum Radiator for Cadillac CTS-V (2009-2015)

Description

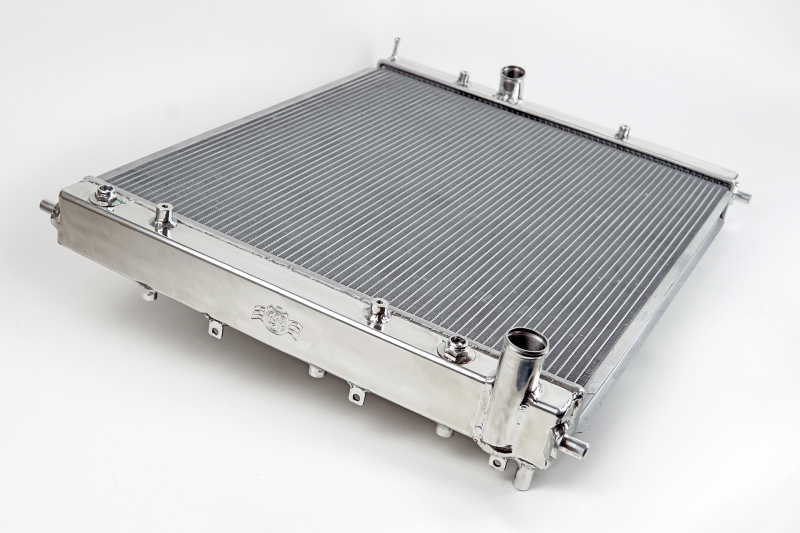

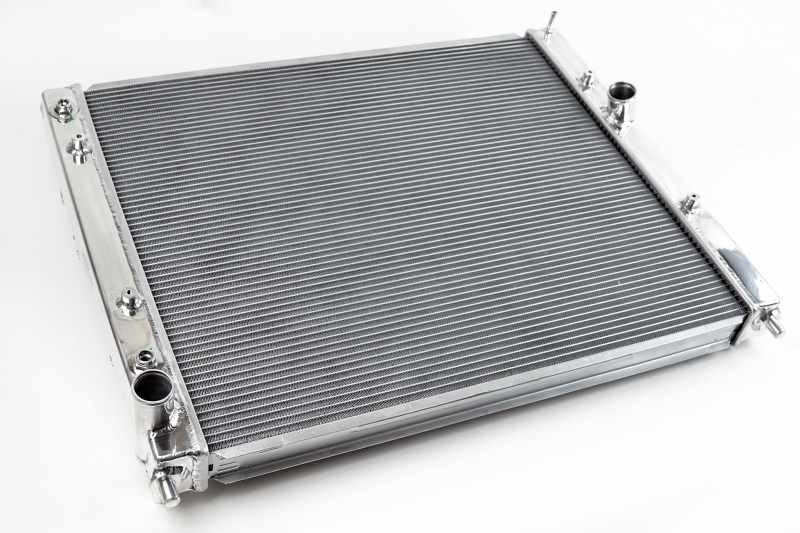

The CSF #8028 High-Performance All-Aluminum Radiator is designed to optimize cooling efficiency for Cadillac CTS-V models from 2009 to 2015. With over 50 years of expertise in radiator manufacturing, CSF has developed a product that combines innovative technology with durable construction to ensure your engine remains at optimal temperature under demanding conditions. This radiator features a 2-Row core with CSF’s exclusive B-Tube Technology, which improves heat transfer and strength compared to traditional oval tubes. The carefully engineered B-shaped tubes are brazed over the seams, allowing for thinner, lighter aluminum material while maintaining superior durability and thermal performance. The increased surface area from the seam-brazed middle inlet enhances heat dissipation by approximately 15%, delivering dual liquid laminar flow for maximum cooling efficiency. Multi-louvered fins, precisely aligned and measured, maximize airflow and heat rejection, further enhancing performance in both street and track applications. The radiator is a direct replacement, designed for easy installation with no modifications required. It accepts OEM components including quick-connect hoses, the AC condenser, mounting brackets, and fan shroud, ensuring a seamless fit. CNC-machined brackets and fittings provide added durability and a perfect fit, while an all-aluminum race-style drain plug ensures reliable maintenance. Finished in a smooth satin coating, this radiator not only improves cooling but also adds a sleek appearance to your engine bay. Whether you’re building a high-horsepower street car or a dedicated race vehicle, the CSF 8028 radiator offers industry-leading technology and quality to keep your CTS-V performing at its best.

Features:

• Drop-in fit design requiring no modifications for easy installation

• Accepts OEM components including quick-connect hoses, AC condenser, and mounting hardware

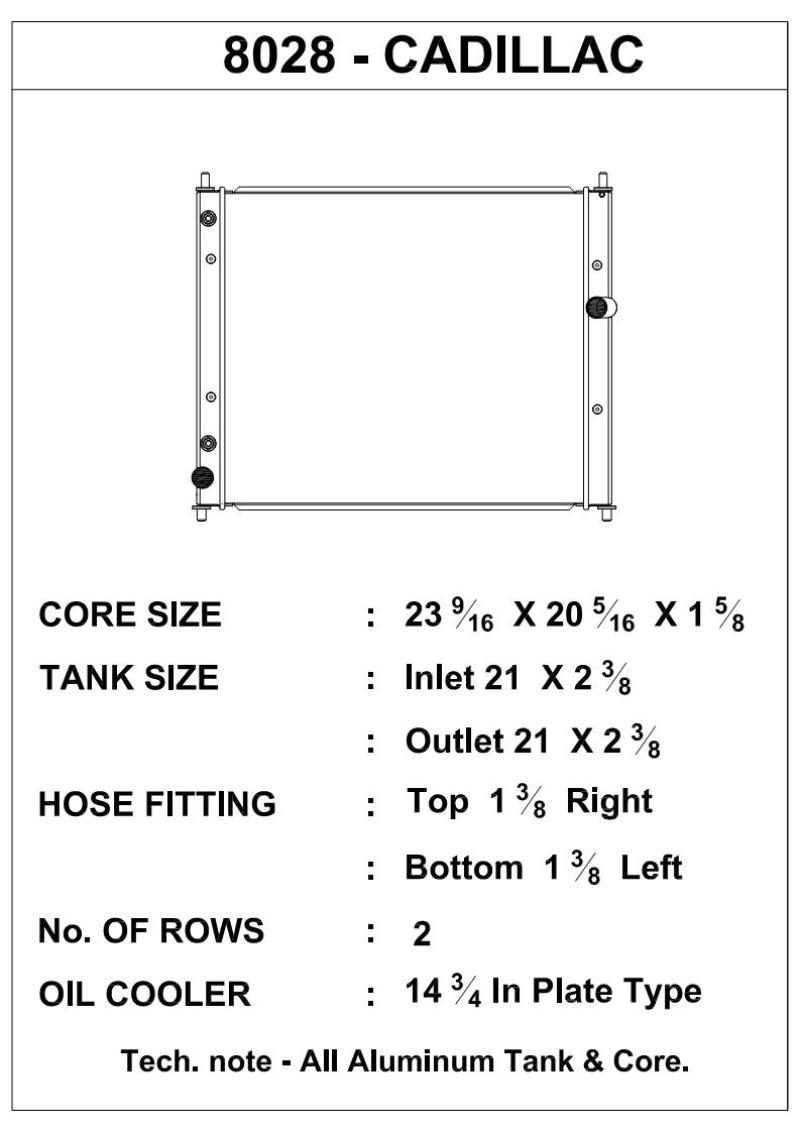

• 2-Row 42mm core with CSF’s exclusive B-Tube technology for enhanced heat transfer

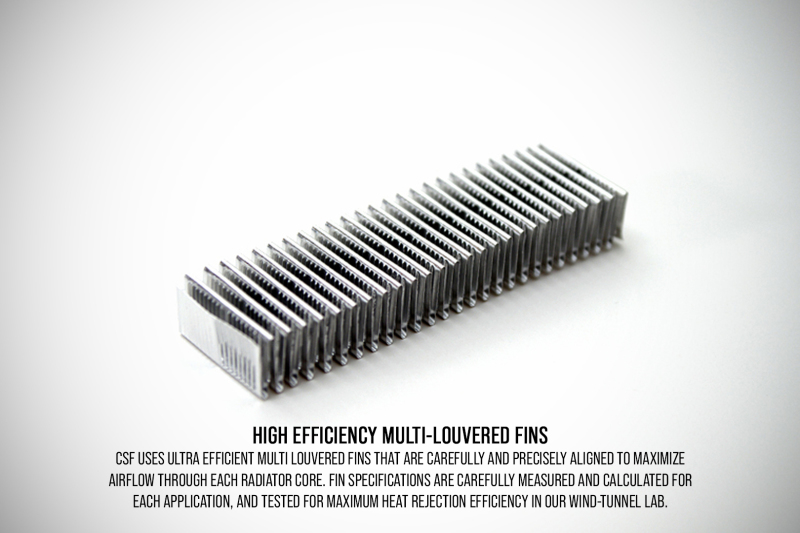

• Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum surface contact

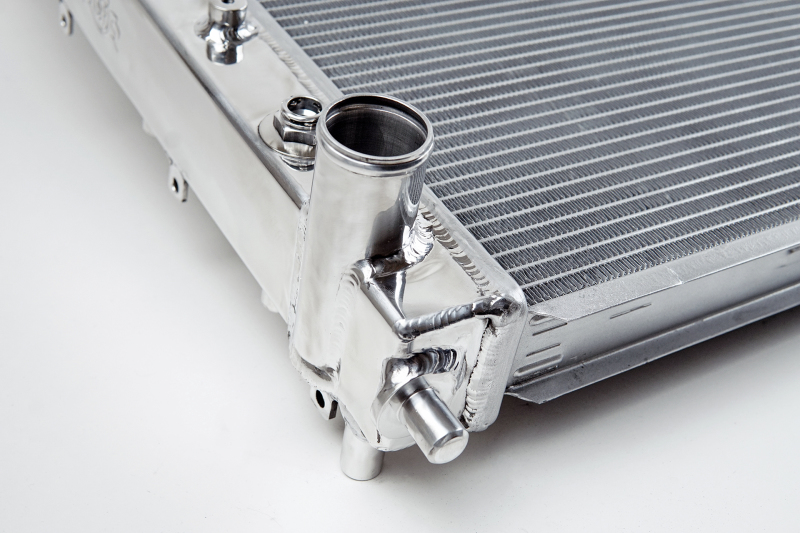

• CNC machined brackets and fittings for superior fit and durability

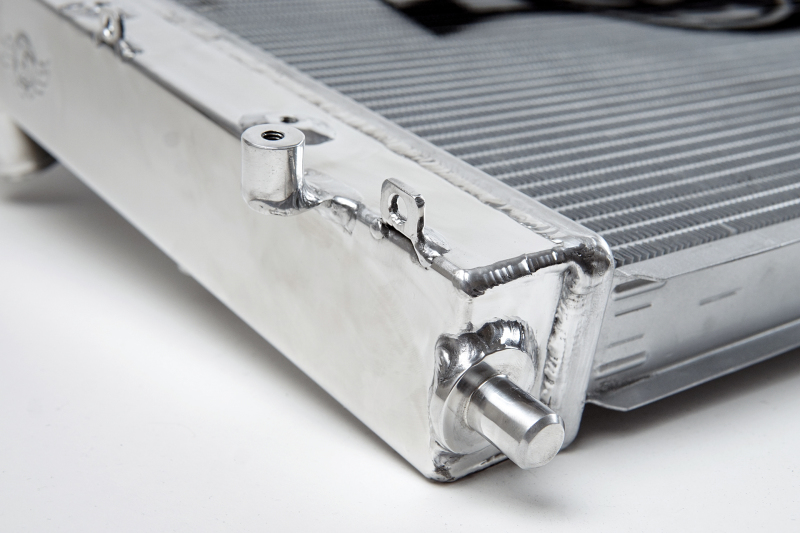

• All-aluminum race-style drain plug for reliable maintenance

• Smooth satin finish for corrosion resistance and aesthetic appeal

Fitment:
Cadillac CTS V 2009
Cadillac CTS V 2010
Cadillac CTS V 2011
Cadillac CTS V 2012
Cadillac CTS V 2013
Cadillac CTS V 2014
Cadillac CTS V 2015
