HomeShopRadiatorsCSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052)
Sale

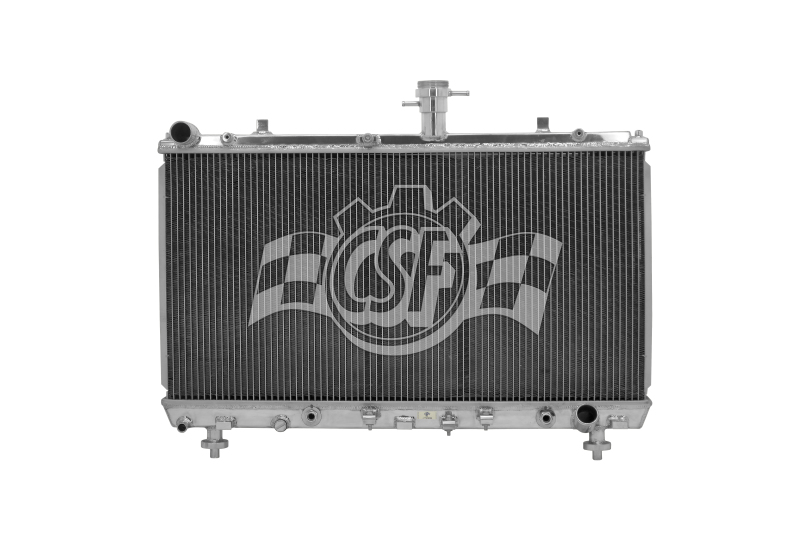

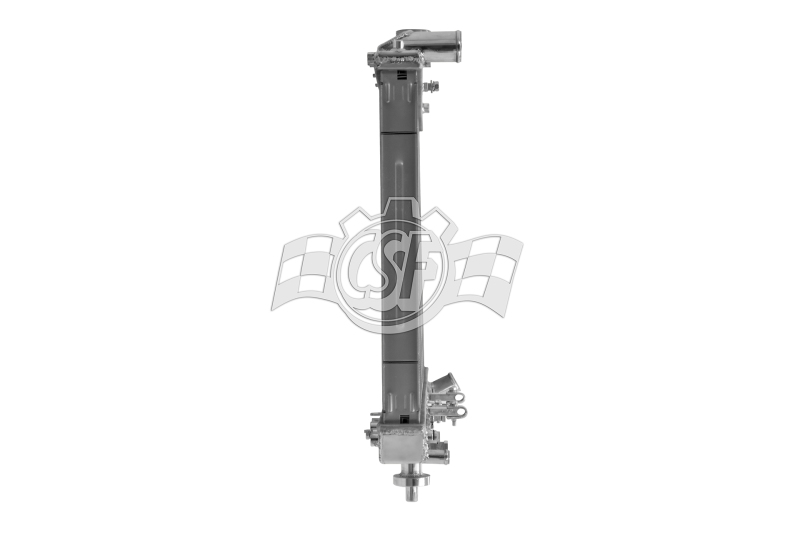

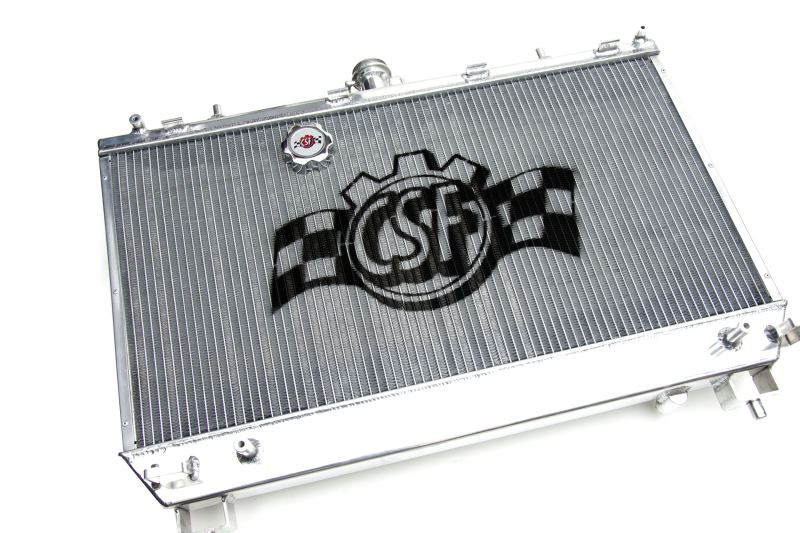

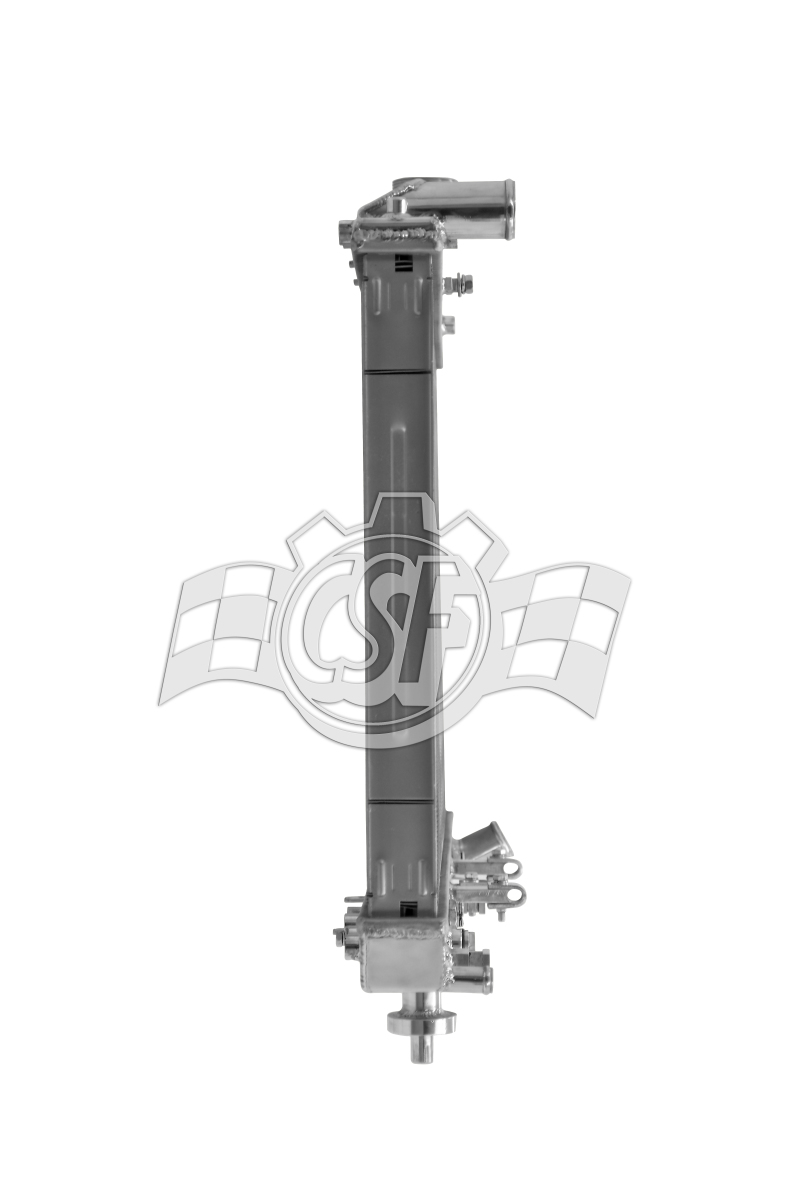

CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052)
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 2
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 3
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 4
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 5
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 6
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 7
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 8
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 9
CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052) - Image 10

CSF High-Performance All-Aluminum Radiator for Chevrolet Camaro (Part #7052)

SKU: 7052

Original price was: $579.00.Current price is: $525.00.

In stock

6 in stock

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Camaro running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your Camaro. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7052 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

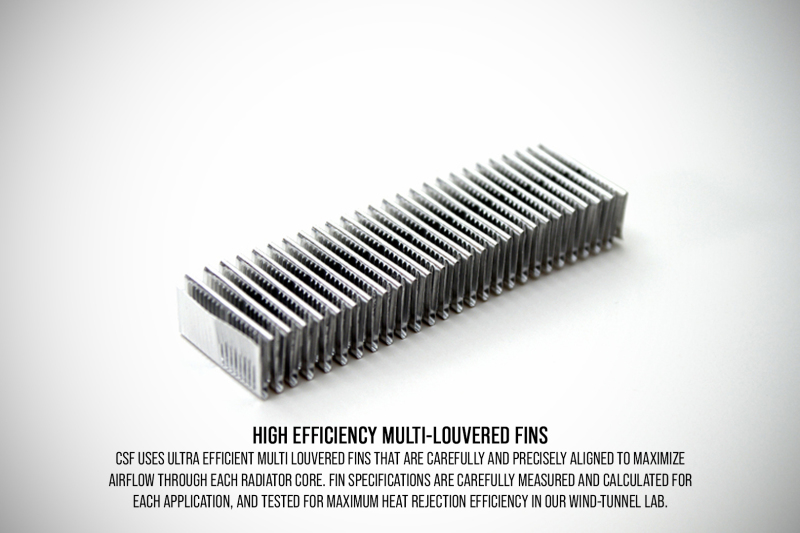

  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • All-Aluminum Race Style Drain Plug
  • 1-Hour "Mirror Finish" Hand Polish
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF #7052 High-Performance All-Aluminum Radiator is engineered with over 50 years of industry-leading experience to ensure optimal cooling for your Chevrolet Camaro. Designed as a direct replacement, this radiator offers a seamless “drop-in fit” that requires no modifications for installation, making it suitable for both street driving and high-performance racing applications. Its construction features a 2-row, 42mm core with CSF’s exclusive B-Tube technology, which enhances heat transfer efficiency by increasing surface area and promoting dual liquid laminar flow. This innovative tube design is stronger and lighter than traditional oval tubes, providing better durability and cooling performance, especially under high horsepower or track conditions. The radiator’s multi-louvered fins with a fin height of 6.5mm maximize airflow and heat dissipation, tested and optimized in CSF’s wind-tunnel laboratory for maximum efficiency. CNC machined brackets and fittings ensure a perfect fit and long-lasting durability, while the all-aluminum race-style drain plug and hand-polished mirror finish add to its premium quality. Compatible with OEM components such as quick-connect hoses, condenser, mounting brackets, and fan shroud, this radiator simplifies installation and maintenance, making it an ideal upgrade for Camaro enthusiasts seeking reliable cooling performance. Whether for daily driving, spirited street use, or competitive motorsports, the CSF #7052 radiator delivers superior thermal management, helping your engine stay cooler and perform at its best in demanding environments.

Features:

  • Drop-in fit design requiring no modifications for installation
  • Compatible with OEM components including quick-connect hoses, condenser, and fan shroud
  • 2-row, 42mm core with CSF’s exclusive B-Tube technology for enhanced heat transfer
  • Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum airflow
  • CNC machined brackets and fittings for precise fit and durability
  • All-aluminum race-style drain plug for easy maintenance
  • Hand polished mirror finish for a premium appearance
  • Constructed from lightweight, high-quality aluminum for improved cooling efficiency

Fitment:
Chevrolet Camaro LS 2012
Chevrolet Camaro LS 2013
Chevrolet Camaro LS 2014
Chevrolet Camaro LS 2015
Chevrolet Camaro LT 2012
Chevrolet Camaro LT 2013
Chevrolet Camaro LT 2014
Chevrolet Camaro LT 2015
Chevrolet Camaro LT 2016
Chevrolet Camaro SS 2012
Chevrolet Camaro SS 2013
Chevrolet Camaro SS 2014
Chevrolet Camaro SS 2015
Chevrolet Camaro SS 2016
Chevrolet Camaro Z/28 2014
Chevrolet Camaro Z/28 2015
Chevrolet Camaro ZL1 2012
Chevrolet Camaro ZL1 2013
Chevrolet Camaro ZL1 2014
Chevrolet Camaro ZL1 2015

Additional information

Weight 21.9 lbs
Dimensions 34.7 × 26.2 × 7.6 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353070529
brand

CSF
part_number

7052
