HomeShopRadiatorsCSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041
Sale

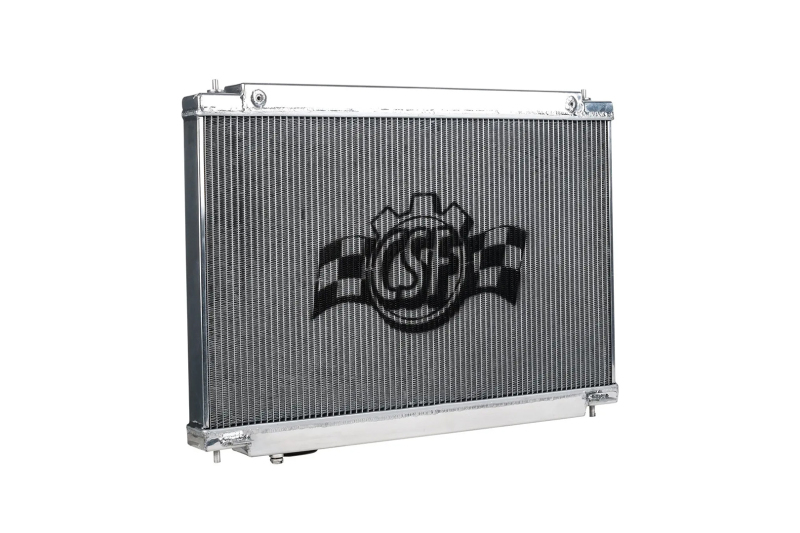

CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 2
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 3
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 4
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 5
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 6
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 7
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 8
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 9
CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041 - Image 10

CSF High-Performance All-Aluminum Radiator for Nissan GT-R (2011-2014) – Part #7041

SKU: 7041

Original price was: $599.00.Current price is: $565.00.

In stock

24 in stock

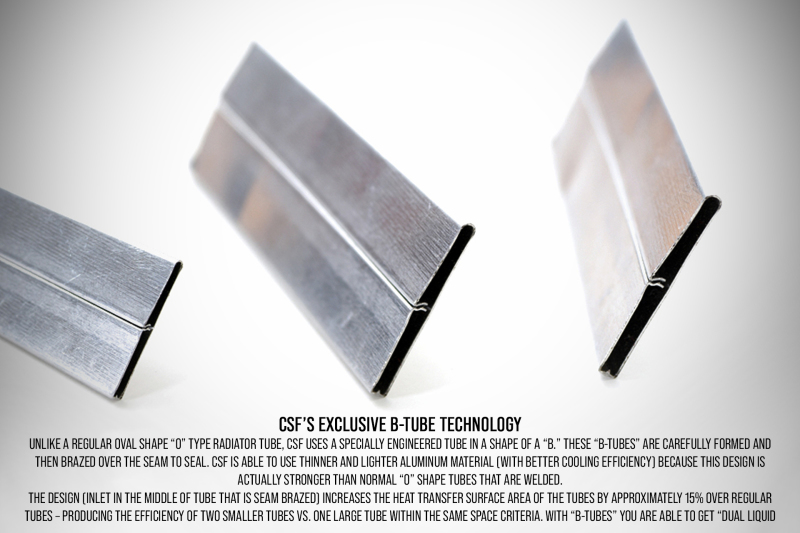

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your R35 GTR running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. CSF manufactures the most advanced and efficient radiator in the industry for your R35 GTR. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7041 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

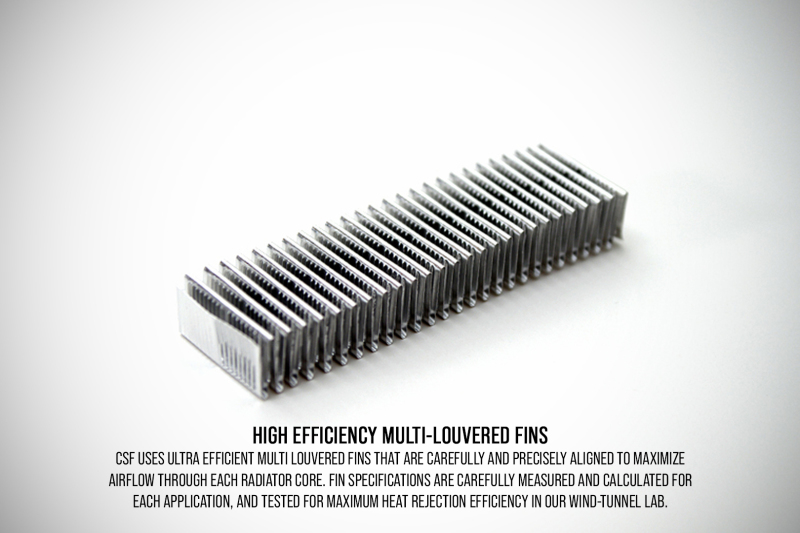

  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row 52mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • All-Aluminum Race Style Drain Plug
  • Smooth Satin Finish
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF Part #7041 High-Performance All-Aluminum Radiator is engineered specifically for Nissan GT-R models from 2009 to 2014, delivering exceptional cooling performance for street and track use. With over 50 years of experience in radiator manufacturing, CSF has developed a product that meets the demands of high horsepower builds and motorsports environments. Featuring a 2-Row core with CSF’s innovative B-Tube Technology, this radiator maximizes heat transfer and airflow efficiency. Unlike traditional oval tubes, the specially designed B-tubes are formed with a precise shape and brazed seam, allowing for a thinner, lighter, yet stronger tube that enhances cooling capacity. The design increases the heat transfer surface area by approximately 15%, providing dual liquid laminar flow for superior heat dissipation. The radiator is equipped with ultra-efficient multi-louvered fins, carefully aligned and measured for maximum airflow and heat rejection. This ensures optimal cooling, whether you’re on the street or at the race track. The radiator is designed as a “drop-in fit,” requiring no modifications for installation and compatible with OEM components including quick-connect hoses, the AC condenser, mounting brackets, and the fan shroud. CNC-machined brackets and fittings ensure a precise fit and durability, while the satin finish adds a sleek appearance. The inclusion of a race-style all-aluminum drain plug simplifies maintenance. This radiator provides a significant upgrade over stock units, ensuring your Nissan GT-R maintains optimal operating temperatures under demanding conditions and high-performance scenarios. It is a reliable choice for enthusiasts seeking to enhance their vehicle’s cooling system with a product backed by industry-leading testing and manufacturing standards.

Features:

  • Drop-in fit for easy installation with no modifications required
  • Compatible with OEM components including quick-connect hoses and mounting brackets
  • 2-Row 52mm core with CSF’s exclusive B-Tube technology for enhanced heat transfer
  • Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum contact surface
  • CNC-machined brackets and fittings for durability and precise fit
  • All-aluminum race style drain plug for easy maintenance
  • Smooth satin finish for a professional appearance

Fitment:
Nissan GT-R 50th Anniversary Edition 2020
Nissan GT-R Base 2009
Nissan GT-R Base 2010
Nissan GT-R Black Edition 2012
Nissan GT-R Black Edition 2013
Nissan GT-R Black Edition 2014
Nissan GT-R Black Edition 2015
Nissan GT-R Black Edition 2016
Nissan GT-R Nismo 2015
Nissan GT-R Nismo 2016
Nissan GT-R Nismo 2017
Nissan GT-R Nismo 2018
Nissan GT-R Nismo 2019
Nissan GT-R Nismo 2020
Nissan GT-R Nismo 2021
Nissan GT-R Premium 2009
Nissan GT-R Premium 2010
Nissan GT-R Premium 2011
Nissan GT-R Premium 2012
Nissan GT-R Premium 2013
Nissan GT-R Premium 2014
Nissan GT-R Premium 2015
Nissan GT-R Premium 2016
Nissan GT-R Premium 2017
Nissan GT-R Premium 2018
Nissan GT-R Premium 2019
Nissan GT-R Premium 2020
Nissan GT-R Premium 2021
Nissan GT-R Pure 2018
Nissan GT-R Pure 2019
Nissan GT-R T-spec 2021
Nissan GT-R Track Edition 2014
Nissan GT-R Track Edition 2015
Nissan GT-R Track Edition 2018
Nissan GT-R Track Edition 2019
Nissan GT-R Track Edition 2020

Additional information

Weight 23.6 lbs
Dimensions 33.1 × 24.9 × 7.5 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353070413
brand

CSF
part_number

7041
