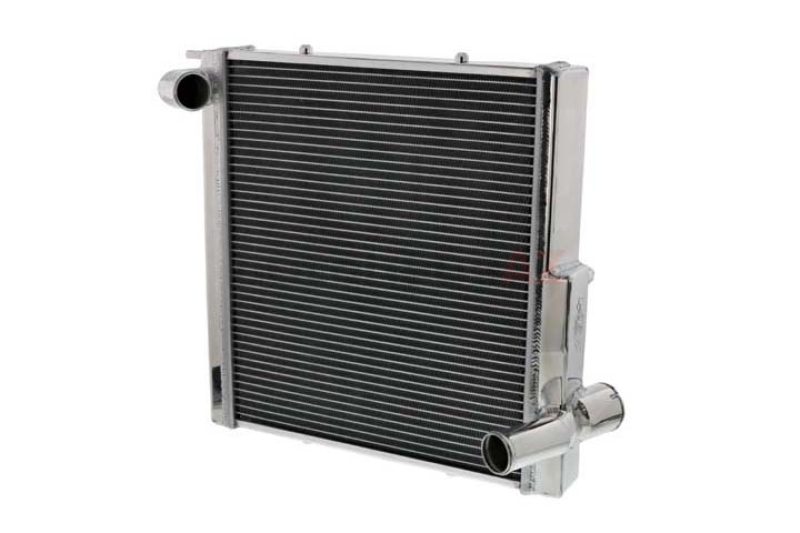

CSF High-Performance All-Aluminum Radiator for Porsche 911 Carrera (991.1) / Boxster (981) / GT4 (991) – Part #7066

Description

The CSF Part #7066 high-performance radiator is engineered to enhance cooling efficiency and reliability for your Porsche 911 Carrera (991.1), Boxster (981), and GT4 (991). With over 50 years of experience, CSF manufactures radiators designed for both street driving and motorsport environments, making this unit a versatile upgrade for high horsepower builds or race vehicles requiring superior thermal management. This all-aluminum radiator features a 2-row, 42mm core with CSF’s exclusive B-Tube technology, which employs specially engineered “B”-shaped tubes brazed over the seam. This innovative design allows for thinner, lighter aluminum construction while improving strength and heat transfer surface area by approximately 15%, resulting in increased cooling efficiency and dual liquid laminar flow for maximum heat dissipation. The radiator’s ultra-efficient multi-louvered fins are precisely aligned to optimize airflow, with fin heights measuring 6.5mm to maximize surface contact and heat rejection. It is a direct drop-in replacement that fits OEM mounting points without modifications, ensuring an easy installation process. The CNC-machined brackets and fittings provide a durable and superb fit, while the all-aluminum, TIG-welded end tanks guarantee long-lasting performance. The radiator also accepts OEM-style inlet and outlet connections and is compatible with OEM AC condensers and fan shrouds. Each unit is individually leak and pressure tested to ensure quality and reliability. Finished in a smooth satin coating, this radiator offers a professional appearance and exceptional cooling performance, whether for daily driving or competitive racing. As a high-quality aftermarket upgrade, the CSF #7066 radiator is an essential component for maintaining optimal engine temperatures and enhancing overall vehicle performance.

Features:

• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement

• 2-Row 42mm Core Featuring CSF’s Exclusive B-Tube Technology (+20% Efficiency)

• Plug-and-Play ‘Drop-in’ Fit with No Modifications Required for Installation

• 6.5mm Fin Height with Multi-Louvered Design for Maximum Surface Area Contact

• CNC Machined Brackets and Fittings for Superb Fit and Durability

• All-Aluminum Construction with 100% TIG-Welded End Tanks

• OEM-Style Machined Inlet and Outlet Connections

• Accepts OEM AC Condenser and Fan Shroud

• Individually Leak and Pressure Tested for Quality Assurance

• Finished with a Durable Satin Surface for a Professional Look

Fitment:
Porsche 911 Carrera 2012
Porsche 911 Carrera 2013
Porsche 911 Carrera 2014
Porsche 911 Carrera 2015
Porsche 911 Carrera 2016
Porsche 911 Carrera 4 2012
Porsche 911 Carrera 4 2013
Porsche 911 Carrera 4 2014
Porsche 911 Carrera 4 2015
Porsche 911 Carrera 4 2016
Porsche 911 Carrera 4 GTS 2015
Porsche 911 Carrera 4 GTS 2016
Porsche 911 Carrera 4S 2012
Porsche 911 Carrera 4S 2013
Porsche 911 Carrera 4S 2014
Porsche 911 Carrera 4S 2015
Porsche 911 Carrera 4S 2016
Porsche 911 Carrera GTS 2012
Porsche 911 Carrera GTS 2015
Porsche 911 Carrera GTS 2016
Porsche 911 Carrera S 2012
Porsche 911 Carrera S 2013
Porsche 911 Carrera S 2014
Porsche 911 Carrera S 2015
Porsche 911 Carrera S 2016
Porsche 911 Targa 4 2012
Porsche 911 Targa 4 2014
Porsche 911 Targa 4 2015
Porsche 911 Targa 4 2016
Porsche 911 Targa 4 GTS 2016
Porsche 911 Targa 4S 2012
Porsche 911 Targa 4S 2014
Porsche 911 Targa 4S 2015
Porsche 911 Targa 4S 2016
Porsche Boxster Base 2012
Porsche Boxster Base 2013
Porsche Boxster Base 2014
Porsche Boxster Base 2015
Porsche Boxster Base 2016
Porsche Boxster Black Edition 2016
Porsche Boxster GTS 2015
Porsche Boxster GTS 2016
Porsche Boxster S 2012
Porsche Boxster S 2013
Porsche Boxster S 2014
Porsche Boxster S 2015
Porsche Boxster S 2016
Porsche Boxster S Black Edition 2012
Porsche Boxster Spyder 2012
Porsche Boxster Spyder 2016
Porsche Cayman Base 2014
Porsche Cayman Base 2015
Porsche Cayman Base 2016
Porsche Cayman Black Edition 2016
Porsche Cayman GT4 2016
Porsche Cayman GTS 2015
Porsche Cayman GTS 2016
Porsche Cayman S 2014
Porsche Cayman S 2015
Porsche Cayman S 2016
