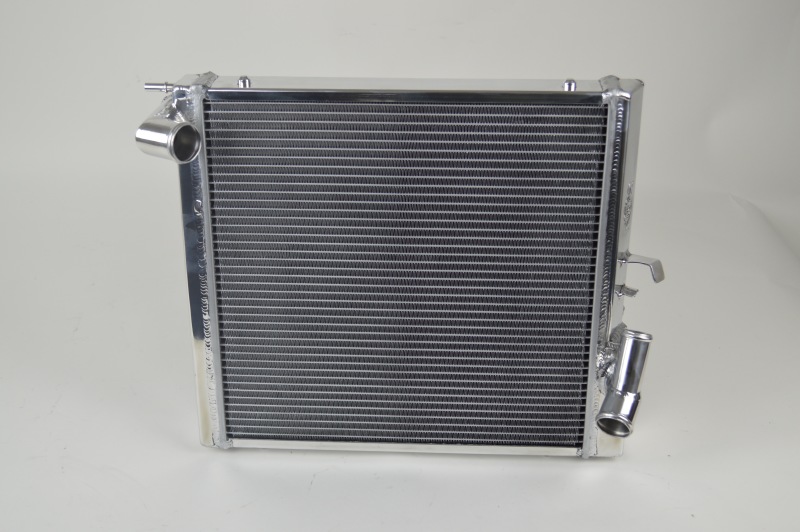

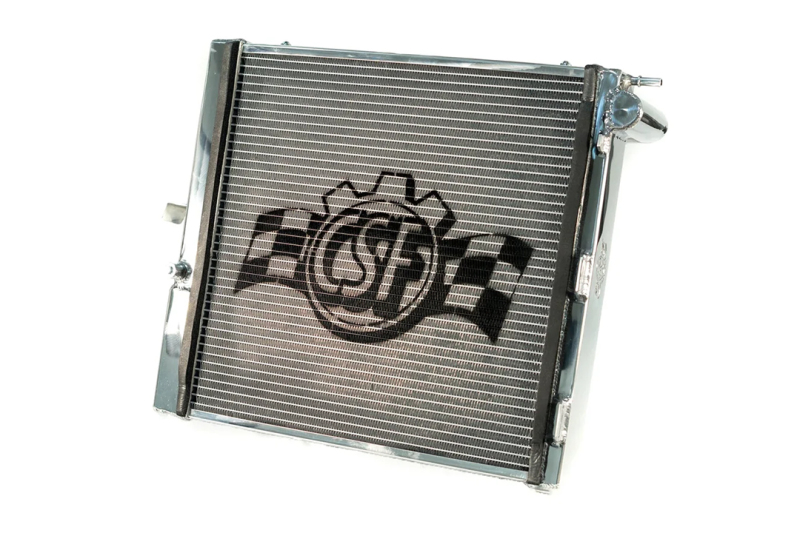

CSF High-Performance All-Aluminum Radiator for Porsche 911 Carrera (991.2) and Turbo Models – Part #7069

Description

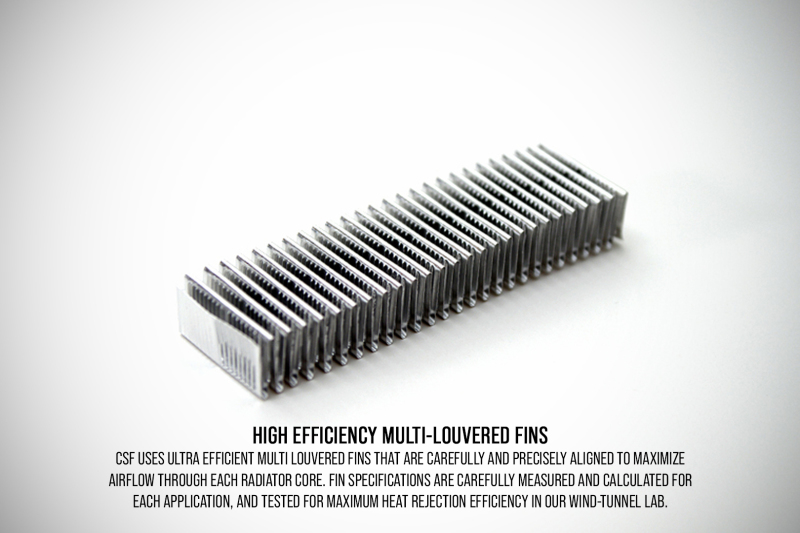

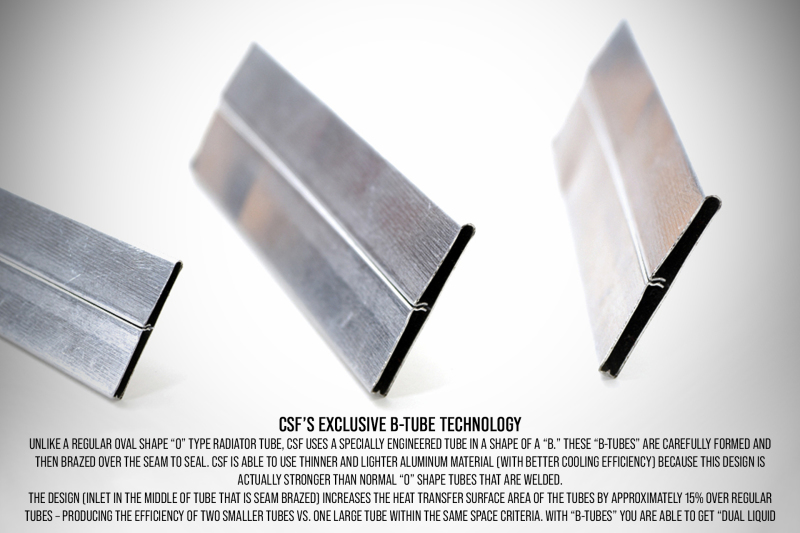

The CSF #7069 High-Performance All-Aluminum Radiator is engineered to deliver exceptional cooling efficiency for your Porsche 911 Carrera (991.2), Turbo, GT3, and GT3 RS models. With over five decades of experience in radiator manufacturing, CSF has developed this radiator specifically to meet the demands of high-performance street driving and motorsport environments. Its 2-Row, 42mm core incorporates CSF’s exclusive B-Tube Technology, which enhances heat transfer and structural strength. Unlike traditional oval-shaped tubes, B-tubes are carefully formed and brazed over the seam, allowing for thinner, lighter aluminum that improves cooling performance while maintaining durability. These tubes increase the heat transfer surface area by approximately 15%, providing a significant boost in thermal efficiency. This design facilitates dual liquid laminar flow, optimizing coolant flow and heat dissipation across the core. The radiator features ultra-efficient multi-louvered fins that are precisely aligned for maximum airflow and heat rejection, tested rigorously in wind tunnel labs to ensure optimal performance. The radiator is a direct drop-in fit, requiring no modifications for installation in the OEM location, making it suitable for professional racers, enthusiasts, or OEM replacements. CNC machined brackets and fittings ensure a perfect fit and long-lasting durability. Constructed entirely from TIG-welded aluminum with OEM-style machined inlet and outlet connections, this radiator is designed to accept OEM AC condensers and fan shrouds. Each unit undergoes individual leak and pressure testing to guarantee quality and reliability. Its smooth satin finish enhances its appearance while providing corrosion resistance. Whether used for high horsepower builds or everyday driving, the CSF Radiator offers superior cooling performance, helping your Porsche 911 maintain optimal operating temperatures under demanding conditions.

Features:

• High-performance upgrade suitable for professional racing, street performance, or OEM replacement

• 2-Row 42mm core featuring CSF’s exclusive B-Tube technology (+20% efficiency)

• Plug-and-play ‘drop-in’ fit with no modifications required for installation

• 6.5mm fin height with multi-louvered design for maximum surface area contact

• CNC machined brackets and fittings for superb fit and durability

• All-aluminum construction with 100% TIG-welded end tanks

• OEM-style machined inlet and outlet connections

• Compatible with OEM AC condenser and fan shroud

• Individually leak and pressure tested for quality assurance

• Smooth satin finish for corrosion resistance and aesthetic appeal

Fitment:
Porsche 911 Carrera 2016
Porsche 911 Carrera 2017
Porsche 911 Carrera 2018
Porsche 911 Carrera 2019
Porsche 911 Carrera 4 2016
Porsche 911 Carrera 4 2017
Porsche 911 Carrera 4 2018
Porsche 911 Carrera 4 2019
Porsche 911 Carrera 4S 2016
Porsche 911 Carrera 4S 2017
Porsche 911 Carrera 4S 2018
Porsche 911 Carrera 4S 2019
Porsche 911 Carrera GTS 2018
Porsche 911 Carrera GTS 2019
Porsche 911 Carrera S 2016
Porsche 911 Carrera S 2017
Porsche 911 Carrera S 2018
Porsche 911 Carrera S 2019
Porsche 911 GT3 2014
Porsche 911 GT3 2015
Porsche 911 GT3 2016
Porsche 911 GT3 2018
Porsche 911 GT3 RS 2016
Porsche 911 GT3 RS 2019
Porsche 911 R 2017
Porsche 911 Targa 4 2016
Porsche 911 Targa 4 2017
Porsche 911 Targa 4 2018
Porsche 911 Targa 4 2019
Porsche 911 Targa 4 GTS 2018
Porsche 911 Targa 4 GTS 2019
Porsche 911 Targa 4S 2016
Porsche 911 Targa 4S 2017
Porsche 911 Targa 4S 2018
Porsche 911 Targa 4S 2019
Porsche 911 Turbo 2013
Porsche 911 Turbo 2014
Porsche 911 Turbo 2015
Porsche 911 Turbo 2016
Porsche 911 Turbo 2017
Porsche 911 Turbo 2018
Porsche 911 Turbo 2019
Porsche 911 Turbo S 2013
Porsche 911 Turbo S 2014
Porsche 911 Turbo S 2015
Porsche 911 Turbo S 2016
Porsche 911 Turbo S 2017
Porsche 911 Turbo S 2018
Porsche 911 Turbo S 2019
