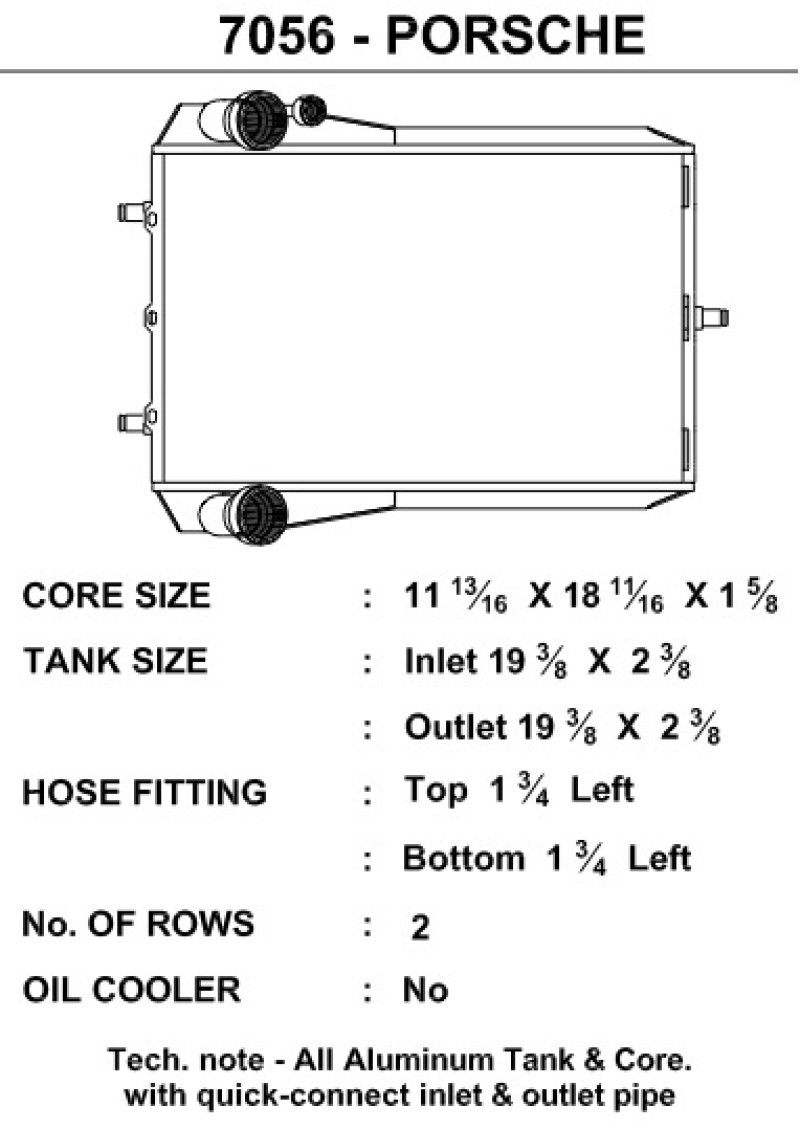

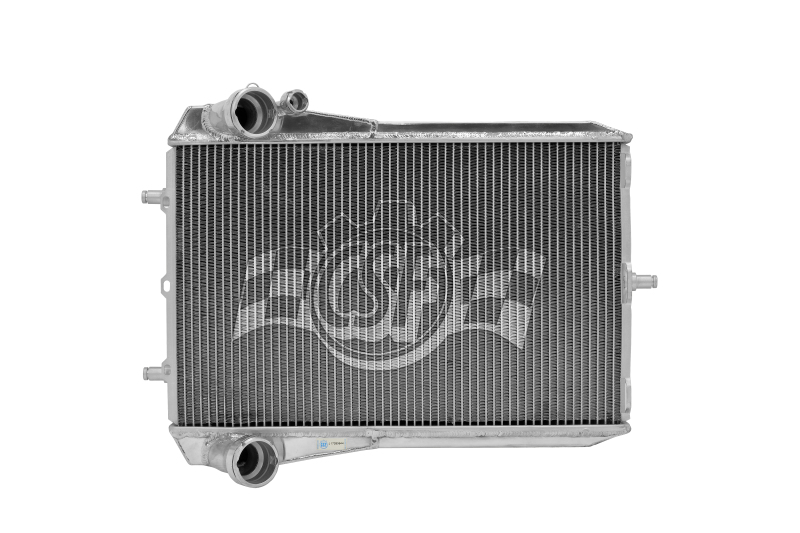

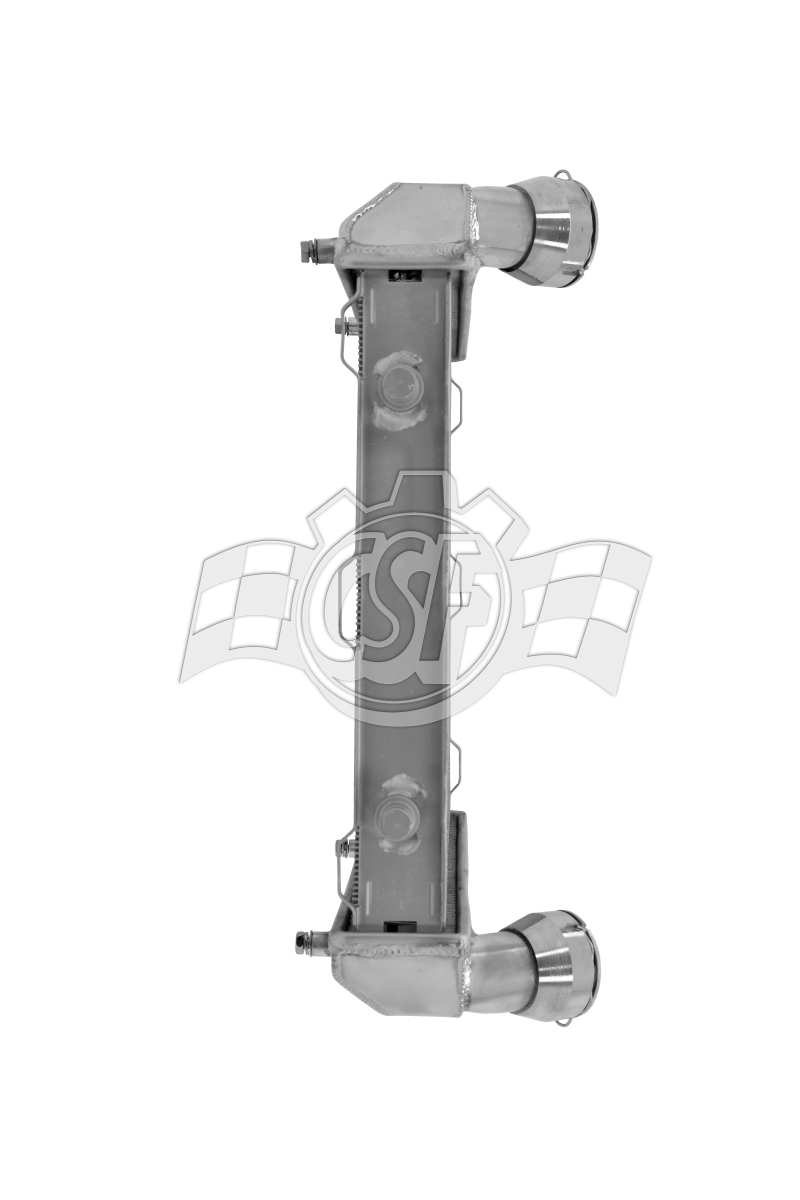

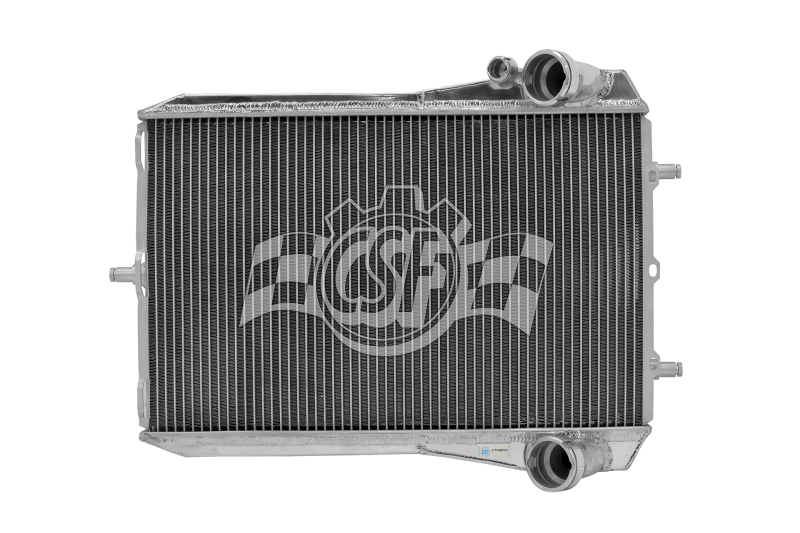

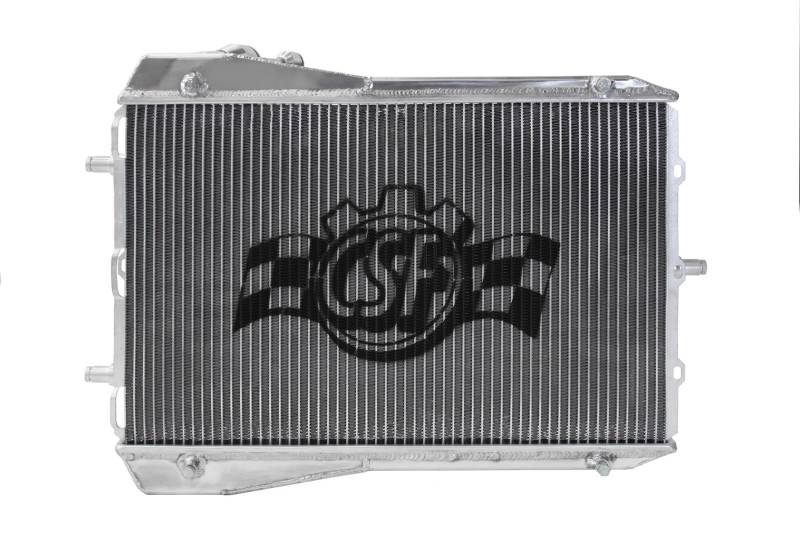

CSF High-Performance All-Aluminum Radiator for Porsche 911 Turbo/GT2 (996 & 997) – Part #7056

Description

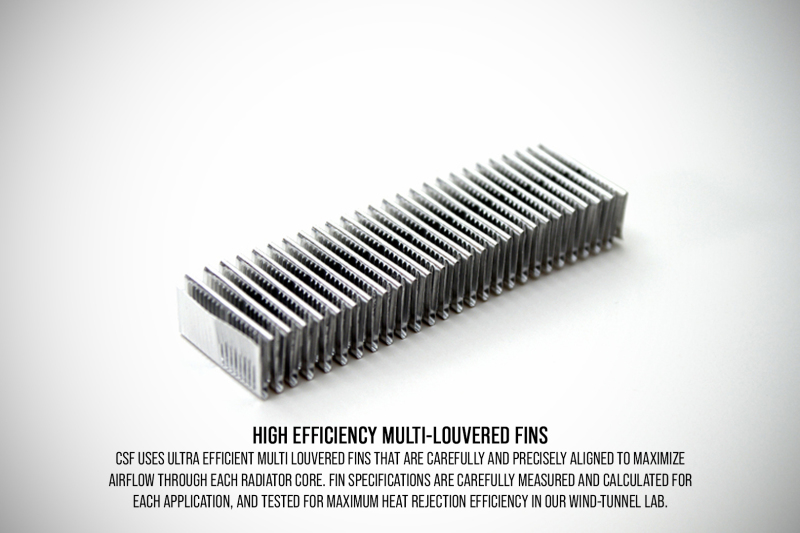

The CSF #7056 High-Performance All-Aluminum Radiator is engineered to provide superior cooling for Porsche 911 models including the 996 and 997 series. With over five decades of manufacturing expertise, CSF delivers a radiator designed for both street driving and high-performance racing applications. Its 2-Row core features CSF’s exclusive B-Tube Technology, which enhances heat transfer efficiency by approximately 15% compared to traditional oval tubes. These carefully formed “B”-shaped tubes are brazed over the seam, allowing for thinner, lighter aluminum construction that is stronger and more thermally efficient than standard welds. This innovative design increases the heat transfer surface area and facilitates dual liquid laminar flow, significantly improving cooling capacity during demanding driving conditions. The radiator also incorporates ultra-efficient multi-louvered fins that are precisely aligned to maximize airflow and heat dissipation, tested rigorously in CSF’s wind-tunnel laboratory for optimal performance. This radiator is a direct-fit replacement that installs seamlessly into the OEM location without modifications, making installation straightforward with no need for additional adjustments unless specified. Constructed with CNC-machined brackets and fittings, its all-aluminum, TIG-welded end tanks ensure durability and a professional finish. The OEM-style machined inlet and outlet connections allow compatibility with existing systems, including OEM AC condensers and fan shrouds. Each unit is individually leak and pressure tested to ensure reliability and performance. The radiator’s smooth satin finish complements the engine bay aesthetic while providing long-lasting corrosion resistance. Whether you’re enhancing your vehicle for street performance, professional racing, or OEM replacement, this radiator offers maximum cooling efficiency, improved airflow, and robust construction, making it an essential upgrade for high-horsepower Porsche 911 models.

Features:

• High-Performance upgrade suitable for racing, street performance, or OEM replacement

• 2-Row 42mm core featuring CSF’s exclusive B-Tube technology, increasing efficiency by 20%

• Plug-and-play drop-in fit with no modifications required for installation

• 6.5mm fin height with multi-louvered design for maximum surface area contact

• CNC machined brackets and fittings for superior fit and durability

• All-aluminum construction with 100% TIG-welded end tanks

• OEM-style machined inlet and outlet connections for seamless integration

• Compatible with OEM AC condenser and fan shroud

• Individually leak and pressure tested for reliability

• Finished with a smooth satin surface for corrosion resistance and aesthetics

Fitment:
Porsche 911 Carrera 4S 2002
Porsche 911 Carrera 4S 2003
Porsche 911 Carrera 4S 2004
Porsche 911 GT2 2002
Porsche 911 GT2 2003
Porsche 911 GT2 2004
Porsche 911 GT2 2005
Porsche 911 GT2 2008
Porsche 911 GT2 2009
Porsche 911 GT2 RS 2011
Porsche 911 GT3 2004
Porsche 911 GT3 2005
Porsche 911 Turbo 2001
Porsche 911 Turbo 2002
Porsche 911 Turbo 2003
Porsche 911 Turbo 2004
Porsche 911 Turbo 2005
Porsche 911 Turbo 2007
Porsche 911 Turbo 2008
Porsche 911 Turbo 2009
Porsche 911 Turbo 2010
Porsche 911 Turbo 2011
Porsche 911 Turbo 2012
Porsche 911 Turbo 2013
Porsche 911 Turbo S 2005
Porsche 911 Turbo S 2011
Porsche 911 Turbo S 2012
Porsche 911 Turbo S 2013
