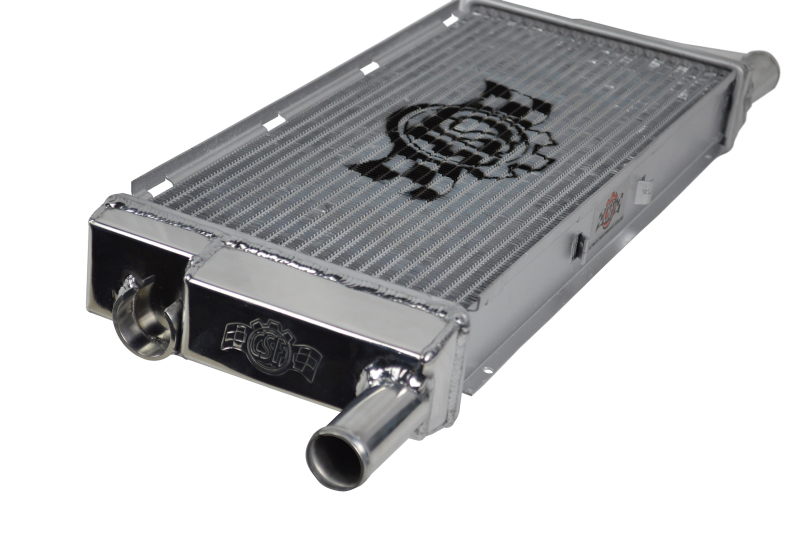

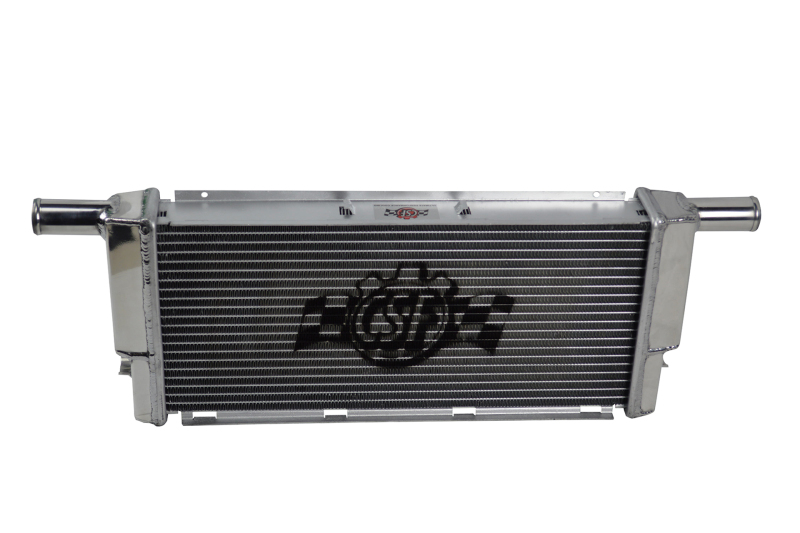

CSF High-Performance All-Aluminum Radiator for Porsche 981 Cayman & Boxster – Part #7060

Description

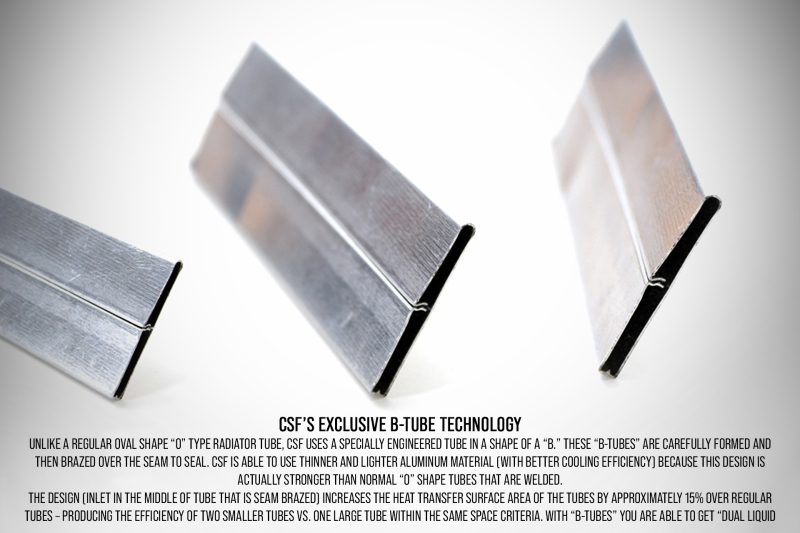

The CSF #7060 high-performance aluminum radiator is engineered for optimal cooling efficiency in your Porsche 981 Cayman or Boxster. With over five decades of radiator manufacturing experience, CSF combines innovative technology and rigorous testing to deliver a product suitable for street, track, or racing applications. This radiator features a 2-row 42mm core enhanced with CSF’s exclusive B-Tube technology, which increases heat transfer surface area by approximately 15%, resulting in improved cooling performance and efficiency. The B-tube design, which replaces traditional oval tubes with a carefully formed ‘B’ shape, offers greater strength while allowing the use of thinner, lighter aluminum for better heat dissipation. This design also enables dual liquid laminar flow, improving overall thermal management during high-demand conditions. The radiator’s multi-louvered fins are precisely aligned to maximize airflow and heat rejection, tested extensively in wind-tunnel environments for maximum efficiency. Constructed entirely from TIG-welded aluminum with CNC machined brackets and fittings, the radiator ensures durability and a perfect fit. It is designed as a direct replacement and features OEM-style machined inlet and outlet connections, allowing for a plug-and-play installation without modifications—unless specified otherwise. The radiator also accepts OEM components such as the AC condenser and fan shroud, ensuring seamless integration with your vehicle’s existing system. Each unit undergoes individual leak and pressure testing to guarantee quality and reliability. Finished in a smooth satin coating, this radiator not only enhances cooling performance but also complements the aesthetic of your Porsche engine bay. Whether for high-performance street driving, motorsport, or OEM replacement, the CSF 7060 radiator provides the cooling capacity needed to keep your vehicle running at its best during demanding conditions.

Features:

• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement

• 2-Row 42mm Core Featuring CSF’s Exclusive B-Tube Technology (+20% Efficiency)

• Plug-and-Play ‘Drop-in’ Fit with No Modifications Required for Installation

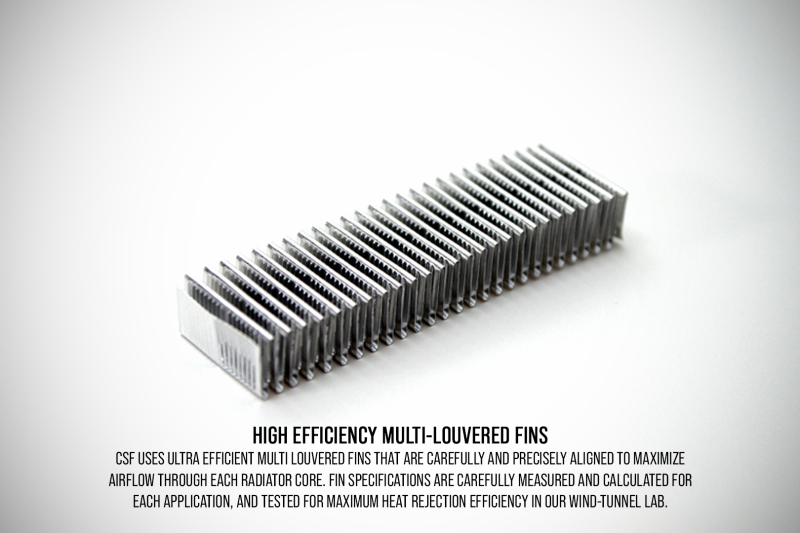

• 6.5mm Fin Height with Multi-Louvered Design for Maximum Surface Area Contact

• CNC Machined Brackets and Fittings for Superior Fit and Durability

• All-Aluminum Construction with 100% TIG-Welded End Tanks

• OEM-Style Machined Inlet/Outlet Connections for Seamless Compatibility

• Accepts OEM AC Condenser and Fan Shroud

• Individually Leak and Pressure Tested for Quality Assurance

• Finished in a Smooth Satin Coating for Aesthetic Appeal

Fitment:
Porsche 718 Boxster Base 2017
Porsche 718 Boxster Base 2018
Porsche 718 Boxster Base 2019
Porsche 718 Boxster Base 2020
Porsche 718 Boxster Base 2021
Porsche 718 Boxster Base 2022
Porsche 718 Boxster GTS 2018
Porsche 718 Boxster GTS 2019
Porsche 718 Boxster S 2017
Porsche 718 Boxster S 2018
Porsche 718 Boxster S 2019
Porsche 718 Boxster S 2020
Porsche 718 Boxster S 2021
Porsche 718 Boxster S 2022
Porsche 718 Boxster T 2020
Porsche 718 Boxster T 2021
Porsche 718 Boxster T 2022
Porsche 718 Cayman Base 2017
Porsche 718 Cayman Base 2018
Porsche 718 Cayman Base 2019
Porsche 718 Cayman Base 2020
Porsche 718 Cayman Base 2021
Porsche 718 Cayman Base 2022
Porsche 718 Cayman GTS 2018
Porsche 718 Cayman GTS 2019
Porsche 718 Cayman S 2017
Porsche 718 Cayman S 2018
Porsche 718 Cayman S 2019
Porsche 718 Cayman S 2020
Porsche 718 Cayman S 2021
Porsche 718 Cayman S 2022
Porsche 718 Cayman T 2020
Porsche 718 Cayman T 2021
Porsche 718 Cayman T 2022
Porsche 911 Carrera 2012
Porsche 911 Carrera 2013
Porsche 911 Carrera 2014
Porsche 911 Carrera 2015
Porsche 911 Carrera 2016
Porsche 911 Carrera 2017
Porsche 911 Carrera 2018
Porsche 911 Carrera 2019
Porsche 911 Carrera 4 2013
Porsche 911 Carrera 4 2014
Porsche 911 Carrera 4 2015
Porsche 911 Carrera 4 2016
Porsche 911 Carrera 4 2017
Porsche 911 Carrera 4 2018
Porsche 911 Carrera 4 2019
Porsche 911 Carrera 4 GTS 2015
Porsche 911 Carrera 4 GTS 2016
Porsche 911 Carrera 4 GTS 2018
Porsche 911 Carrera 4 GTS 2019
Porsche 911 Carrera 4S 2013
Porsche 911 Carrera 4S 2014
Porsche 911 Carrera 4S 2015
Porsche 911 Carrera 4S 2016
Porsche 911 Carrera 4S 2017
Porsche 911 Carrera 4S 2018
Porsche 911 Carrera 4S 2019
Porsche 911 Carrera GTS 2015
Porsche 911 Carrera GTS 2016
Porsche 911 Carrera GTS 2018
Porsche 911 Carrera GTS 2019
Porsche 911 Carrera S 2012
Porsche 911 Carrera S 2013
Porsche 911 Carrera S 2014
Porsche 911 Carrera S 2015
Porsche 911 Carrera S 2016
Porsche 911 Carrera S 2017
Porsche 911 Carrera S 2018
Porsche 911 Carrera S 2019
Porsche 911 Carrera T 2018
Porsche 911 Carrera T 2019
Porsche 911 Targa 4 2014
Porsche 911 Targa 4 2015
Porsche 911 Targa 4 2016
Porsche 911 Targa 4 2017
Porsche 911 Targa 4 2018
Porsche 911 Targa 4 2019
Porsche 911 Targa 4 GTS 2016
Porsche 911 Targa 4 GTS 2018
Porsche 911 Targa 4 GTS 2019
Porsche 911 Targa 4S 2014
Porsche 911 Targa 4S 2015
Porsche 911 Targa 4S 2016
Porsche 911 Targa 4S 2017
Porsche 911 Targa 4S 2018
Porsche 911 Targa 4S 2019
Porsche Boxster Base 2012
Porsche Boxster Base 2013
Porsche Boxster Base 2014
Porsche Boxster Base 2015
Porsche Boxster Base 2016
Porsche Boxster Black Edition 2016
Porsche Boxster GTS 2015
Porsche Boxster GTS 2016
Porsche Boxster S 2012
Porsche Boxster S 2013
Porsche Boxster S 2014
Porsche Boxster S 2015
Porsche Boxster S 2016
Porsche Boxster S Black Edition 2012
Porsche Boxster Spyder 2012
Porsche Cayman Base 2014
Porsche Cayman Base 2015
Porsche Cayman Base 2016
Porsche Cayman Black Edition 2016
Porsche Cayman GTS 2015
Porsche Cayman GTS 2016
Porsche Cayman S 2014
Porsche Cayman S 2015
Porsche Cayman S 2016
