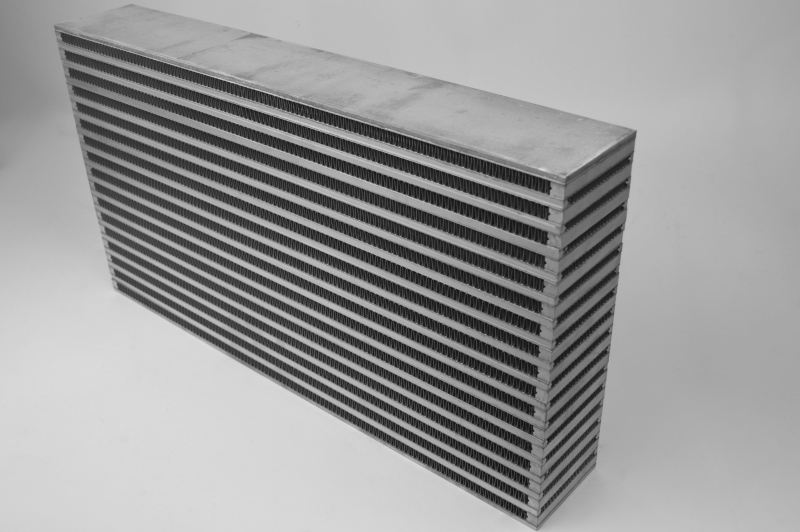

CSF High Performance Bar & Plate Intercooler Core – 22in L x 12in H x 3.5in W for 850 WHP Applications

Description

The CSF Part Number 8047 high-performance bar and plate intercooler core is engineered for demanding automotive applications requiring maximum cooling efficiency. Measuring approximately 22 inches in length, 12 inches in height, and 3.5 inches in width, this horizontal flow core is designed to support up to 850 wheel horsepower (WHP) in high-boost scenarios. Hand-built in a clean room environment, each core undergoes rigorous quality control, including individual pressure testing at 120 psi, to ensure durability and reliability under extreme conditions. The manufacturing process employs state-of-the-art digital vacuum brazing ovens, with meticulous assembly using jigs and fixtures to guarantee a perfectly straight core that simplifies installation and welding processes. Featuring a multi-louvered, high-precision staggered fin design on both ambient and pressure sides, this core maximizes heat transfer for optimal intercooling performance. The heavy-duty construction makes it suitable for custom high-performance intercoolers, though some fabrication and custom fitting may be necessary for installation. As a universal product, professional installation is recommended if you are not experienced in intercooler modifications. The core is individually boxed for secure transit and designed to meet the needs of tuning enthusiasts and performance shops seeking reliable, high-capacity intercooling solutions.

Features:

• Manufactured by hand in a clean room environment using gloves to ensure brazing quality and surface cleanliness

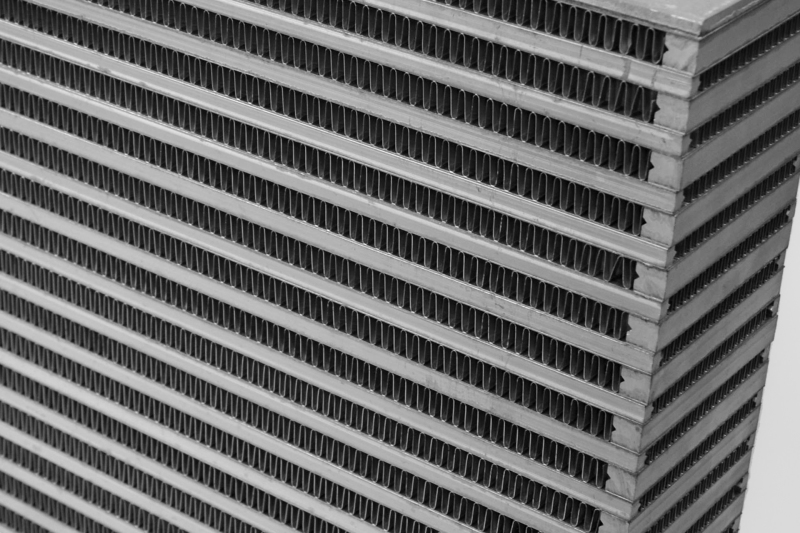

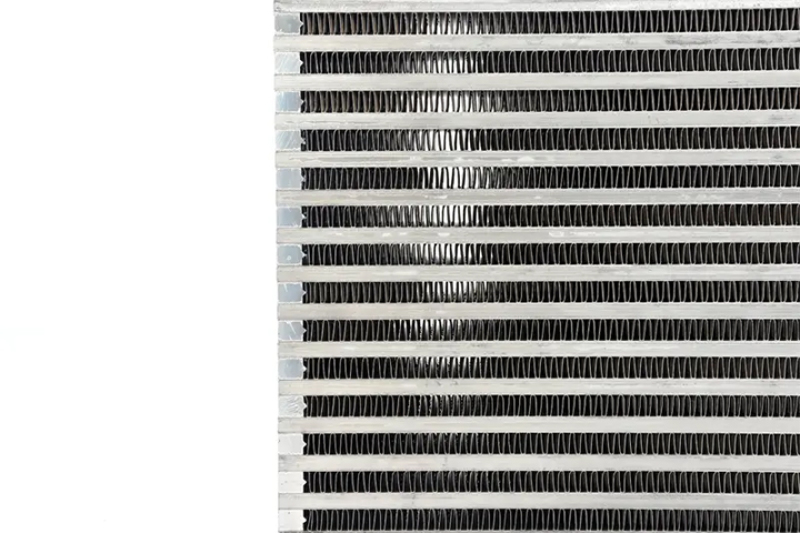

• Multi-louvered, high-precision staggered fin design for both ambient and pressure sides of the core

• Individually pressure tested at 120 psi for maximum reliability in extreme boost applications

• Built using jigs and fixtures for a perfectly straight core, facilitating easier welding and installation

• Supported by state-of-the-art digital vacuum brazing ovens with strict quality control measures

• Heavy-duty bar and plate construction rated for 850 WHP

• Universal fit requiring custom fabrication and professional installation for optimal performance
