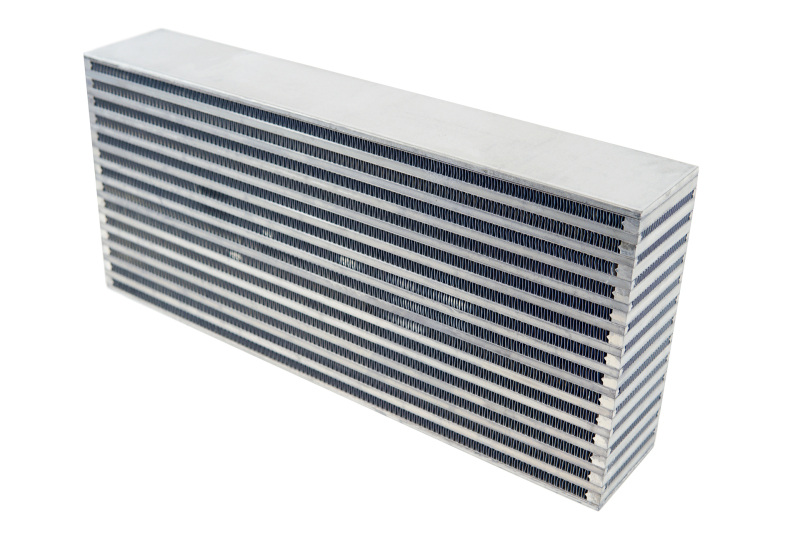

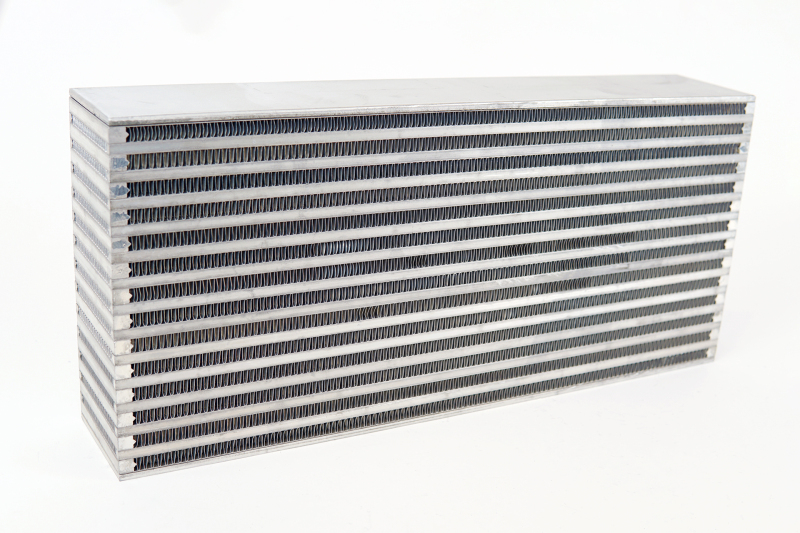

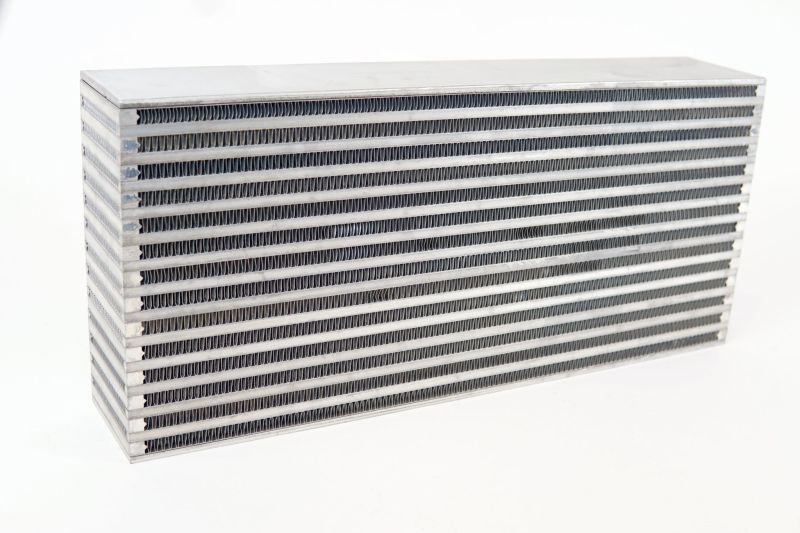

CSF Magnum 900+ HP Bar & Plate Intercooler Core – 22 x 10 x 4 Inches Horizontal Flow

Description

The CSF Magnum Intercooler Core Part Number 8174 is a high-performance, heavy-duty bar and plate intercooler core designed for demanding turbocharged applications. Crafted with precision in a clean room environment, each core is hand-built using jigs and fixtures to ensure a perfectly straight and reliable product. The manufacturing process includes pressure testing at 120psi, guaranteeing durability and performance in extreme boost conditions. Featuring a multi-louvered high-precision staggered fin design on both ambient and pressure sides, this core provides optimal heat transfer for enhanced engine efficiency and power output. Its universal fit means some custom fabrication may be required for installation, and professional installation is recommended if you’re unsure about the process. The core measures approximately 22 inches in length, 10 inches in height, and 4 inches in width, making it suitable for high-horsepower setups rated for up to 900 wheel horsepower. This product is individually boxed to ensure safe transport and has undergone strict quality control measures, including individual pressure testing, to maintain the highest standards. Whether you’re building a custom intercooler or upgrading an existing system, the CSF 8174 provides the reliability and performance needed for extreme boost and high-performance driving. Note that this product is not CARB approved, and installation should be performed by qualified professionals familiar with custom intercooler fabrication.

Features:

• Manufactured by hand in a clean room environment with gloves to ensure proper brazing and surface quality

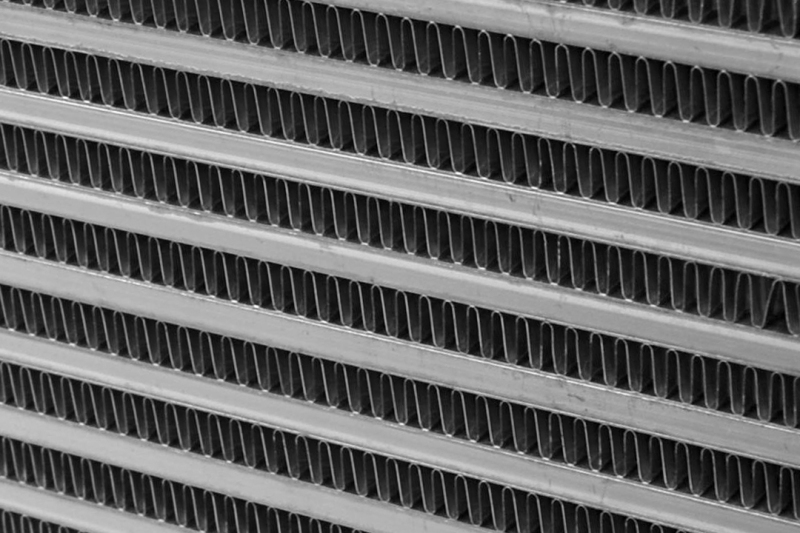

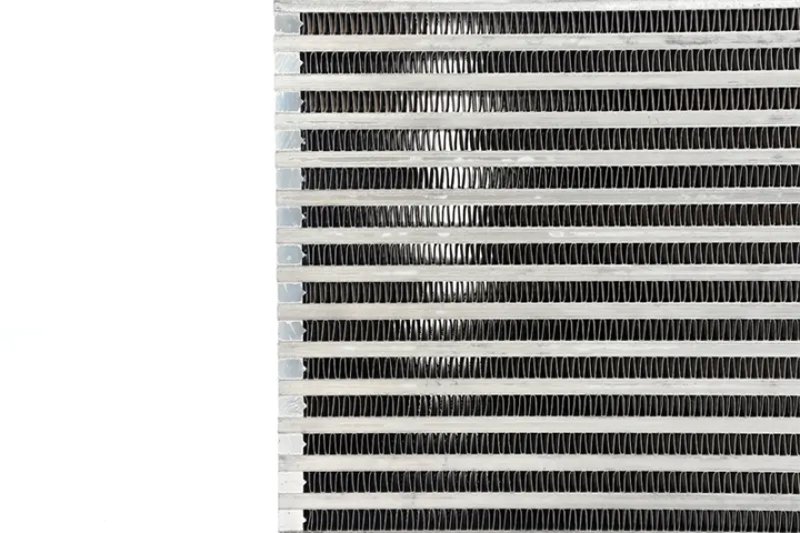

• Multi-louvered high-precision staggered fin design for optimal heat transfer on both ambient and pressure sides

• Individually boxed and protected for secure shipping

• Batch brazed using CSF’s state-of-the-art digital vacuum brazing ovens for consistent quality

• Strict quality control with individual pressure testing at 120psi for maximum reliability

• Hand-built with jigs and fixtures for a perfectly straight core, facilitating easier welding during installation

• Rated to handle up to 900 wheel horsepower for extreme boost applications

• Heavy-duty bar and plate construction designed for demanding performance

• Universal fit requiring custom fabrication, recommended installation by qualified professionals
