CSF Race-Spec Oil Cooler for BMW M2 F87 (2016-2018) by CSF Part #8104

Description

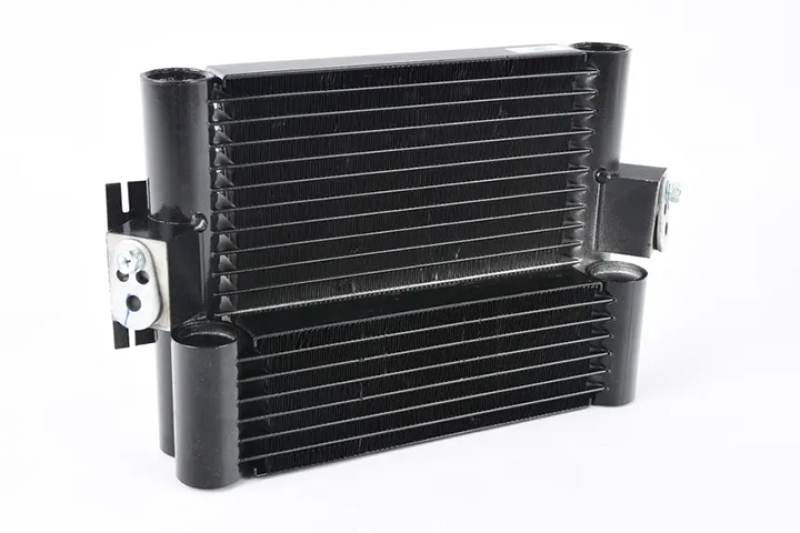

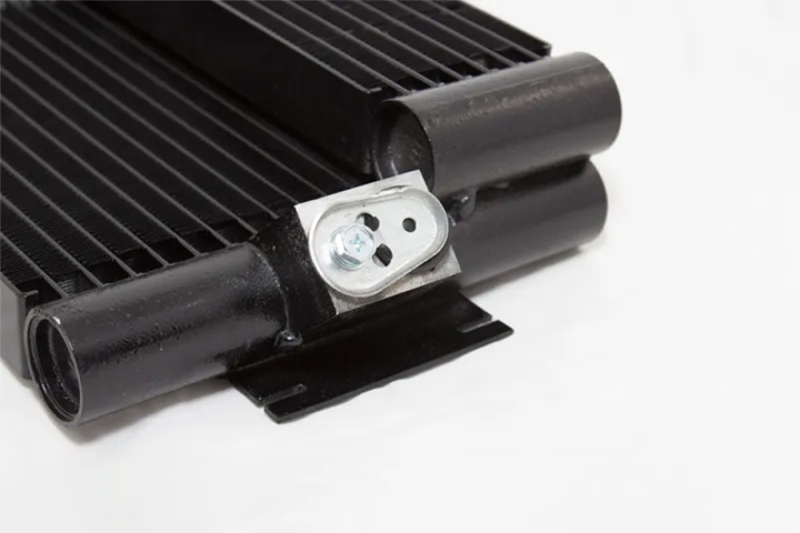

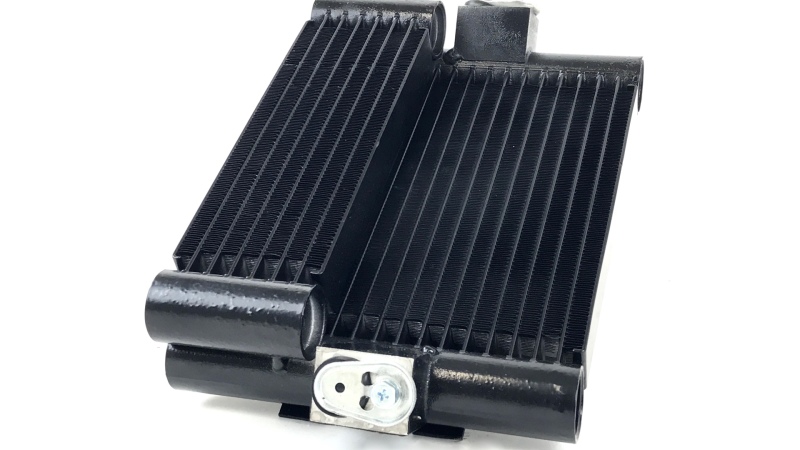

The CSF Race-Spec Oil Cooler for the BMW M2 F87 (2016-2018) is engineered to meet the demanding performance needs of drivers who push their vehicles on the street and track. Designed with CSF’s advanced AC Condenser Technology, this oil cooler features a 1-Row super-high pressure 26mm multi-channel microtube that offers superior heat dissipation. Extensive track testing in temperatures reaching 103°F (115°F Heat Index) demonstrated that this cooler maintains engine oil temperatures around 240°F, significantly lower than the OEM setup which often exceeds 275°F to 280°F, preventing limp mode and ensuring optimal engine performance. The cooler’s full-size front core contains 17 cooling tubes, surpassing the OEM’s 15, while the secondary backside cooler adds an additional 6 rows, providing increased cooling capacity and oil volume by approximately half a quart for better thermal management. This upgrade is a true “drop-in fit” that requires no modifications, accepting all OEM components including oil-line connections, mounting brackets, and shroud/ducting, making installation straightforward for qualified technicians. The system’s high-density multi-louvered fin design maximizes contact surface area for heat transfer, while the in-series two-core configuration enhances overall cooling efficiency. When installing, an additional half quart of oil is recommended to ensure proper fill-up, bringing total capacity to 7.5 quarts. This product is ideal for BMW M2 owners seeking reliable, race-grade oil cooling performance without complex modifications, ensuring consistent oil temperatures even during intensive driving sessions. Whether on the street or the track, the CSF Race-Spec Oil Cooler provides the confidence and durability necessary to keep your engine running at peak performance. Please consult your vehicle’s repair manual for detailed installation instructions or seek professional assistance for installation. Designed specifically for BMW M2 models from 2016 through 2018, this cooler offers a significant upgrade over factory components for enthusiasts demanding the best in thermal management and reliability.

Features:

• Drop-in fit design requiring no modifications for easy installation

• Accepts all OEM components including oil-line connections, brackets, and shrouding

• Enhanced cooling capacity with a full-size 17-tube front core and additional backside cooler with 6 rows

• Utilizes CSF’s AC Condenser Technology with a 1-Row super-high pressure 26mm multi-channel microtube

• Track tested in high-temperature conditions with maximum oil temperature maintained at 240°F

Fitment:
BMW M2 Base 2016
BMW M2 Base 2017
BMW M2 Base 2018
