CSF Universal Drag Race Cooling Radiator with 9-inch Spal Fan – Part #7065

Description

The CSF Part #7065 is the most advanced drag race radiator designed for sport compact vehicles, offering superior cooling performance after extensive research and development. Engineered with a 2-row core featuring CSF’s exclusive B-tube technology, this radiator provides enhanced heat transfer efficiency and strength compared to traditional designs. The B-tubes are carefully formed and brazed over the seam, allowing for thinner, lighter aluminum construction while maintaining durability. The increased surface area from the seam-brazed middle inlet promotes dual liquid laminar flow, significantly improving heat dissipation during demanding drag racing conditions. The triple-pass flow structure ensures coolant traverses the core three times, resulting in the lowest outlet temperatures possible and optimized engine performance. This universal-fit radiator includes threaded bungs compatible with 1.25-inch slip-on fittings and -16 connections, making it adaptable to various configurations. Its carefully engineered multi-louvered fins are aligned for maximum airflow and heat rejection, tested extensively in CSF’s wind tunnel lab for efficiency. The radiator measures approximately 14.5 inches high, 10 inches long, and 3.6 inches wide, with an overall weight of around 8 pounds, including the fan and fittings. The package includes a 9-inch SPAL fan for additional cooling capacity and universal mounting brackets for flexible installation. Constructed with a polished mirror finish, this radiator not only performs at the highest level but also offers a sleek appearance. Designed for serious racers, it requires some custom work or fabrication for installation, and CSF recommends professional installation if needed. Whether you’re upgrading your drag race setup or seeking a reliable cooling solution, the CSF #7065 provides industry-leading technology, maximum heat rejection, and durability to keep your engine running at peak performance under extreme conditions.

Features:

• Triple-pass flow structure for optimal coolant flow and lower outlet temperatures

• Exclusive B-tube technology with brazed seam for increased strength and efficiency

• Thinner, lighter aluminum construction with 15% more heat transfer surface area

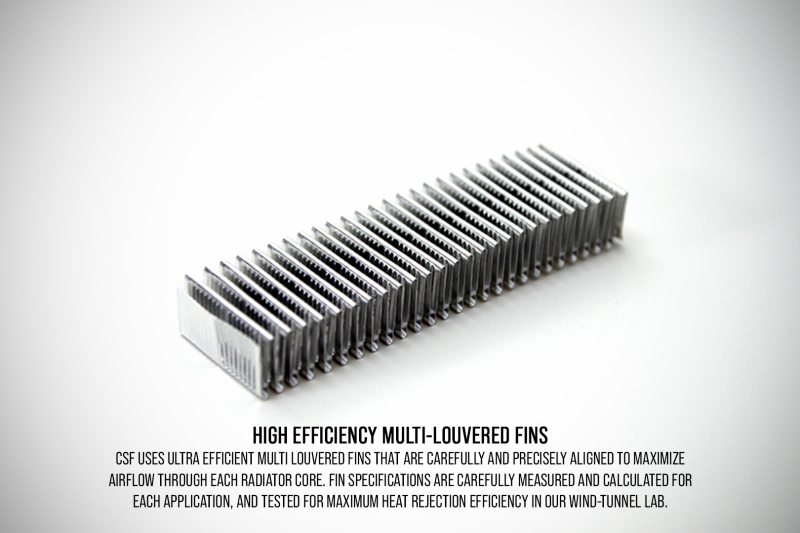

• Multi-louvered fins precisely aligned for maximum airflow and heat dissipation

• Universal fit with threaded bungs compatible with 1.25-inch slip-on fittings and -16 connections

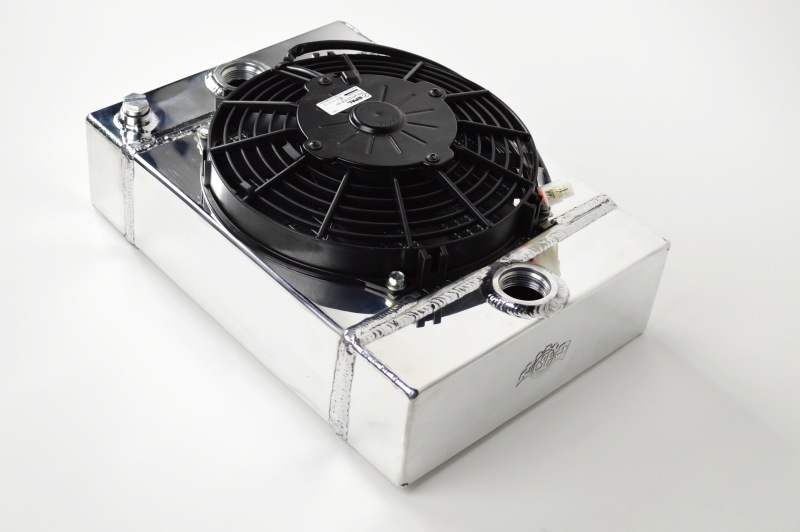

• Includes 9-inch SPAL fan for enhanced cooling capacity

• Polished mirror-finish surface for a sleek appearance

• Mounting brackets included for flexible installation

• Designed for drag racing and high-performance applications
