HomeShopOil CoolersCSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings

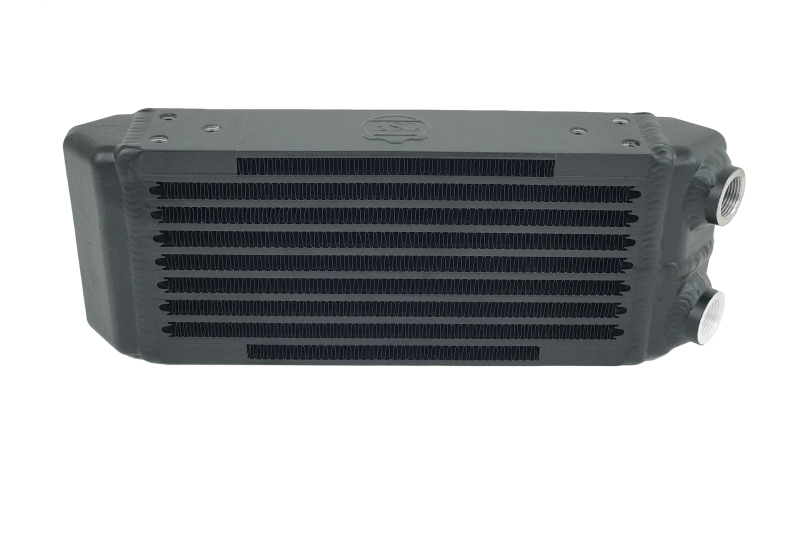

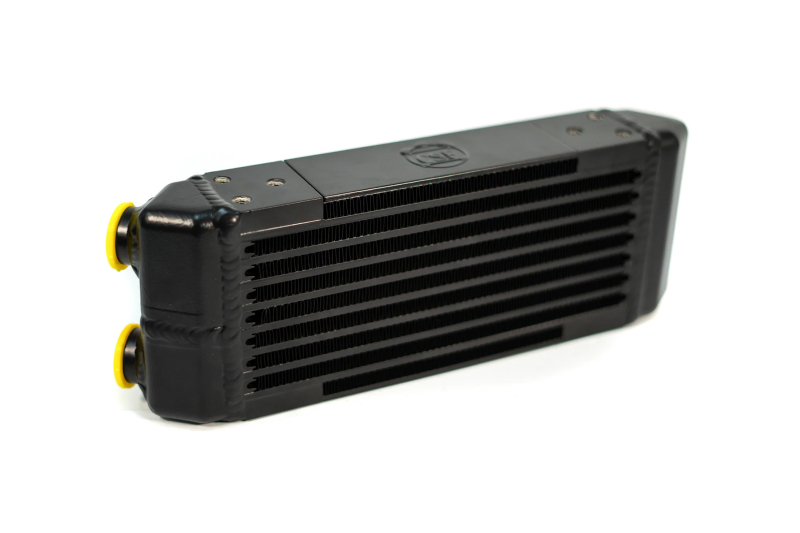

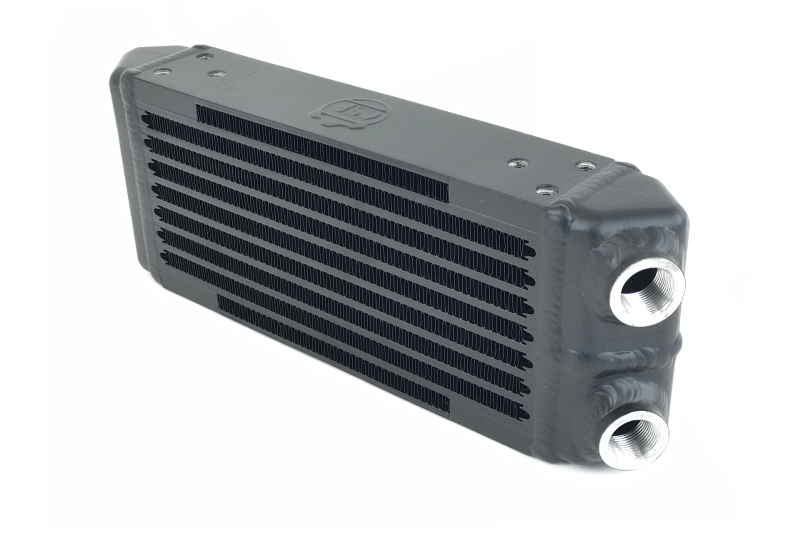

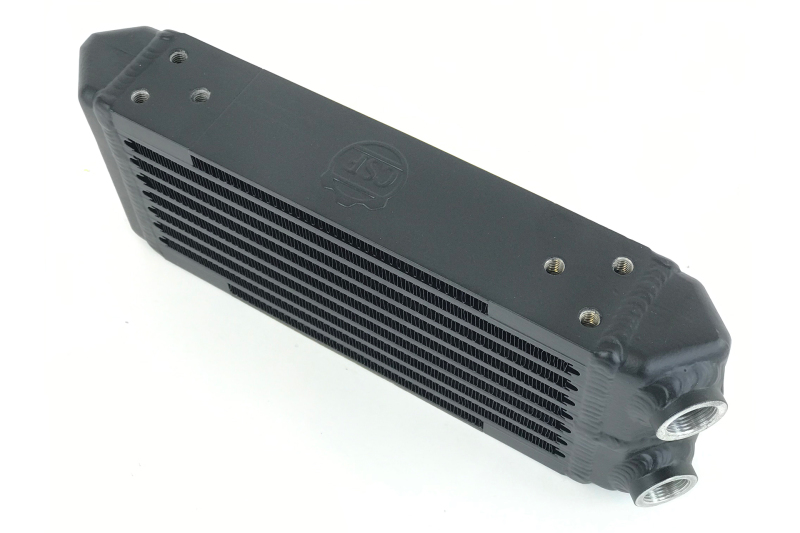

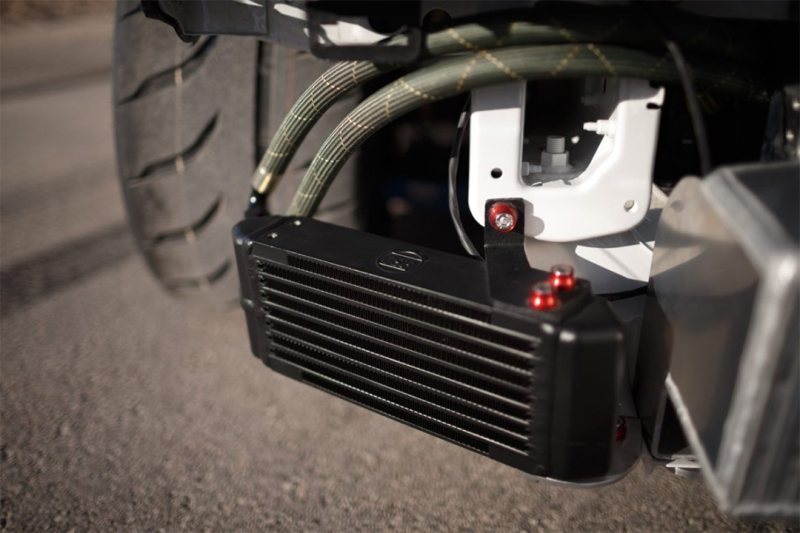

CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 2
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 3
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 4
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 5
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 6
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 7
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 8
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 9
CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings - Image 10

CSF Universal Dual-Pass Oil Cooler Part #8119 with M22 x 1.50 Fittings

SKU: 8119

$299.00

In stock

10 in stock

The unique design of CSF's oil cooler line has distinct advantages over conventional style oil coolers (plate-type/stacked oil coolers). The oil coolers can be placed in tighter spaces or different areas of the vehicle that don't have much vertical surface area. Longer rectangular sizes can also help with avoiding the stacking of too many coolers which may cause airflow issues to other components in the cooling system. Inlet/outlet port placement is much easier to route oil lines. Typical oil cooler lines have to be routed from different/opposite ends of the cooler often facing up or down. Usually one line has to run across from one side of the cooler to the other to then be routed together to the feed/return connection of the oil system. The CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc...). The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Vehicle hard on the street or track, a CSF Oil Cooler is the obvious choice. The CSF #8119 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
  • Universal style M22 x 1.50 female fittings on same side (feed and return w/ 40-degree angle)
  • For use with M30 / -16AN / -12AN union adapters
  • 8 rows of high-pressure bar/plate oil cooling

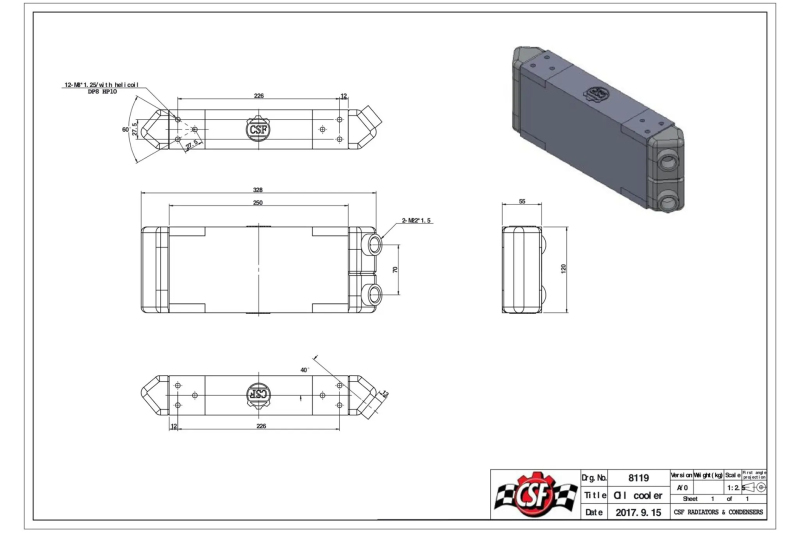

  • Dimensions: 13'L x 4.75'H x 2.25'W
  • Dual-pass design
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The CSF Universal Dual-Pass Oil Cooler Part #8119 is engineered to provide superior cooling performance for high-performance vehicles. Featuring a unique design, this oil cooler offers distinct advantages over traditional plate-type or stacked coolers by allowing installation in tighter spaces and areas with limited vertical surface area. Its longer rectangular shape helps prevent airflow obstruction to other components, ensuring optimal cooling efficiency within complex engine bays. The dual-pass configuration enhances heat dissipation, maintaining lower oil temperatures during demanding street and track driving conditions.
Constructed with eight high-pressure bar/plate rows, the CSF oil cooler is built to withstand extreme conditions, including high debris environments or areas with significant vibration. Its robust construction ensures durability and reliable operation even when mounted in exposed locations such as front fascia, differential coolers, or side vents. The inlet and outlet ports are conveniently placed on the same side, simplifying oil line routing and reducing installation complexity. Typical routing often requires lines to cross or connect at opposite ends; this design minimizes such challenges, saving time and reducing potential leak points.
This product features universal M22 x 1.50 female fittings on the same side, compatible with M30, -16AN, or -12AN union adapters for versatile installation options. Its dimensions measure approximately 13 inches in length, 4.75 inches in height, and 2.16 inches in width, making it suitable for various custom applications. Please note that installation may require some fabrication or custom work; if unsure, professional installation is recommended. The CSF #8119 oil cooler is an excellent choice for enthusiasts seeking a reliable, high-performance cooling solution that can withstand the rigors of spirited driving and track use.

Features:

  • Universal M22 x 1.50 female fittings on same side with 40-degree angle for simplified routing
  • Compatible with M30, -16AN, and -12AN union adapters for versatile connections
  • Eight high-pressure bar/plate rows for efficient heat dissipation
  • Dual-pass design enhances cooling capacity and oil temperature control
  • Robust construction withstands debris, vibration, and high burst rates
  • Compact rectangular shape allows installation in tight or unconventional spaces

Additional information

Weight 5.7 lbs
Dimensions 15.8 × 8.1 × 5.2 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

710353081198
brand

CSF
part_number

8119
