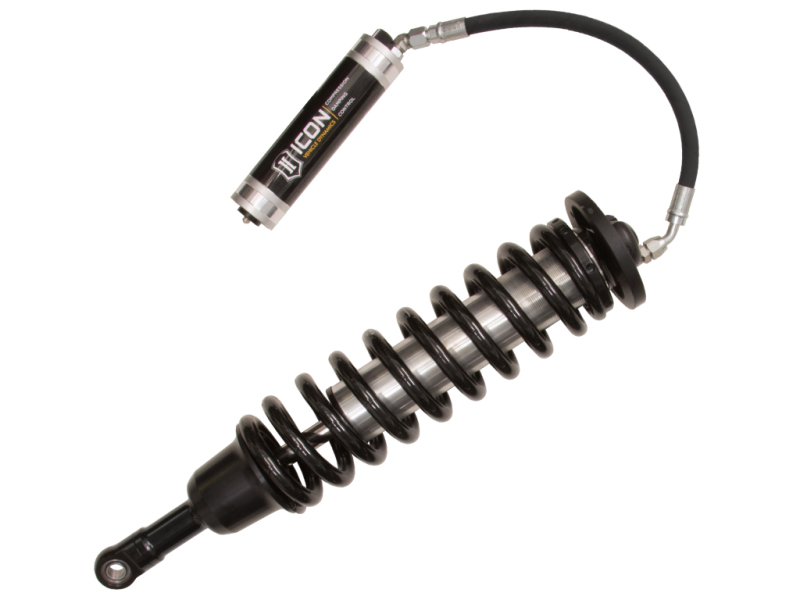

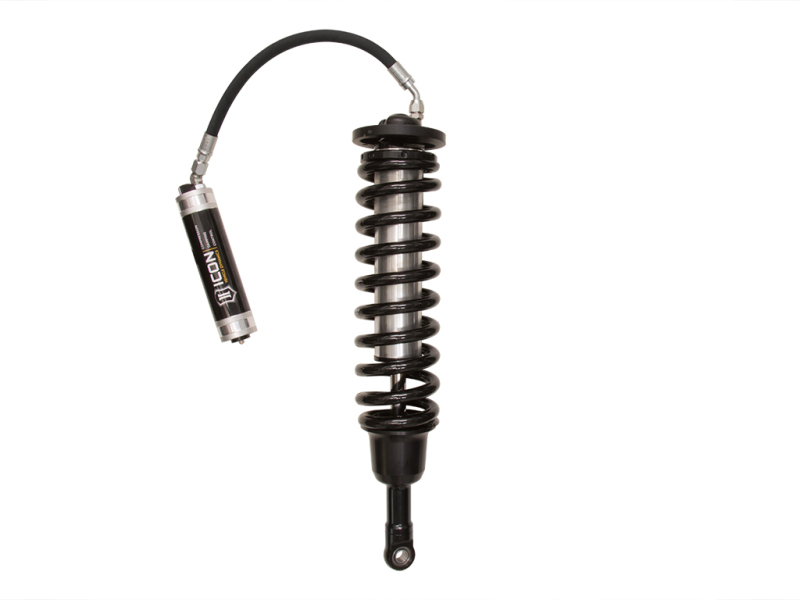

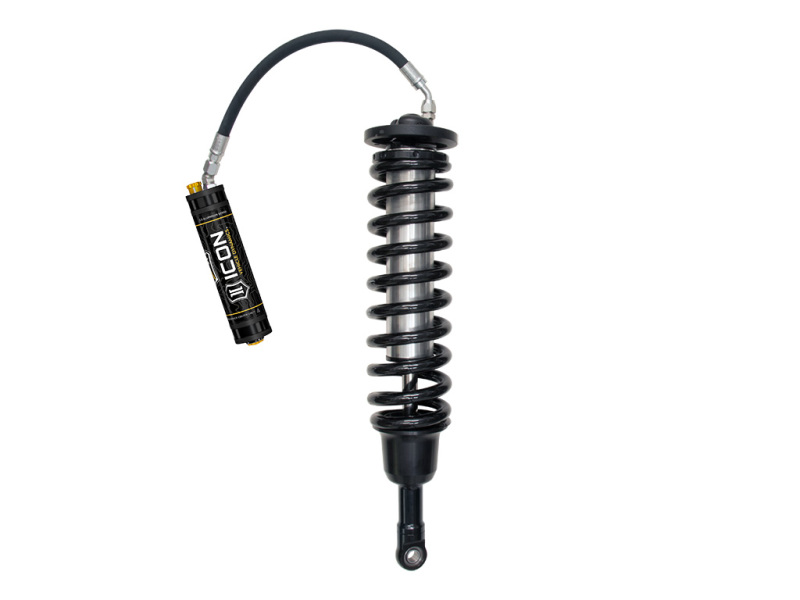

ICON 10-14 Ford Raptor Front 3.0 Series Shock with Remote Reservoir and CDCV Coilover Kit – Driver Side

Description

The ICON Vehicle Dynamics 95000L front coilover shock for 2010-2014 Ford F-150 Raptor models delivers exceptional off-road and on-road performance through innovative engineering and high-quality components. Featuring a true 3-inch main piston, this shock provides precise control, responsive handling, and smooth ride quality. The digressive rebound and flutter stack compression ensure outstanding stability and comfort, even during aggressive driving conditions. An internal hydraulic system, similar to an external hydraulic bump stop, activates in the last 40% of travel to prevent bottoming out and maintain control during extreme G-forces. This multi-stage compression and rebound system is independently tuned to optimize performance for the Ford SVT Raptor front suspension, offering a significant upgrade over stock shocks.

Designed with user adjustability in mind, the shock includes an external “Easy to Adjust” high-resolution compression damping control valve. This feature allows for fine-tuning across 10 distinct settings, enabling drivers to personalize their ride from soft to firm depending on terrain and preference. The shock’s external reservoirs are constructed from nitrogen-charged 6063-T832 aluminum, CNC honed, and hard anodized for durability and heat dissipation, ensuring consistent performance during extended off-road adventures.

Built with extended droop travel and oversized 1-inch CNC machined shock shafts, this coilover kit offers increased travel and durability for demanding terrains. The direct bolt-in design ensures a straightforward installation at the OEM location, with optimal reservoir positioning for maximum heat dissipation and protection. The inclusion of high-quality chrome silicon steel springs and PTFE-lined bearings ensures longevity and strength. Adjustable ride height from 1 to 3.5 inches allows for customization based on driving needs, making this shock an ideal upgrade for serious off-road enthusiasts and daily drivers alike.

Whether tackling rugged trails or enhancing daily driving dynamics, the ICON 95000L coilover kit provides unmatched control, adjustability, and reliability for your Ford Raptor front suspension, ensuring superior performance across all terrains.

Features:

• True 3-inch main piston with digressive rebound and flutter stack compression for optimal control and response

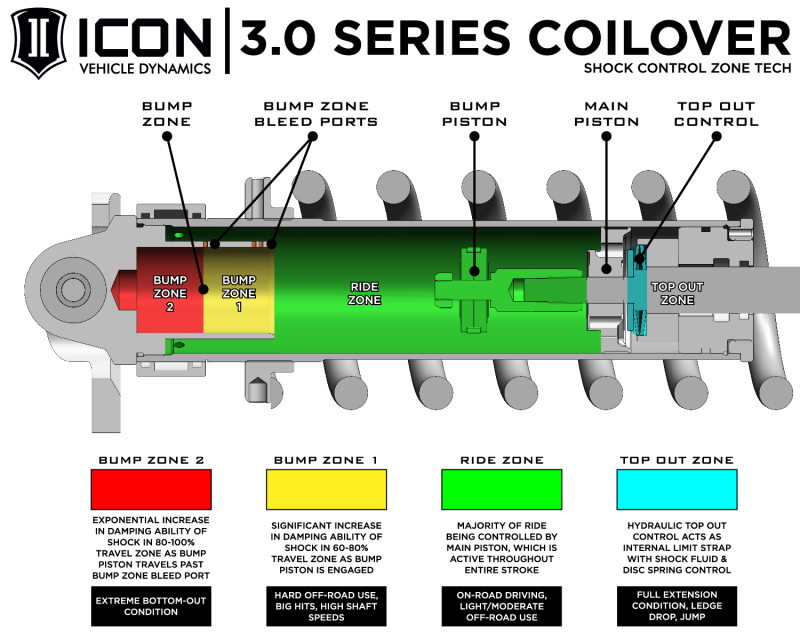

• Internal hydraulic bump zone for maximum bottom-out control in the last 40% of travel

• External “Easy to Adjust” high-resolution compression damping control valve with 10 settings

• Nitrogen-charged 6063-T832 aluminum remote reservoirs CNC honed and hard anodized for durability and heat dissipation

• Extended droop travel and oversized 1-inch CNC machined shock shafts for increased off-road capability

• Direct bolt-in design for OEM compatibility with optimal reservoir positioning

• Chrome silicon steel springs with increased travel and performance

• PTFE-lined bearings for maximum strength and durability

• Adjustable ride height from 1 to 3.5 inches

• Rugged multi-stage cad plated finish with polished and anodized top cap and rod ends

Fitment:
Ford F-150 SVT Raptor 2010
Ford F-150 SVT Raptor 2011
Ford F-150 SVT Raptor 2012
Ford F-150 SVT Raptor 2013
Ford F-150 SVT Raptor 2014
