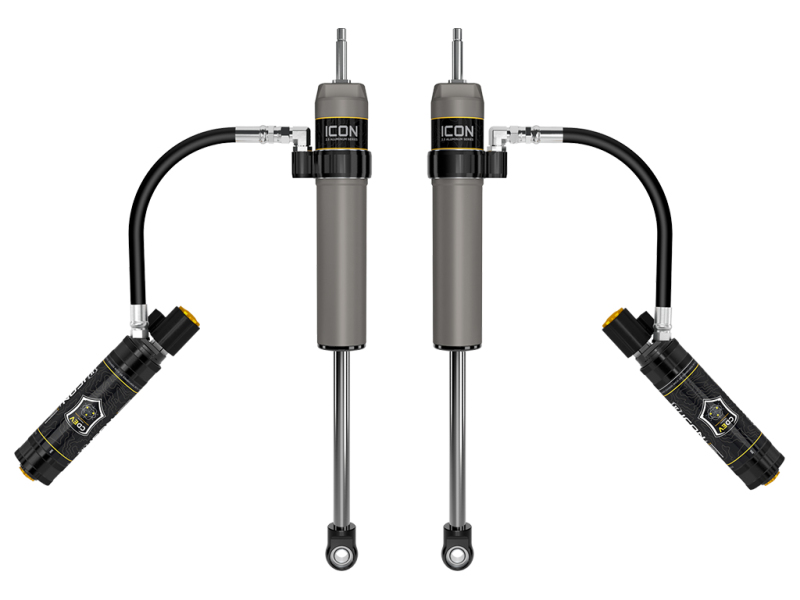

ICON 2.5 Aluminum Series Shocks for 2023 Ford F-250/F-350 Super Duty 4WD with 4.5-inch Lift – Part Number 67811EP

Description

The ICON 2.5 Aluminum Series shocks, designed specifically for 2023 Ford F-250 and F-350 Super Duty models with a 4.5-inch lift, deliver exceptional off-road performance combined with smooth on-road handling. Featuring a vehicle-specific configuration, these shocks are tuned for optimal damping and length, ensuring a precise fit and outstanding ride quality whether you’re navigating rugged terrain or cruising city streets. Constructed with one-piece impact extruded aluminum cylinders, these shocks are lighter than traditional steel counterparts, offering improved corrosion resistance and a consistent finish that withstands harsh environments. The remote reservoirs significantly increase shock oil volume and heat dissipation surface area, reducing the risk of overheating and cavitation during extended off-road use, which helps maintain optimal damping performance and prevents shock fade. The inclusion of a 6061 aircraft-grade billet aluminum manifold creates an internal “Bump Zone,” providing an additional 20% damping force to prevent harsh bottom-outs and improve high-velocity compression control. This feature enhances overall suspension responsiveness when tackling challenging terrain. The ICON CDE Valve upgrade allows for electronic adjustment of compression damping settings from inside the vehicle. Powered by ICON’s Intelligent Control system and compatible with the ICON mobile app, the CDEV uses onboard sensors, including a G-force sensor and gyroscope, to analyze terrain and automatically adjust damping in real-time. This adaptive system ensures a smooth ride on the street and enhanced control off-road, offering infinitely variable damping adjustments with reaction times under 40 milliseconds. The shocks are equipped with polyurethane bushings, forged steel mounting stems, PTFE-lined spherical bearings, and application-specific hardware for OE-like fitment. Other features include a 7/8-inch diameter induction-hardened, chrome-plated shock shaft, nitrogen-charged monotube design, and fully rebuildable construction for long-term maintenance and tuning flexibility. Fully CNC-machined from 6061 aluminum, these shocks combine durability with lightweight performance, making them an ideal upgrade for serious off-road enthusiasts seeking reliable, high-performance suspension components. Suitable for upgraded vehicles with ICON 4-6 inch coilover conversions and compatible with various ICON accessories, these shocks provide a versatile solution for demanding off-road conditions while maintaining excellent street manners.

Features:

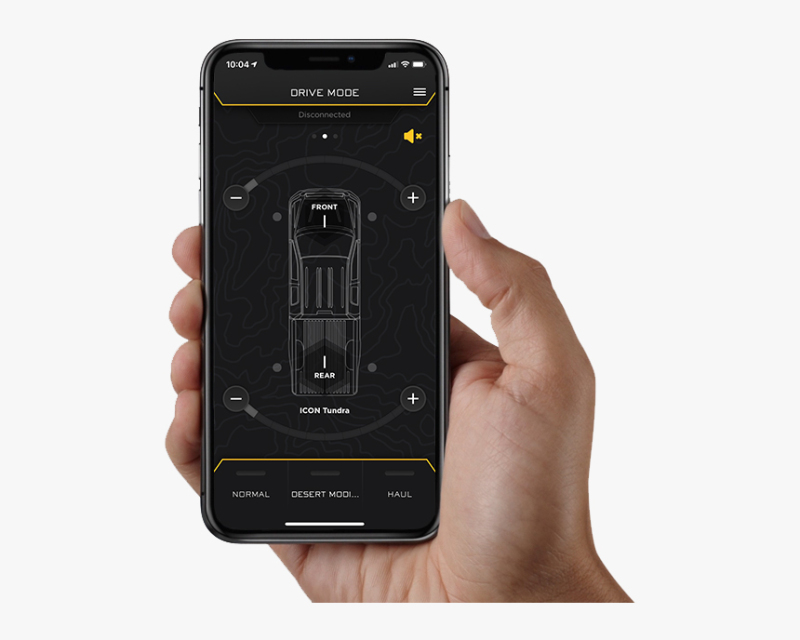

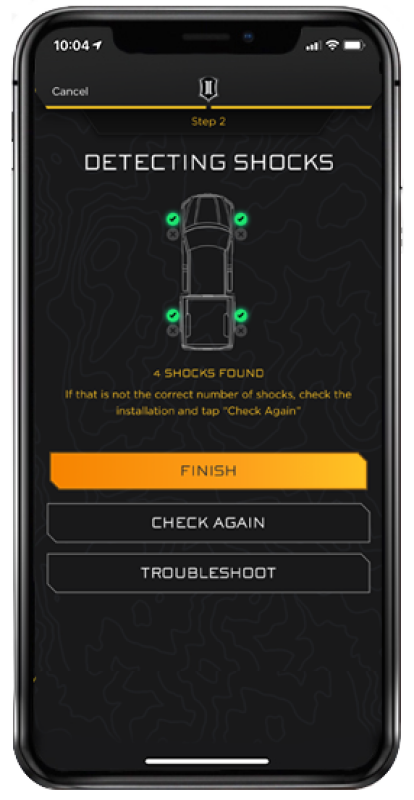

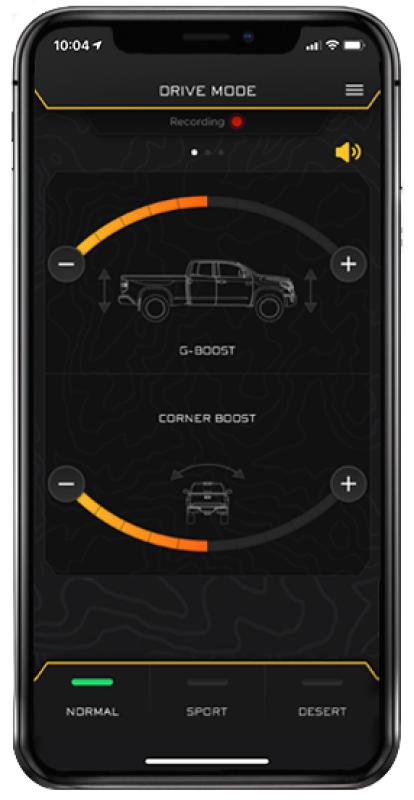

• ICON’s CDE Valve technology enables in-vehicle electronic adjustment of compression damping and active control via ICON’s mobile app

• One-piece digressive piston design with vehicle-specific valving for superior ride quality on and off-road

• Remote reservoirs increase oil capacity and enhance heat dissipation for extended off-road use

• Impact extruded aluminum cylinders offer excellent corrosion resistance and a uniform finish

• Premium grade 5WT shock oil ensures consistent damping across a wide temperature range

• Polyurethane bushings and forged steel stems provide OE-like fitment

• PTFE-lined spherical bearings and custom hardware ensure precise suspension operation

• Induction-hardened, chrome-plated 7/8-inch shock shaft for durability

• Nitrogen charged monotube design with remote reservoir for reliable performance

• 6061 aircraft-grade aluminum CNC machined components for lightweight strength

• Fully rebuildable and revalveable for long-term tuning and maintenance

Fitment:
Ford F-250 Super Duty King Ranch 2023
Ford F-250 Super Duty King Ranch 2024
Ford F-250 Super Duty Lariat 2023
Ford F-250 Super Duty Lariat 2024
Ford F-250 Super Duty Limited 2023
Ford F-250 Super Duty Limited 2024
Ford F-250 Super Duty Platinum 2023
Ford F-250 Super Duty Platinum 2024
Ford F-250 Super Duty XL 2023
Ford F-250 Super Duty XL 2024
Ford F-250 Super Duty XLT 2023
Ford F-250 Super Duty XLT 2024
Ford F-350 Super Duty King Ranch 2023
Ford F-350 Super Duty King Ranch 2024
Ford F-350 Super Duty Lariat 2023
Ford F-350 Super Duty Lariat 2024
Ford F-350 Super Duty Limited 2023
Ford F-350 Super Duty Limited 2024
Ford F-350 Super Duty Platinum 2023
Ford F-350 Super Duty Platinum 2024
Ford F-350 Super Duty XL 2023
Ford F-350 Super Duty XL 2024
Ford F-350 Super Duty XLT 2023
Ford F-350 Super Duty XLT 2024
