ICON 2010-2014 Ford F-150 Raptor Rear Hydro-Pneumatic Bump Stop Kit Part #95120

Description

Upgrade your Ford F-150 Raptor with the ICON 95120 rear hydro-pneumatic bump stop kit, designed specifically for models from 2010 to 2014. This advanced suspension component utilizes a hydraulic bumpstop system that combines oil and nitrogen to provide both a spring and shock function, enhancing off-road performance and vehicle stability. The internal nitrogen charge compresses during impact, offering a tunable response that can be adjusted for low impact forces at initial contact and increased resistance at higher velocities, ensuring optimal energy absorption during extreme terrain encounters. The integrated damping piston and oil chamber regulate energy return, reducing vehicle kick and smoothing out ride quality during aggressive off-road driving.

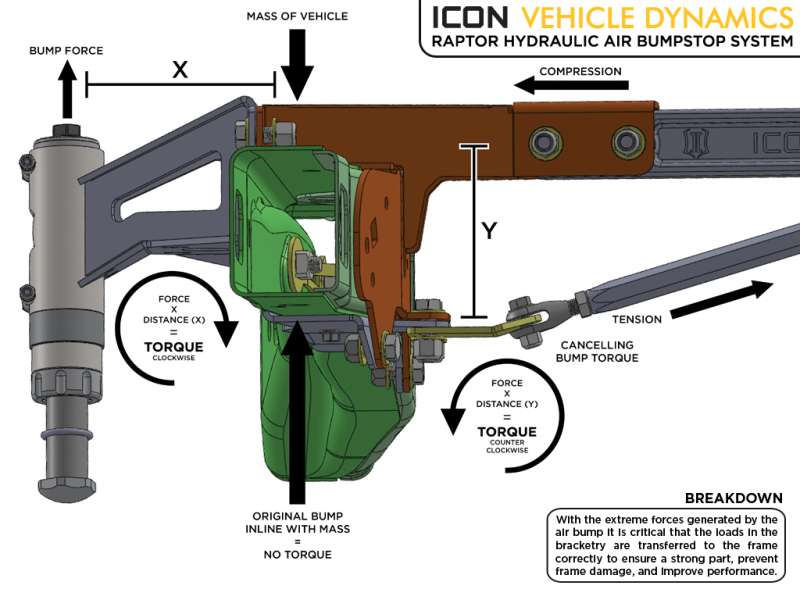

The kit features a linear-digressive piston design that surpasses standard linear systems, offering infinite tuning options through adjustments in valve stacks, oil volume, and nitrogen pressure. It is engineered to increase leaf spring clearance, preserving full suspension travel whether using stock or aftermarket springs. The inclusion of clamshell brackets enhances frame strength, preventing damage during severe impacts, while the cross member and tension rods stabilize frame rails and prevent twisting. These structural improvements contribute to increased frame rigidity, better overall vehicle dynamics, and a more controlled ride.

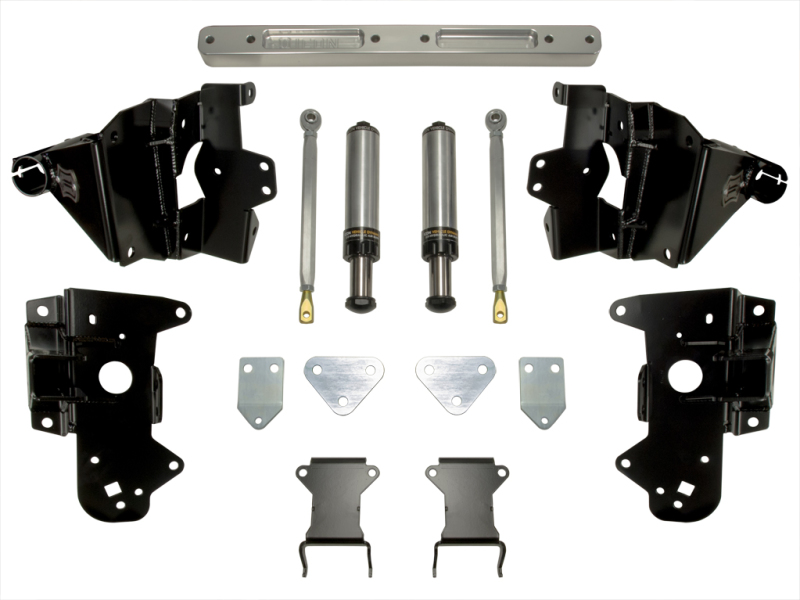

Installation is straightforward, with a bolt-on design that does not require removing the truck bed, making it accessible for both DIY enthusiasts and professional installers. The kit’s components, including a polished and anodized 6061 billet cross bar and urethane rod seals, ensure long-lasting durability and corrosion resistance. The system is pre-tuned and nitrogen-charged for compatibility with most Ford Raptors, providing immediate performance benefits. Designed with future upgrades in mind, the kit offers integrated adjustability for ICON-specific products, making it a versatile choice for off-road enthusiasts seeking reliable, tunable suspension enhancements.

Features:

• Hydro-pneumatic bumpstop with adjustable tuning options including valve stack, oil volume, and nitrogen pressure

• Linear-digressive piston design for improved energy absorption and damping performance

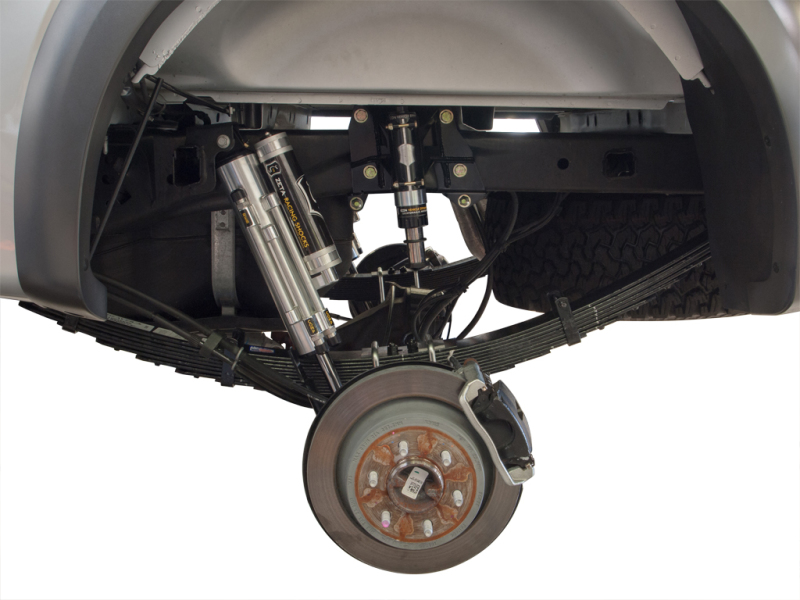

• Increased leaf spring clearance to maintain full suspension travel

• Clamshell brackets strengthen the frame and prevent damage during extreme off-road impacts

• Velocity sensitive hydraulic bumpstop increases energy absorption with impact speed

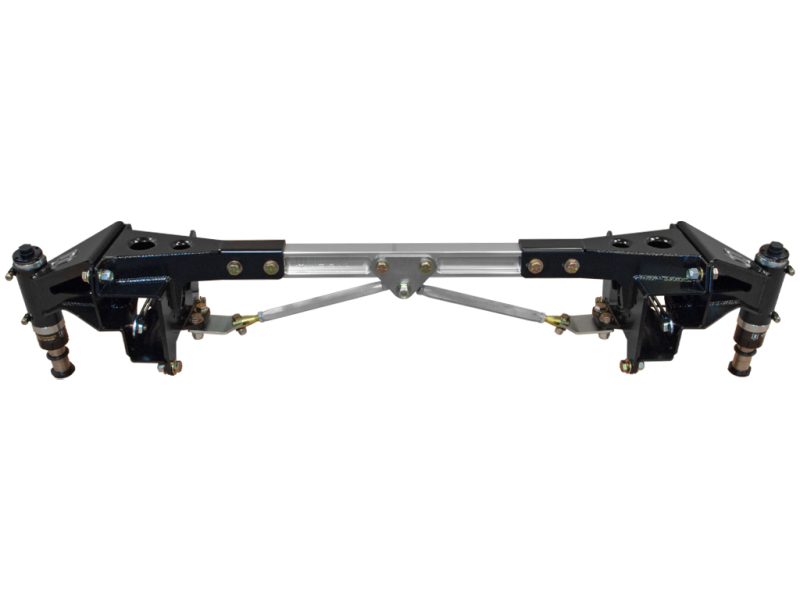

• Stabilizing cross member and tension rods prevent frame twisting

• Optimized for on-road manners while handling extreme loads off-road

• Easy bolt-on installation without removing the truck bed

• Enhances frame rigidity and overall vehicle dynamics

• Pre-tuned and nitrogen charged for immediate installation on most Ford Raptors

• Durable urethane rod seals and corrosion-resistant CAD plated body

• Industry-first billet cross beam for superior strength and stability

• User serviceable and tunable for customized performance

Fitment:
Ford F-150 SVT Raptor 2010
Ford F-150 SVT Raptor 2011
Ford F-150 SVT Raptor 2012
Ford F-150 SVT Raptor 2013
Ford F-150 SVT Raptor 2014
