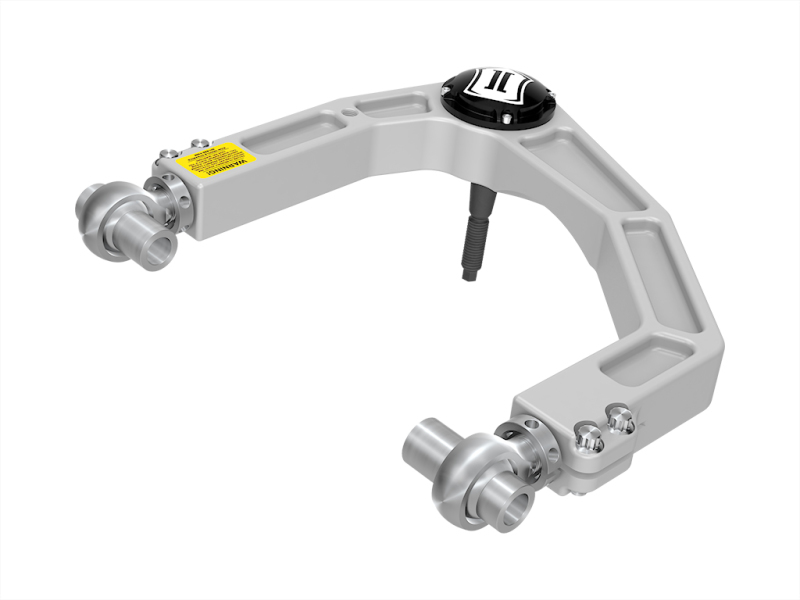

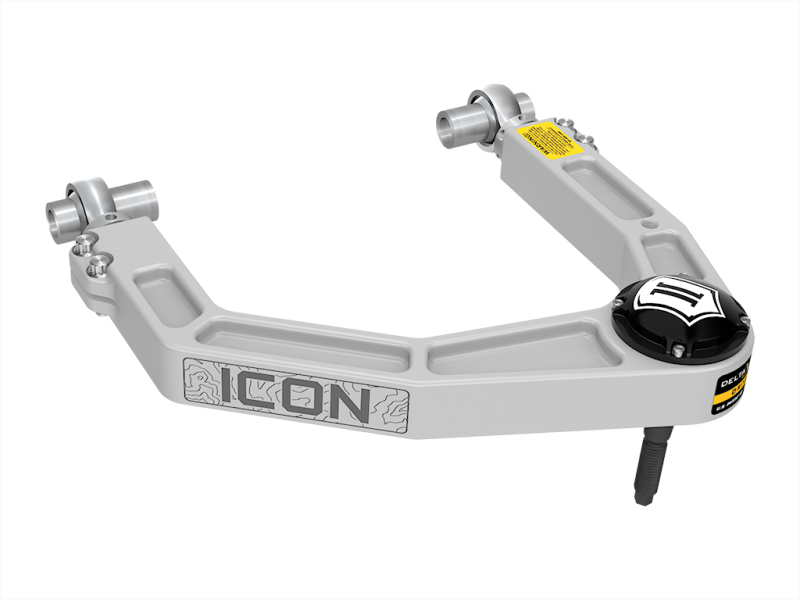

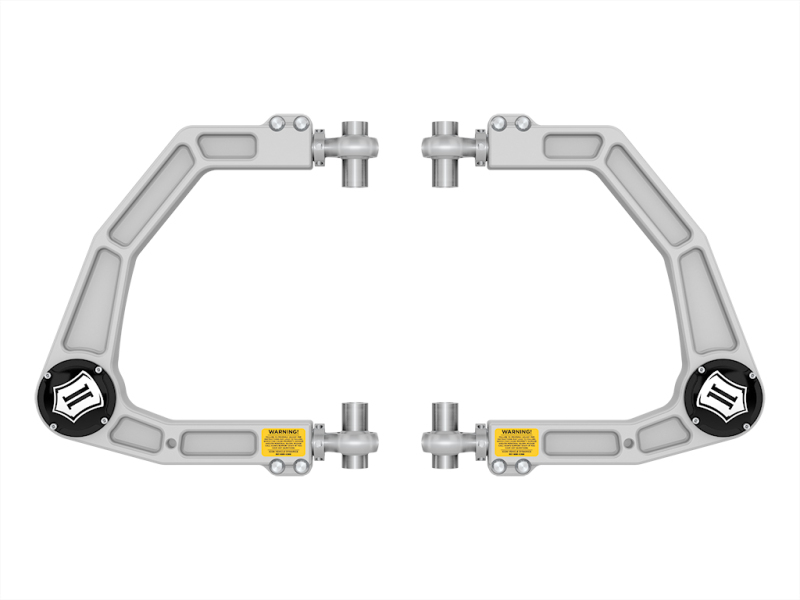

ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 2
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 3
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 4
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 5
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 6
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 7
ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit - Superior Off-Road Suspension Upgrade - Image 8

ICON 2022-2024 Toyota Tundra Billet Upper Control Arm Delta Joint PRO Kit – Superior Off-Road Suspension Upgrade

SKU: 58561DJ

$1,439.95

In stock

15 in stock

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but NOT compatible with 6" lift kits from other manufacturers
  • Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Delta Joint PRO allows maximum articulation without binding
  • Delta Joint PRO is 100% serviceable and rebuildable
  • Built in O-ring sealed dust cover cap
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your Toyota Tundra with the ICON 2022-2024 Billet Upper Control Arm Delta Joint PRO Kit, designed for exceptional off-road performance and durability. Crafted from CNC machined 6061 aluminum with a satin anodized finish, these control arms provide precise alignment and a robust construction built to withstand harsh terrains. The inclusion of ICON’s innovative Delta Joint PRO offers a full 90 degrees of articulation, a 14% increase over previous models, ensuring maximum bind-free suspension movement across the complete range of travel. This design combines the longevity and factory-like reliability of ball joints with the performance benefits of a uniball, making it an ideal upgrade for off-road enthusiasts and professional drivers alike.

Features:

  • Designed specifically for 2022-2024 Toyota Tundra models, with compatibility for the 6-inch lift performance suspension system
  • Delta Joint PRO: Rebuildable, serviceable design allowing component inspection and replacement without full joint replacement
  • Larger ball with 56% more bearing surface enhances strength and durability
  • Chromoly ball and shaft with Rockwell C 55 hardness for extreme strength and resistance to wear
  • Precision-machined sintered metal races with graphite impregnation for flawless metal-to-metal bearing interface
  • Improved lubrication system with channels for efficient grease distribution, sealed with an O-ring dust cover
  • FK rod ends at chassis pivots for strength and precise handling
  • Quick and easy on-vehicle caster and camber adjustments for optimal wheel alignment
  • Maximum articulation without binding, ensuring smooth suspension travel
  • 100% rebuildable and serviceable for extended component life

Fitment:
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024

Additional information

Weight 20.2 lbs
Dimensions 16.4 × 16.2 × 6.5 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

00840103414362
brand

ICON
part_number

58561DJ
