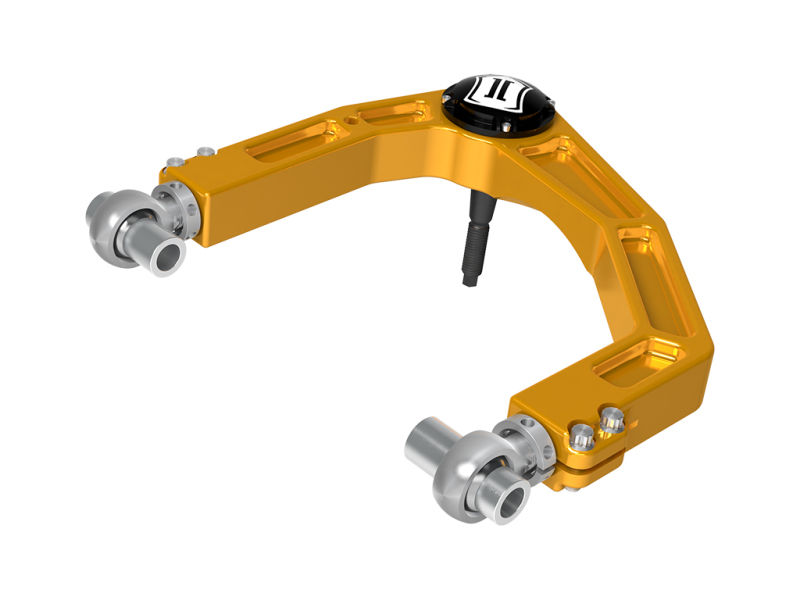

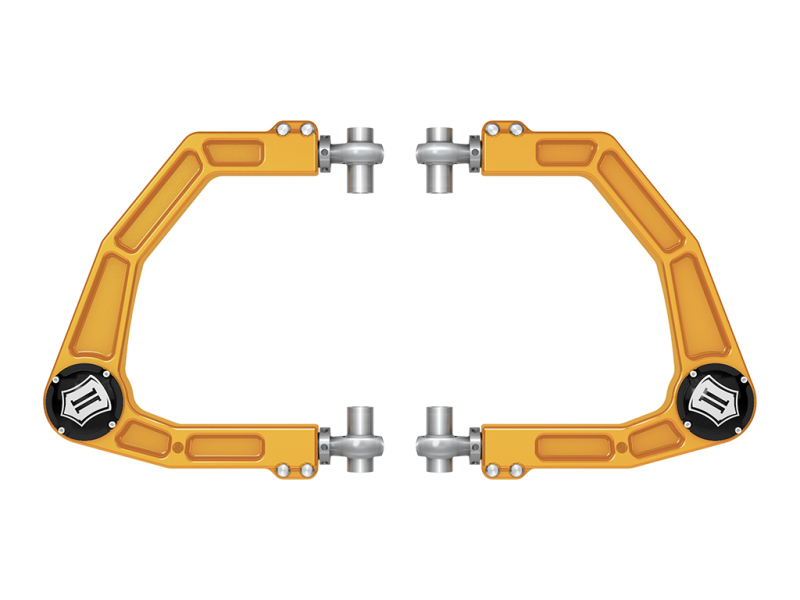

HomeShopControl ArmsICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO – Gold Anodized
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 2
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 3
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 4
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 5
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 6
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 7
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 8
ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO - Gold Anodized - Image 9

ICON 2024 Toyota Tacoma Billet Upper Control Arm with Delta Joint PRO – Gold Anodized

SKU: 58552GDJ

$1,479.95

In stock

15 in stock

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Delta Joint PRO allows maximum articulation without binding
  • Delta Joint PRO is 100% serviceable and rebuildable
  • CNC machined 6061 billet aluminum construction
  • Built in O-ring sealed dust cover cap
  • Gold anodized finish
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Enhance your off-road performance with the ICON 2024 Toyota Tacoma Billet Upper Control Arm featuring the advanced Delta Joint PRO. Crafted from CNC machined 6061 aluminum and finished in durable gold anodizing, this control arm is designed to correct suspension geometry and enable proper wheel alignment on Tacomas with up to 3 inches of lift. The integrated Delta Joint PRO combines the robustness of factory-style ball joints with the high-performance capabilities of a uniball, offering a full 90 degrees of articulation for maximum suspension flexibility. This 14% improvement in range of motion allows for bind-free movement through the complete suspension travel, making it ideal for aggressive off-road excursions. The Delta Joint PRO’s larger ball with 56% more bearing surface, along with a hardened chromoly ball and shaft, ensures superior strength, durability, and longevity. Its innovative rebuildable and serviceable design allows for easy inspection and component replacement without the need to replace the entire joint, reducing long-term maintenance costs. The redesigned lubrication system with efficient grease channels further enhances performance by maintaining optimal lubrication and minimizing wear. ICON’s billet UCAs feature FK rod ends at chassis pivots for precise handling and quick on-vehicle caster and camber adjustments, simplifying setup and tuning. Built to withstand rugged conditions, these control arms are equipped with O-ring sealed dust covers to protect against dirt and debris. Suitable for use with 33-inch tires (larger sizes may require additional modifications), the ICON Upper Control Arms are an essential upgrade for serious off-road enthusiasts seeking durability, performance, and precise alignment capabilities.

Features:

  • Corrects suspension geometry and allows proper wheel alignment on lifted Tacomas
  • FK rod ends at chassis pivots for strength and precise handling
  • Quick, on-vehicle adjustment for caster and camber
  • Delta Joint PRO provides maximum articulation without binding
  • Full rebuildable and serviceable Delta Joint PRO design
  • CNC machined 6061 billet aluminum construction with gold anodized finish
  • Includes O-ring sealed dust cover cap for enhanced protection
  • Designed for demanding off-road conditions with high durability

Fitment:
Lexus GX550 Luxury 2024
Lexus GX550 Luxury+ 2024
Lexus GX550 Overtrail 2024
Lexus GX550 Overtrail+ 2024
Lexus GX550 Premium 2024
Lexus GX550 Premium+ 2024
Toyota Land Cruiser 1958 2024
Toyota Land Cruiser Base 2024
Toyota Land Cruiser First Edition 2024
Toyota Tacoma Limited 2024
Toyota Tacoma SR 2024
Toyota Tacoma SR5 2024
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD PreRunner 2024
Toyota Tacoma TRD Sport 2024

Additional information

Weight 20 lbs
Dimensions 16.6 × 16.3 × 6.6 in
air_freight_prohibited

false
not_carb_approved

false
carb_acknowledgement_required

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
regular_stock

t
brand

ICON
part_number

58552GDJ
