ICON 58775C 3.0 Series VS RR CDCV Coilover Kit for Toyota Tundra 2022-2023

Description

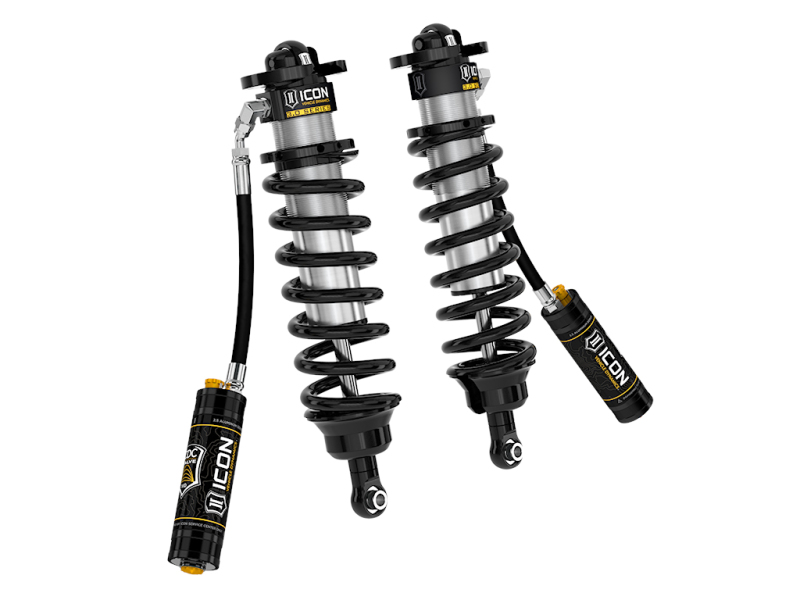

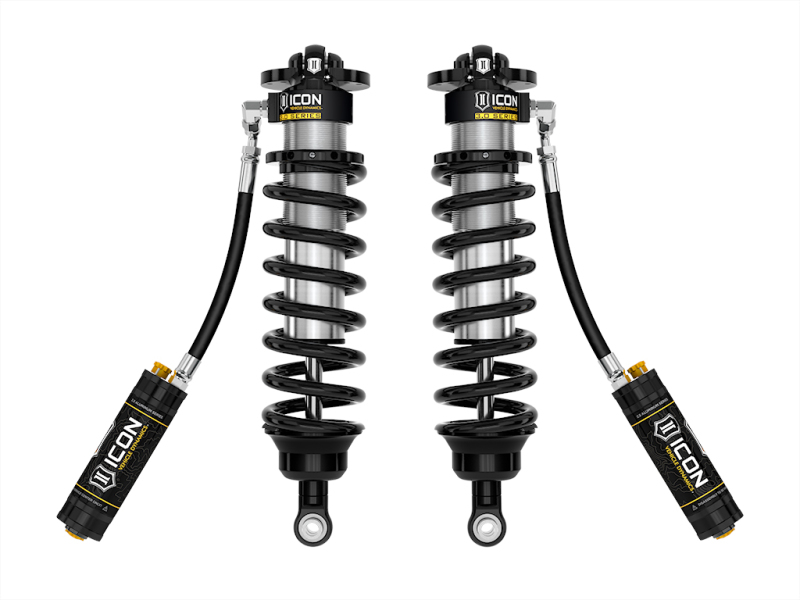

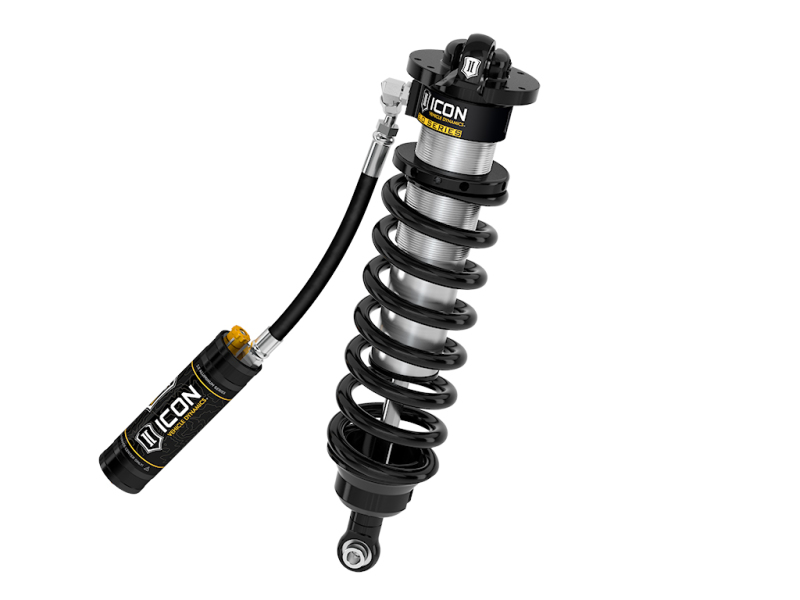

The ICON 58775C 3.0 Series VS RR CDCV Coilover Kit is designed to significantly enhance your Toyota Tundra’s off-road and on-road performance. Featuring a larger 3.0-inch shock body and increased piston surface area, these shocks provide 50% more piston area in the ride zone and double that in the bump zone compared to previous 2.5 series shocks. This results in improved stability, vehicle control, and ride comfort during extreme off-road conditions and everyday driving.

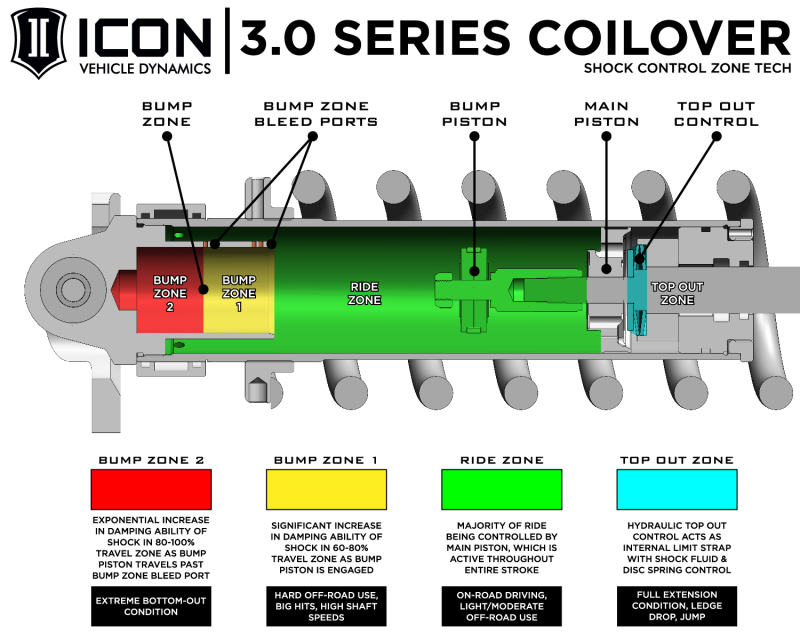

The multi-stage hydraulic bump zone incorporated into these shocks exponentially increases bottom-out resistance, especially during the last 40% of travel, protecting your suspension from hard impacts and unexpected obstacles. Vehicle-specific tuning and design ensure maximum travel and superior damping, making these shocks ideal for aggressive off-road adventures and smooth highway cruising.
The adjustable CDC Valve (Compression Damping Control) allows users to customize compression damping, adapting to various terrains and cargo loads with ease. These shocks also feature PTFE-lined spherical bearings for longevity and minimal deflection, along with CNC-machined 6061 aluminum components finished in black anodized coating for durability and style. The 7/8-inch induction-hardened, chrome-plated shock shafts enhance strength and longevity, ensuring reliable performance over time. With a 40% increase in front wheel travel over stock, these coilovers deliver a smoother ride and improved handling. Fully rebuildable and tunable, the ICON 3.0 Series shocks are engineered for enthusiasts who demand the best in suspension performance. Please note that lift heights above 2.25 inches on the Toyota Tundra require a sway bar drop bracket kit (part number 55154), with additional parts needed for TRD Pro or Sequoia models.
Whether you’re tackling rugged terrain or seeking improved ride quality on paved roads, these coilovers provide the versatility, durability, and tuning options to meet your needs. Installation requires some adjustments, but the benefits in vehicle control and ride quality make the upgrade well worth the effort.

Features:

• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations

• Multi-stage, tunable hydraulic ‘Bump Zone’ exponentially increases bottom-out resistance in the last 40% of travel

• Adjustable lift height from 1.25 to 3.25 inches on Tundra and 3 to 4.25 inches on Sequoia for versatile leveling options

• PTFE lined spherical bearings for extended longevity and minimal deflection

• Vehicle-specific design and tuning for superior shock damping and control

• 3.0-inch body diameter increases oil volume and piston surface area for enhanced performance

• CNC machined 6061 aluminum components with a durable black anodized finish

• 7/8-inch induction-hardened, chrome-plated shock shafts for increased strength

• 40% increase in front wheel travel over stock for improved off-road capability

• Fully rebuildable and re-tunable for long-term performance and customization

Fitment:
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024
