Description

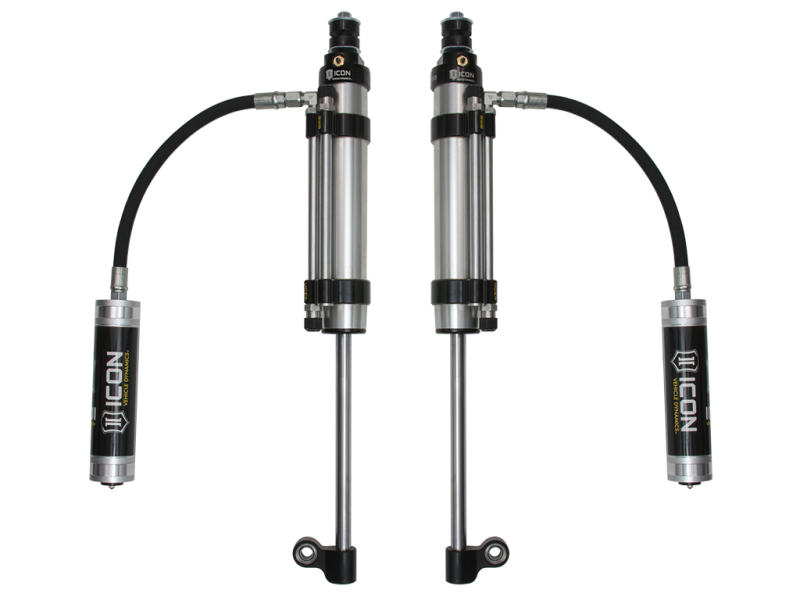

The ICON Omega Series Bypass Shocks are engineered for exceptional performance and ride quality in your Toyota Tundra. Designed specifically for the 2007-2021 models, these shocks feature a 2.5-inch remote reservoir configuration that enhances heat dissipation and prolongs shock life during demanding off-road conditions. The external bypass valves offer 28 finely tuned adjustment settings, allowing you to customize compression and rebound damping easily without tools for precise suspension tuning. This capability ensures a smooth on-road experience while maintaining rugged off-road handling.
Constructed with high-quality components, the shocks incorporate a one-piece digressive piston design with vehicle-specific valving, delivering unmatched control and comfort both on and off the trail. The internal “Bump Zone,” made possible by a 6061 billet aluminum manifold, significantly increases damping force during full compression, preventing harsh bottom outs and providing superior suspension control. The impact-extruded aluminum cylinders are corrosion-resistant and maintain a consistent finish, ensuring durability in harsh environments.
ICON’s use of PTFE-lined spherical bearings and application-specific mounting hardware guarantees precise installation and reliable performance. The 7/8-inch induction-hardened, chrome-plated shock shaft enhances strength and longevity. Additionally, the shocks are fully rebuildable and revalveable, giving you the flexibility to adapt to changing driving conditions or preferences over time. The remote reservoir design further improves heat management, reducing shock fade during prolonged use, making these shocks ideal for aggressive off-road adventures or extended highway drives. Overall, the ICON Omega Series Bypass Shocks combine innovative technology, premium materials, and adjustable features to elevate your Toyota Tundra’s suspension system to new heights, ensuring a confident ride in any terrain.
Features:
- ICON’s Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

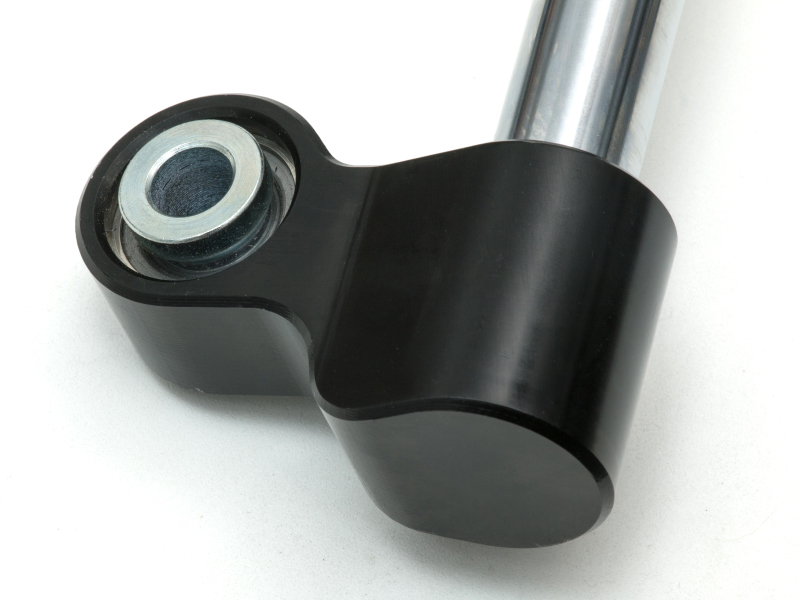

- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- 6061 aircraft grade aluminum CNC machined components
- Bypass tubes are replaceable in the event of damage
- 100% Revalveable
- 100% Rebuildable
Fitment:
Toyota Tundra 1794 Edition 2014
Toyota Tundra 1794 Edition 2015
Toyota Tundra 1794 Edition 2016
Toyota Tundra 1794 Edition 2017
Toyota Tundra 1794 Edition 2018
Toyota Tundra 1794 Edition 2019
Toyota Tundra 1794 Edition 2020
Toyota Tundra 1794 Edition 2021
Toyota Tundra Base 2007
Toyota Tundra Base 2008
Toyota Tundra Base 2009
Toyota Tundra Base 2010
Toyota Tundra Base 2011
Toyota Tundra Base 2012
Toyota Tundra Base 2013
Toyota Tundra Limited 2007
Toyota Tundra Limited 2008
Toyota Tundra Limited 2009
Toyota Tundra Limited 2010
Toyota Tundra Limited 2011
Toyota Tundra Limited 2012
Toyota Tundra Limited 2013
Toyota Tundra Limited 2014
Toyota Tundra Limited 2015
Toyota Tundra Limited 2016
Toyota Tundra Limited 2017
Toyota Tundra Limited 2018
Toyota Tundra Limited 2019
Toyota Tundra Limited 2020
Toyota Tundra Limited 2021
Toyota Tundra Nightshade 2021
Toyota Tundra Platinum 2010
Toyota Tundra Platinum 2011
Toyota Tundra Platinum 2012
Toyota Tundra Platinum 2013
Toyota Tundra Platinum 2014
Toyota Tundra Platinum 2015
Toyota Tundra Platinum 2016
Toyota Tundra Platinum 2017
Toyota Tundra Platinum 2018
Toyota Tundra Platinum 2019
Toyota Tundra Platinum 2020
Toyota Tundra Platinum 2021
Toyota Tundra SR 2014
Toyota Tundra SR 2015
Toyota Tundra SR 2016
Toyota Tundra SR 2017
Toyota Tundra SR 2018
Toyota Tundra SR 2019
Toyota Tundra SR 2020
Toyota Tundra SR 2021
Toyota Tundra SR5 2007
Toyota Tundra SR5 2008
Toyota Tundra SR5 2009
Toyota Tundra SR5 2010
Toyota Tundra SR5 2011
Toyota Tundra SR5 2014
Toyota Tundra SR5 2015
Toyota Tundra SR5 2016
Toyota Tundra SR5 2017
Toyota Tundra SR5 2018
Toyota Tundra SR5 2019
Toyota Tundra SR5 2020
Toyota Tundra SR5 2021
Toyota Tundra Trail 2021
Toyota Tundra TRD Pro 2015
Toyota Tundra TRD Pro 2016
Toyota Tundra TRD Pro 2017
Toyota Tundra TRD Pro 2019
Toyota Tundra TRD Pro 2020
Toyota Tundra TRD Pro 2021
