Description
Enhance your Toyota Tacoma’s off-road and on-road performance with the ICON Omega Series Bypass Shocks, designed specifically for model years 2005 through 2017. These shocks feature a custom configuration tailored to your vehicle, providing a smooth ride on pavement and exceptional handling over rugged terrain. The externally adjustable ICON Bypass Valve offers 28 precise settings, allowing you to fine-tune compression and rebound damping with just a quarter turn, all without the need for tools. This level of adjustability ensures optimal suspension performance tailored to your driving style and conditions.
Constructed using high-quality materials, the ICON Omega Series shocks incorporate a 6061 billet aluminum manifold that creates an internal “Bump Zone,” significantly increasing damping force during high-velocity compression. This feature helps prevent harsh bottom-outs and maintains control during aggressive driving. The one-piece impact extruded aluminum cylinders deliver excellent corrosion resistance and consistent finish, making these shocks durable and reliable for demanding off-road adventures and daily driving. The remote reservoir design enhances heat dissipation, reducing the risk of shock fade during extended use, while PTFE-lined spherical bearings and application-specific mounting hardware ensure smooth operation and secure fitment.
These shocks are fully rebuildable and revalveable, allowing for future customization and maintenance to prolong their service life. They are designed to withstand harsh conditions and are compatible with ICON Multi-Rate Leaf Springs (Part # 158505) for optimal installation. Premium grade 5WT shock oil maintains consistent damping across a wide temperature range, ensuring reliable performance in diverse environments. With a 7/8” induction-hardened, chrome-plated shock shaft, these shocks provide durability and precise responsiveness, making them an excellent upgrade for serious off-road enthusiasts and daily drivers alike.Note that installation may require the ICON Multi-Rate Leaf Springs (Part # 158505), which are sold separately. These shocks are compliant with Prop 65 regulations and are not CARB approved, making them suitable for most off-road applications where legal concerns are minimal. Whether you’re looking to improve ride quality or tackle challenging trails, the ICON Omega Series Bypass Shocks deliver superior suspension tuning and durability for your Toyota Tacoma.
- ICON’s Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression

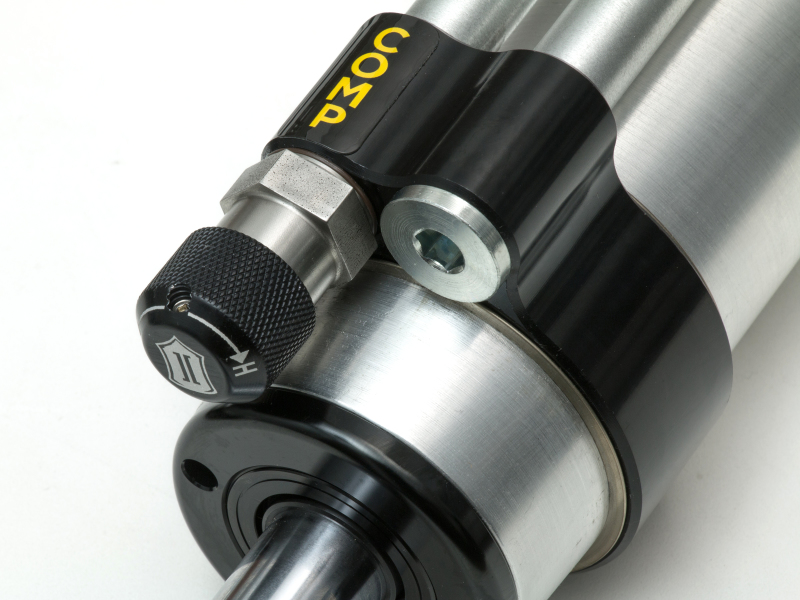

- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- 6061 aircraft grade aluminum CNC machined components
- Bypass tubes are replaceable in the event of damage
- 100% Revalveable
- 100% Rebuildable
Features:
- ICON’s Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- 6061 aircraft grade aluminum CNC machined components
- Bypass tubes are replaceable in the event of damage
- 100% Revalveable
- 100% Rebuildable
Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Limited 2022
Toyota Tacoma Limited 2023
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR 2022
Toyota Tacoma SR 2023
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma SR5 2022
Toyota Tacoma SR5 2023
Toyota Tacoma Trail 2021
Toyota Tacoma Trail Special Edition 2023
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Off-Road 2022
Toyota Tacoma TRD Off-Road 2023
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Pro 2022
Toyota Tacoma TRD Pro 2023
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma TRD Sport 2022
Toyota Tacoma TRD Sport 2023
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013
