HomeShopShocks and StrutsICON Stage 10 Suspension System for Toyota Tacoma 2005-2017 with Coilovers, Upper Control Arms, and Leaf Springs
ICON Stage 10 Suspension System for Toyota Tacoma 2005-2017 with Coilovers, Upper Control Arms, and Leaf Springs
ICON Stage 10 Suspension System for Toyota Tacoma 2005-2017 with Coilovers, Upper Control Arms, and Leaf Springs - Image 2
ICON Stage 10 Suspension System for Toyota Tacoma 2005-2017 with Coilovers, Upper Control Arms, and Leaf Springs - Image 3

ICON Stage 10 Suspension System for Toyota Tacoma 2005-2017 with Coilovers, Upper Control Arms, and Leaf Springs

SKU: K53010

$6,913.53

In stock

3 in stock

The Stage 10 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir with CDCV for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
  • ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
  • 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
  • Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Front coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

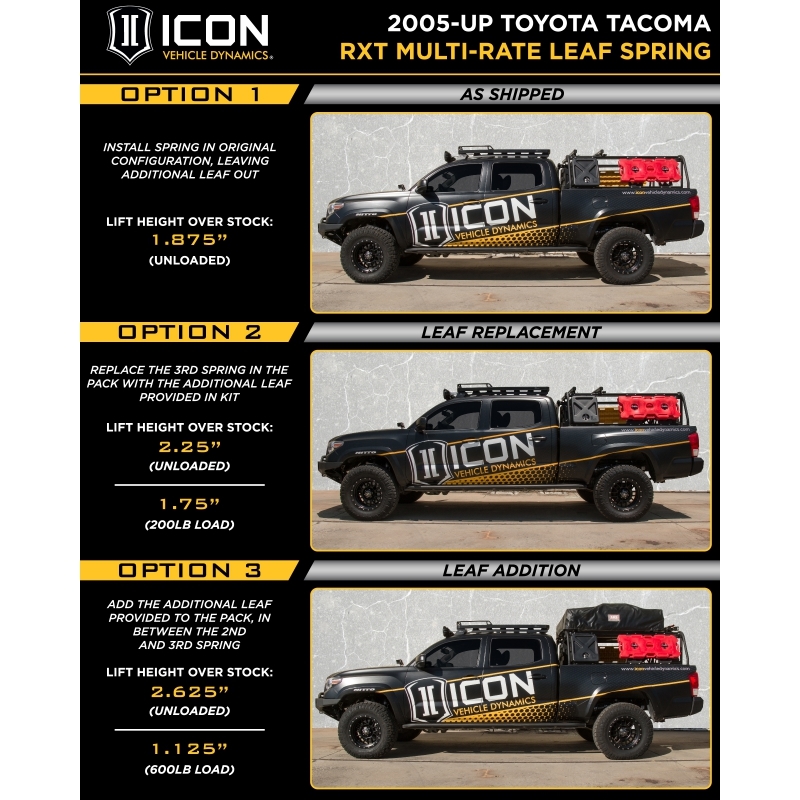

  • Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
  • Extended Travel coilovers offer maximum wheel travel
  • 6061 aircraft grade aluminum CNC machined components
  • Increased wheel travel and ride quality over stock
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your Toyota Tacoma with the ICON Stage 10 suspension system, designed for maximum off-road performance and superior ride quality. This comprehensive kit includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs, enhancing cooling and damping consistency during demanding off-road adventures. The coilovers feature adjustable CDC Valves offering 10 levels of compression damping, allowing precise tuning from soft to hard settings to match your driving style. With height adjustability ranging from 0 to 3.5 inches for 2005-2015 models and up to 2.75 inches for 2016-2023 models, these coilovers enable the use of larger, more aggressive wheel and tire combinations for improved traction and stance. The included ICON billet aluminum upper control arms are engineered to optimize front-end geometry, providing increased camber and caster adjustment along with enhanced suspension component clearance, which contributes to better handling and durability. For the rear, ICON RXT multi-rate leaf springs are included, offering adjustable spring rates and increased droop travel, up to 20%, to improve ride quality whether unloaded or heavily loaded with gear like roof tents, racks, or spare tires. The system is built with high-quality materials, including CAD-plated shock bodies, 7/8-inch shafts, FK Rod End bearings, and CNC-machined 6061 aircraft-grade aluminum components, ensuring durability and corrosion resistance. Designed with serious off-road drivers in mind, the ICON Stage 10 suspension system provides outstanding wheel travel, damping control, and ride comfort both on and off the pavement, making it an ideal upgrade for your Toyota Tacoma.

Features:

  • Vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs for improved cooling
  • CDC Valves with 10 adjustable compression damping settings for tailored ride control
  • Height adjustable coilovers from 0-3.5 inches for 2005-2015 models and 0-2.75 inches for 2016-2023 models
  • Includes ICON billet aluminum upper control arms for optimized front-end geometry and adjustable camber and caster
  • Extended travel ICON RXT rear shock with side-mounted lower eyelet for up to 20% increased travel
  • 2.5 Aluminum Series RXT Omega Bypass shocks with compression and rebound adjustment for superior ride control
  • Multi-rate leaf springs with three user-adjustable spring rates for customizable rear suspension performance
  • High-quality, corrosion-resistant components including CAD-plated shock bodies and FK Rod End bearings
  • Designed for maximum wheel travel, improved ride quality, and handling in diverse off-road conditions

Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma Trail 2021
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013

Additional information

air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
brand

ICON
part_number

K53010
