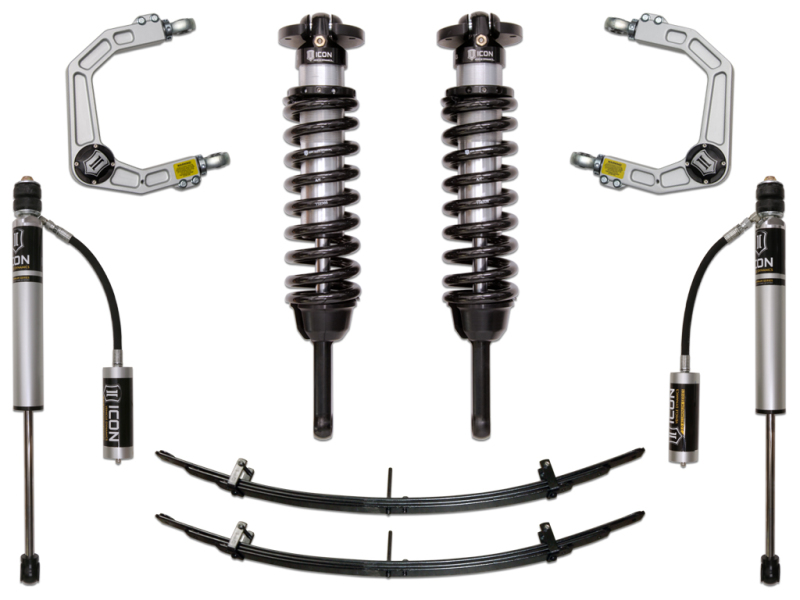

ICON Stage 3 Suspension System for Toyota Tacoma 2005-2023 with Billet Aluminum Upper Control Arms

ICON Stage 3 Suspension System for Toyota Tacoma 2005-2023 with Billet Aluminum Upper Control Arms

SKU: K53003

$3,836.75

In stock

9 in stock

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock
  • Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system means no cutting or welding necessary for install
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
  • 6061 aircraft grade aluminum CNC machined components
  • Extended Travel coilovers offer maximum wheel travel
  • Increased wheel travel and ride quality over stock
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to enhance the performance and ride quality of Toyota Tacomas from 2005 to 2023. Designed with serious drivers in mind, this system increases wheel travel and damping ability, providing outstanding vehicle control both on and off-road. The kit includes vehicle-specific tuned 2.5-inch extended travel coilover shocks with internal reservoirs for superior cooling and ICON-engineered coil springs that deliver a confident and responsive ride across varied terrain. These coilovers are height adjustable, offering up to 3.5 inches of lift on 2005-2015 models and up to 2.75 inches on 2016+ models, enabling the use of larger tires and more aggressive wheel setups for enhanced off-road capability. When paired with ICON’s billet aluminum upper control arms, the system provides increased droop travel, improved front-end geometry, and better suspension component clearance, ensuring optimized handling and durability. The included ICON Delta Joint ball joints replace OE units, allowing full bump and droop travel without bind, which significantly enhances suspension articulation. The rear suspension is upgraded with ICON’s Add-A-Leaf Kit, which replaces the factory overload leaves, resulting in a more compliant ride and approximately 1.5 inches of rear lift. ICON’s 2.0 Aluminum Series remote reservoir shocks for the rear offer vehicle-specific valving for balanced damping and control from front to rear. Constructed from corrosion-resistant CAD plated steel with 7/8-inch shafts, these shocks are built for longevity and performance. The entire system is a bolt-on installation, requiring no cutting or welding, and features CNC-machined components made from 6061 aircraft-grade aluminum for strength and light weight. Ideal for drivers seeking to improve their Tacoma’s off-road prowess and on-road comfort, this suspension system provides maximum wheel travel, increased ride quality, and reliable durability for a variety of demanding driving conditions.

Features:

  • Adjustable coilovers provide up to 3.5 inches of front lift on 2005-2015 models and up to 2.75 inches on 2016+ models
  • Billet aluminum upper control arms for increased strength, durability, and on-vehicle caster/camber adjustment
  • Add-A-Leaf Kit replaces OE overload leaf spring for a more compliant ride and 1.5 inches of rear lift
  • Vehicle-specific tuned front and rear shocks for superior damping and control
  • Corrosion-resistant CAD plated shock bodies with 7/8-inch shafts
  • 2.0 Aluminum Series remote reservoir rear shocks with 5/8-inch shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Bolt-on system requires no cutting or welding for installation
  • Patented Delta Joint ball joints allow full suspension travel and eliminate bind
  • Constructed with CNC machined 6061 aircraft-grade aluminum components
  • Extended travel coilovers maximize wheel travel and off-road performance

Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma Trail 2021
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013

Additional information

air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
brand

ICON
part_number

K53003
