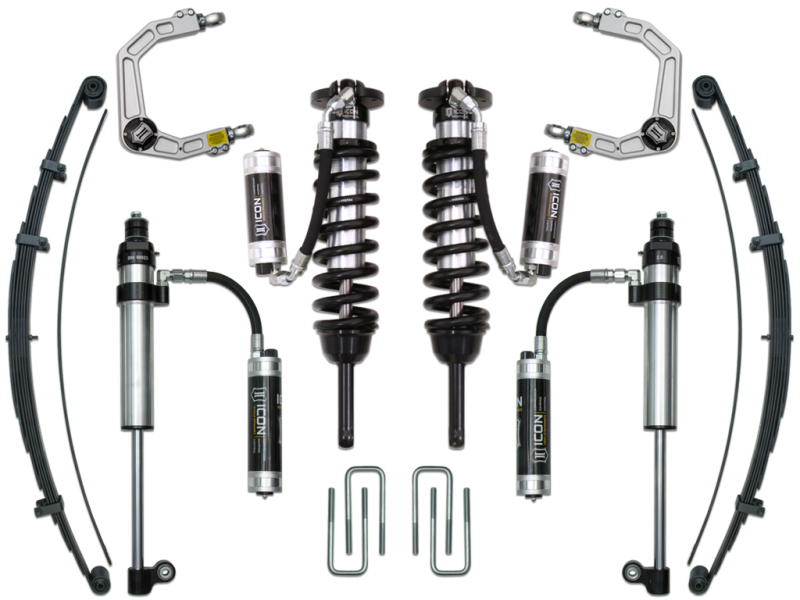

ICON Stage 9 Suspension System for Toyota Tacoma 2005-2017 with Billet Upper Control Arms - Part K53009
ICON Stage 9 Suspension System for Toyota Tacoma 2005-2017 with Billet Upper Control Arms - Part K53009 - Image 2
ICON Stage 9 Suspension System for Toyota Tacoma 2005-2017 with Billet Upper Control Arms - Part K53009 - Image 3

ICON Stage 9 Suspension System for Toyota Tacoma 2005-2017 with Billet Upper Control Arms – Part K53009

SKU: K53009

$6,270.43

In stock

3 in stock

The Stage 9 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir with CDCV for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 9 system includes a unique 2.5 Aluminum Series remote reservoir shock with CDCV that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

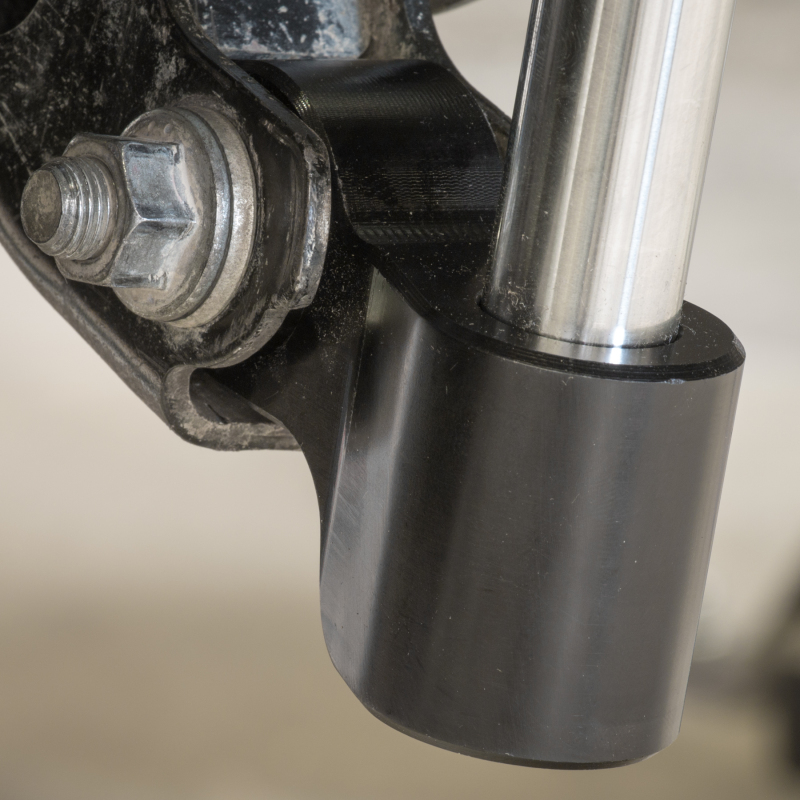

  • ICON RXT CDCV Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
  • ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
  • 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

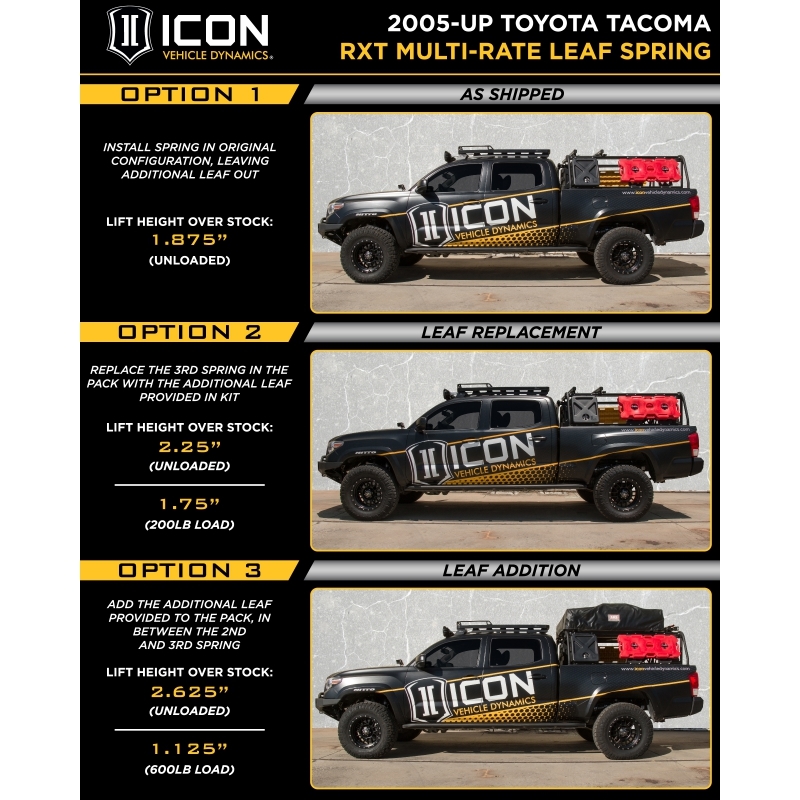

  • Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
  • Extended Travel coilovers offer maximum wheel travel
  • 6061 aircraft grade aluminum CNC machined components
  • Increased wheel travel and ride quality over stock
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your Toyota Tacoma with the ICON Stage 9 suspension system designed for optimal off-road performance and on-road comfort. This comprehensive kit includes vehicle-specific tuned 2.5 Series extended travel coilover shocks featuring remote reservoirs with CDCV technology, providing exceptional cooling and consistent damping during spirited driving. The coilovers are height adjustable—up to 3.5 inches on 2005-2015 models and 2.75 inches on 2016-2023 models—allowing for larger wheel and tire combinations to enhance your truck’s capabilities. The system also includes ICON-engineered coil springs that deliver superior vehicle feel and handling across the full range of travel, ensuring smooth operation over rough terrain and improved ride quality on pavement. The included ICON billet aluminum upper control arms are designed to correct front-end geometry, increase on-vehicle camber and caster adjustment, and improve suspension component clearance, which collectively enhance handling and durability. To further boost rear suspension performance, the kit features ICON RXT multi-rate leaf springs with an additional leaf, offering 10-20% increased spring rate. This upgrade is ideal for drivers carrying heavier loads or seeking a more comfortable ride when unloaded, such as with bed racks, rooftop tents, or spare tires. The rear shocks are 2.5-inch aluminum series remote reservoir units with corrosion-resistant anodized bodies and 7/8-inch shafts, featuring side-mount lower eyelets that enable up to 20% increased travel while utilizing factory mounting points. Each shock is equipped with externally adjustable CDC valves, providing 10 levels of compression damping from soft to hard, giving you precise control over ride quality. With high-quality components like FK rod end bearings and CNC-machined 6061 aircraft-grade aluminum, this system ensures durability and longevity. Installation of the complete ICON system is required to achieve the advertised wheel travel, as mixing components from other manufacturers may lead to suboptimal performance or damage. Designed with maximum performance in mind, this suspension system offers enhanced wheel travel, damping ability, and ride quality—both on and off-road—making it an excellent upgrade for serious drivers looking to push their Tacoma’s limits.

Features:

  • ICON RXT CDCV rear shock with side-mounted lower eyelet allows increased travel (up to 20%) while utilizing factory mounting location
  • ICON RXT rear shock with side-mounted lower eyelet for up to 20% increased travel using factory mounts
  • 2.5-inch aluminum series remote reservoir RXT rear shocks with corrosion-resistant anodized bodies and 7/8-inch shafts
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under demanding conditions
  • Billet aluminum upper control arms for added strength, durability, and on-vehicle camber and caster adjustment
  • Adjustable coilovers providing up to 3.5 inches of front lift on 2005-2015 models and 2.75 inches on 2016-2023 models
  • All shocks equipped with CDC valves offering 10 levels of compression damping adjustment
  • Multi-rate leaf springs with three user-adjustable spring rates for customized vehicle setups
  • Vehicle-specific tuned shocks for superior damping and control
  • Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Patented Delta Joint design on upper control arms for enhanced durability
  • Extended travel coilovers for maximum wheel articulation
  • 6061 aircraft-grade aluminum CNC machined components for strength and precision
  • Increased wheel travel and improved ride quality over stock configurations

Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma Trail 2021
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013

Additional information

air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
brand

ICON
part_number

K53009
