HomeShopCoiloversICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023)

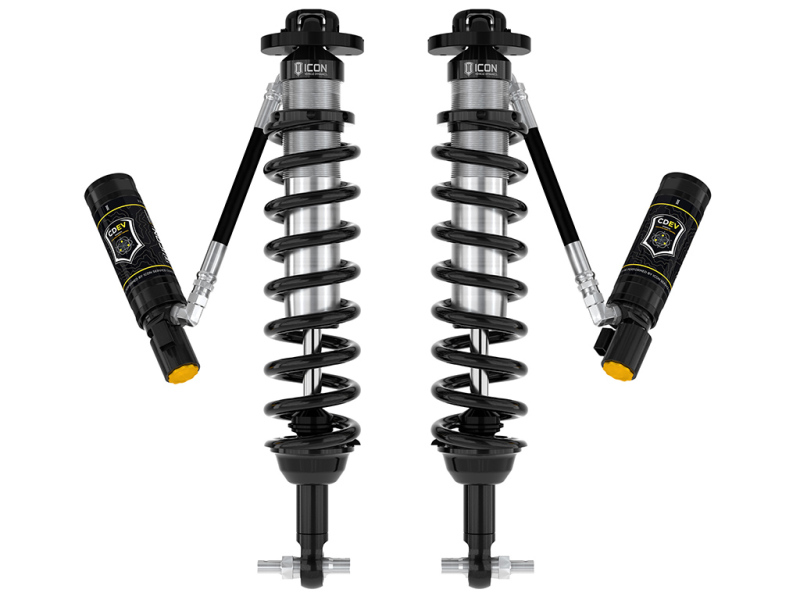

ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023)
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 2
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 3
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 4
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 5
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 6
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 7
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 8
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 9
ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023) - Image 10

ICON Vehicle Dynamics 48700E 2.5 Series Remote Reservoir Front Coilover Kit for Ford Bronco (2021-2023)

SKU: 48700E

$2,892.19

In stock

2 in stock

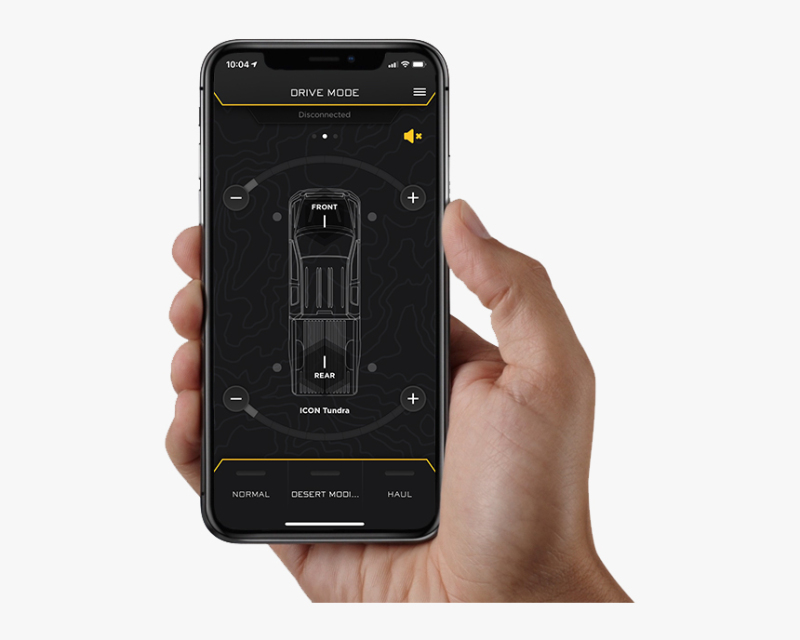

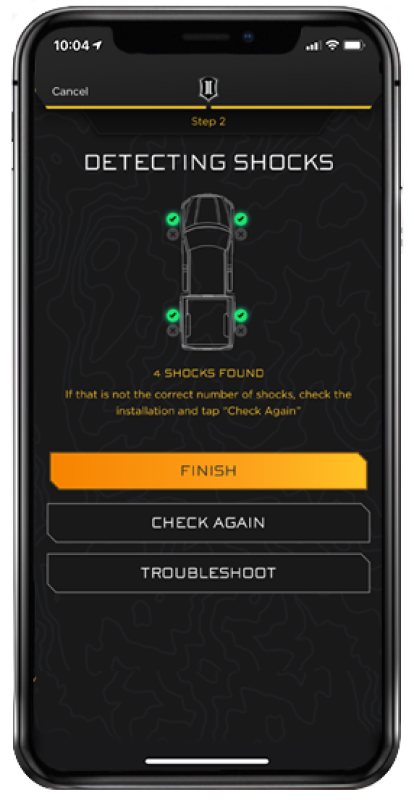

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco. These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDEV for active compression adjustment TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • Increased wheel travel (up to 11.5”) and ride quality over stock
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • 6061 Aircraft grade aluminum CNC machined components
  • High strength alloy CNC machined lower bar pin
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The ICON Vehicle Dynamics 48700E coilover kit is specifically designed to upgrade the front suspension of your 2021-2023 Ford Bronco, offering a combination of superior ride quality and enhanced off-road capability. Featuring adjustable coilovers with remote reservoirs, this system allows for up to 3-4 inches of lift on non-Sasquatch models and 2-3 inches on Sasquatch-equipped Broncos, enabling the use of larger, more aggressive wheel and tire setups. The larger 2.5-inch shock body and increased piston area provide maximum travel and improved suspension response across diverse terrains.

Integrated with ICON’s exclusive Compression Damping Electronic Valves (CDEV) and the ICON Intelligent Control (IIC) system, these coilovers offer lightning-fast, precise electronic damping adjustments. The CDEV technology allows for on-the-fly compression damping tuning, while the IIC system uses onboard sensors to monitor vehicle dynamics and terrain conditions, making real-time adjustments wirelessly through a dedicated app. This active control enhances off-road performance and ride comfort without driver input, ensuring your Bronco maintains optimal suspension behavior whether on rough trails or paved roads.

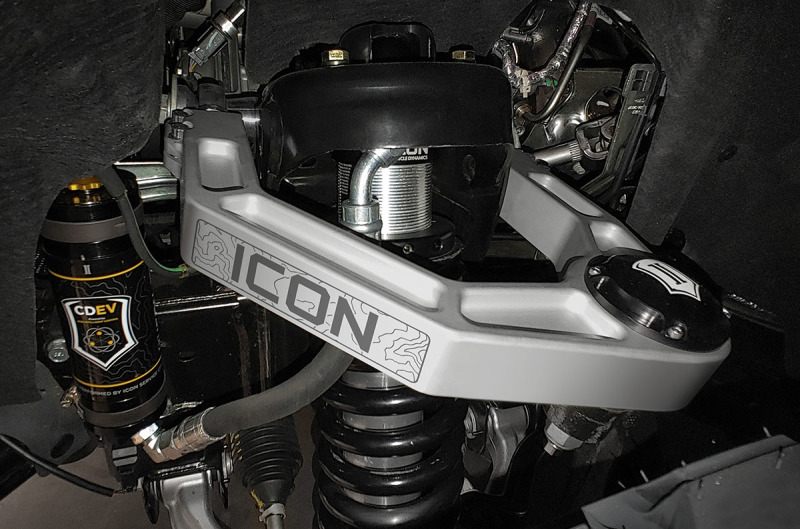

Constructed with corrosion-resistant CAD-plated shock bodies, 7/8-inch diameter shafts, and CNC-machined components from 6061 aircraft-grade aluminum, these coilovers are built for durability and longevity. They feature FK rod end bearings for minimal deflection and extended durability, along with ICON’s engineered coil springs tailored for specific application needs. The system is fully rebuildable and re-tunable, allowing for future customization and maintenance. To ensure proper fitment and optimal performance, ICON recommends using their upper control arms with Delta Joint Pro for increased wheel travel and lift height, and proper suspension cycling is essential to prevent component failure and ensure safety.

Fitment:
Ford Bronco Badlands 2021
Ford Bronco Badlands 2022
Ford Bronco Badlands 2023
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Everglades 2022
Ford Bronco Everglades 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Wildtrak 2021
Ford Bronco Wildtrak 2022
Ford Bronco Wildtrak 2023

Additional information

Weight 69.4 lbs
Dimensions 31.4 × 13.7 × 8.9 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

00840103412382
brand

ICON
part_number

48700E
