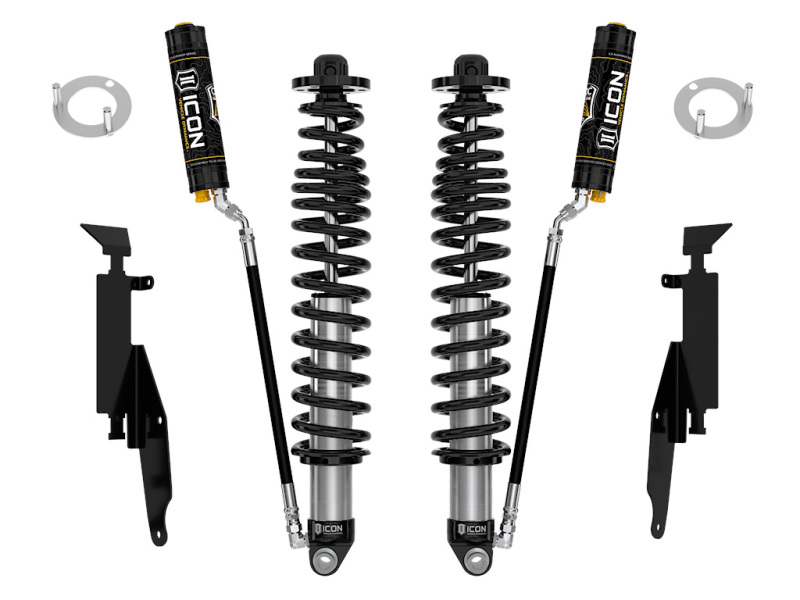

ICON Vehicle Dynamics 48710C Rear 2.5 Series Remote Reservoir Coilover Kit for Ford Bronco 2021-2023

Description

Upgrade your 2021-2023 Ford Bronco with the ICON Vehicle Dynamics 48710C rear coilover kit, designed to deliver superior off-road performance and ride quality. Featuring 2.5-inch diameter remote reservoirs, these coilovers significantly improve heat dissipation and shock oil volume, reducing the risk of overheating during extended off-road adventures. The adjustable coilovers provide up to 2-3 inches of rear lift on non-Sasquatch models and 1.25-2.25 inches on Sasquatch equipped Broncos, enabling larger wheels and tires for enhanced off-road capability and aggressive styling. ICON’s vehicle-specific shock length and valving, combined with larger piston areas and the innovative triple rate coil springs, optimize damping and ride comfort both on and off the trail. The progressive springs ramp up resistance as the coil compresses, offering softer ride characteristics at ride height and increased bottom-out protection during aggressive driving.

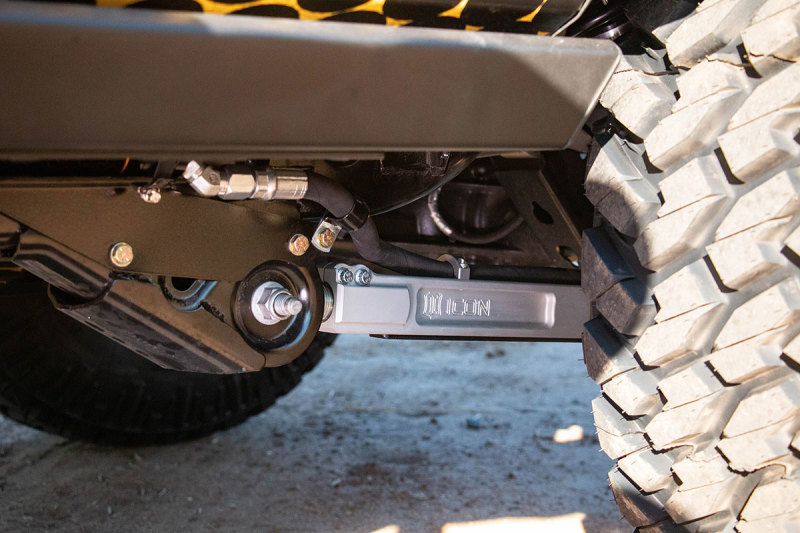

The shocks are mounted in a shaft-up orientation, with reservoirs routed along the rear lower links, which can be configured with ICON billet or OE tubular links for seamless integration. ICON’s exclusive Compression Damping Control Valves (CDCV) provide ten external damping adjustment settings, allowing precise tuning for street driving, crawling, or high-speed desert runs. Constructed with corrosion-resistant CAD-plated shock bodies and 7/8-inch diameter shafts, these coilovers ensure durability and longevity. The FK rod end bearings minimize deflection and extend component life, while the fully rebuildable design allows for future re-tuning or repairs. When paired with ICON’s 2.5 Series front coilovers, this kit helps achieve a balanced front-to-rear suspension, improving vehicle handling and overall control. Ideal for enthusiasts seeking a reliable upgrade that enhances both the performance and aesthetics of their Ford Bronco, the ICON 48710C coilover kit is a comprehensive solution for serious off-roaders and daily drivers alike.

Features:

• Adjustable lift height: Up to 2-3 inches on non-Sasquatch or 1.25-2.25 inches on Sasquatch Broncos

• Remote reservoirs: Improve heat dissipation and shock oil capacity for extended off-road use

• ICON CDCV: Ten external compression damping adjustment settings for precise tuning

• Bolt-on installation: No drilling, cutting, or welding required

• Corrosion-resistant CAD plated shock bodies with 7/8 inch diameter shafts for durability

• FK rod end bearings: Minimize deflection and enhance lifespan

• Increased wheel travel: Up to 14 inches for superior off-road capability

• Vehicle-specific tuning: Optimized shock damping and control for Ford Bronco

• 6061 aircraft-grade aluminum components: CNC machined for strength and precision

• Unique ICON engineered triple rate coil springs: Progressive resistance for improved ride and bottom-out protection

• Fully rebuildable and re-tunable: Serviceable for ongoing performance adjustments

Fitment:
Ford Bronco Badlands 2021
Ford Bronco Badlands 2022
Ford Bronco Badlands 2023
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Everglades 2022
Ford Bronco Everglades 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Wildtrak 2021
Ford Bronco Wildtrak 2022
Ford Bronco Wildtrak 2023
