HomeShopBump StopsICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021

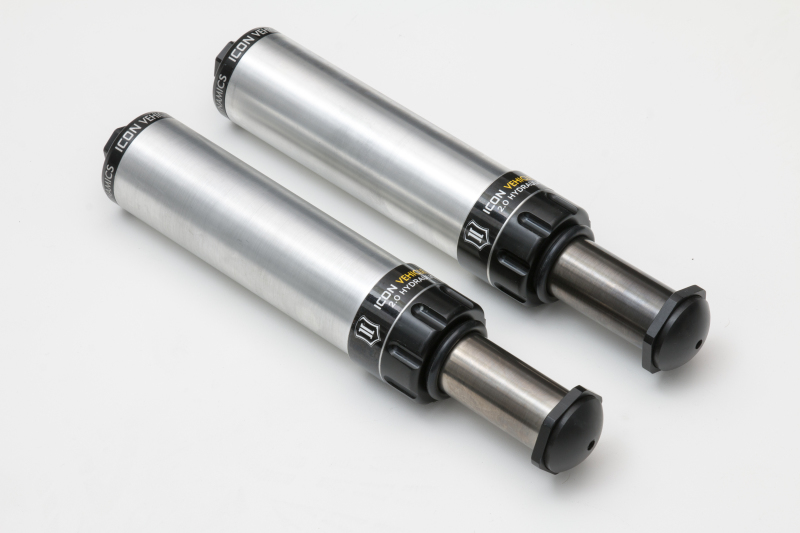

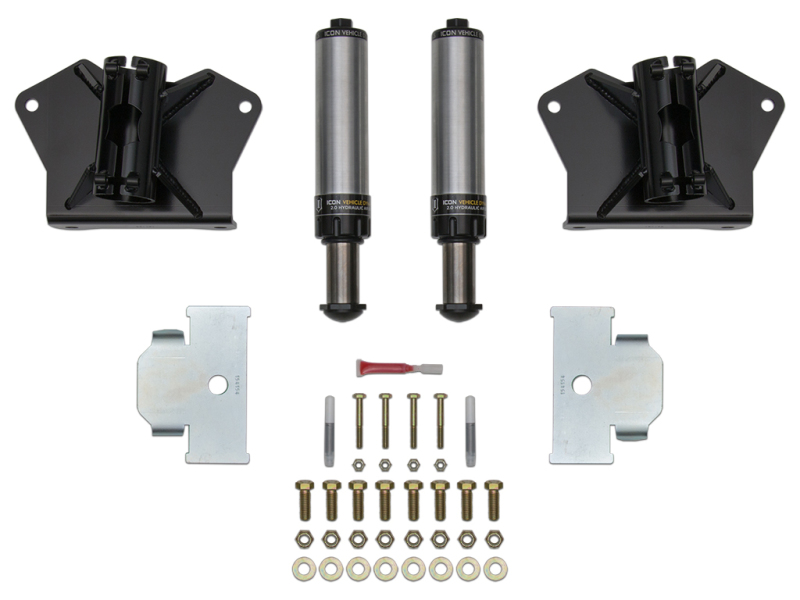

ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021
ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021 - Image 2
ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021 - Image 3
ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021 - Image 4

ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit for Toyota Tundra 2007-2021

SKU: 56108

$1,079.05

In stock

2 in stock

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. 2007-2021 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP SYSTEM
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • Position sensitive technology exponentially increases bottom-out resistance
  • Fully reversible to factory configuration with no bed cutting required
  • Multi stage CAD plated body for maximum corrosion resistance
  • Heavy duty 1 ¼” CNC machined nitro steel shaft
  • Double sealed high pressure Schrader valve
  • Replaceable noise reducing striker pad
  • Operating range of 50 – 250 PSI
  • Fully serviceable
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Enhance your Toyota Tundra’s off-road performance with the ICON Vehicle Dynamics Rear Hydraulic Bump Stop Kit. Designed for models from 2007 to 2021, this system significantly improves suspension control during spirited driving on rough terrain by reducing rear end kick and providing smoother bottom-out resistance. Featuring velocity and position sensitive technology, these hydraulic bump stops exponentially increase resistance as the shaft speed increases, ensuring your suspension remains stable and responsive under demanding conditions. The 2.5-inch travel bump stops are engineered to optimize articulation without sacrificing ride quality, making them ideal for off-road enthusiasts seeking reliable performance.
The ICON Rear Hydraulic Bump Stop System is a direct bolt-in replacement for the factory bump stops, simplifying installation without the need for cutting or modifications. Each unit has been tested under rigorous off-road conditions with the ICON 1K standard to validate performance, durability, and strength. Constructed with a multi-stage CAD-plated body for maximum corrosion resistance and a heavy-duty 1 ¼-inch CNC-machined nitro steel shaft, these bump stops are built to withstand the harshest environments. The double sealed high-pressure Schrader valve allows for easy servicing and adjustments within an operating range of 50 to 250 PSI.
Additional features include a replaceable noise-reducing striker pad for quieter operation and a fully reversible design that restores the vehicle to factory configuration if needed. These bump stops are suitable for various off-road applications and are compatible with your existing suspension setup, providing a significant upgrade in bottom-out control and overall ride quality. Whether you’re tackling rocky trails or enjoying spirited driving on rough terrain, the ICON Rear Hydraulic Bump Stop Kit offers the performance, durability, and reliability necessary to elevate your Toyota Tundra’s off-road capabilities.

Features:

  • Tested under rigorous off-road conditions to ensure durability and performance
  • Direct bolt-in installation at OEM bump stop locations for ease of use
  • 2.5-inch travel reduces rear end kick and enhances suspension control
  • Vehicle-specific tune for smooth engagement and optimal ride quality
  • Velocity and position sensitive technology exponentially increase bottom-out resistance
  • Fully reversible to factory configuration with no bed cutting required
  • Multi-stage CAD plated body for maximum corrosion resistance
  • Heavy-duty 1 ¼-inch CNC machined nitro steel shaft for strength and durability
  • Double sealed high-pressure Schrader valve for easy servicing
  • Replaceable noise-reducing striker pad for quieter operation
  • Operating pressure range of 50 to 250 PSI for versatile use
  • Fully serviceable for ongoing maintenance and performance

Fitment:
Toyota Tundra 1794 Edition 2014
Toyota Tundra 1794 Edition 2015
Toyota Tundra 1794 Edition 2016
Toyota Tundra 1794 Edition 2017
Toyota Tundra 1794 Edition 2018
Toyota Tundra 1794 Edition 2019
Toyota Tundra 1794 Edition 2020
Toyota Tundra 1794 Edition 2021
Toyota Tundra Base 2007
Toyota Tundra Base 2008
Toyota Tundra Base 2009
Toyota Tundra Base 2010
Toyota Tundra Base 2011
Toyota Tundra Base 2012
Toyota Tundra Base 2013
Toyota Tundra Limited 2007
Toyota Tundra Limited 2008
Toyota Tundra Limited 2009
Toyota Tundra Limited 2010
Toyota Tundra Limited 2011
Toyota Tundra Limited 2012
Toyota Tundra Limited 2013
Toyota Tundra Limited 2014
Toyota Tundra Limited 2015
Toyota Tundra Limited 2016
Toyota Tundra Limited 2017
Toyota Tundra Limited 2018
Toyota Tundra Limited 2019
Toyota Tundra Limited 2020
Toyota Tundra Limited 2021
Toyota Tundra Nightshade 2021
Toyota Tundra Platinum 2010
Toyota Tundra Platinum 2011
Toyota Tundra Platinum 2012
Toyota Tundra Platinum 2013
Toyota Tundra Platinum 2014
Toyota Tundra Platinum 2015
Toyota Tundra Platinum 2016
Toyota Tundra Platinum 2017
Toyota Tundra Platinum 2018
Toyota Tundra Platinum 2019
Toyota Tundra Platinum 2020
Toyota Tundra Platinum 2021
Toyota Tundra SR 2014
Toyota Tundra SR 2015
Toyota Tundra SR 2016
Toyota Tundra SR 2017
Toyota Tundra SR 2018
Toyota Tundra SR 2019
Toyota Tundra SR 2020
Toyota Tundra SR 2021
Toyota Tundra SR5 2007
Toyota Tundra SR5 2008
Toyota Tundra SR5 2009
Toyota Tundra SR5 2010
Toyota Tundra SR5 2011
Toyota Tundra SR5 2014
Toyota Tundra SR5 2015
Toyota Tundra SR5 2016
Toyota Tundra SR5 2017
Toyota Tundra SR5 2018
Toyota Tundra SR5 2019
Toyota Tundra SR5 2020
Toyota Tundra SR5 2021
Toyota Tundra Trail 2021
Toyota Tundra TRD Pro 2015
Toyota Tundra TRD Pro 2016
Toyota Tundra TRD Pro 2017
Toyota Tundra TRD Pro 2019
Toyota Tundra TRD Pro 2020
Toyota Tundra TRD Pro 2021

Additional information

Weight 21.9 lbs
Dimensions 13.9 × 12.3 × 6.6 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

00840103403007
brand

ICON
part_number

56108
