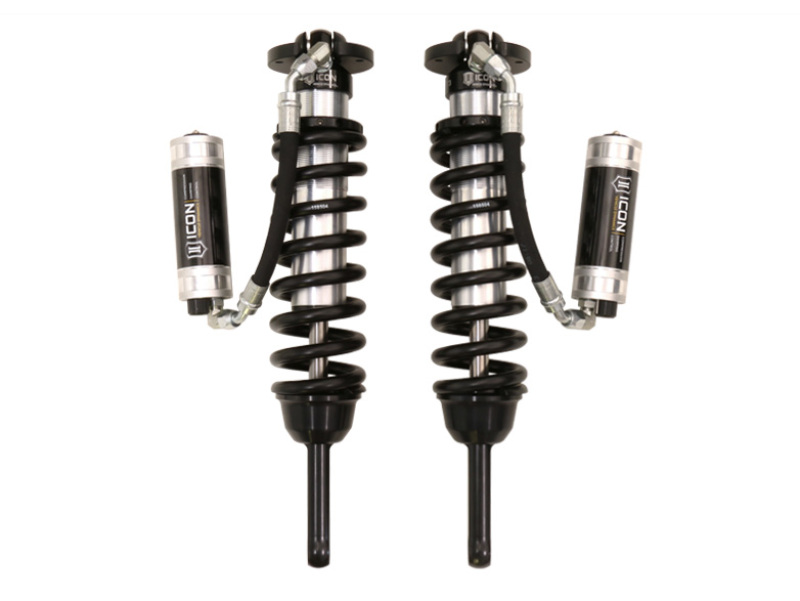

ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilover Kit for Toyota Tacoma (2005-2023)
ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilover Kit for Toyota Tacoma (2005-2023) - Image 2
ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilover Kit for Toyota Tacoma (2005-2023) - Image 3

ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Coilover Kit for Toyota Tacoma (2005-2023)

SKU: 58735C

$2,287.95

In stock

7 in stock

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Extended Travel length requires installation of aftermarket front upper control arms
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • Vehicle specific tuned for superior shock damping and control
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • Kit Includes Sway bar relocation brackets
  • 5/8" PTFE-lined spherical bearings
  • ICON engineered coil springs
  • Billet aluminum upper mount
  • CAD-plated threaded body
  • Completely re-buildable
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks, designed specifically for models from 2005 to 2023. These adjustable coilovers provide a customizable lift height ranging from 0 to 3.5 inches for 2005-2015 models and up to 2.75 inches for 2016-2023 models, enabling the fitment of larger, more aggressive tires for enhanced off-road capability. Featuring ICON’s vehicle-specific shock length and valving, along with a robust 2.5-inch shock body and increased piston area, these coilovers deliver maximum wheel travel and superior ride quality both on- and off-road. The remote reservoirs significantly increase shock oil volume and improve heat dissipation, reducing the risk of overheating and damper fade during demanding driving conditions, ensuring consistent performance under intense use. These coilovers include ICON’s exclusive Compression Damping Control Valves (CDCV) with 10 points of external damping adjustment, allowing you to precisely tune your suspension for street driving, crawling, or desert racing. The adjustable damping system provides a tailored driving experience, balancing comfort and performance across various terrains. The kit also includes reservoir mounting brackets for optimal tire clearance, sway bar relocation brackets, and high-quality components such as 5/8-inch PTFE-lined spherical bearings, ICON-engineered coil springs, billet aluminum upper mounts, and CAD-plated threaded bodies for durability and corrosion resistance. Extended travel length of these coilovers requires the installation of aftermarket front upper control arms, which are recommended for full functionality. When paired with ICON’s rear shocks, such as the 2.0 or 2.5 Aluminum Series, the suspension system offers balanced control and improved handling, making it ideal for serious off-road enthusiasts. Designed for easy rebuildability, these shocks allow for ongoing maintenance and tuning to match your specific driving needs.

Features:

  • Height-adjustable coilovers offer 0-3.5 inches or 0-2.75 inches of lift height adjustment depending on the year model
  • Extended travel length requires installation of aftermarket front upper control arms
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • Kit also includes reservoir mounting brackets for optimal tire clearance
  • Vehicle-specific tuning for superior shock damping and control
  • Hose length optimized for increased fluid transfer
  • External reservoirs ensure maximum cooling to prevent overheating
  • Includes sway bar relocation brackets for improved suspension geometry
  • 5/8-inch PTFE-lined spherical bearings for durability and smooth operation
  • ICON engineered coil springs tailored for performance
  • Billet aluminum upper mounts for strength and precision
  • CAD-plated threaded bodies resist corrosion
  • Completely rebuildable for long-term maintenance and customization

Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Limited 2022
Toyota Tacoma Limited 2023
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR 2022
Toyota Tacoma SR 2023
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma SR5 2022
Toyota Tacoma SR5 2023
Toyota Tacoma Trail 2021
Toyota Tacoma Trail Special Edition 2023
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Off-Road 2022
Toyota Tacoma TRD Off-Road 2023
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Pro 2022
Toyota Tacoma TRD Pro 2023
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma TRD Sport 2022
Toyota Tacoma TRD Sport 2023
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013

Additional information

Weight 55.1 lbs
Dimensions 26.8 × 12.7 × 9.7 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

00840103404301
brand

ICON
part_number

58735C
