HomeShopShocks and StrutsICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair

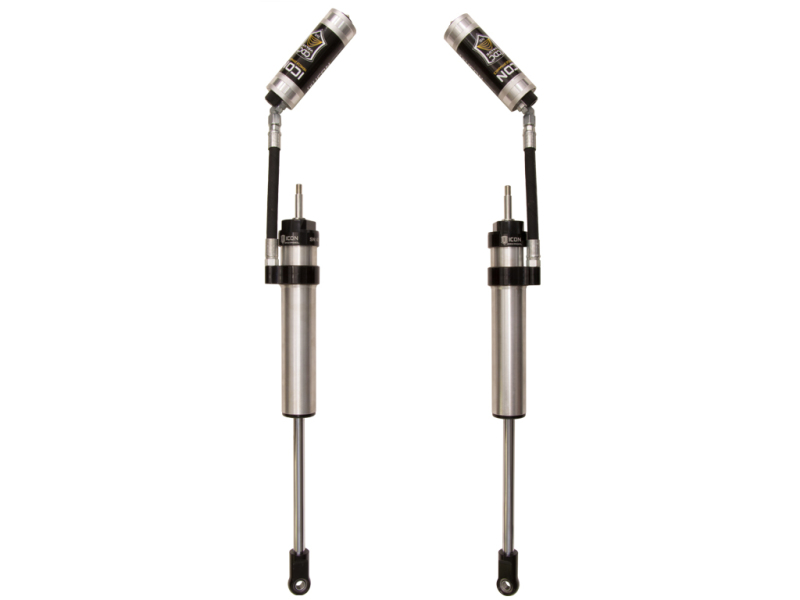

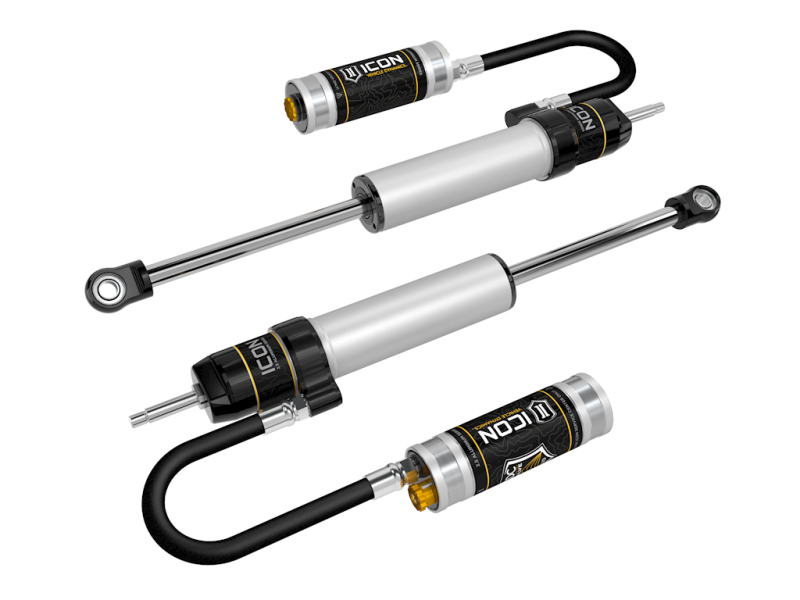

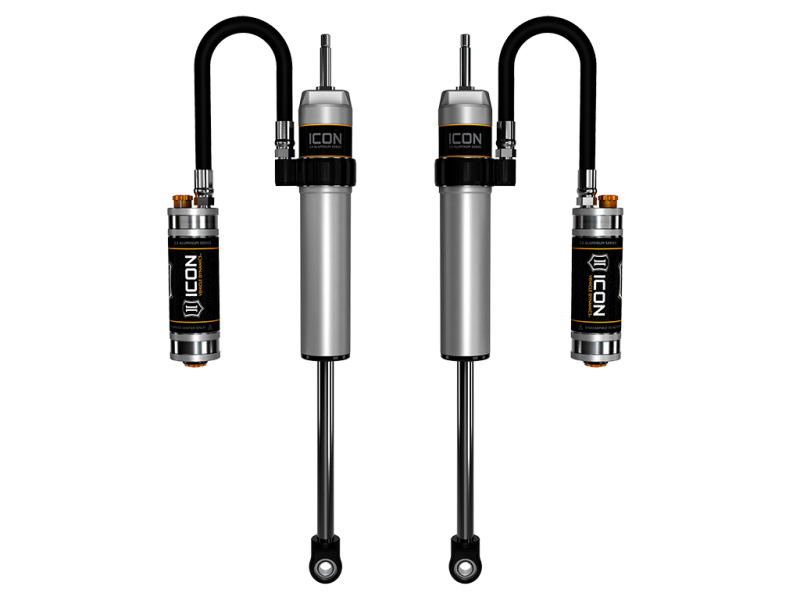

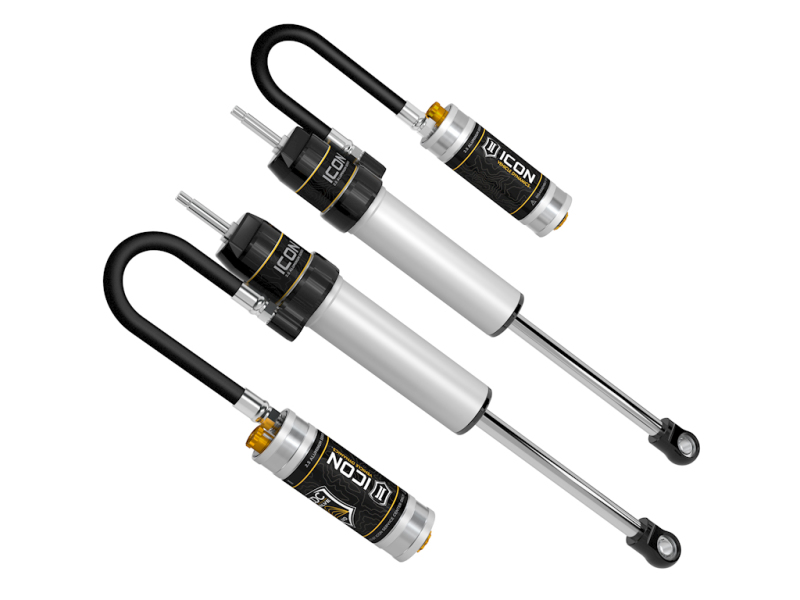

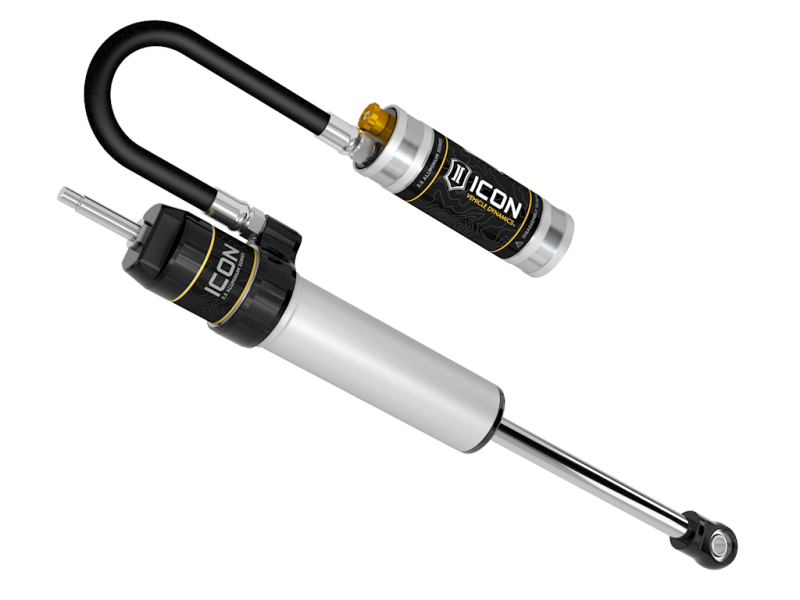

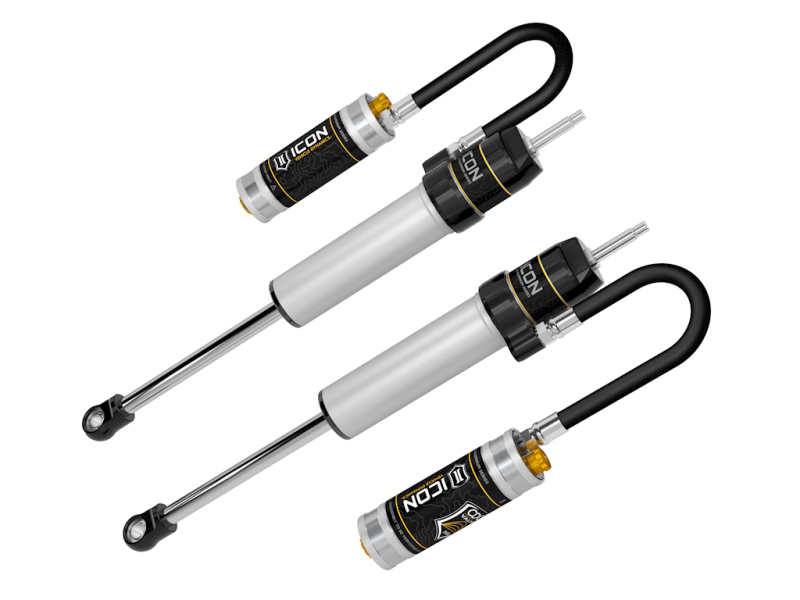

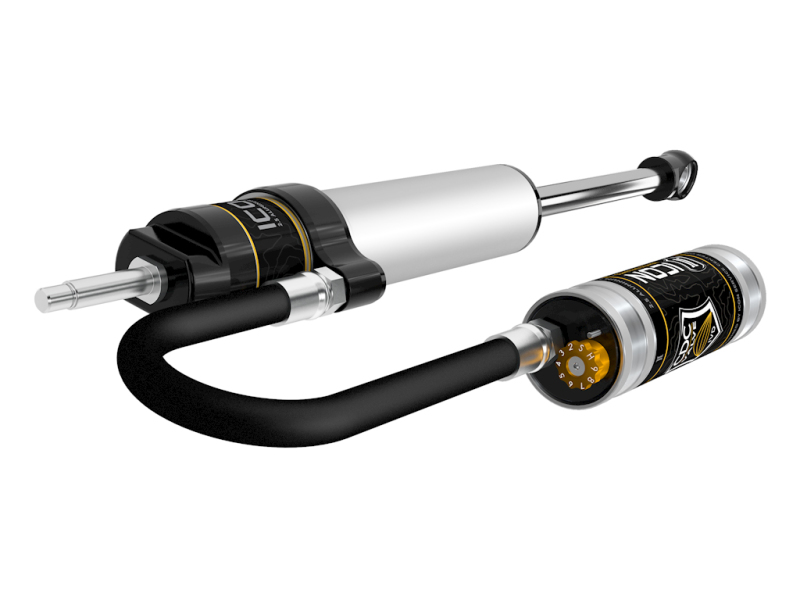

ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 2
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 3
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 4
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 5
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 6
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 7
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 8
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 9
ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair - Image 10

ICON Vehicle Specific 2.5 Series Remote Reservoir Shocks for 2014+ Ram 2500 – Front Pair

SKU: 217802CP

$1,525.95

In stock

4 in stock

ICON Vehicle Specific 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. 2014-UP RAM 2500 2.5" LIFT FRONT 2.5 VS CDCV REMOTE RESERVOIR SHOCK PAIR
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

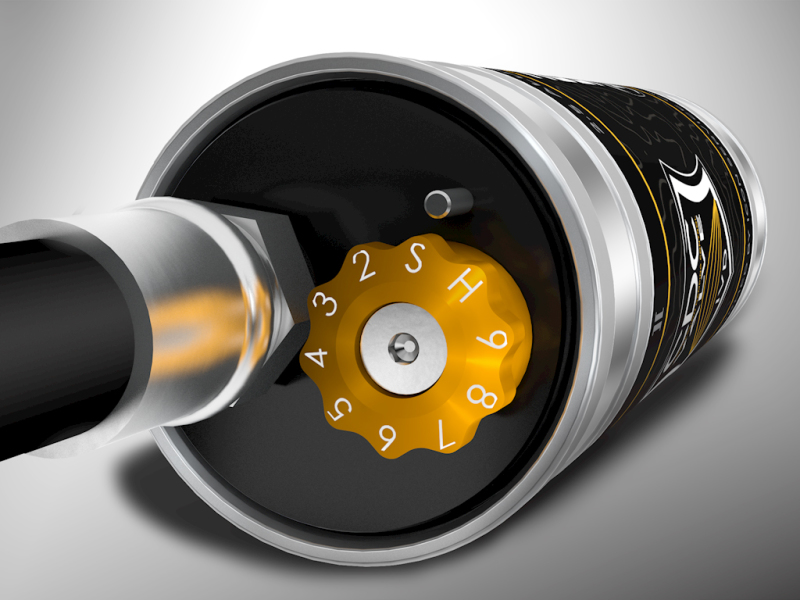

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Nitrogen charged monotube design with remote reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • 100% Rebuildable
  • 100% Revalveable
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your 2014 and newer Ram 2500 with the ICON Vehicle Specific 2.5 Series shocks, designed for optimal off-road performance and smooth on-road handling. These shocks feature a nitrogen-charged monotube design with a remote reservoir, which enhances heat dissipation and reduces shock fade during extended use. Crafted from 6061 aircraft-grade aluminum, the impact-extruded cylinders provide excellent corrosion resistance and a durable finish to withstand demanding conditions. The shocks utilize a one-piece digressive piston with vehicle-specific valving, ensuring precise damping control tailored to your truck’s needs. The internal Bump Zone, created by ICON’s innovative use of CNC-machined billet aluminum, increases damping force by 20%, helping to prevent harsh bottom outs and maintain stability during high-velocity compression. The external CDC Valve offers 10 levels of high-resolution compression damping adjustment, allowing drivers to customize ride quality effortlessly with a simple turn of a knob. This feature is especially beneficial for varying terrain and load conditions, providing adaptable suspension performance for both off-road adventures and daily driving. The shocks come equipped with PTFE-lined spherical bearings and application-specific mounting hardware for secure and reliable installation. Additionally, the use of premium 5WT shock oil ensures consistent damping across a broad temperature range, maintaining ride quality in diverse environments. These shocks are fully rebuildable and revalveable, offering long-term value and easy maintenance. Designed specifically for 2014+ Ram 2500 models with a 2.5-inch lift, this pair of shocks enhances your vehicle’s suspension system, delivers superior control, and improves overall ride comfort. Whether tackling rugged trails or navigating city streets, ICON’s 2.5 Series shocks provide the performance, durability, and adjustability required for demanding off-road enthusiasts and everyday drivers alike.

Features:

  • Nitrogen-charged monotube design with remote reservoir for improved heat dissipation
  • 6061 aircraft-grade aluminum CNC machined components for strength and corrosion resistance
  • Internal Bump Zone increases damping force by 20% for enhanced control during full compression
  • External CDC Valve with 10 levels of high-resolution compression damping adjustability
  • One-piece impact extruded aluminum cylinders for durability and consistent finish
  • Premium 5WT shock oil ensures consistent damping across temperature ranges
  • PTFE-lined spherical bearings and application-specific mounting hardware for secure installation
  • Rebuildable and revalveable for long-term performance and maintenance

Fitment:
Ram 2500 Big Horn 2014
Ram 2500 Big Horn 2015
Ram 2500 Big Horn 2016
Ram 2500 Big Horn 2017
Ram 2500 Big Horn 2018
Ram 2500 Big Horn 2019
Ram 2500 Big Horn 2020
Ram 2500 Big Horn 2021
Ram 2500 Big Horn 2022
Ram 2500 Laramie 2014
Ram 2500 Laramie 2015
Ram 2500 Laramie 2016
Ram 2500 Laramie 2017
Ram 2500 Laramie 2018
Ram 2500 Laramie 2019
Ram 2500 Laramie 2020
Ram 2500 Laramie 2021
Ram 2500 Laramie 2022
Ram 2500 Laramie Limited 2014
Ram 2500 Laramie Limited 2015
Ram 2500 Laramie Longhorn 2014
Ram 2500 Laramie Longhorn 2015
Ram 2500 Laramie Longhorn 2016
Ram 2500 Laramie Longhorn 2017
Ram 2500 Laramie Longhorn 2018
Ram 2500 Laramie Longhorn 2019
Ram 2500 Laramie Longhorn 2020
Ram 2500 Laramie Longhorn 2021
Ram 2500 Laramie Longhorn 2022
Ram 2500 Limited 2016
Ram 2500 Limited 2017
Ram 2500 Limited 2018
Ram 2500 Limited 2019
Ram 2500 Limited 2020
Ram 2500 Limited 2021
Ram 2500 Limited 2022
Ram 2500 Limited Longhorn 2021
Ram 2500 Limited Longhorn 2022
Ram 2500 Lone Star 2014
Ram 2500 Lone Star 2015
Ram 2500 Lone Star 2019
Ram 2500 Lone Star 2020
Ram 2500 Lone Star 2021
Ram 2500 Lone Star 2022
Ram 2500 Outdoorsman 2014
Ram 2500 Outdoorsman 2015
Ram 2500 Outdoorsman 2016
Ram 2500 Power Wagon 2014
Ram 2500 Power Wagon 2015
Ram 2500 Power Wagon 2016
Ram 2500 Power Wagon 2017
Ram 2500 Power Wagon 2018
Ram 2500 Power Wagon 2019
Ram 2500 Power Wagon 2020
Ram 2500 Power Wagon 2021
Ram 2500 Power Wagon 2022
Ram 2500 SLT 2014
Ram 2500 SLT 2015
Ram 2500 SLT 2016
Ram 2500 SLT 2017
Ram 2500 SLT 2018
Ram 2500 Tradesman 2014
Ram 2500 Tradesman 2015
Ram 2500 Tradesman 2016
Ram 2500 Tradesman 2017
Ram 2500 Tradesman 2018
Ram 2500 Tradesman 2019
Ram 2500 Tradesman 2020
Ram 2500 Tradesman 2021
Ram 2500 Tradesman 2022
Ram 3500 Big Horn 2013
Ram 3500 Big Horn 2014
Ram 3500 Big Horn 2015
Ram 3500 Big Horn 2016
Ram 3500 Big Horn 2017
Ram 3500 Big Horn 2018
Ram 3500 Big Horn 2019
Ram 3500 Big Horn 2020
Ram 3500 Big Horn 2021
Ram 3500 Big Horn 2022
Ram 3500 Laramie 2013
Ram 3500 Laramie 2014
Ram 3500 Laramie 2015
Ram 3500 Laramie 2016
Ram 3500 Laramie 2017
Ram 3500 Laramie 2018
Ram 3500 Laramie 2019
Ram 3500 Laramie 2020
Ram 3500 Laramie 2021
Ram 3500 Laramie 2022
Ram 3500 Laramie Limited 2014
Ram 3500 Laramie Limited 2015
Ram 3500 Laramie Longhorn 2013
Ram 3500 Laramie Longhorn 2014
Ram 3500 Laramie Longhorn 2015
Ram 3500 Laramie Longhorn 2016
Ram 3500 Laramie Longhorn 2017
Ram 3500 Laramie Longhorn 2018
Ram 3500 Laramie Longhorn 2019
Ram 3500 Laramie Longhorn 2020
Ram 3500 Limited 2016
Ram 3500 Limited 2017
Ram 3500 Limited 2018
Ram 3500 Limited 2019
Ram 3500 Limited 2020
Ram 3500 Limited 2021
Ram 3500 Limited 2022
Ram 3500 Limited Longhorn 2021
Ram 3500 Limited Longhorn 2022
Ram 3500 Lone Star 2013
Ram 3500 Lone Star 2014
Ram 3500 Lone Star 2015
Ram 3500 Lone Star 2017
Ram 3500 Lone Star 2019
Ram 3500 Lone Star 2020
Ram 3500 Lone Star 2021
Ram 3500 Lone Star 2022
Ram 3500 SLT 2013
Ram 3500 SLT 2014
Ram 3500 SLT 2015
Ram 3500 SLT 2016
Ram 3500 SLT 2017
Ram 3500 SLT 2018
Ram 3500 SLT 2019
Ram 3500 SLT 2020
Ram 3500 SLT 2021
Ram 3500 SLT 2022
Ram 3500 ST 2013
Ram 3500 Tradesman 2013
Ram 3500 Tradesman 2014
Ram 3500 Tradesman 2015
Ram 3500 Tradesman 2016
Ram 3500 Tradesman 2017
Ram 3500 Tradesman 2018
Ram 3500 Tradesman 2019
Ram 3500 Tradesman 2020
Ram 3500 Tradesman 2021
Ram 3500 Tradesman 2022

Additional information

Weight 29.5 lbs
Dimensions 38.7 × 15.5 × 8.6 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

00840103401072
brand

ICON
part_number

217802CP
