HomeShopLift KitsKW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM

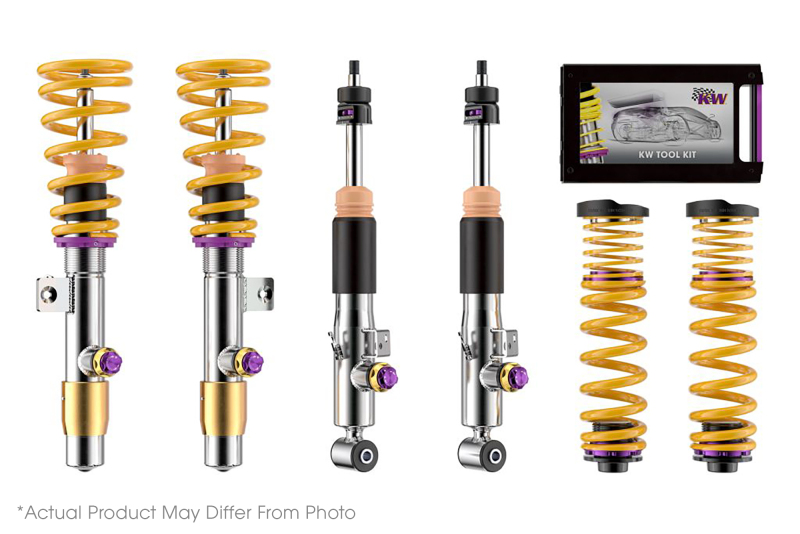

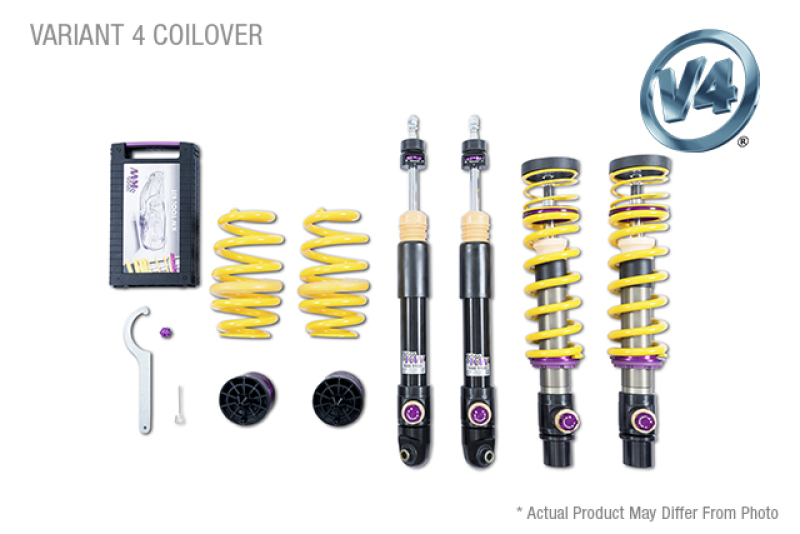

KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 2
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 3
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 4
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 5
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 6
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 7
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 8
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 9
KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM - Image 10

KW V4 Coilover Suspension Kit for 2017-2021 Audi R8 by KW, Part Number 3A7102AM

SKU: 3A7102AM

$14,594.00

In stock

2 in stock

KW V4 coilovers are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW V4 coilover kit allows an independent Adjustment -f the rebound damping as well as the low-speed and high-speed compression damping. Each KW V4 coilover kit is delivered with a vehicle-specific comfort setting and with the integrated Adjustment -controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup. The 3-way adjustable high-performance dampers in the KW V4 coilover kits feature independent Adjustment -f the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. The new KW V4 coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology -o improve their driving dynamics. KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. Exclusively developed for high-performance vehicles to greatly improve their driving dynamics. For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany". Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty. 2017+ Audi R8 (4S) Coupe, incl. RWS
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVCLH-A (Twin Valve Compression Low High - Adjustable) technology - Patented compression valve allows you to easily fine tune the low speed and high-speed damping and includes suggested settings for both street and track use.

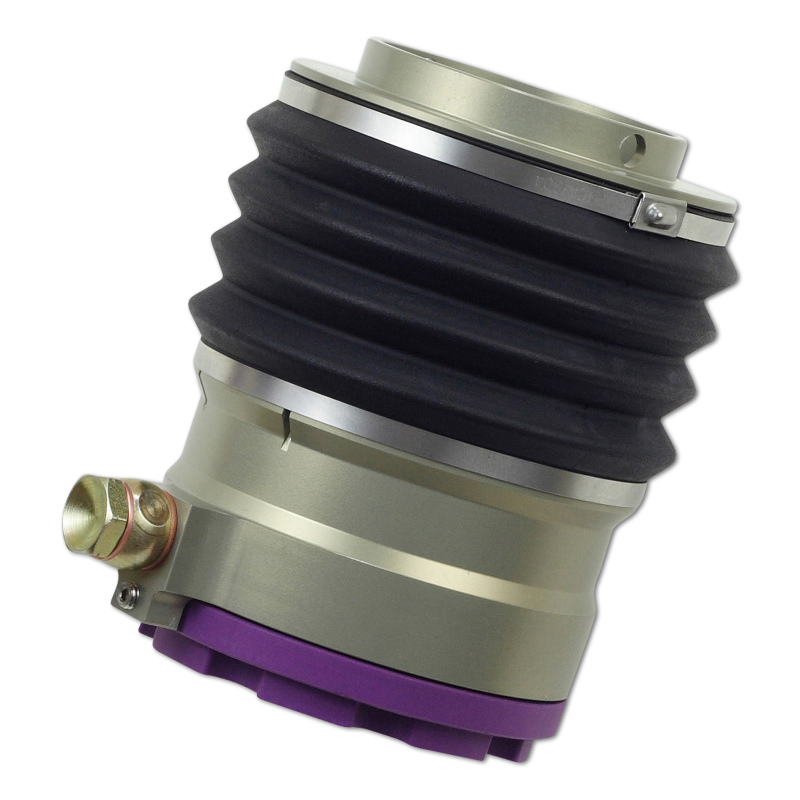

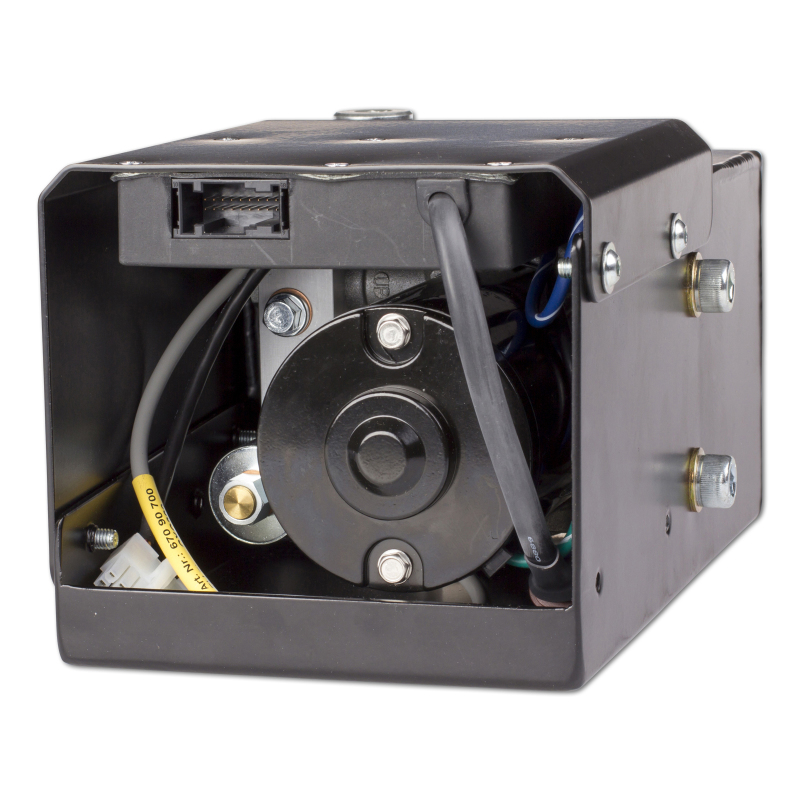

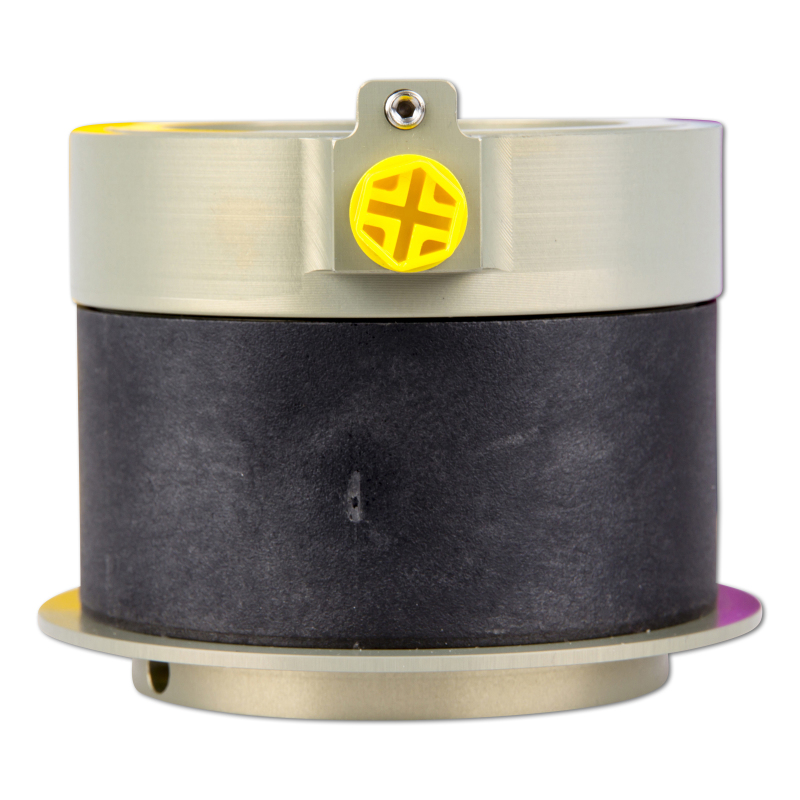

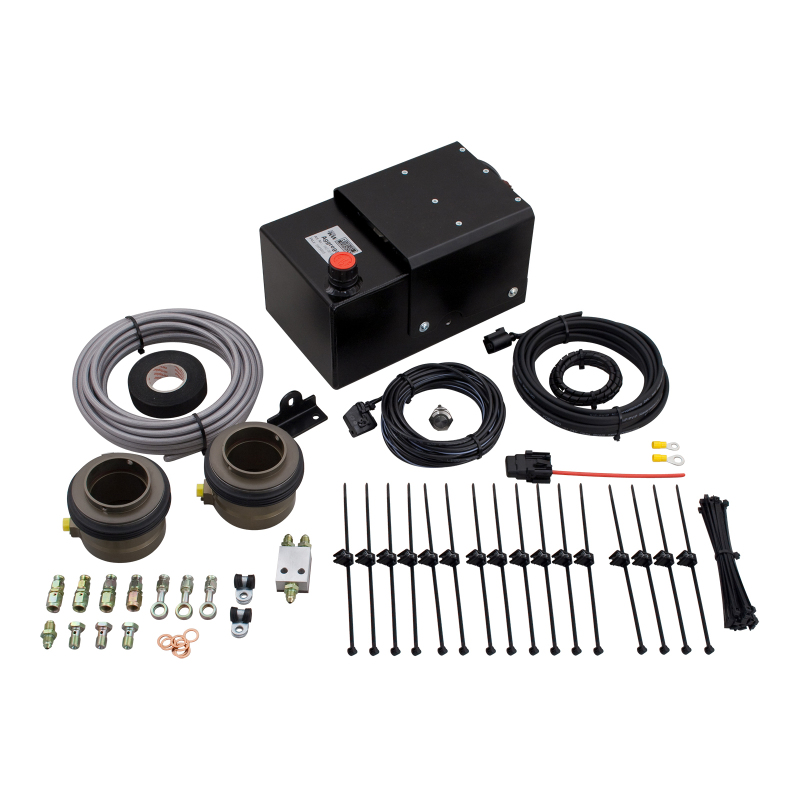

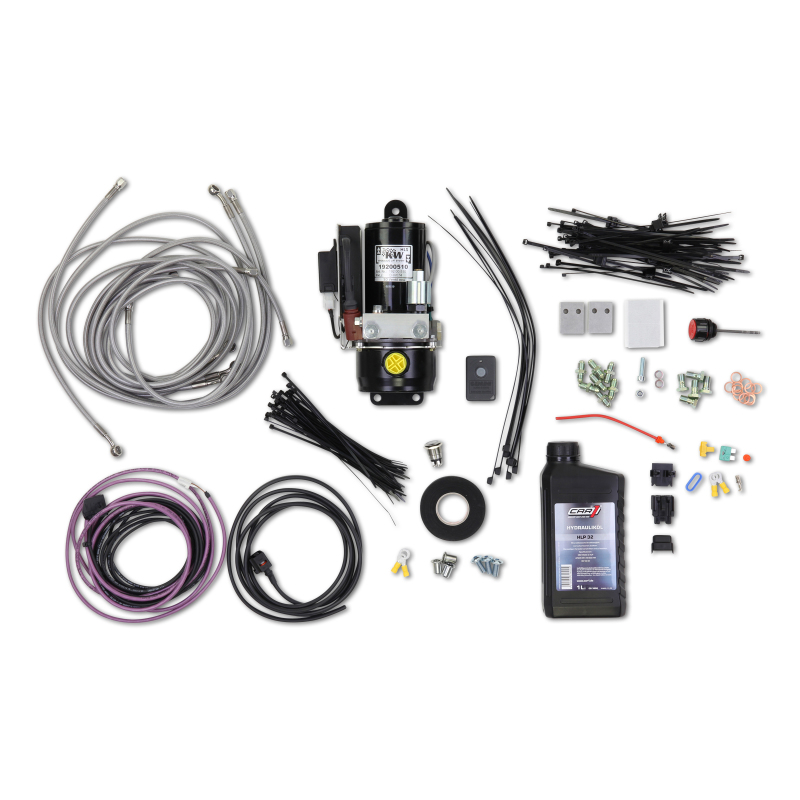

  • Includes KW HLS2 hydraulic lift system for the front axle which increases ground clearance at the push of a button. The vehicle specific HLS system includes a self-contained pump and does not affect ride quality or handling.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • V4 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany. Each damper is dyno tested to ensure accuracy before being released for delivery.
  • Road legal motorsports technology featuring independent rebound and compression adjustability and application specific spring and damper tuning resulting in unparalleled street performance.
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The KW V4 coilover suspension kit is engineered for high-performance Audi R8 models from 2017 to 2021, delivering exceptional handling and adjustable ride quality. Built with race-proven technology, these coilovers incorporate independent rebound and compression damping adjustments, allowing precise tuning for both street and track conditions. The innovative TVR-A technology enables independent rebound damping adjustment via a twin valve system, providing optimized control at various speeds, while the TVCLH-A system allows fine-tuning of low-speed and high-speed compression damping for customized responsiveness.

Designed specifically for the Audi R8, the KW V4 coilovers include a vehicle-specific HLS2 hydraulic lift system that increases ground clearance at the push of a button, making everyday driving more practical without compromising performance. Each damper features a composite spring perch made from wear-resistant polyamide composite with a stainless-steel insert, reducing oxidation and ensuring durability. Hand-built and dyno-tested in Germany, these coilovers meet rigorous quality standards and are marked with a unique serial number for traceability.

The V4 coilover kit offers an extensive range of adjustments for drivers seeking a personalized driving experience, whether for spirited street driving or high-performance track days. With application-specific spring and damper tuning, these coilovers deliver unparalleled street performance while maintaining comfort and stability. The kit includes all necessary hardware distributed across three boxes for easy installation and is backed by KW’s Limited Lifetime Warranty, ensuring long-term reliability and satisfaction.

Features:

  • Independent rebound and compression damping adjustments for precise tuning
  • TVR-A twin valve rebound technology for optimal rebound control at all speeds
  • TVCLH-A twin valve compression system allows low and high-speed damping adjustments
  • Includes KW HLS2 hydraulic lift system for adjustable ground clearance
  • Vehicle-specific setup for the Audi R8 (2017-2021)
  • Hand-built and dyno-tested in Germany for quality assurance
  • Wear-resistant polyamide composite spring perch with stainless-steel insert
  • Optimized for street and track use with application-specific tuning
  • Three-box set for comprehensive installation

Fitment:
Audi R8 Base 2017
Audi R8 Base 2018
Audi R8 Base 2020
Audi R8 Base 2021
Audi R8 Performance 2020
Audi R8 Performance 2021
Audi R8 Performance 2022
Audi R8 Performance 2023
Audi R8 Performance RWD 2022
Audi R8 Performance RWD 2023
Audi R8 Performance RWD Spyder 2022
Audi R8 Performance RWD Spyder 2023
Audi R8 Performance Spyder 2020
Audi R8 Performance Spyder 2021
Audi R8 Performance Spyder 2022
Audi R8 Performance Spyder 2023
Audi R8 Plus 2017
Audi R8 Plus 2018
Audi R8 Plus Spyder 2018
Audi R8 RWS 2018
Audi R8 Spyder 2017
Audi R8 Spyder 2018
Audi R8 Spyder 2020
Audi R8 Spyder 2021

Additional information

Weight 35.7 lbs
Dimensions 29.5 × 17.9 × 9.9 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

N
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
number_of_boxes

3
regular_stock

t
upc

847691082416
brand

KW
part_number

3A7102AM
