HomeShopOil Catch CansMishimoto Compact Baffled Oil Catch Can 3-Port – Red
Sale
Mishimoto Compact Baffled Oil Catch Can 3-Port - Red
Mishimoto Compact Baffled Oil Catch Can 3-Port - Red - Image 2
Mishimoto Compact Baffled Oil Catch Can 3-Port - Red - Image 3
Mishimoto Compact Baffled Oil Catch Can 3-Port - Red - Image 4
Mishimoto Compact Baffled Oil Catch Can 3-Port - Red - Image 5

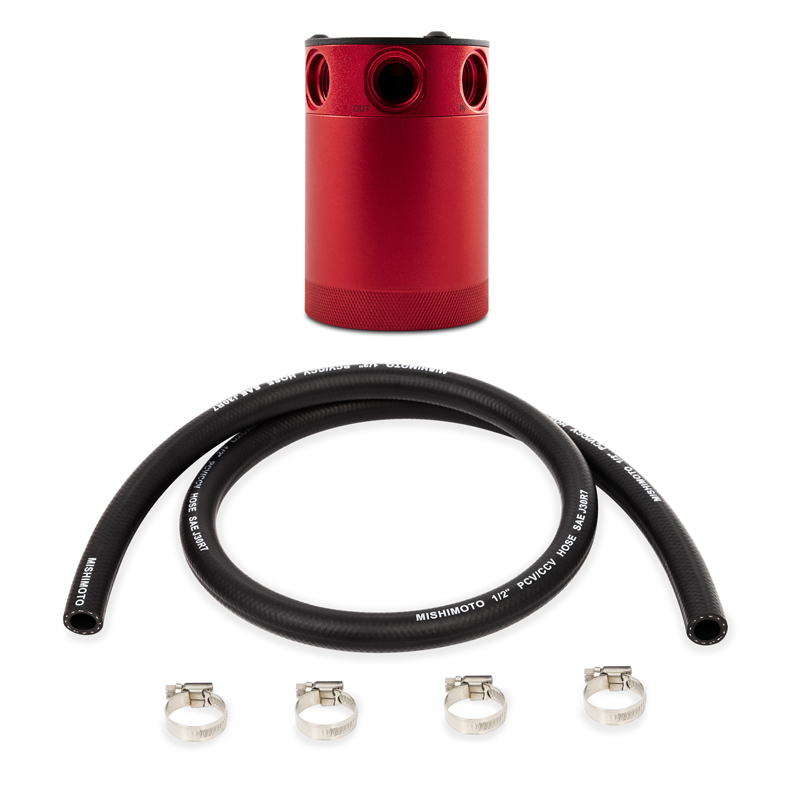

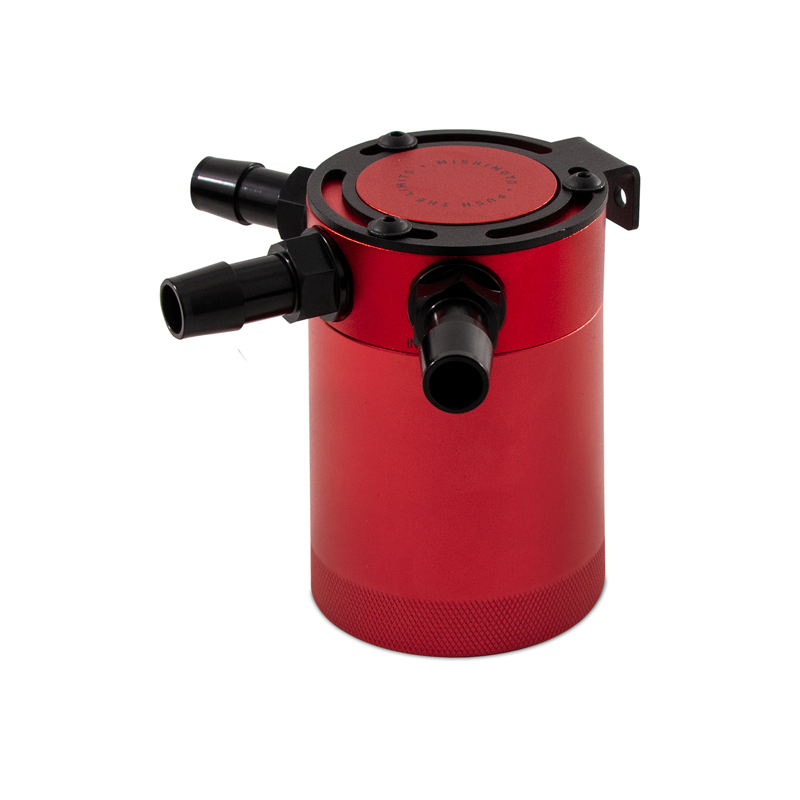

Mishimoto Compact Baffled Oil Catch Can 3-Port – Red

SKU: MMBCC-CBTHR-RD

Original price was: $187.00.Current price is: $169.95.

In stock

6 in stock

Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100-percent billet, 6061 aluminum can features 3/8in NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.
  • Defends intercooler, intake system, and essential components from oil blow-by
  • Separates oil particles from PCV/CCV air using 50 micron bronze filter
  • 100-percent billet 6061 aluminum sealed can
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

The Mishimoto Compact Baffled Oil Catch Can, part number MMBCC-CBTHR-RD, offers a high-performance solution for managing oil blow-by in your vehicle’s crankcase ventilation system. Crafted from 100-percent billet 6061 aluminum, this durable and lightweight can features a sealed design that ensures long-lasting reliability. Its internal baffle and turbulating air diverter promote effective separation of oil particles from PCV/CCV air, preventing oil from reaching your intake, intercooler, and other critical components. The internal 50-micron bronze filter captures fine oil particles, resulting in cleaner airflow and improved engine efficiency. Designed with multiple mounting angles, the can provides flexible installation options, making it suitable for various vehicle configurations. The inclusion of two black nylon fittings simplifies setup, while the drain plug allows for easy maintenance and oil removal without removing the entire unit. Unlike heated air-oil separators, this catch can operates without heat, enabling it to condense low-octane vapors and contaminated fuel vapors effectively. It traps blow-by gases permanently, preventing oil and sludge from recirculating into the engine, which helps maintain optimal engine performance and longevity. The Mishimoto catch can is fully washable and reusable, offering an eco-friendly alternative to disposable systems. Whether you’re looking to protect your intercooler, improve engine cleanliness, or reduce intake system oil buildup, this compact, race-ready catch can delivers reliable performance and easy installation for enthusiasts and professionals alike.

Features:

  • Defends intercooler, intake system, and essential components from oil blow-by
  • Separates oil particles from PCV/CCV air using 50 micron bronze filter
  • 100-percent billet 6061 aluminum sealed can
  • Multiple mounting angles for flexible installation
  • Includes black nylon fittings for easy setup
  • Drain plug for simple maintenance and oil removal
  • Operates without heat, condensing low-octane vapors effectively
  • Reusable and washable for long-term use

Additional information

Weight 1.2 lbs
Dimensions 5.5 × 3.5 × 3.5 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

811580032509
brand

Mishimoto
part_number

MMBCC-CBTHR-RD
