Skunk2 Racing B-Series Composite High Volume Fuel Rail for Honda Civic and Acura Integra

Description

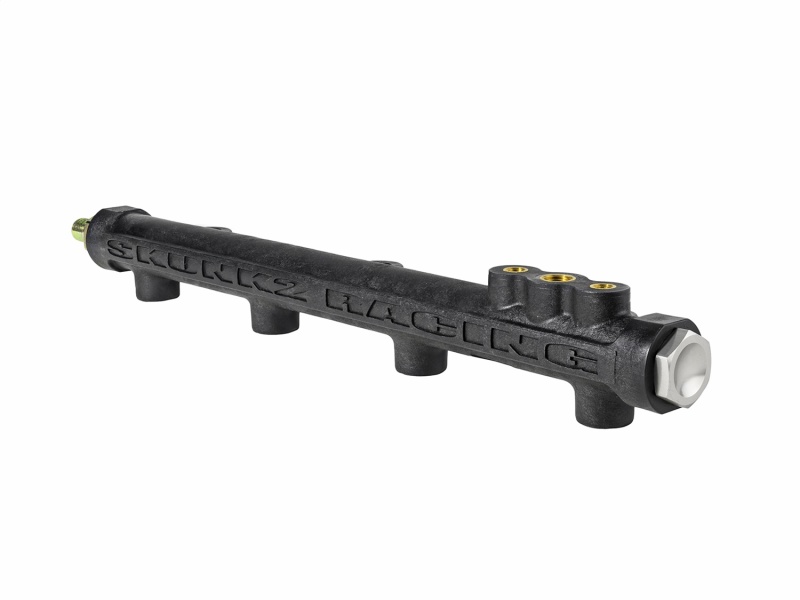

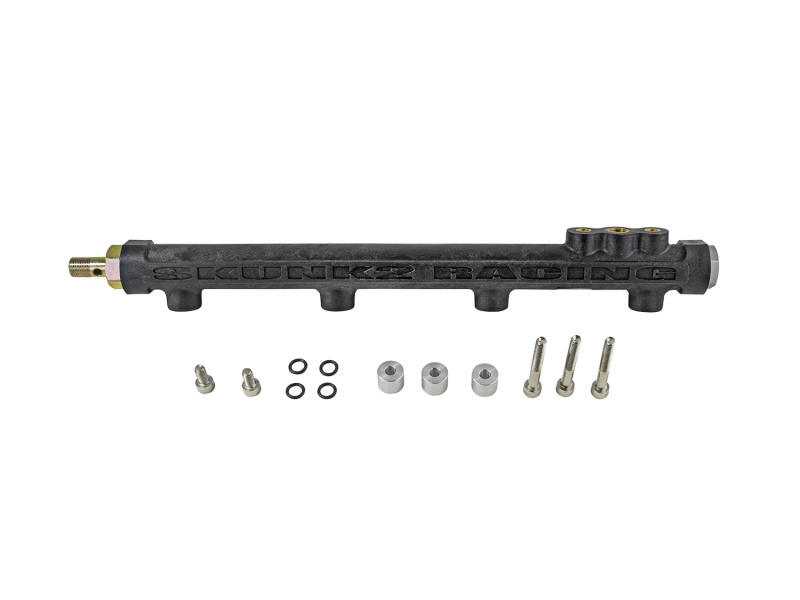

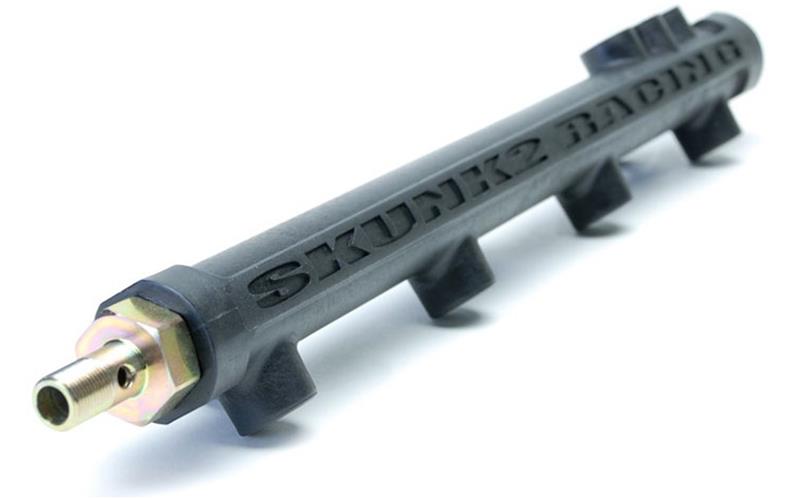

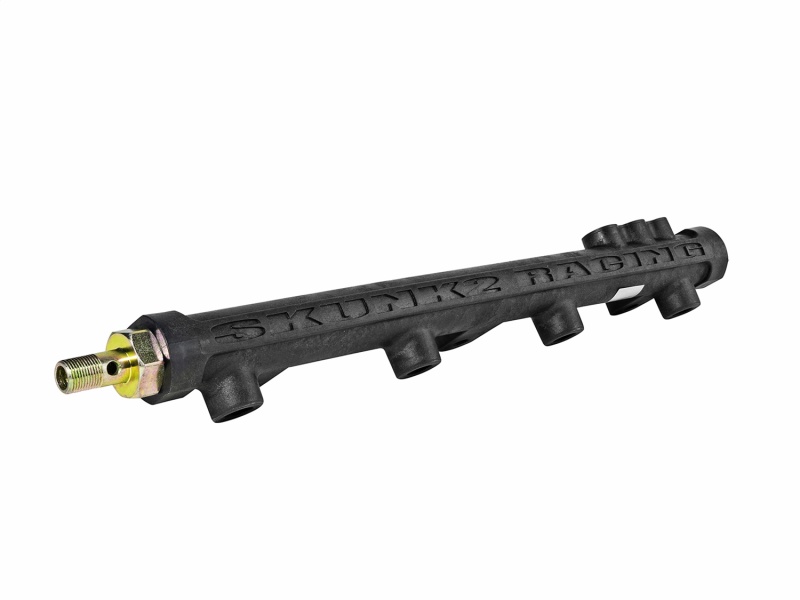

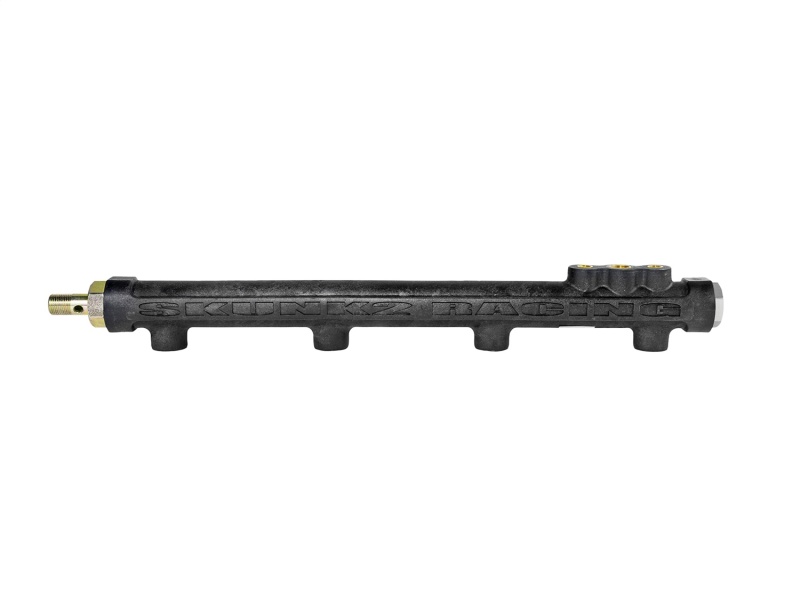

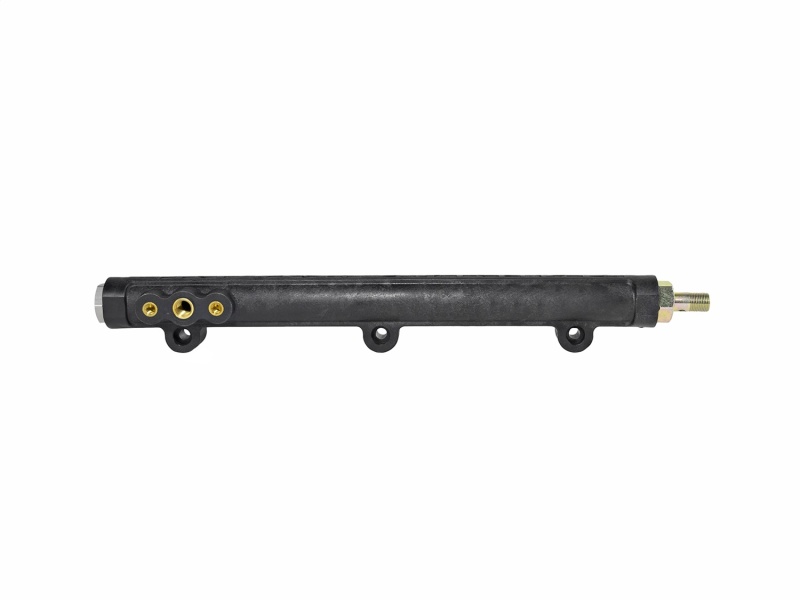

Upgrade your Honda Civic or Acura Integra with the Skunk2 Racing B-Series Composite High Volume Fuel Rail, part number 350-05-5000. Crafted from a proprietary carbon-impregnated, aerospace thermo-polymer composite, this fuel rail offers a significant weight reduction of 33% and is 60% stronger than traditional aluminum counterparts. Its advanced material design ensures operation at temperatures up to 100°F cooler, effectively insulating the fuel from radiant and conductive heat transfer under the hood, resulting in increased horsepower and torque potential. The large 0.625-inch internal bore enhances fuel injector pulsation dampening, promoting smoother fuel flow and more consistent engine performance. Machined with a smooth interior finish and radius-cut fuel injector outlets, the rail optimizes flow characteristics and eliminates sharp internal angles found in conventional aluminum designs, which can hinder fuel flow and cause turbulence. Compatible with factory fuel systems and supporting all fuel types, including alcohol, this fuel rail is engineered to support up to 1,200 horsepower, making it ideal for high-performance applications. Features include integrated -8 AN inlet/outlet ports for customizable fuel line routing, additional 1/8-inch NPT fuel pressure ports for monitoring and adjustments, and OEM fuel pressure regulator provisions for seamless integration. Whether upgrading for racing or daily driving, this durable and lightweight fuel rail delivers enhanced fuel delivery efficiency and performance gains, with tested improvements of up to three percent. Suitable for a range of Honda and Acura B-series engines from 1994 through 2001, the Skunk2 composite fuel rail ensures reliable, high-capacity fuel delivery for demanding applications.

Features:

• Supports up to 1,200 horsepower for high-performance applications

• Constructed from aerospace-grade carbon-impregnated thermo-polymer composite for lightweight strength

• Operates up to 100°F cooler, reducing heat transfer and fuel vaporization

• Large 0.625-inch internal bore for superior fuel injector pulsation dampening

• Radius-cut fuel injector outlets for improved flow characteristics

• Integrated -8 AN inlet/outlet ports for customizable fuel line routing

• Includes additional 1/8-inch NPT fuel pressure ports for monitoring and adjustments

• s OEM fuel pressure regulator provisions for seamless installation

• Compatible with all fuel types, including alcohol, and factory fuel systems

• Supports high horsepower up to 1,200 HP, with tested gains up to 3%

Fitment:
Acura Integra GS 1990
Acura Integra GS 1991
Acura Integra GS 1992
Acura Integra GS 1993
Acura Integra GS 1997
Acura Integra GS 1998
Acura Integra GS 1999
Acura Integra GS 2000
Acura Integra GS 2001
Acura Integra GS-R 1992
Acura Integra GS-R 1993
Acura Integra GS-R 1994
Acura Integra GS-R 1995
Acura Integra GS-R 1996
Acura Integra GS-R 1997
Acura Integra GS-R 1998
Acura Integra GS-R 1999
Acura Integra GS-R 2000
Acura Integra GS-R 2001
Acura Integra LS 1990
Acura Integra LS 1991
Acura Integra LS 1992
Acura Integra LS 1993
Acura Integra LS 1994
Acura Integra LS 1995
Acura Integra LS 1996
Acura Integra LS 1997
Acura Integra LS 1998
Acura Integra LS 1999
Acura Integra LS 2000
Acura Integra LS 2001
Acura Integra RS 1990
Acura Integra RS 1991
Acura Integra RS 1992
Acura Integra RS 1993
Acura Integra RS 1994
Acura Integra RS 1995
Acura Integra RS 1996
Acura Integra RS 1997
Acura Integra RS 1998
Acura Integra Special Edition 1995
Acura Integra Special Edition 1996
Acura Integra Type R 1997
Acura Integra Type R 1998
Acura Integra Type R 2000
Acura Integra Type R 2001
Honda Civic Si 1999
Honda Civic Si 2000
Honda Civic del Sol VTEC 1994
Honda Civic del Sol VTEC 1995
Honda Civic del Sol VTEC 1996
Honda Civic del Sol VTEC 1997
