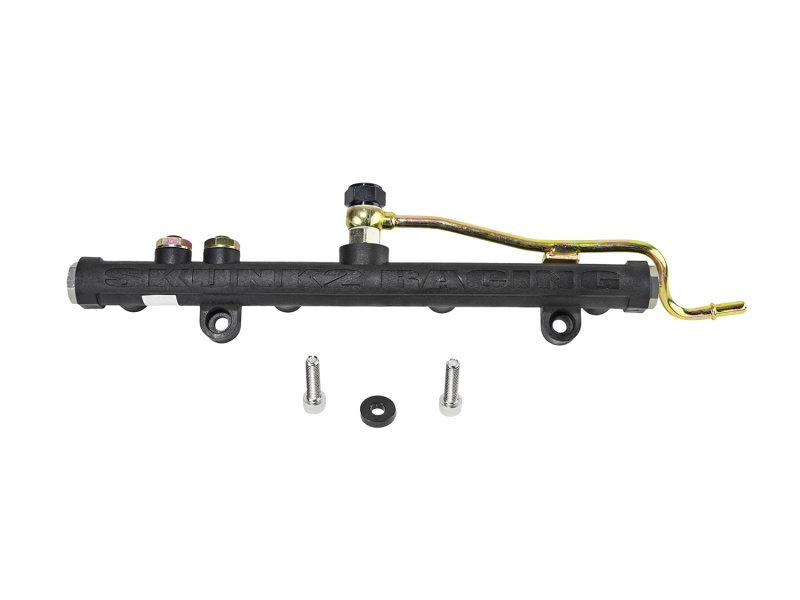

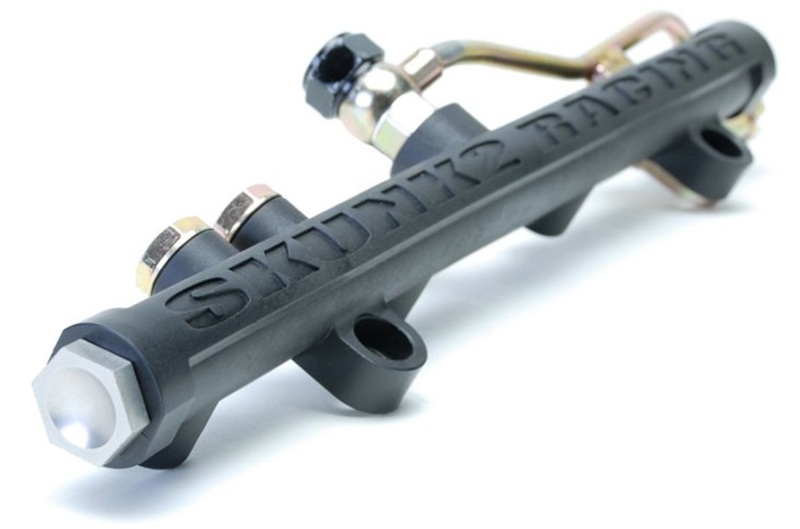

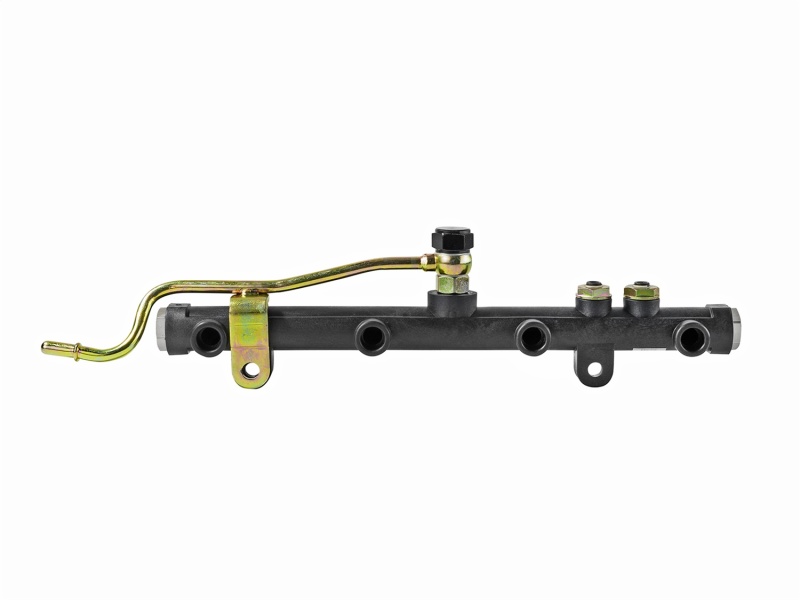

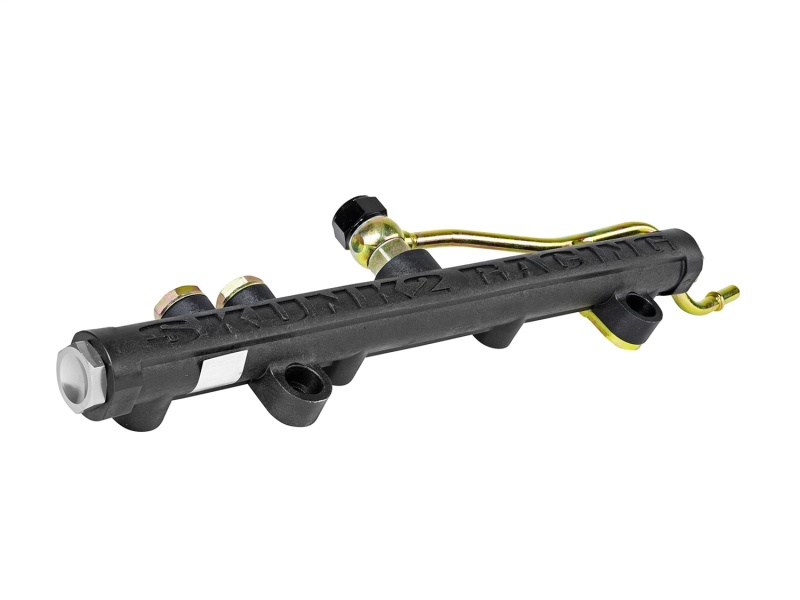

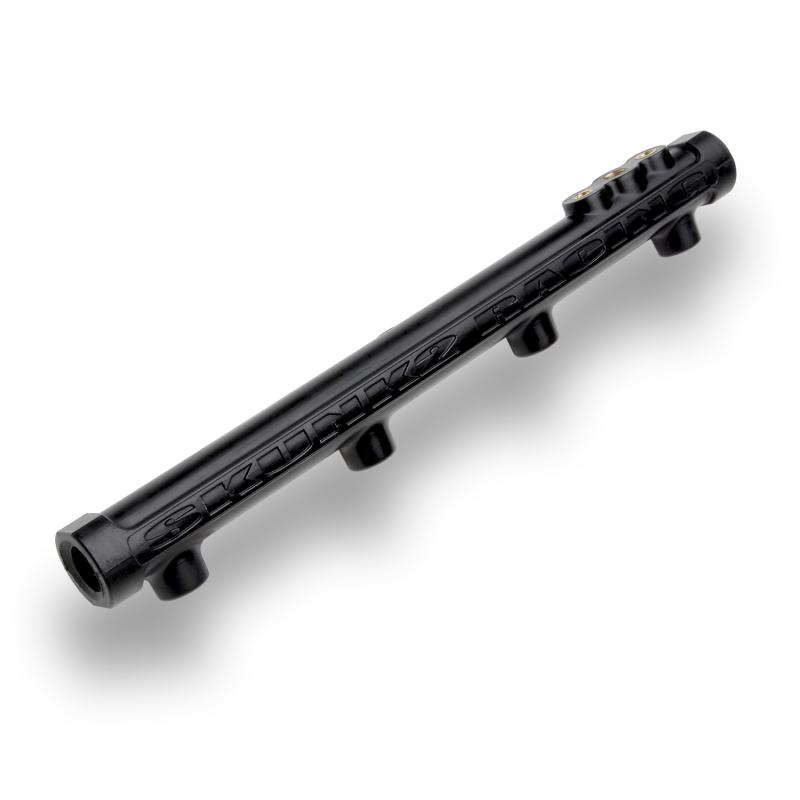

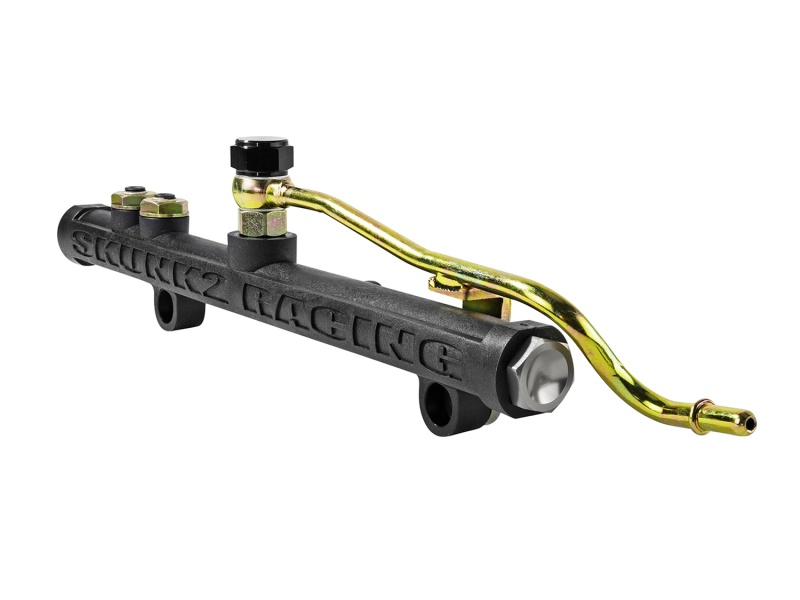

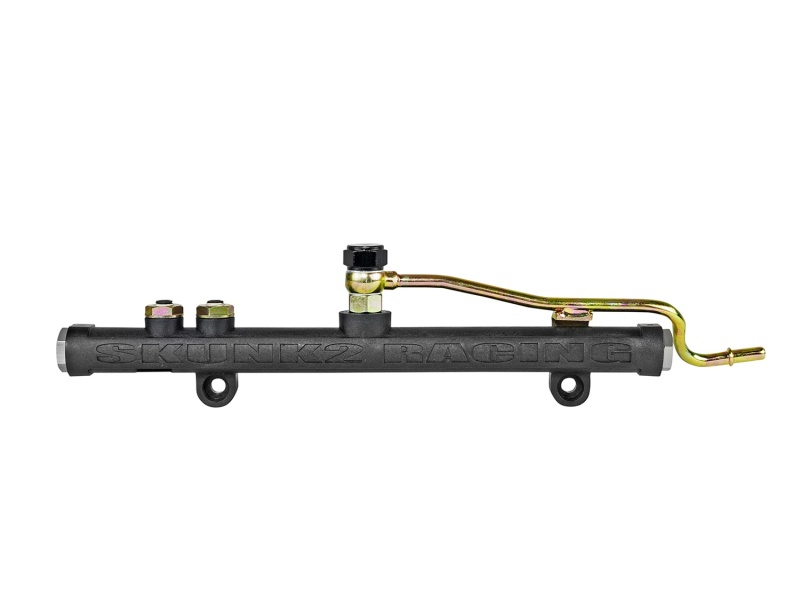

Skunk2 Racing Composite Fuel Rail for 2006-2011 Honda Civic Si – Part #350-05-5015

Description

Upgrade your Honda Civic Si with the Skunk2 Racing Composite Fuel Rail, designed specifically for models from 2006 to 2011. Crafted from a proprietary carbon-impregnated, aerospace thermo-polymer composite, this fuel rail offers significant weight reduction—33% lighter than traditional aluminum units—while providing 60% greater strength. Its superior material properties enable it to operate up to 100 degrees Fahrenheit cooler, effectively insulating fuel from radiant and conductive heat transfer under the hood. This leads to improved horsepower and torque gains, making it an ideal choice for high-performance applications. The fuel rail features large 0.625-inch internal bores that efficiently dampen fuel injector pulsations, ensuring consistent fuel delivery. Machined with a smooth interior finish and radius-cut fuel injector outlets, it enhances flow characteristics and minimizes turbulence. The unique design eliminates sharp internal angles where the main bore meets the injector bores, a common issue with extruded and drilled aluminum designs, thereby optimizing fuel flow and reliability. Supporting up to 1,200 horsepower, the Skunk2 Composite Fuel Rail is compatible with the factory fuel system and all fuel types, including alcohol-based fuels. It features an integrated -8 AN inlet and outlet for easy customization of fuel lines and includes additional 1/8-inch NPT ports for fuel pressure monitoring. Whether you’re building a high-horsepower street car or a race vehicle, this fuel rail offers durability, performance, and heat insulation benefits that can help unlock your engine’s full potential.

Features:

• Constructed from a proprietary carbon-impregnated aerospace thermo-polymer composite for reduced weight and increased strength

• Operates up to 100°F cooler compared to aluminum fuel rails, insulating fuel from heat transfer

• Large 0.625-inch internal bores for superior fuel injector pulsation dampening

• Machined with a smooth interior finish and radius-cut injector outlets for improved flow

• Eliminates sharp internal angles to optimize fuel flow and reduce turbulence

• Supports up to 1,200 horsepower for high-performance applications

• Integrated -8 AN inlet and outlet for easy fuel line customization

• Includes additional 1/8-inch NPT ports for fuel pressure monitoring

• Compatible with factory fuel systems and all fuel types, including alcohol

Fitment:
Honda Civic Si 2006
Honda Civic Si 2007
Honda Civic Si 2008
Honda Civic Si 2009
Honda Civic Si 2010
Honda Civic Si 2011
