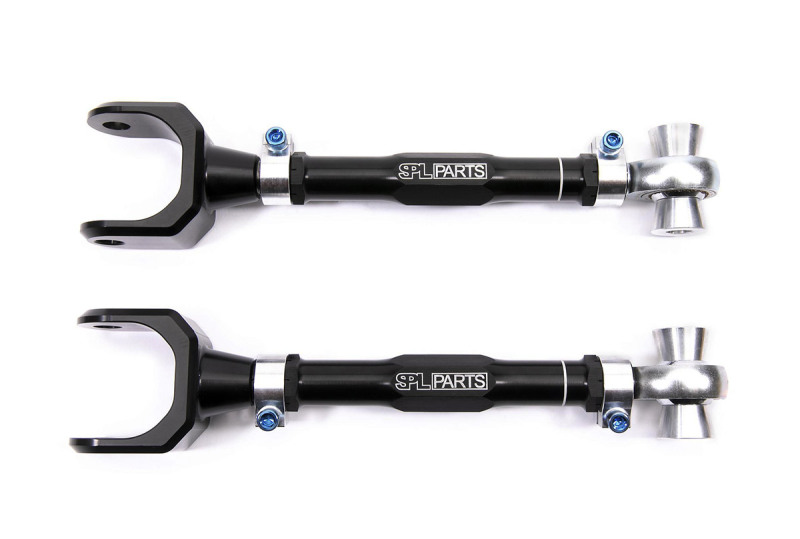

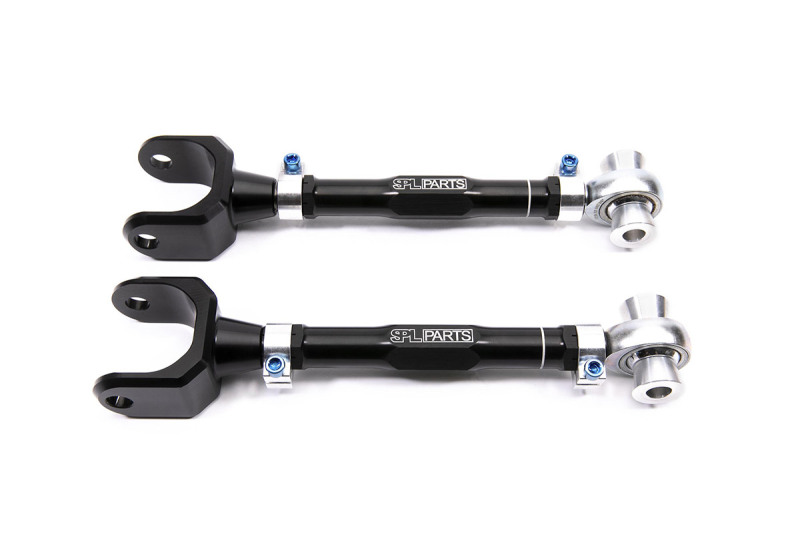

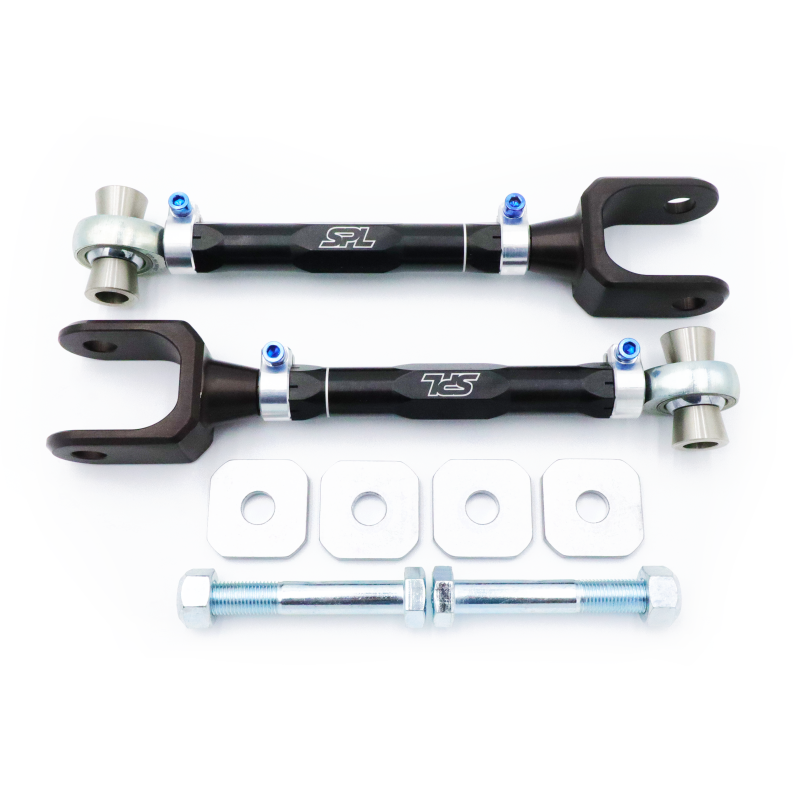

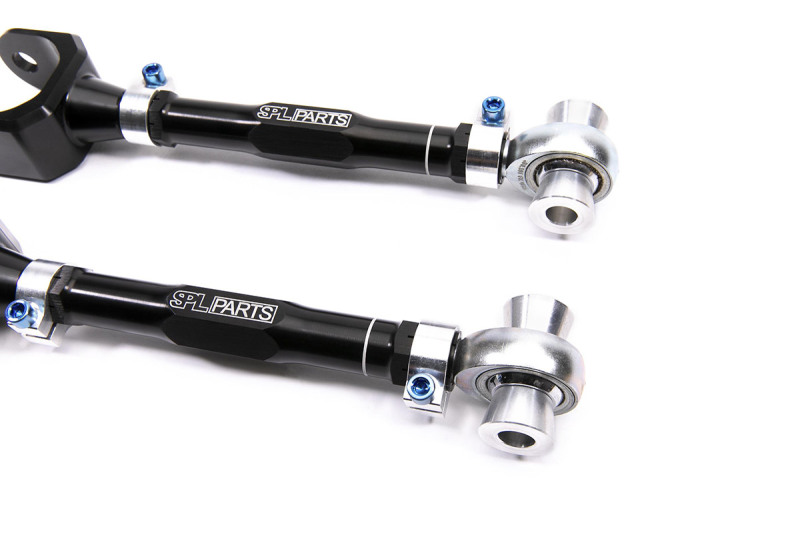

SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit
SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit - Image 2
SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit - Image 3
SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit - Image 4
SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit - Image 5
SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit - Image 6

SPL Parts 2015+ Ford Mustang S550 Rear Toe Arms with Eccentric Lockout Kit

SKU: SPL RTAEL S550

Original price was: $499.00.Current price is: $449.00.

In stock

3 in stock

S550 Mustang Rear Toe Arms (RTA) increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength. The stock eccentric bolts that allow for small toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. Our SPL Parts Eccentric Lockout (EL) kit eliminate the stock eccentric bolts to keep your rear alignment where you set it. Our lockout plates are CNC machined from 6061-T6 Billet Aluminum and supplied with Zinc plated grade 10.9 hardware for absolutely zero-slip. FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65&ordm SPL Ford S550 Mustang Rear Adjustable Toe Arm with Eccentric Lockout Kit
  • Reduce body roll and improve handling on your 2015+ Mustang by correcting the front roll center using the included 1/4" and 1/8" spacers. Proudly made, engineered, and assembled in the USA.
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Upgrade your 2015-2018 Ford Mustang S550 rear suspension with the SPL Parts Rear Toe Arms, designed to enhance stability and responsiveness by eliminating bushing deflection. These high-performance toe links provide an increased range of rear toe adjustment, essential for lowered vehicles or precision alignment settings. Small adjustments in ride height and camber can significantly impact rear toe alignment; the wide adjustment range of these arms allows you to optimize grip for track performance or extend tire life for street driving. Unlike the factory eccentric bolt and washer system, SPL Parts rear toe links feature precision-machined components for superior control and consistency. The black anodized, gun-drilled 2024 aluminum main links incorporate a 360-degree rotating clamp design, enabling quick and precise adjustments with ease. The clamps are tightened with blue anodized titanium socket head cap screws, reducing unsprung weight without sacrificing strength. The stock eccentric bolts are prone to slipping under high cornering loads, causing alignment shifts; our Eccentric Lockout (EL) kit replaces these with CNC-machined 6061-T6 billet aluminum plates and zinc-plated grade 10.9 hardware, ensuring no-slip locking of your rear alignment. The inclusion of FK spherical bearings and rod ends, manufactured in Connecticut, offers smooth articulation, quiet operation, and resistance to bushing deflection under load thanks to a Teflon liner. This self-lubricating, self-cleaning liner boasts high load capacity and exceptional wear resistance across a wide temperature range, making it suitable for both street and track use. The SPL Rear Toe Arms are engineered to improve handling, reduce body roll, and allow for the correction of the front roll center when used with included spacers. Proudly made, engineered, and assembled in the USA, these components provide a reliable upgrade to your Mustang’s suspension system, ensuring precise alignment and improved driving dynamics.

Features:

  • Eliminates bushing deflection for increased stability and response
  • Provides a wide range of rear toe adjustment for lowered vehicles and performance alignments
  • Constructed from black anodized, gun-drilled 2024 aluminum for durability and lightweight performance
  • Includes 360-degree rotating clamps with titanium socket head cap screws for quick, precise adjustments
  • Eccentric Lockout kit CNC-machined from 6061-T6 billet aluminum with grade 10.9 hardware for zero-slip locking
  • FK spherical bearings and rod ends with Teflon liners for smooth articulation and reduced friction
  • Self-lubricating, self-cleaning liners with high load capacity and wide temperature operation
  • Designed to improve handling, reduce body roll, and correct rear roll center with included spacers
  • Manufactured, engineered, and assembled in the USA for quality assurance

Fitment:
Ford Mustang Bullitt 2019
Ford Mustang Bullitt 2020
Ford Mustang EcoBoost 2015
Ford Mustang EcoBoost 2016
Ford Mustang EcoBoost 2017
Ford Mustang EcoBoost 2018
Ford Mustang EcoBoost 2019
Ford Mustang EcoBoost 2020
Ford Mustang EcoBoost 2021
Ford Mustang EcoBoost 2022
Ford Mustang EcoBoost 2023
Ford Mustang EcoBoost Premium 2015
Ford Mustang EcoBoost Premium 2016
Ford Mustang EcoBoost Premium 2017
Ford Mustang EcoBoost Premium 2018
Ford Mustang EcoBoost Premium 2019
Ford Mustang EcoBoost Premium 2020
Ford Mustang EcoBoost Premium 2021
Ford Mustang EcoBoost Premium 2022
Ford Mustang EcoBoost Premium 2023
Ford Mustang GT 2015
Ford Mustang GT 2016
Ford Mustang GT 2017
Ford Mustang GT 2018
Ford Mustang GT 2019
Ford Mustang GT 2020
Ford Mustang GT 2021
Ford Mustang GT 2022
Ford Mustang GT 2023
Ford Mustang GT 50 Years Limited Edition 2015
Ford Mustang GT Premium 2015
Ford Mustang GT Premium 2016
Ford Mustang GT Premium 2017
Ford Mustang GT Premium 2018
Ford Mustang GT Premium 2019
Ford Mustang GT Premium 2020
Ford Mustang GT Premium 2021
Ford Mustang GT Premium 2022
Ford Mustang GT Premium 2023
Ford Mustang Mach 1 2021
Ford Mustang Mach 1 2022
Ford Mustang Mach 1 2023
Ford Mustang Shelby GT350 2015
Ford Mustang Shelby GT350 2016
Ford Mustang Shelby GT350 2017
Ford Mustang Shelby GT350 2018
Ford Mustang Shelby GT350 2019
Ford Mustang Shelby GT350 2020
Ford Mustang Shelby GT350R 2015
Ford Mustang Shelby GT350R 2016
Ford Mustang Shelby GT350R 2017
Ford Mustang Shelby GT350R 2018
Ford Mustang Shelby GT350R 2019
Ford Mustang Shelby GT350R 2020
Ford Mustang Shelby GT500 2020
Ford Mustang Shelby GT500 2021
Ford Mustang Shelby GT500 2022
Ford Mustang V6 2015
Ford Mustang V6 2016
Ford Mustang V6 2017

Additional information

Weight 4.5 lbs
Dimensions 14.2 × 4.1 × 4.1 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Unknown
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

SPL RTAEL S550
brand

SPL Parts
part_number

SPL RTAEL S550
