HomeShopSuspension Arms & ComponentsSPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX – Adjustable RLL by SPL Parts
Sale

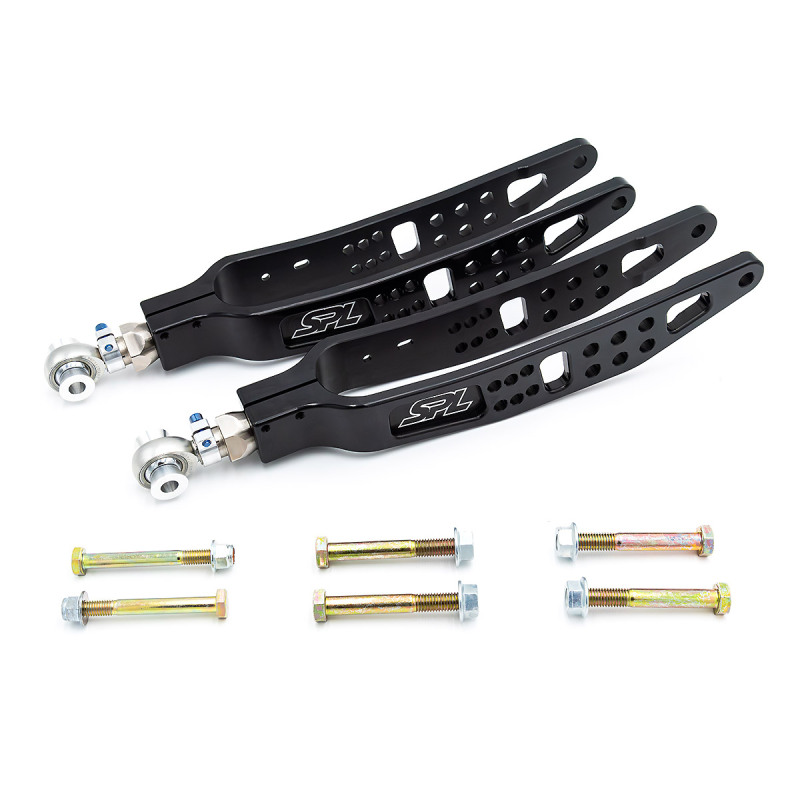

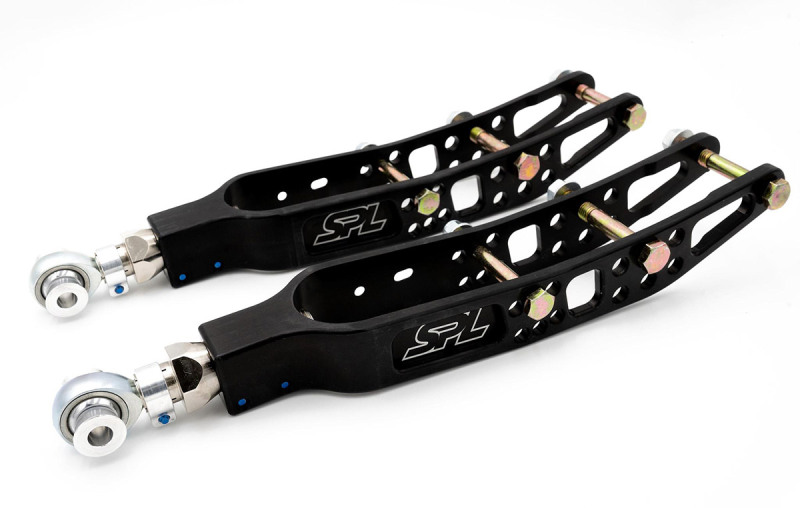

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts

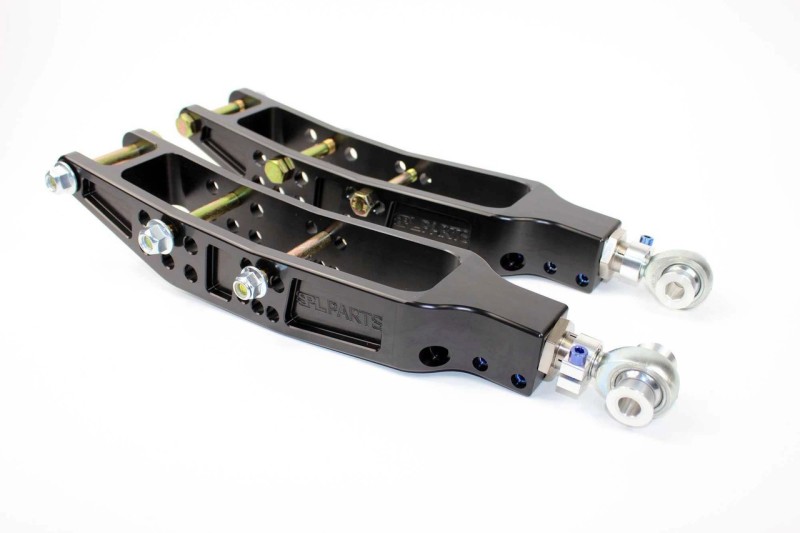

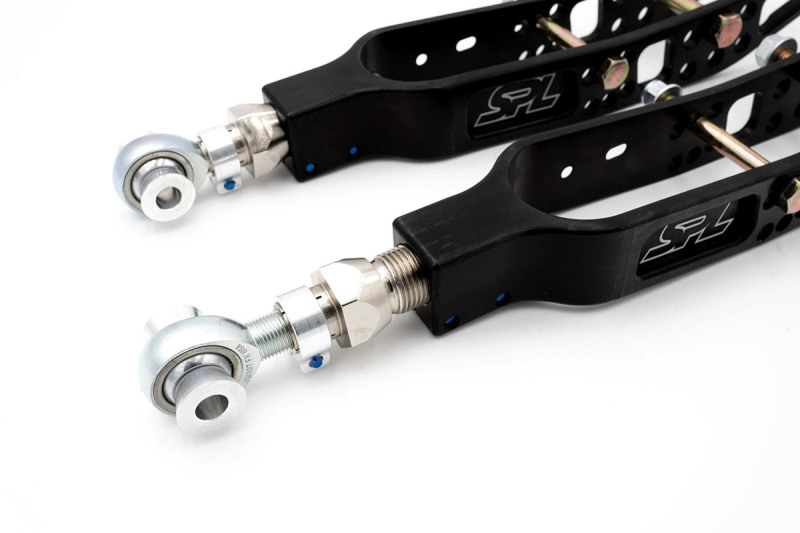

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 2

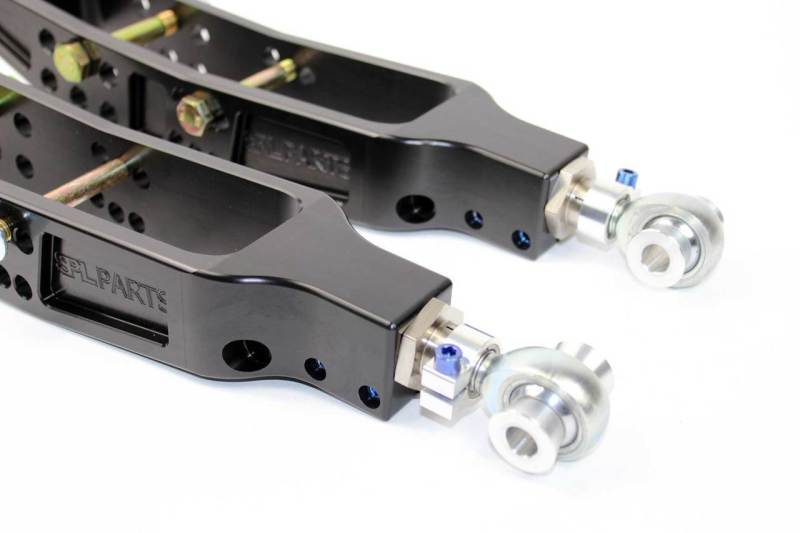

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 3

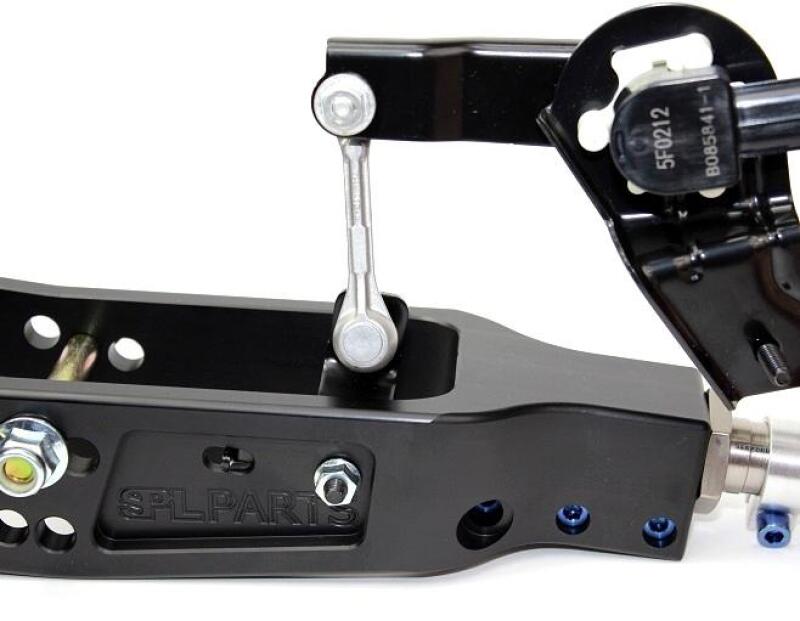

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 4
SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 5

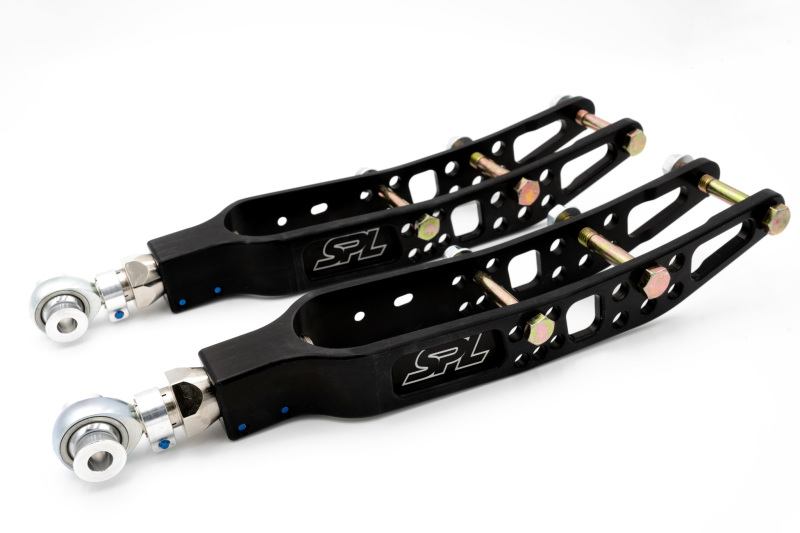

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 6
SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 7

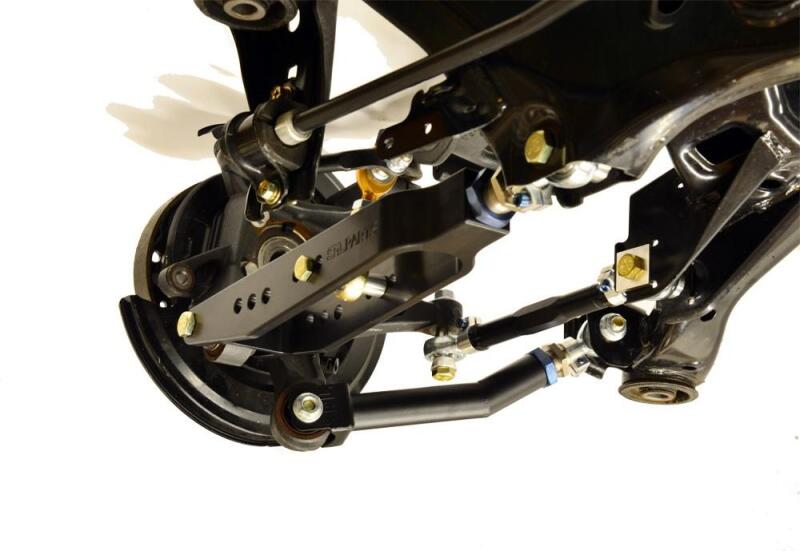

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 8
SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 9
SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX - Adjustable RLL by SPL Parts - Image 10

SPL Parts Rear Lower Camber Arms for Subaru BRZ, Toyota 86, and WRX – Adjustable RLL by SPL Parts

SKU: SPL RLL FRS

Original price was: $769.00.Current price is: $692.10.

In stock

24 in stock

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver. Adjustable Motion Ratios The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting). Unrivaled Adjustability Range The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market. Benefits Large Range of Camber and Motion Ratio Adjustability Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM) Eliminates Camber Loss to Bushing Deflection Improves Suspension Response and Driving Feel Easier, On-Car Adjustment + No Jam Nuts Self-Cleaning, US Made, PTFE-Lined FK Bearings Materials 6061-T6 Aluminum Arms (Anodized Black) 6061-T6 Aluminum Spacers and 360º Clamps 4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated) Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue) SPL FR-S / BRZ / GT86 Rear Adjustable Camber Arms
  • Proudly made, engineered, and assembled in the USA.
Buy now
Add to wishlist Add to compare
Category: Tags: ,

Description

Enhance your vehicle’s handling with the SPL Parts Rear Lower Camber Arms (RLL), designed specifically for 2013+ Subaru BRZ, Toyota 86, and 2015+ Subaru WRX models. Crafted from high-quality 6061-T6 aluminum and chromoly steel, these arms offer superior strength and lightweight performance, reducing weight by approximately 17% compared to OEM components. The precision anodized black finish not only adds durability but also a sleek appearance to your suspension setup. These camber arms are engineered to significantly improve suspension response, lateral grip, and driver feedback by eliminating camber loss caused by bushing deflection and providing a more rigid connection in the rear suspension system. The use of PTFE-lined FK bearings ensures self-cleaning, smooth operation, and longevity, making them ideal for both street and track use. The SPL RLL arms are designed with adjustable mounting points, allowing for precise camber and motion ratio tuning without the need to swap springs or sway bars. The three-position mounting holes for sway bar endlinks and shock mounts facilitate quick adjustments to prevent endlink binding, enabling you to optimize your suspension characteristics for different driving conditions. With a total length adjustment of up to 1.375 inches, the arms provide an extensive range of camber and motion ratio customization, allowing for a tailored driving experience. These arms are built for easy on-car adjustments with no jam nuts required, simplifying setup changes and maintenance. The lightweight construction, combined with high-strength materials like titanium screws and anodized aluminum components, ensures durability and performance. Proudly made, engineered, and assembled in the USA, the SPL Rear Lower Camber Arms are a reliable upgrade to improve your vehicle’s handling dynamics and driving confidence.

Features:

  • Adjustable camber and motion ratios for precise suspension tuning
  • Constructed from lightweight, durable 6061-T6 aluminum and chromoly steel

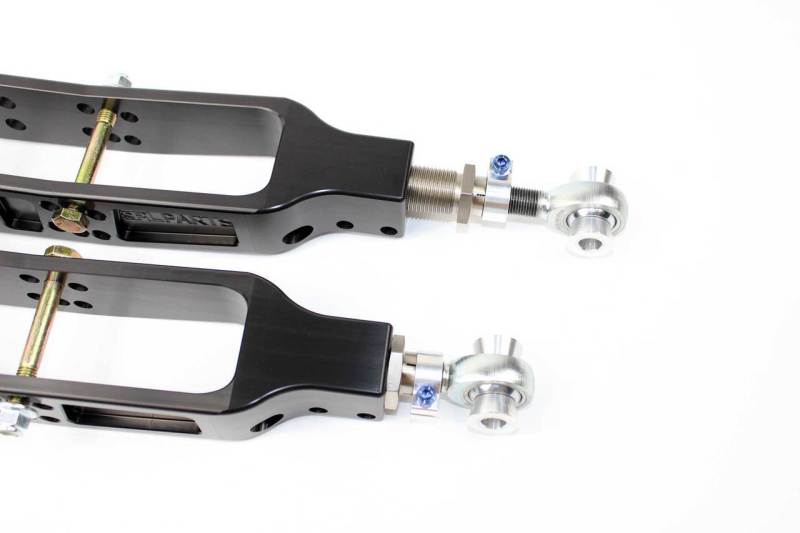

  • Large-diameter chromoly double adjuster with 1.375-inch total length adjustment

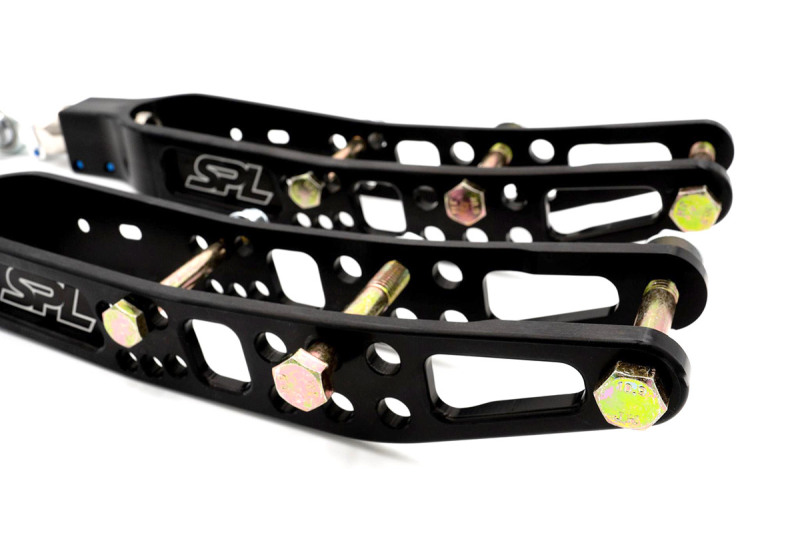

  • Three-position mounting holes for sway bar endlinks and shock mounts to prevent binding
  • Eliminates camber loss caused by bushing deflection for improved response
  • Self-cleaning PTFE-lined FK bearings for smooth operation and longevity
  • Easy on-car adjustment with no jam nuts required
  • Includes high-strength titanium screws and anodized components for durability
  • Designed specifically for 2013+ Subaru BRZ, Toyota 86, and 2015+ Subaru WRX models
  • Proudly made, engineered, and assembled in the USA

Fitment:
Scion FR-S Base 2013
Scion FR-S Base 2014
Scion FR-S Base 2015
Scion FR-S Base 2016
Subaru BRZ Limited 2013
Subaru BRZ Limited 2014
Subaru BRZ Limited 2015
Subaru BRZ Limited 2016
Subaru BRZ Limited 2017
Subaru BRZ Limited 2018
Subaru BRZ Limited 2019
Subaru BRZ Limited 2020
Subaru BRZ Premium 2013
Subaru BRZ Premium 2014
Subaru BRZ Premium 2015
Subaru BRZ Premium 2016
Subaru BRZ Premium 2017
Subaru BRZ Premium 2018
Subaru BRZ Premium 2019
Subaru BRZ Series.Blue 2015
Subaru BRZ Series.Gray 2019
Subaru BRZ Series.HyperBlue 2016
Subaru BRZ Series.Yellow 2017
Subaru BRZ TS 2018
Subaru BRZ TS 2020
Subaru Impreza WRX 2008
Subaru Impreza WRX 2009
Subaru Impreza WRX 2010
Subaru Impreza WRX 2011
Subaru Impreza WRX 2012
Subaru Impreza WRX 2013
Subaru Impreza WRX 2014
Subaru Impreza WRX STI 2008
Subaru Impreza WRX STI 2009
Subaru Impreza WRX STI 2010
Subaru Impreza WRX STI 2011
Subaru Impreza WRX STI 2012
Subaru Impreza WRX STI 2013
Subaru WRX Base 2015
Subaru WRX Base 2016
Subaru WRX Base 2017
Subaru WRX Base 2018
Subaru WRX Base 2019
Subaru WRX Base 2020
Subaru WRX Base 2021
Subaru WRX Limited 2015
Subaru WRX Limited 2016
Subaru WRX Limited 2017
Subaru WRX Limited 2018
Subaru WRX Limited 2019
Subaru WRX Limited 2020
Subaru WRX Limited 2021
Subaru WRX Premium 2015
Subaru WRX Premium 2016
Subaru WRX Premium 2017
Subaru WRX Premium 2018
Subaru WRX Premium 2019
Subaru WRX Premium 2020
Subaru WRX Premium 2021
Subaru WRX STI Base 2015
Subaru WRX STI Base 2016
Subaru WRX STI Base 2017
Subaru WRX STI Base 2018
Subaru WRX STI Base 2019
Subaru WRX STI Base 2020
Subaru WRX STI Base 2021
Subaru WRX STI Launch Edition 2015
Subaru WRX STI Limited 2015
Subaru WRX STI Limited 2016
Subaru WRX STI Limited 2017
Subaru WRX STI Limited 2018
Subaru WRX STI Limited 2019
Subaru WRX STI Limited 2020
Subaru WRX STI Limited 2021
Subaru WRX STI S209 2019
Subaru WRX STI Series.HyperBlue 2016
Subaru WRX STI Type RA 2018
Toyota 86 Base 2017
Toyota 86 Base 2018
Toyota 86 Base 2019
Toyota 86 Base 2020
Toyota 86 GT 2018
Toyota 86 GT 2019
Toyota 86 GT 2020
Toyota 86 Hakone Edition 2020
Toyota 86 Special Edition 2017
Toyota 86 TRD Special Edition 2019
Toyota GR86 10th Anniversary Special Edition 2023
Toyota GR86 Base 2022
Toyota GR86 Base 2023
Toyota GR86 Base 2024
Toyota GR86 Premium 2022
Toyota GR86 Premium 2023
Toyota GR86 Premium 2024

Additional information

Weight 7.8 lbs
Dimensions 19.9 × 5.9 × 5.5 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Unknown
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

SPLRLLFRS
brand

SPL Parts
part_number

SPL RLL FRS
