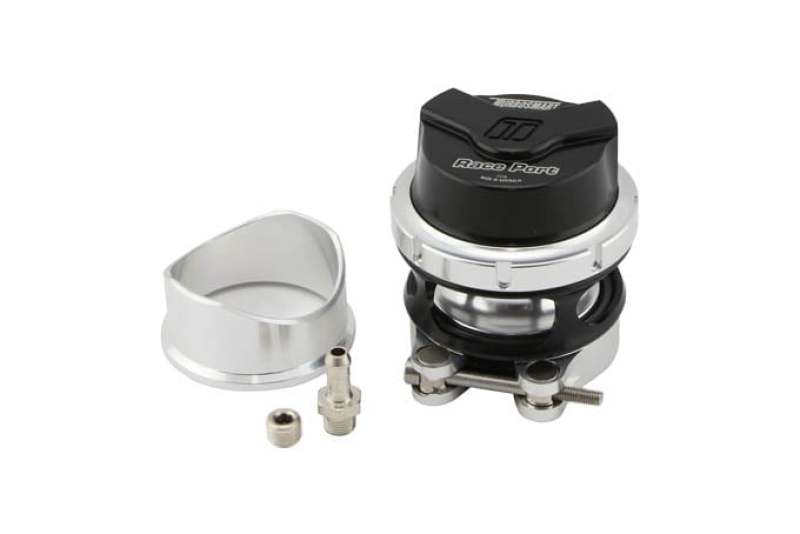

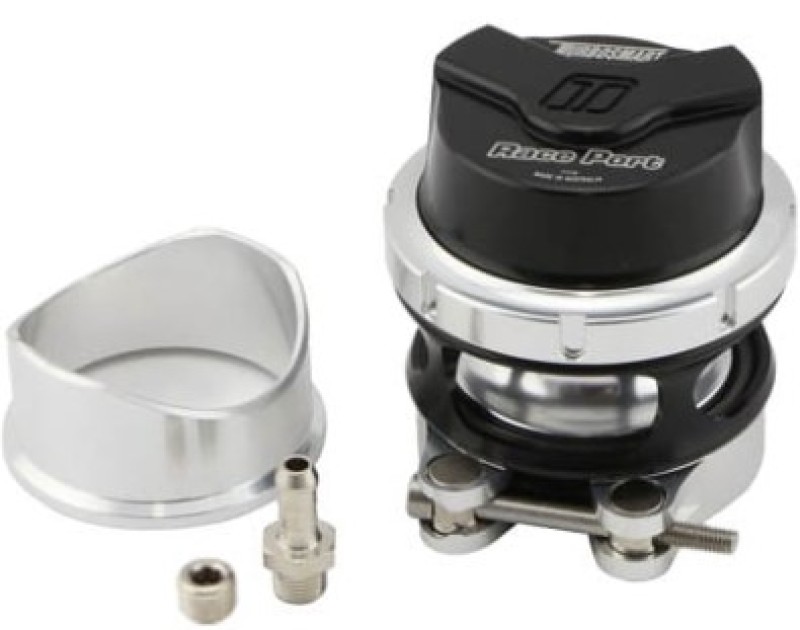

Turbosmart RacePort Series BOV Gen V for Supercharged Engines – Part TS-0204-1152

Description

The Turbosmart RacePort Series BOV Gen V is engineered for competition-level supercharged engines, offering an unrivaled combination of compact size and lightweight design. Featuring a billet 6000 series aluminum construction and a milspec hard-anodized valve guide and stem, this blow-off valve ensures durability and reliable performance under demanding conditions. Its innovative collar design and internal flow structures enable it to flow over 330 CFM, making it the highest-flowing BOV of its type on the market. This high flow rate helps improve throttle response and turbo efficiency, especially in high-performance applications. The RacePort’s quick-release aluminum V-band collar simplifies installation and removal, while the boost balance technology maintains stable operation across various boost levels. An optional valve position sensor upgrade provides additional precision for tuning and monitoring. The soft 4 InHg spring is specifically designed for supercharged systems, allowing the BOV to stay idle when the supercharger produces boost, preventing unwanted compressor surge and improving overall engine response. Twin 1/8″ NPT reference ports facilitate easy integration with existing boost control systems, and the positive sealing valve seat ensures consistent operation. Designed with high-temperature silicone Nomex diaphragms, this BOV can withstand extreme conditions, making it suitable for serious performance applications. The RacePort Series BOV is not CARB approved and requires acknowledgment of Prop 65 compliance, ensuring transparency for environmentally conscious users. Whether for racing or high-performance street use, this BOV from Turbosmart provides superior flow, durability, and ease of installation, making it an ideal choice for enthusiasts seeking maximum performance from their supercharged engines.

Features:

• High-flow design: Flows over 330 CFM for maximum performance

• Lightweight and compact: 50% lighter and 25% smaller than competitors

• Durable construction: Billet 6000 series aluminum with milspec hard-anodized valve guide and stem

• Quick-release V-band collar: Facilitates easy installation and removal

• Boost-specific spring: Soft 4 InHg spring optimized for supercharged applications

• Internal flow structure: Enhances airflow and response

• Twin 1/8″ NPT reference ports: Supports boost control system integration

• Positive sealing valve seat: Ensures consistent operation under high pressure

• High-temperature silicone Nomex diaphragm: Withstands extreme conditions

• Optional valve position sensor: Enables precise monitoring and tuning

• Prop 65 compliant: Meets environmental safety standards

• Not CARB approved: Suitable for off-road or racing use
