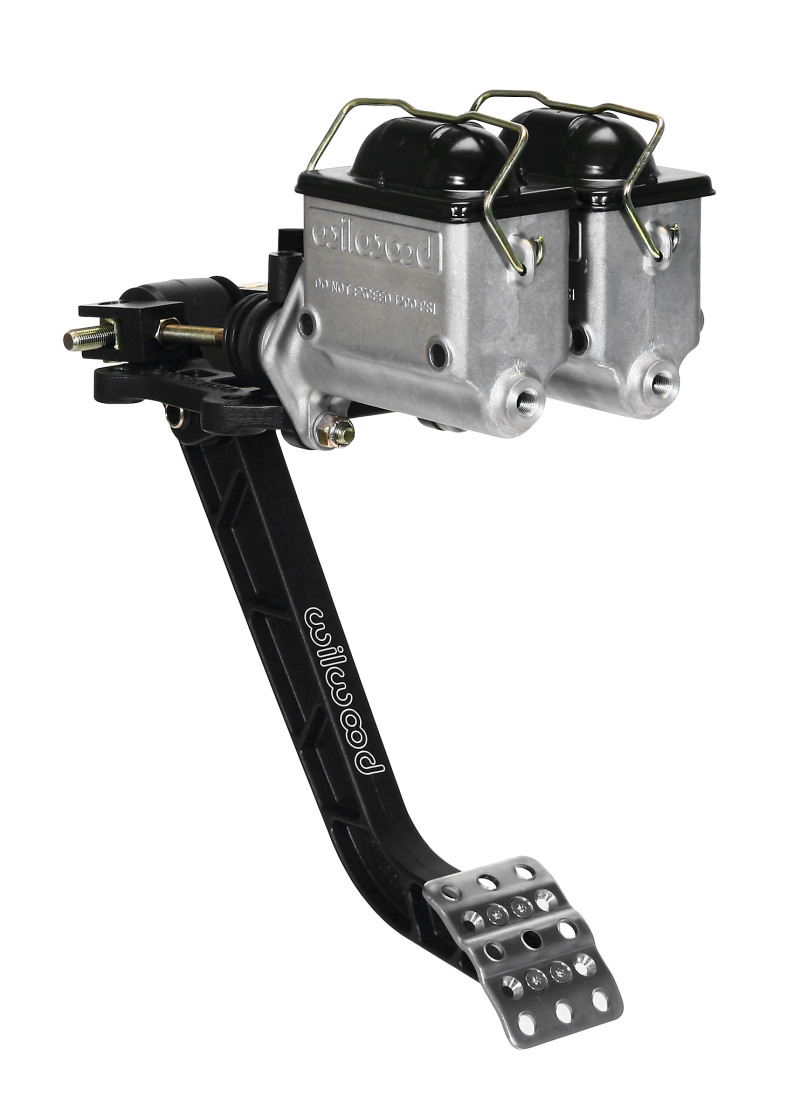

Wilwood Adjustable Brake Pedal Assembly with Dual Master Cylinders – Part 340-12509

Description

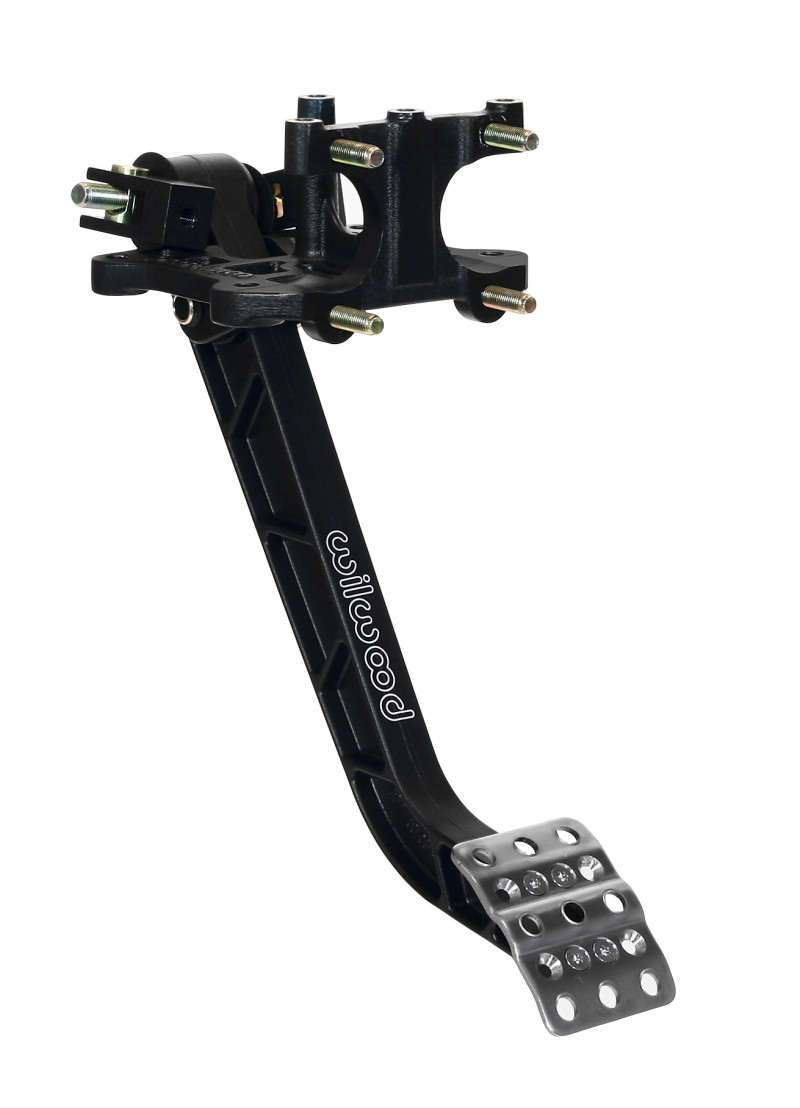

The Wilwood Adjustable Brake Pedal Assembly (Part 340-12509) is designed for high-performance automotive applications, providing reliable and customizable braking control. This swinging mount pedal assembly allows for the mounting of two single outlet brake master cylinders in a reverse position inside the firewall, optimizing space and accessibility in your vehicle. The lightweight aluminum frame ensures durability without adding unnecessary weight, while the high-strength reinforced I-Beam style forged pedal arm offers a precise 6.25:1 ratio for effective braking response. The non-skid waffled pedal pad can be laterally adjusted, allowing drivers to customize pedal position for comfort and clearance, enhancing overall control during operation. The balance bar incorporates a positive detent stop every full turn, maintaining consistent adjustment positions and increasing driver awareness during use. This feature ensures that adjustments stay in place during aggressive driving or track sessions. The pin and clevis pushrod attachment system provides maximum misalignment angle, resulting in bind-free operation throughout the pedal’s entire range of travel, reducing pedal effort and increasing reliability. The included jam nut allows the balance bar to be locked securely in place, or it can be used with an optional remote cable for quick and easy on-track adjustments, making it ideal for racing environments. This pedal assembly is compatible with any Wilwood vertical mount flange single outlet master cylinders, which are ordered separately based on style and bore size, offering versatility for various braking setups. Whether upgrading your race car or customizing a high-performance street vehicle, this assembly delivers precision, durability, and ease of adjustment to meet demanding driving needs.

Features:

• Swings mount pedal assembly for flexible installation inside the firewall

• Lightweight aluminum frame for durability and reduced weight

• High-strength reinforced I-Beam style forged pedal arm with 6.25:1 ratio for effective braking

• Lateral adjustable non-skid waffled pedal pad for driver comfort

• Positive detent stop on balance bar for consistent adjustments

• Pin and clevis pushrod system allows high misalignment angle for bind-free operation

• Includes jam nut to lock balance bar in position or compatible with optional remote cable for quick adjustments

• Compatible with Wilwood vertical mount flange single outlet master cylinders, sold separately
