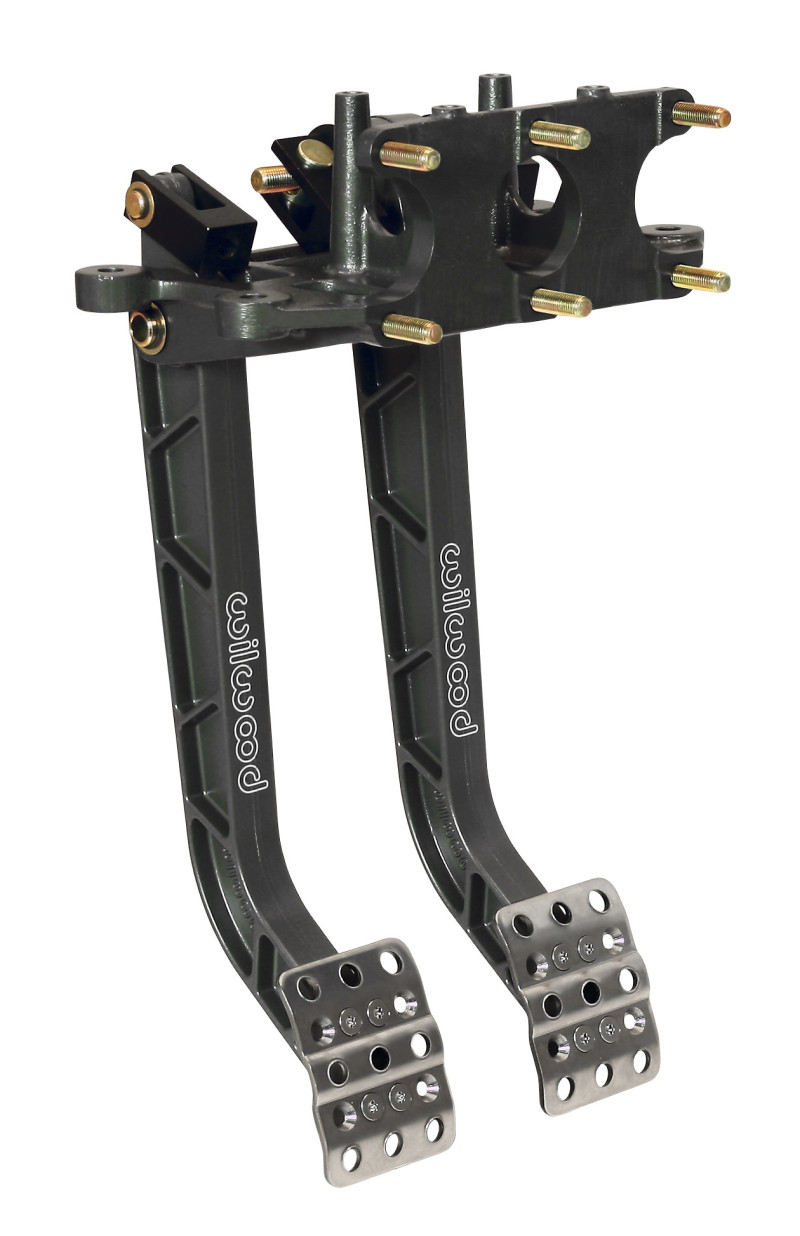

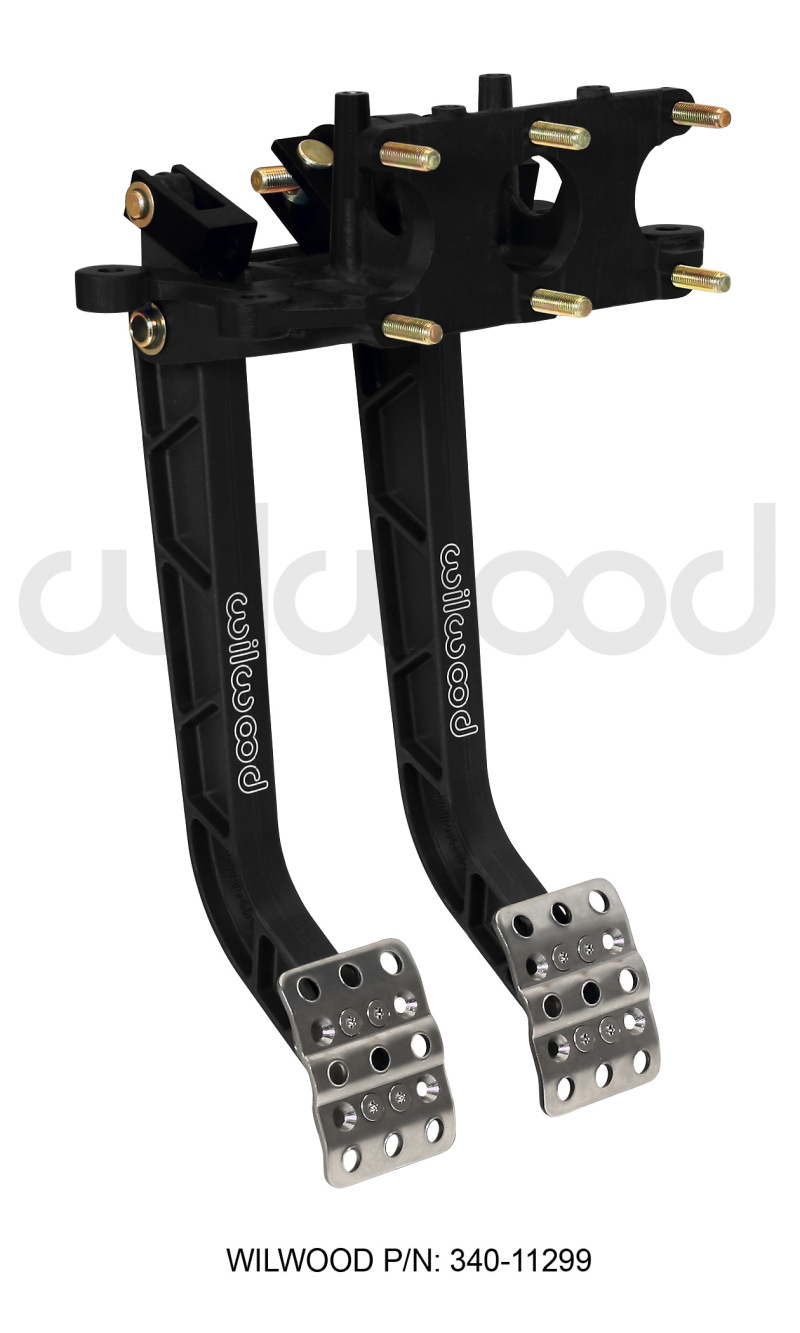

Wilwood Adjustable Dual Pedal Assembly with Swing Mount for Brake and Clutch – Part Number 340-11299

Description

The Wilwood Adjustable Dual Pedal Assembly (Part Number 340-11299) offers a versatile and high-performance solution for custom automotive applications. Designed to combine the brake and clutch pedals into a single, streamlined unit, this assembly features a lightweight aluminum frame that provides durability without adding unnecessary weight. The high-strength reinforced I-Beam style pedal arms with a 6.25:1 ratio deliver precise and responsive pedal feel, making it ideal for racing and high-performance vehicles. The non-skid waffled pedal pads can be laterally adjusted to suit driver preferences or to accommodate clearance requirements, enhancing comfort and control during operation. The pedal assembly includes a balance bar with a positive detent stop that maintains the chosen adjustment position, ensuring consistent pedal feel and driver awareness. The pin and clevis pushrod attachment system allows for a high degree of misalignment angle, providing bind-free operation across the entire range of pedal travel. This feature minimizes wear and maximizes responsiveness. The balance bar can be securely locked in place with the included jam nut or adapted with an optional remote cable for quick on-track adjustments, offering convenience during racing events. Compatible with any Wilwood vertical mount flange single outlet master cylinders, this pedal assembly is suitable for a wide range of custom setups and performance builds. Its robust construction, adjustable features, and flexible configuration make it an excellent choice for race cars, street rods, and other performance vehicles seeking reliable pedal operation and customization options.

Features:

• Lightweight aluminum frame for durability and reduced weight

• High-strength reinforced I-Beam style pedal arms with 6.25:1 ratio for precise control

• Non-skid waffled pedal pads with lateral adjustability for driver comfort

• Balance bar with positive detent stop to maintain adjustment settings

• Pin and clevis pushrod attachment for maximum misalignment angle and bind-free operation

• Adjustable balance bar with optional remote cable for quick on-track adjustments

• Compatible with Wilwood vertical mount flange single outlet master cylinders
