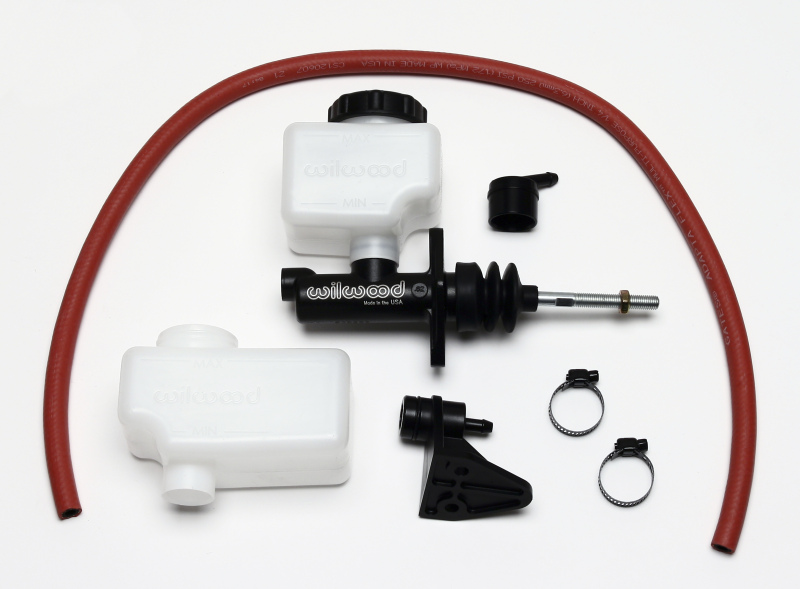

Wilwood Compact Combination Master Cylinder Kit 5/8 Inch Bore – Part #260-10371

Description

The Wilwood Compact Combination Master Cylinder Kit, part number 260-10371, is engineered for limited space automotive applications that demand the performance of a full-size master cylinder. Its ultra short 3.37-inch compact body provides an additional 2.16 inches of clearance between the mounting flange and the fluid outlet, facilitating easier installation in tight engine bays and confined spaces. The master cylinder features a piston stroke of 1.12 inches, ensuring reliable brake system operation that meets or exceeds the stroke capacity of many full-sized cylinders. This design improves braking response and pedal feel, making it suitable for a wide range of automotive builds and retrofit projects. The fluid outlet port, sized at 1/8 inch NPT and positioned at the top radius of the cylinder bore, minimizes trapped air and promotes smoother fluid flow, contributing to more consistent brake performance. The enhanced fluid inlet port allows for mounting the included standard reservoir and also incorporates 11/16-20 internal threads for custom reservoir configurations. Constructed from black E-coated aluminum, the master cylinder offers excellent corrosion resistance and long-lasting durability, ensuring reliable operation under demanding conditions. Whether upgrading a performance vehicle or fitting a custom brake system, this compact master cylinder delivers high efficiency without sacrificing space or reliability.

Features:

• Ultra short 3.37-inch compact body for space-saving installation

• Provides 2.16 inches additional clearance between flange and outlet

• 1.12-inch piston stroke exceeds most full-size cylinders

• Top radius 1/8 inch NPT fluid outlet port reduces trapped air

• Enhanced fluid inlet port supports standard reservoir and custom configurations

• Black E-coated aluminum body resists corrosion and ensures durability
